WU90L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

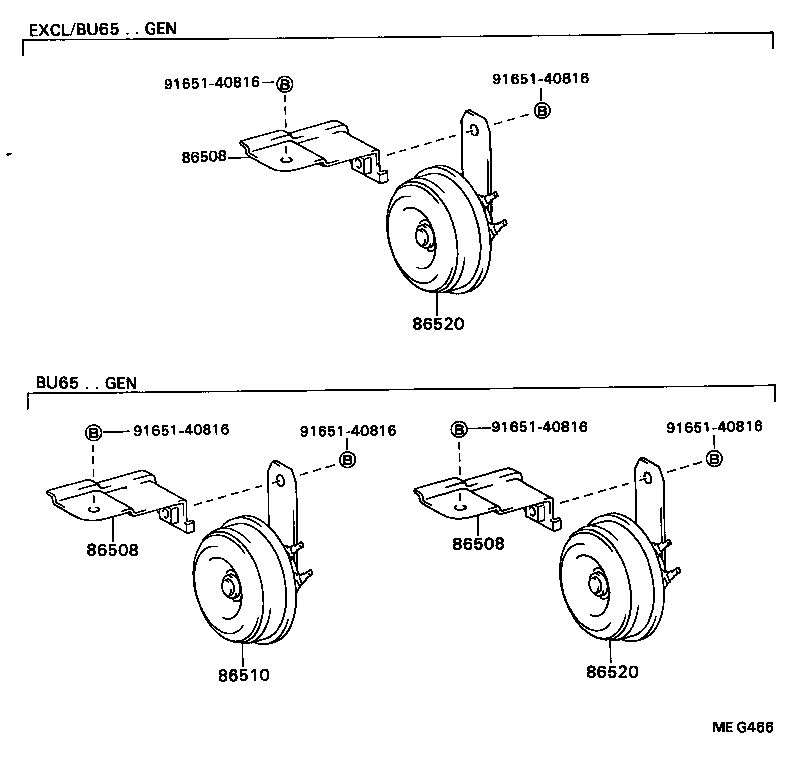

Click highlighted areas on diagram

diagram 86508 86508 86508 86510 86520 86520 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
86508 - BRACKET SUB-ASSY, HORN
86591-95403

RU75,85,WU9#

 1
86508 - BRACKET SUB-ASSY, HORN
86591-95403

RU75,85,WU9#

 1
86508 - BRACKET SUB-ASSY, HORN
86591-95403

RU75,85,WU9#

 1
86520 - HORN ASSY, LOW PITCHED
86520-95415

RU75,85,WU9#,YU6#,70,80..GEN

12V

 1
86520-95418

RU75,85,WU9#,YU6#,70,80..GEN

W/AM/SW RADIO (W/NOISE FILTER)

 1
86520-95421

RU75,85,WU9#,YU6#,7#,8#..GEN

W/AM/SW RADIO (W/NOISE FILTER)

 1
86520-95423

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN

12V

 1
86520-95417

RU75,85,WU9#,YU6#,7#,8#..GEN

12V,POWERFULL TYPE

 1
86520-95411

WU90..LHD

24V,CHINA SPEC

 1
86520-95424

WU90..LHD

24V,CHINA SPEC

 1
86520 - HORN ASSY, LOW PITCHED
86520-95415

RU75,85,WU9#,YU6#,70,80..GEN

12V

 1
86520-95418

RU75,85,WU9#,YU6#,70,80..GEN

W/AM/SW RADIO (W/NOISE FILTER)

 1
86520-95421

RU75,85,WU9#,YU6#,7#,8#..GEN

W/AM/SW RADIO (W/NOISE FILTER)

 1
86520-95423

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN

12V

 1
86520-95417

RU75,85,WU9#,YU6#,7#,8#..GEN

12V,POWERFULL TYPE

 1
86520-95411

WU90..LHD

24V,CHINA SPEC

 1
86520-95424

WU90..LHD

24V,CHINA SPEC

 1
Common parts
91651-40816
