WU90L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )RU75,85,WU9#

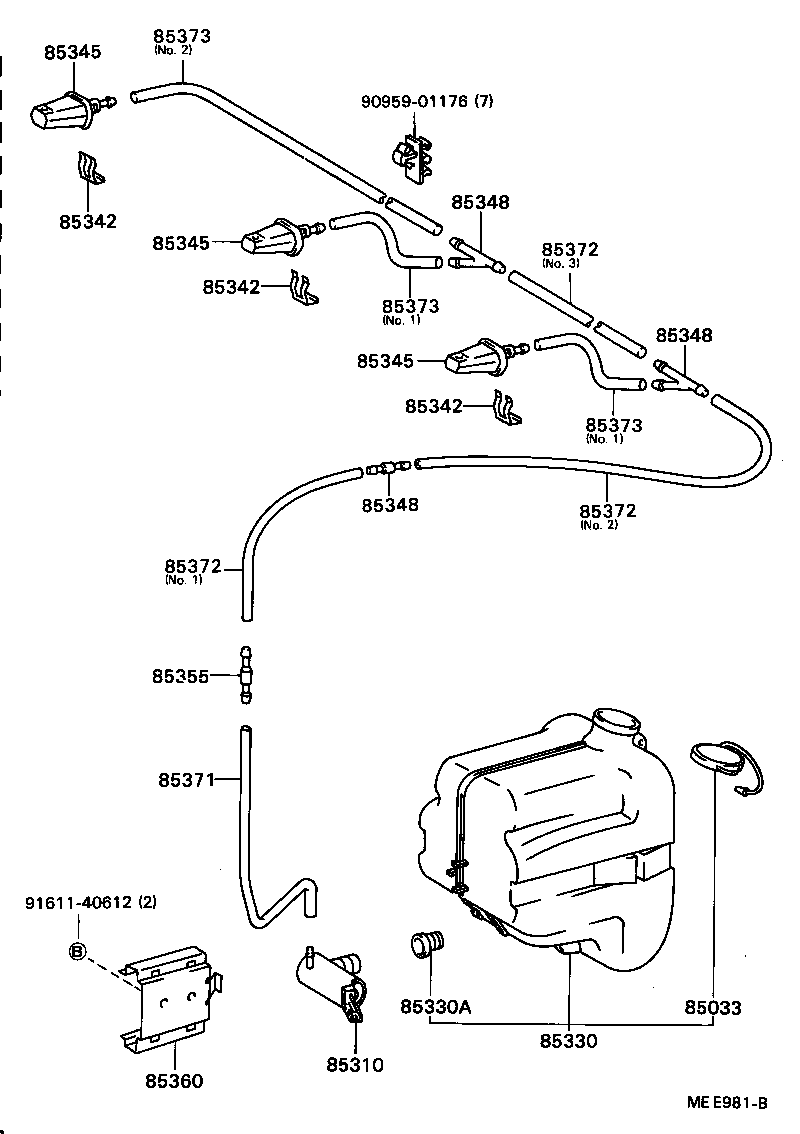

Click highlighted areas on diagram

diagram 85033 85310 85330 85330A 85342 85342 85342 85345 85345 85345 85348 85348 85348 85355 85360 85371 85372 85372 85372 85373 85373 85373 9095901176 9161140612
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85033-36120

RU75,85,WU9#,YU6#,7#,8#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-90B00

WU9#..LHD

CHINA OR ALGERIA SPEC

 1
85310-22080

RU75,85,WU9#,YU6#,7#,8#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-25040

RU75,85,WU9#,YU6#,7#,8#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

RU75,85,WU9#,YU6#,7#,8#

 1
85342 - HOLDER, WASHER NOZZLE
85342-95J01

RU75,85,WU9#,YU6#,7#,8#

 3
85342 - HOLDER, WASHER NOZZLE
85342-95J01

RU75,85,WU9#,YU6#,7#,8#

 3
85342 - HOLDER, WASHER NOZZLE
85342-95J01

RU75,85,WU9#,YU6#,7#,8#

 3
85345 - NOZZLE, WINDSHIELD WASHER
85035-95708

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

 3
85035-95708

RU75,85,WU9#,YU6#,70,80

 3
85345 - NOZZLE, WINDSHIELD WASHER
85035-95708

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

 3
85035-95708

RU75,85,WU9#,YU6#,70,80

 3
85345 - NOZZLE, WINDSHIELD WASHER
85035-95708

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

 3
85035-95708

RU75,85,WU9#,YU6#,70,80

 3
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

RU75,85,WU9#,YU6#,7#,8#

3-WAY

 2
85349-89122

RU75,85,WU9#,YU60,61,70,80

2-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

RU75,85,WU9#,YU6#,7#,8#

3-WAY

 2
85349-89122

RU75,85,WU9#,YU60,61,70,80

2-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

RU75,85,WU9#,YU6#,7#,8#

3-WAY

 2
85349-89122

RU75,85,WU9#,YU60,61,70,80

2-WAY

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85349-89122

RU75,85,WU9#,YU6#,71,81

 1
85355-87201

RU75,85,WU9#,YU6#,7#,8#

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-95400

RU75,85,WU9#,YU6#,7#,8#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

RU75,85,WU9#,YU6#,7#,8#

*H,L=200

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33142

RU75,85,WU9#,YU6#,7#,8#

L=130,NO.1

 1
90446-06013

RU75,85,WU9#

*H,L=400,NO.3,NO.2

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33142

RU75,85,WU9#,YU6#,7#,8#

L=130,NO.1

 1
90446-06013

RU75,85,WU9#

*H,L=400,NO.3,NO.2

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33142

RU75,85,WU9#,YU6#,7#,8#

L=130,NO.1

 1
90446-06013

RU75,85,WU9#

*H,L=400,NO.3,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

RU75,85,WU9#

*H,L=620,NO.2

 1
90446-06013

RU75,85,WU9#,YU6#,7#,8#

*H,L=100,NO.1

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

RU75,85,WU9#

*H,L=620,NO.2

 1
90446-06013

RU75,85,WU9#,YU6#,7#,8#

*H,L=100,NO.1

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

RU75,85,WU9#

*H,L=620,NO.2

 1
90446-06013

RU75,85,WU9#,YU6#,7#,8#

*H,L=100,NO.1

 2
Common parts
90959-01176
91611-40612
