WU90L-MDDT3 (1984)
Toyota Dyna

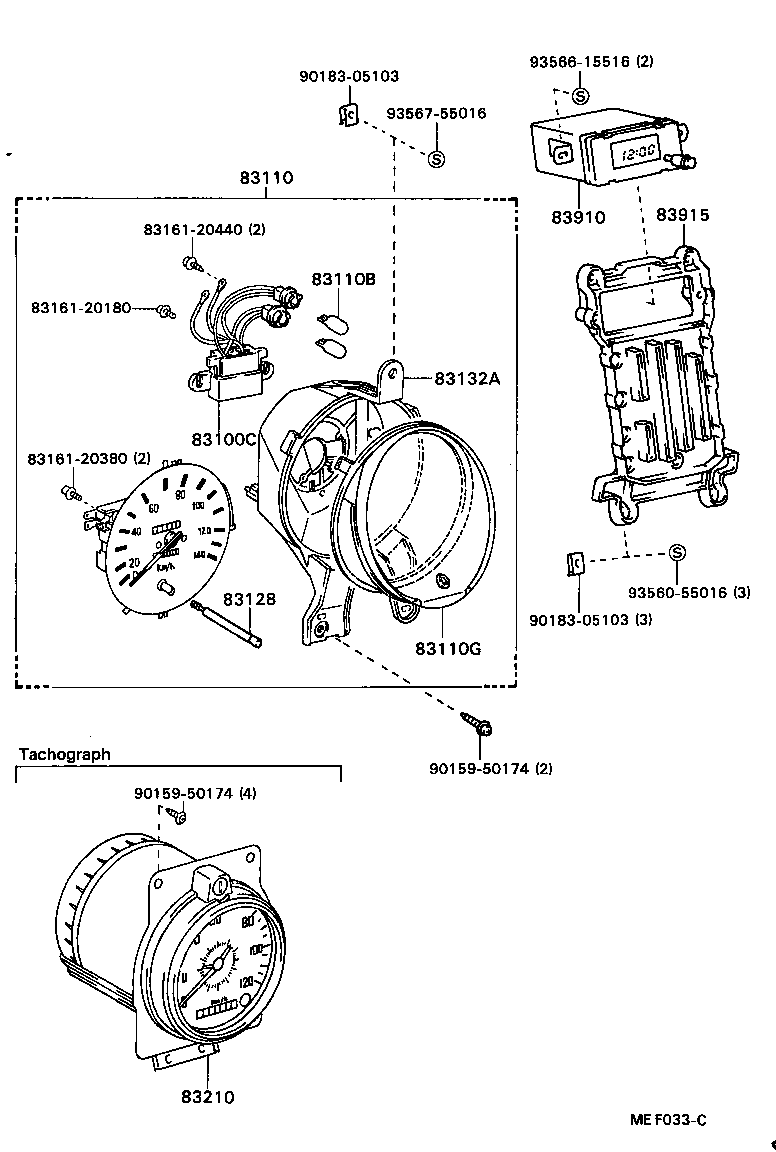

ILLUST NO. 1 OF 4(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 83101-95407 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 83101-95405 |
WU9#..LHD *SAA |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95440 |
WU9#..LHD 24V,KM,CHINA OR ALGERIA SPEC |
1 | ||
| 83110-95444 |
WU9#..LHD 12V,KM,*SAA OR GULF |
1 | ||
| 83110-95442 |
RU75,85,WU9#,YU6#,7#,8#..GEN 12V,KM & MILE |
1 | ||
| 83110-95441 |
RU75,85,WU9#,YU6#,7#,8#..EUR,GEN,SA 12V,KM |
1 | ||
| 83110B - BULB, SPEEDOMETER | ||||
| 99134-12030 |
WU9#..LHD 24V 3.0W,CHINA OR ALGERIA SPEC |
2 | ||
| 99132-12034 |
RU75,85,WU9#,YU6#,7#,8# 12V 3.4W |
2 | ||
| 83110G - GLASS, SPEEDOMETER | ||||
| 83134-95406 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89300 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-95403 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 83210 - TACHOGRAPH ASSY | ||||
| 83210-95412 |
WU9#..LHD..IV3 1-DAY,POLTUGAL SPEC |
1 | ||
| 83210-95410 |
WU9#..LHD..IV3 1-WEEK,POLTUGAL SPEC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95403 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 83910-95402 |
WU9#..LHD CHINA OR ALGERIA SPEC |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 55912-95404 |
RU75,85,WU9#,YU6#,7#,8#..GEN W/O HEATER OR *BV |
1 | ||
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| 93566-15516 | ||||
| 93567-55016 | ||||

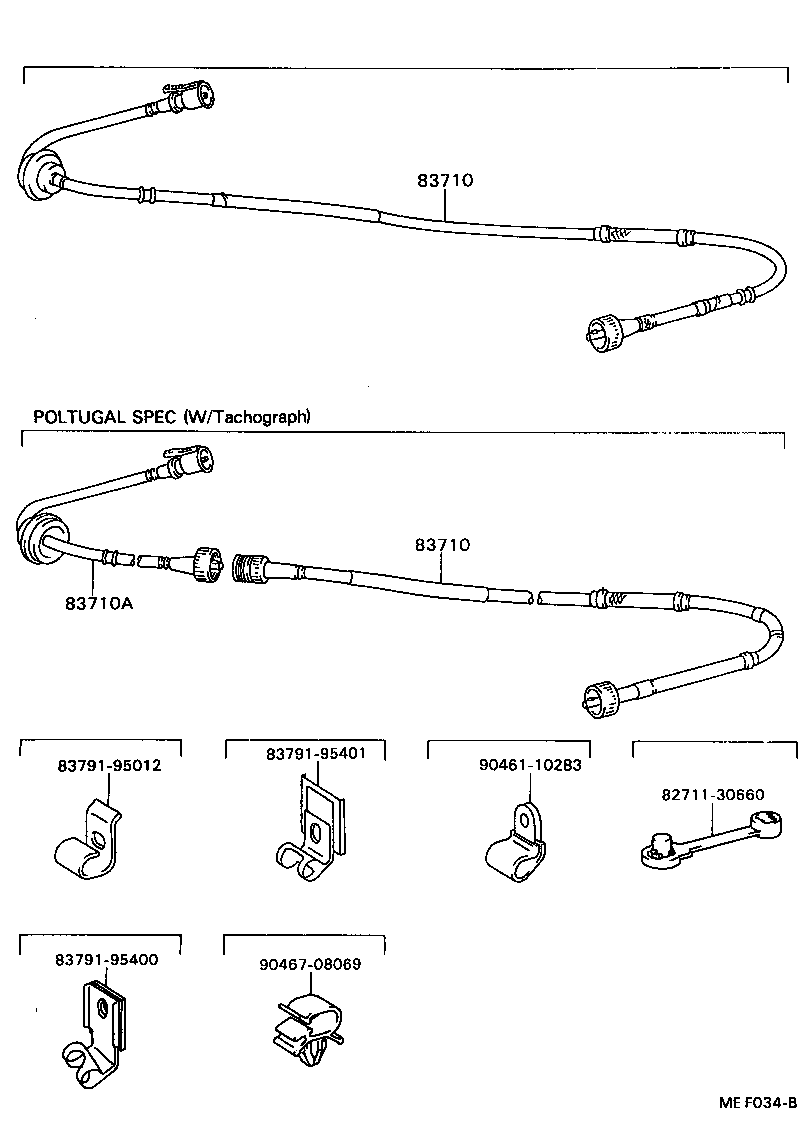

ILLUST NO. 3 OF 4(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95447 |
RU75,85,WU9#..LHD |
1 | ||
| 83710-95448 |
WU9#..LHD..IV3 POLTUGAL SPEC |
1 | ||
| 83710-95457 |
RU75,85,WU9#..LHD |
1 | ||
| 83710-95458 |
WU9#..LHD..IV3 POLTUGAL SPEC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95447 |
RU75,85,WU9#..LHD |
1 | ||
| 83710-95448 |
WU9#..LHD..IV3 POLTUGAL SPEC |
1 | ||
| 83710-95457 |
RU75,85,WU9#..LHD |
1 | ||
| 83710-95458 |
WU9#..LHD..IV3 POLTUGAL SPEC |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83720-95405 |
WU9#..LHD..IV3 POLTUGAL SPEC |
1 | ||
| Common parts | ||||
| 82711-30660 | ||||
| 83791-95012 | ||||
| 83791-95400 | ||||
| 83791-95401 | ||||
| 90461-10283 | ||||
| 90467-08069 | ||||
ILLUST NO. 4 OF 4(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-36010 |
WU9#..ARL,GEN |
1 | ||

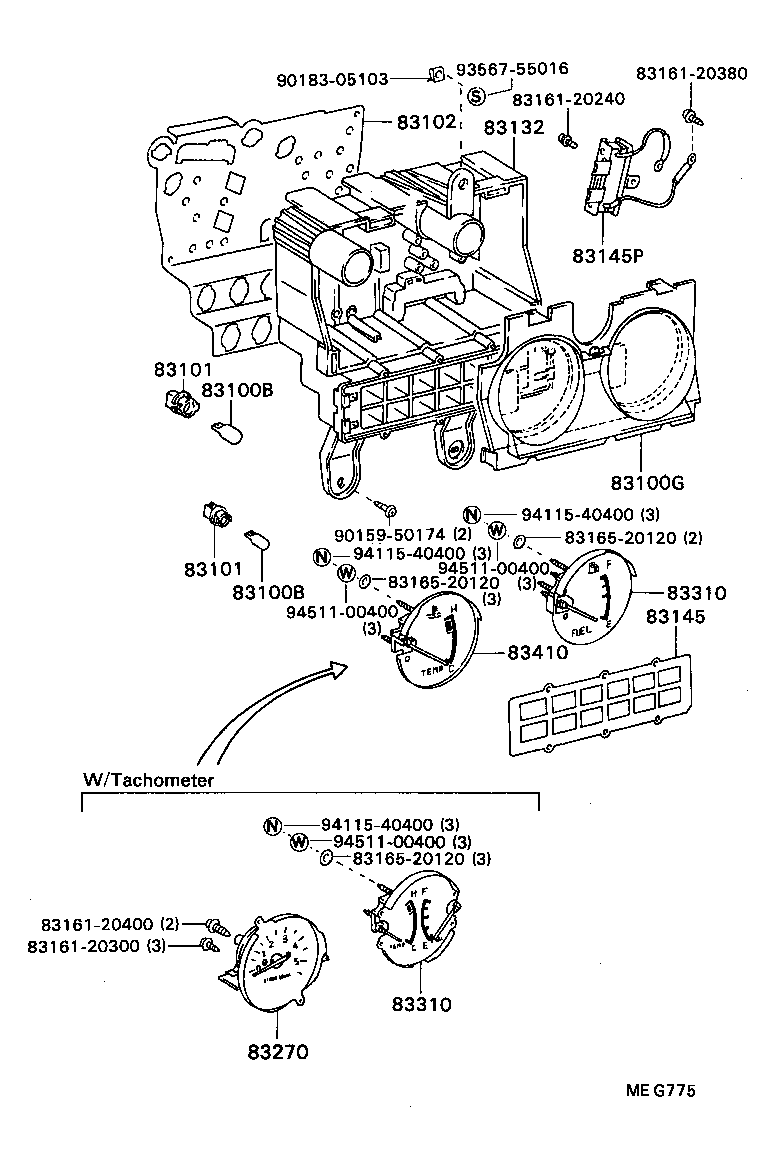

ILLUST NO. 2 OF 4(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RU75,85,WU9#,YU6#,7#,8# 12V 1.2W W/O SOCKET,12V 1.4W |
3 | ||
| 99132-12034 |
RU75,85,WU9#,YU6#,7#,8# 12V 3.4W,12V 3.4W |
10 | ||
| 99134-12030 |
WU9#..LHD 24V 3W,24V 3.0W,CHINA OR ALGERIA SPEC |
10 | ||
| 90981-11022 |
WU9#..LHD 24V 1.4W,24V 1.4W,CHINA OR ALGERIA SPEC |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RU75,85,WU9#,YU6#,7#,8# 12V 1.2W W/O SOCKET,12V 1.4W |
3 | ||
| 99132-12034 |
RU75,85,WU9#,YU6#,7#,8# 12V 3.4W,12V 3.4W |
10 | ||
| 99134-12030 |
WU9#..LHD 24V 3W,24V 3.0W,CHINA OR ALGERIA SPEC |
10 | ||
| 90981-11022 |
WU9#..LHD 24V 1.4W,24V 1.4W,CHINA OR ALGERIA SPEC |
3 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-92600 |
RU75,85,WU9#,YU6#,70,80 W/TACHOMETER |
1 | ||
| 83134-92600 |
RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA W/TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
WU9#..LHD BULB:24V 1.4W,CHINA OR ALGERIA |
3 | ||
| 83101-14040 |
RU75,85,WU9#,YU6#,7#,8# BULB:12V 1.4W |
3 | ||
| 83101-20040 |
RU75,85,WU9#,YU6#,7#,8# BULB:12V 3.4W |
10 | ||
| 83101-89101 |
WU9#..LHD BULB:24V 3.0W,CHINA OR ALGERIA |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
WU9#..LHD BULB:24V 1.4W,CHINA OR ALGERIA |
3 | ||
| 83101-14040 |
RU75,85,WU9#,YU6#,7#,8# BULB:12V 1.4W |
3 | ||
| 83101-20040 |
RU75,85,WU9#,YU6#,7#,8# BULB:12V 3.4W |
10 | ||
| 83101-89101 |
WU9#..LHD BULB:24V 3.0W,CHINA OR ALGERIA |
10 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95420 |
WU90..LHD 24V,CHINA SPEC |
1 | ||
| 83247-95422 |
WU9#..ARL,GEN |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-92602 |
RU75,85,WU9#,YU6#,70,80 W/TACHOMETER |
1 | ||
| 83132-92602 |
RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA W/TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95429 |
WU90..LHD CHINA SPEC,W/*EB |
1 | ||
| 83145-95441 |
WU90..LHD OMAN SPEC |
1 | ||
| 83145-95431 |
WU9#..GEN,SA |
1 | ||
| 83145-95441 |
WU9#..LHD *SAA |
1 | ||
| 83145P - DROPPER, METER | ||||
| 83131-95401 |
WU90..LHD 24V,CHINA SPEC |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-95402 |
WU9#..ARL,GEN |
1 | ||
| 83242-95403 |
WU90..LHD CHINA SPEC |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95406 |
WU9#..GEN W/TACHOMETER |
1 | ||
| 83243-95407 |
WU9#..GEN W/TACHOMETER,*ME OR OMAN SPEC |
1 | ||
| 83243-95405 |
RU85,WU9#..GEN,SA |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95406 |
WU9#..GEN W/TACHOMETER |
1 | ||
| 83243-95407 |
WU9#..GEN W/TACHOMETER,*ME OR OMAN SPEC |
1 | ||
| 83243-95405 |
RU85,WU9#..GEN,SA |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20120 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
