WU90L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )RU75,85,WU9#,YU6#,8#

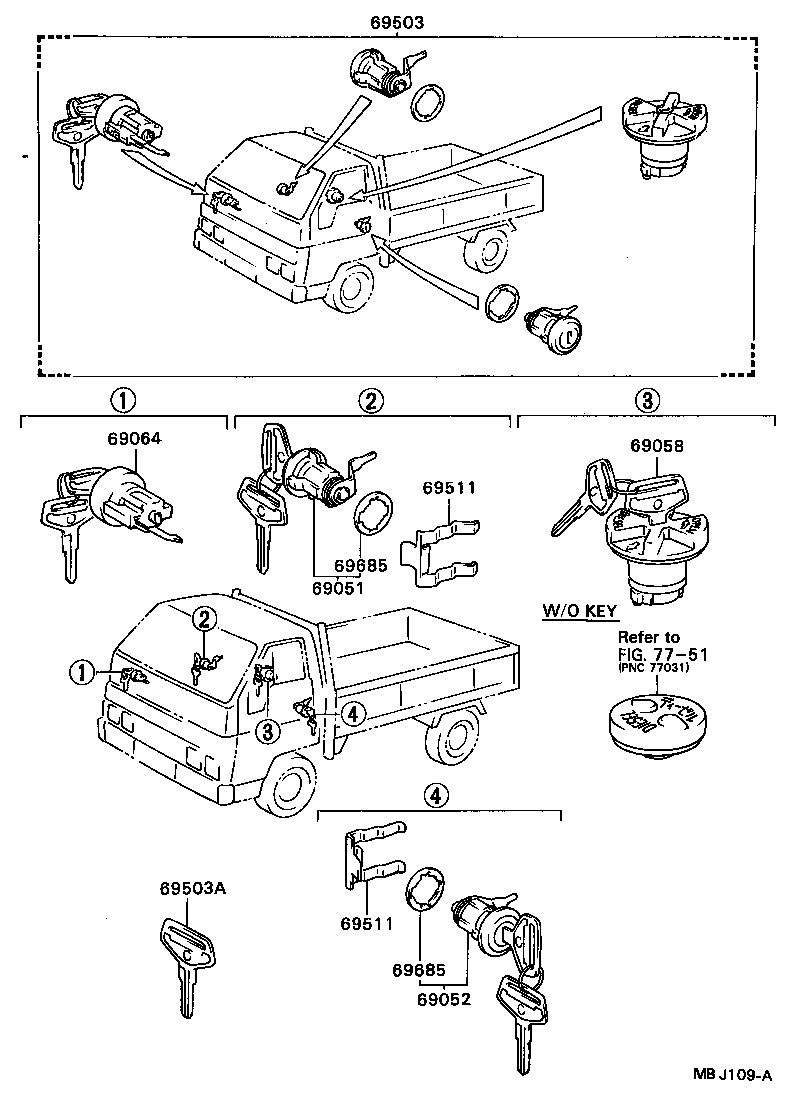

Click highlighted areas on diagram

diagram 69051 69052 69058 69064 69503 69503A 69511 69511 69685 69685 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95403

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95403

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-89102

WU9#

 2
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95407

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

 1
69503 - CYLINDER SET, LOCK
69503-95439

WU9#

W/FUEL LOCK

 1
69503-95438

RU75,85,WU9#,YU6#,8#..ARL,GEN,SA

 1
69503-95440

WU9#..GEN

W/SUB TANK,FUEL LOCK

 1
69503A - KEY, BLANK
90999-00066

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

MASTER KEY

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

RU75,85,WU9#,YU6#,7#,8#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

RU75,85,WU9#,YU6#,7#,8#

 2
69685 - PAD, LOCK CYLINDER
69513-32010

RU75,85,WU9#,YU6#,7#,8#

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69513-32010

RU75,85,WU9#,YU6#,7#,8#

FR DOOR

 2
Linked diagrams
7751
