WU90L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 66311A
Part # Description Qty Price
66311A - HOOK, ROPE, NO.1
66311-92801

RU75,85,WU9#,YU8#

TYPE A

 1
66312-92802

RU75,85,WU9#,YU8#

TYPE B

 1
66313-92801

RU75,85,WU9#,YU8#

TYPE C

 1

(8409- )RU75,85,WU9#

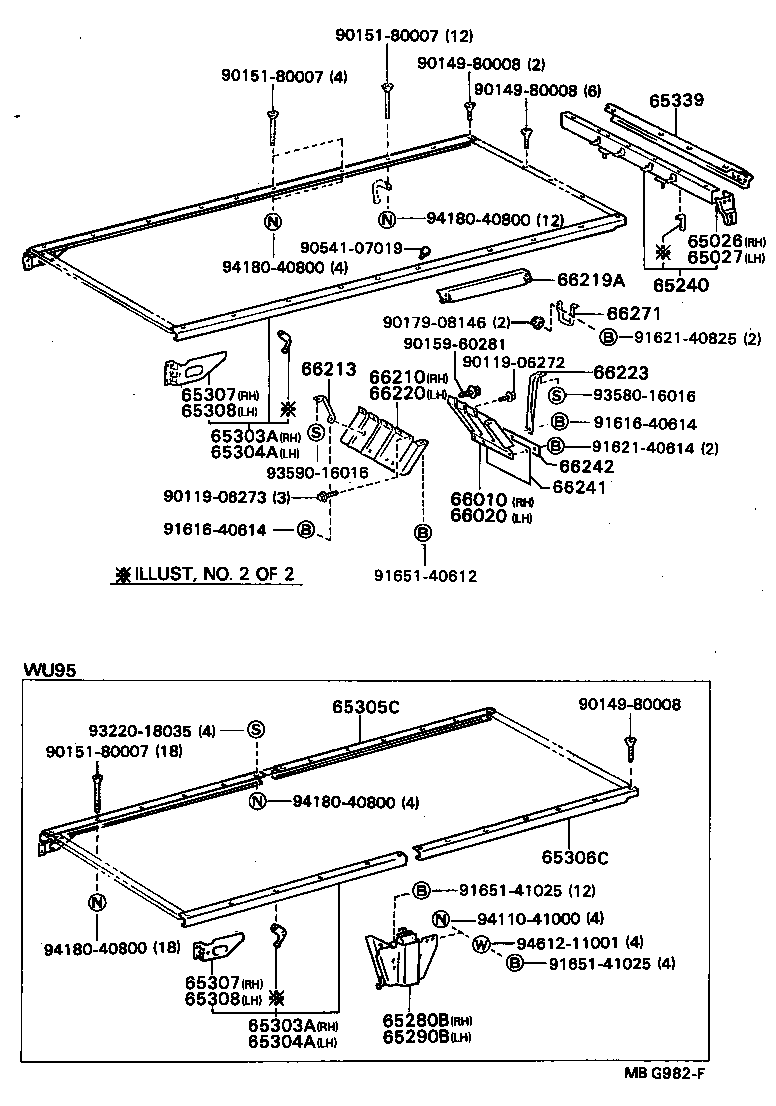

Click highlighted areas on diagram

diagram 65026 65027 65240 65280B 65290B 65303A 65303A 65304A 65304A 65305C 65306C 65307 65307 65308 65308 65339 66010 66020 66210 66213 66219A 66220 66223 66241 66242 66271 9011906272 9011906273 9014980008 9014980008 9014980008 9015180007 9015180007 9015180007 9015960281 9017908146 9054107019 9161640614 9161640614 9162140614 9162140825 9165140612 9165141025 9165141025 9322018035 9358016016 9359016016 9411041000 9418040800 9418040800 9418040800 9418040800 9461211001
Part # Description Qty Price
65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH
65026-92800

RU85,WU9#

 1
65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH
65027-92800

RU85,WU9#

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-92806

WU9#

 1
65240-92825

WU9#

 1
65303A - FRAME SUB-ASSY, FLOOR SIDE, RH
65303-92805

RU85,WU90

 1
65303A - FRAME SUB-ASSY, FLOOR SIDE, RH
65303-92805

RU85,WU90

 1
65304A - FRAME SUB-ASSY, FLOOR SIDE, LH
65304-92805

RU85,WU90

 1
65304A - FRAME SUB-ASSY, FLOOR SIDE, LH
65304-92805

RU85,WU90

 1
65307 - BRACKET SUB-ASSY, GUAD FRAME, RH
65207-92702

RU85,WU9#

 1
65307 - BRACKET SUB-ASSY, GUAD FRAME, RH
65207-92702

RU85,WU9#

 1
65308 - BRACKET SUB-ASSY, GUAD FRAME, LH
65208-92702

RU85,WU9#

 1
65308 - BRACKET SUB-ASSY, GUAD FRAME, LH
65208-92702

RU85,WU9#

 1
65339 - FRAME, FLOOR, REAR
65339-92803

WU9#

 1
65339-92802

WU9#

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66210-92804

WU9#

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66220-92804

WU9#

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66010-92802

WU90

 1
66213 - STAY, REAR FENDER FRONT PLATE
66236-92702

RU75,85,WU9#,YU8#

 2
66220 - FENDER ASSY, REAR BODY, FRONT LH
66020-92802

WU90

 1
66223 - STAY, REAR FENDER REAR PLATE
66235-92701

RU75,85,WU9#,YU8#

 2
66241 - MUDGUARD, REAR
66241-92807

WU9#

RH

 1
66241-92806

WU9#

LH

 1
66242 - PLATE, REAR MUDGUARD SET RETAINER
66242-92803

WU9#

LH

 1
66242-92804

WU9#

RH

 1
66271 - STEP, REAR BODY
66271-92801

RU75,85,WU9#

 1
Common parts
90119-06272
90119-06273
90149-80008
90151-80007
90159-60281
90179-08146
90541-07019
91616-40614
91621-40614
91621-40825
91651-40612
91651-41025
93220-18035
93580-16016
93590-16016
94110-41000
94180-40800
94612-11001
