WU90L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 48110 48110 48110F 48110F 48111 48111 48112 48112 48113 48113 48114 48114 48115 48115 48116 48116 48117 48118 48120 48120 48147 48147 9411051000 9411051000
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-36760

WU9#..LHD;WU90..ARL

6-LEAF

 1
48110 - SPRING ASSY, FRONT, RH
48110-36760

WU9#..LHD;WU90..ARL

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16002

RU75,85,WU9#

 6
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16002

RU75,85,WU9#

 6
48111 - LEAF, FRONT SPRING, NO.1
48101-36760

WU9#..LHD;WU90..ARL

RH

 1
48101-36750

WU9#..LHD

LH

 1
48111 - LEAF, FRONT SPRING, NO.1
48101-36760

WU9#..LHD;WU90..ARL

RH

 1
48101-36750

WU9#..LHD

LH

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-36750

WU9#..LHD

LH

 1
48112-36760

WU9#..LHD;WU90..ARL

RH

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-36750

WU9#..LHD

LH

 1
48112-36760

WU9#..LHD;WU90..ARL

RH

 1
48113 - LEAF, FRONT SPRING, NO.3
48113-36760

WU9#..LHD;WU90..ARL

RH

 1
48113-36750

WU9#..LHD

LH

 1
48113 - LEAF, FRONT SPRING, NO.3
48113-36760

WU9#..LHD;WU90..ARL

RH

 1
48113-36750

WU9#..LHD

LH

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-36750

WU9#..LHD

LH

 1
48102-36760

WU9#..LHD;WU90..ARL

RH

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-36750

WU9#..LHD

LH

 1
48102-36760

WU9#..LHD;WU90..ARL

RH

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-36760

WU9#..LHD;WU90..ARL

RH

 1
48115-36750

WU9#..LHD

LH

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-36760

WU9#..LHD;WU90..ARL

RH

 1
48115-36750

WU9#..LHD

LH

 1
48116 - LEAF, FRONT SPRING, NO.6
48103-36760

WU9#..LHD;WU90..ARL

RH

 1
48103-36750

WU9#..LHD

LH

 1
48116 - LEAF, FRONT SPRING, NO.6
48103-36760

WU9#..LHD;WU90..ARL

RH

 1
48103-36750

WU9#..LHD

LH

 1
48117 - LEAF, FRONT SPRING, NO.7
48117-36750

WU9#

 2
48118 - LEAF, FRONT SPRING, NO.8
48118-36750

WU9#

 2
48120 - SPRING ASSY, FRONT, LH
48110-36750

WU9#..LHD

6-LEAF

 1
48120 - SPRING ASSY, FRONT, LH
48110-36750

WU9#..LHD

6-LEAF

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-36750

WU9#..ARL,GEN

 2
48147 - BOLT, FRONT SPRING, CENTER
48147-36750

WU9#..ARL,GEN

 2
Common parts
94110-51000

(8409- )

Click highlighted areas on diagram

diagram 48110 48110 48110F 48110F 48111 48111 48112 48112 48113 48113 48114 48114 48115 48115 48116 48117 48118 48120 48120 48146 48146 48147 48147 48156 48156 9411040800 9411040800 9411051000 9411051000
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-36760

WU9#..LHD;WU90..ARL

6-LEAF

 1
48110 - SPRING ASSY, FRONT, RH
48110-36760

WU9#..LHD;WU90..ARL

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16002

RU75,85,WU9#

 6
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16002

RU75,85,WU9#

 6
48111 - LEAF, FRONT SPRING, NO.1
48101-36760

WU9#..LHD;WU90..ARL

RH

 1
48101-36750

WU9#..LHD

LH

 1
48111 - LEAF, FRONT SPRING, NO.1
48101-36760

WU9#..LHD;WU90..ARL

RH

 1
48101-36750

WU9#..LHD

LH

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-36750

WU9#..LHD

LH

 1
48112-36760

WU9#..LHD;WU90..ARL

RH

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-36750

WU9#..LHD

LH

 1
48112-36760

WU9#..LHD;WU90..ARL

RH

 1
48113 - LEAF, FRONT SPRING, NO.3
48113-36760

WU9#..LHD;WU90..ARL

RH

 1
48113-36750

WU9#..LHD

LH

 1
48113 - LEAF, FRONT SPRING, NO.3
48113-36760

WU9#..LHD;WU90..ARL

RH

 1
48113-36750

WU9#..LHD

LH

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-36750

WU9#..LHD

LH

 1
48102-36760

WU9#..LHD;WU90..ARL

RH

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-36750

WU9#..LHD

LH

 1
48102-36760

WU9#..LHD;WU90..ARL

RH

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-36760

WU9#..LHD;WU90..ARL

RH

 1
48115-36750

WU9#..LHD

LH

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-36760

WU9#..LHD;WU90..ARL

RH

 1
48115-36750

WU9#..LHD

LH

 1
48116 - LEAF, FRONT SPRING, NO.6
48103-36760

WU9#..LHD;WU90..ARL

RH

 1
48103-36750

WU9#..LHD

LH

 1
48117 - LEAF, FRONT SPRING, NO.7
48117-36750

WU9#

 2
48118 - LEAF, FRONT SPRING, NO.8
48118-36750

WU9#

 2
48120 - SPRING ASSY, FRONT, LH
48110-36750

WU9#..LHD

6-LEAF

 1
48120 - SPRING ASSY, FRONT, LH
48110-36750

WU9#..LHD

6-LEAF

 1
48146 - CASE, FRONT SPRING CLIP BOLT
48146-60010

WU9#

 8
48146 - CASE, FRONT SPRING CLIP BOLT
48146-60010

WU9#

 8
48147 - BOLT, FRONT SPRING, CENTER
48147-36750

WU9#..ARL,GEN

 2
48147 - BOLT, FRONT SPRING, CENTER
48147-36750

WU9#..ARL,GEN

 2
48156 - BOLT, FRONT SPRING CLIP
48256-36570

WU9#

 8
48156 - BOLT, FRONT SPRING CLIP
48256-36570

WU9#

 8
Common parts
94110-40800
94110-51000

(8409- )

Click highlighted areas on diagram

diagram 48110 48110 48110F 48110F 48111 48111 48112 48112 48113 48113 48114 48114 48115 48116 48117 48118 48119 48120 48120 48147 48147 48153 48153 9017910043 9411051000
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-36760

WU9#..LHD;WU90..ARL

6-LEAF

 1
48110 - SPRING ASSY, FRONT, RH
48110-36760

WU9#..LHD;WU90..ARL

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16002

RU75,85,WU9#

 6
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16002

RU75,85,WU9#

 6
48111 - LEAF, FRONT SPRING, NO.1
48101-36760

WU9#..LHD;WU90..ARL

RH

 1
48101-36750

WU9#..LHD

LH

 1
48111 - LEAF, FRONT SPRING, NO.1
48101-36760

WU9#..LHD;WU90..ARL

RH

 1
48101-36750

WU9#..LHD

LH

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-36750

WU9#..LHD

LH

 1
48112-36760

WU9#..LHD;WU90..ARL

RH

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-36750

WU9#..LHD

LH

 1
48112-36760

WU9#..LHD;WU90..ARL

RH

 1
48113 - LEAF, FRONT SPRING, NO.3
48113-36760

WU9#..LHD;WU90..ARL

RH

 1
48113-36750

WU9#..LHD

LH

 1
48113 - LEAF, FRONT SPRING, NO.3
48113-36760

WU9#..LHD;WU90..ARL

RH

 1
48113-36750

WU9#..LHD

LH

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-36750

WU9#..LHD

LH

 1
48102-36760

WU9#..LHD;WU90..ARL

RH

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-36750

WU9#..LHD

LH

 1
48102-36760

WU9#..LHD;WU90..ARL

RH

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-36760

WU9#..LHD;WU90..ARL

RH

 1
48115-36750

WU9#..LHD

LH

 1
48116 - LEAF, FRONT SPRING, NO.6
48103-36760

WU9#..LHD;WU90..ARL

RH

 1
48103-36750

WU9#..LHD

LH

 1
48117 - LEAF, FRONT SPRING, NO.7
48117-36750

WU9#

 2
48118 - LEAF, FRONT SPRING, NO.8
48118-36750

WU9#

 2
48120 - SPRING ASSY, FRONT, LH
48110-36750

WU9#..LHD

6-LEAF

 1
48120 - SPRING ASSY, FRONT, LH
48110-36750

WU9#..LHD

6-LEAF

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-36750

WU9#..ARL,GEN

 2
48147 - BOLT, FRONT SPRING, CENTER
48147-36750

WU9#..ARL,GEN

 2
Common parts
90179-10043
94110-51000

(8409- )

Click highlighted areas on diagram

diagram 48110 48110 48110F 48111 48111 48112 48112 48113 48113 48114 48114 48115 48115 48116 48116 48117 48117 48118 48119 48120 48120 48121 48146 48146 48147 48147 48156 48156 9411040800 9411040800 9411051000 9411051000
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-36760

WU9#..LHD;WU90..ARL

6-LEAF

 1
48110 - SPRING ASSY, FRONT, RH
48110-36760

WU9#..LHD;WU90..ARL

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16002

RU75,85,WU9#

 6
48111 - LEAF, FRONT SPRING, NO.1
48101-36760

WU9#..LHD;WU90..ARL

RH

 1
48101-36750

WU9#..LHD

LH

 1
48111 - LEAF, FRONT SPRING, NO.1
48101-36760

WU9#..LHD;WU90..ARL

RH

 1
48101-36750

WU9#..LHD

LH

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-36750

WU9#..LHD

LH

 1
48112-36760

WU9#..LHD;WU90..ARL

RH

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-36750

WU9#..LHD

LH

 1
48112-36760

WU9#..LHD;WU90..ARL

RH

 1
48113 - LEAF, FRONT SPRING, NO.3
48113-36760

WU9#..LHD;WU90..ARL

RH

 1
48113-36750

WU9#..LHD

LH

 1
48113 - LEAF, FRONT SPRING, NO.3
48113-36760

WU9#..LHD;WU90..ARL

RH

 1
48113-36750

WU9#..LHD

LH

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-36750

WU9#..LHD

LH

 1
48102-36760

WU9#..LHD;WU90..ARL

RH

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-36750

WU9#..LHD

LH

 1
48102-36760

WU9#..LHD;WU90..ARL

RH

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-36760

WU9#..LHD;WU90..ARL

RH

 1
48115-36750

WU9#..LHD

LH

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-36760

WU9#..LHD;WU90..ARL

RH

 1
48115-36750

WU9#..LHD

LH

 1
48116 - LEAF, FRONT SPRING, NO.6
48103-36760

WU9#..LHD;WU90..ARL

RH

 1
48103-36750

WU9#..LHD

LH

 1
48116 - LEAF, FRONT SPRING, NO.6
48103-36760

WU9#..LHD;WU90..ARL

RH

 1
48103-36750

WU9#..LHD

LH

 1
48117 - LEAF, FRONT SPRING, NO.7
48117-36750

WU9#

 2
48117 - LEAF, FRONT SPRING, NO.7
48117-36750

WU9#

 2
48118 - LEAF, FRONT SPRING, NO.8
48118-36750

WU9#

 2
48120 - SPRING ASSY, FRONT, LH
48110-36750

WU9#..LHD

6-LEAF

 1
48120 - SPRING ASSY, FRONT, LH
48110-36750

WU9#..LHD

6-LEAF

 1
48146 - CASE, FRONT SPRING CLIP BOLT
48146-60010

WU9#

 8
48146 - CASE, FRONT SPRING CLIP BOLT
48146-60010

WU9#

 8
48147 - BOLT, FRONT SPRING, CENTER
48147-36750

WU9#..ARL,GEN

 2
48147 - BOLT, FRONT SPRING, CENTER
48147-36750

WU9#..ARL,GEN

 2
48156 - BOLT, FRONT SPRING CLIP
48256-36570

WU9#

 8
48156 - BOLT, FRONT SPRING CLIP
48256-36570

WU9#

 8
Common parts
94110-40800
94110-51000

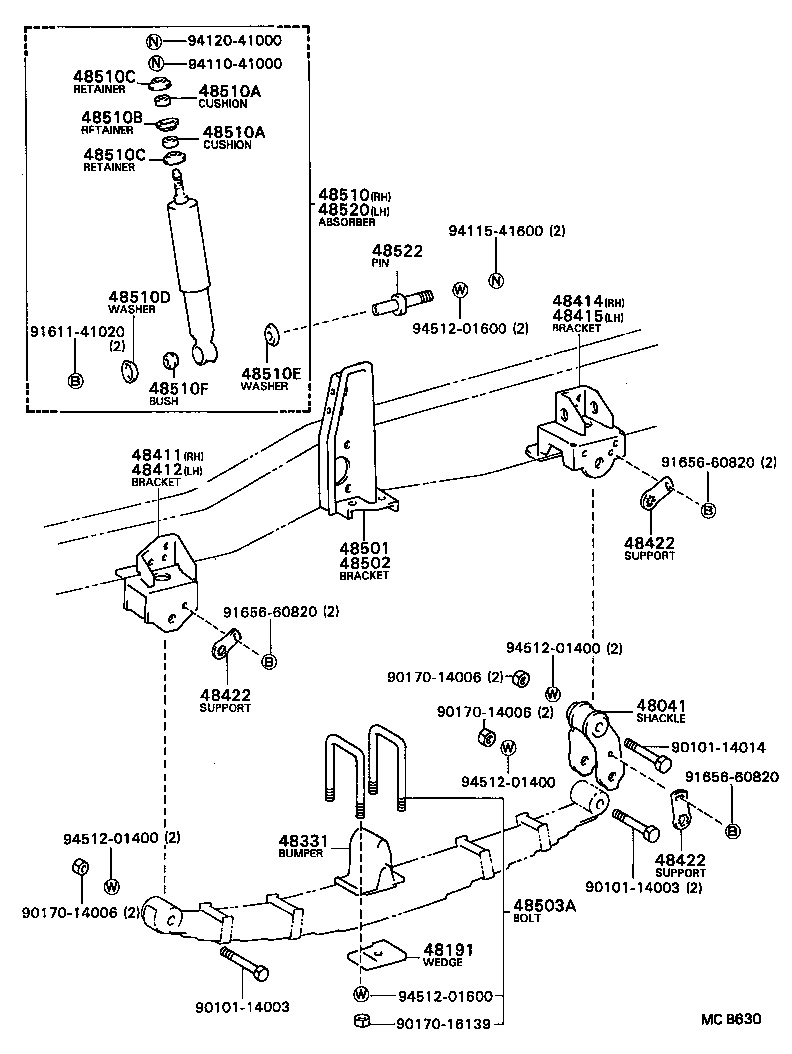

(8409- )RU75,85,WU9#

Click highlighted areas on diagram

diagram 0451201600 48041 48191 48331 48411 48412 48414 48415 48422 48422 48422 48501 48502 48503A 48510 48510A 48510A 48510B 48510C 48510C 48510D 48510E 48510F 48520 48522 9010114003 9010114003 9010114014 9017014006 9017014006 9017014006 9017016139 9161141020 9165660820 9165660820 9165660820 9411041000 9411541600 9412041000 9451201400 9451201400 9451201400 9451201600
Part # Description Qty Price
48041 - SHACKLE SUB-ASSY, FRONT SPRING, NO.1
48041-36050

RU75,85,WU9#

 2
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48191-35020

WU9#..ARL,GEN

 2
48191-35020

RU75,85,WU9#,YU80

 2
48331 - BUMPER, FRONT SPRING, NO.1
48304-36070

WU9#

 2
48411 - BRACKET, FRONT SPRING(FOR FRONT RH)
48411-36090

WU9#

 1
48412 - BRACKET, FRONT SPRING(FOR FRONT LH)
48412-36090

WU9#

 1
48414 - BRACKET, FRONT SPRING(FOR REAR RH)
48433-36050

RU75,85,WU9#

 1
48415 - BRACKET, FRONT SPRING(FOR REAR LH)
48434-36050

RU75,85,WU9#

 1
48422 - SUPPORT, FRONT SPRING PIN
48422-36040

WU9#

 6
48422 - SUPPORT, FRONT SPRING PIN
48422-36040

WU9#

 6
48422 - SUPPORT, FRONT SPRING PIN
48422-36040

WU9#

 6
48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48501-36030

RU75,85,WU9#

 1
48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48502-36040

RU75,85,WU9#

 1
48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
90118-16194

WU9#..ARL,GEN

L=135,L=135

 2
90118-16217

WU9#..ARL,GEN

L=130,L=130

 4
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-39525

WU9#..LHD..IV3

MARK 48511-36140,FORMOSA SPEC

 1
48511-39535

WU9#

MARK 48511-36050

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

RU75,85,WU9#,YU6#,7#,8#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

RU75,85,WU9#,YU6#,7#,8#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02007

RU75,85,WU9#,YU6#,7#,8#

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

RU75,85,WU9#,YU6#,7#,8#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

RU75,85,WU9#,YU6#,7#,8#

 4
48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
90948-03007

RU75,85,WU9#,YU6#,7#,8#

 2
48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
90948-03004

RU75,85,WU9#,YU6#,7#,8#

 2
48510F - CUSHION, SHOCK ABSORBER
90385-16004

RU75,85,WU9#,YU6#,7#,8#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-39525

WU9#..LHD..IV3

MARK 48511-36140,FORMOSA SPEC

 1
48511-39535

WU9#

MARK 48511-36050

 1
48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48522-25010

RU75,85,WU9#,YU6#,7#,8#

 2
Common parts
04512-01600
90101-14003
90101-14014
90170-14006
90170-16139
91611-41020
91656-60820
94110-41000
94115-41600
94120-41000
94512-01400
94512-01600
