WU90L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )WU9#

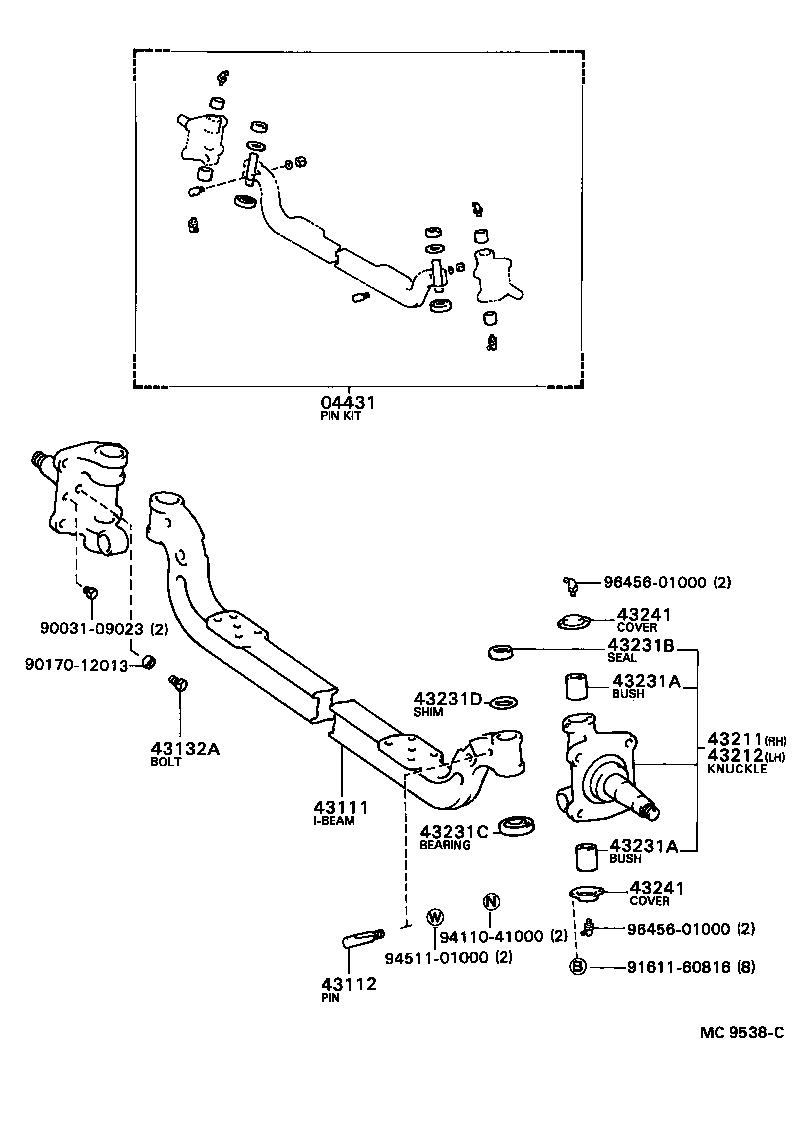

Click highlighted areas on diagram

diagram 04431 43111 43112 43132A 43211 43212 43231A 43231A 43231B 43231C 43231D 43241 43241 9003109023 9017012013 9161160816 9411041000 9451101000 9645601000 9645601000
Part # Description Qty Price
04431 - PIN KIT, STEERING KNUCKLE KING
04431-36051

WU9#

 1
43111 - I BEAM, FRONT AXLE
43111-36080

WU9#

 1
43112 - PIN, KING PIN LOCK
43112-36030

WU9#

 2
43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-12003

WU9#

 2
43211 - KNUCKLE, STEERING, RH
43201-36100

WU9#

 1
43212 - KNUCKLE, STEERING, LH
43202-36090

WU9#

 1
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90384-35003

WU9#

LWR

 2
90384-35002

WU9#

UPR

 2
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90384-35003

WU9#

LWR

 2
90384-35002

WU9#

UPR

 2
43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
90311-35012

WU9#

 2
43231C - BEARING (FOR STEERING KNUCKLE KING PIN)
90367-35001

WU9#

 2
43231D - SHIM (FOR KING PIN)
90564-37007

WU9#

T=2.5,T=2.5

 2
90564-37003

WU9#

T=2.1,T=2.1

 2
90564-37006

WU9#

T=2.4,T=2.4

 2
90564-37004

WU9#

T=2.2,T=2.2

 2
90564-37002

WU9#

T=2.0,T=2.0

 2
90564-37005

WU9#

T=2.3,T=2.3

 2
90564-37001

WU9#

T=1.9,T=1.9

 2
90564-37008

WU9#

T=2.6,T=2.6

 2
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36010

WU9#

 4
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36010

WU9#

 4
Common parts
90031-09023
90170-12013
91611-60816
94110-41000
94511-01000
96456-01000
