WU90L-MDDT3 (1984)
Toyota Dyna
(8409-8508)WU9# ; (8508- )WU9#..ARL,SA

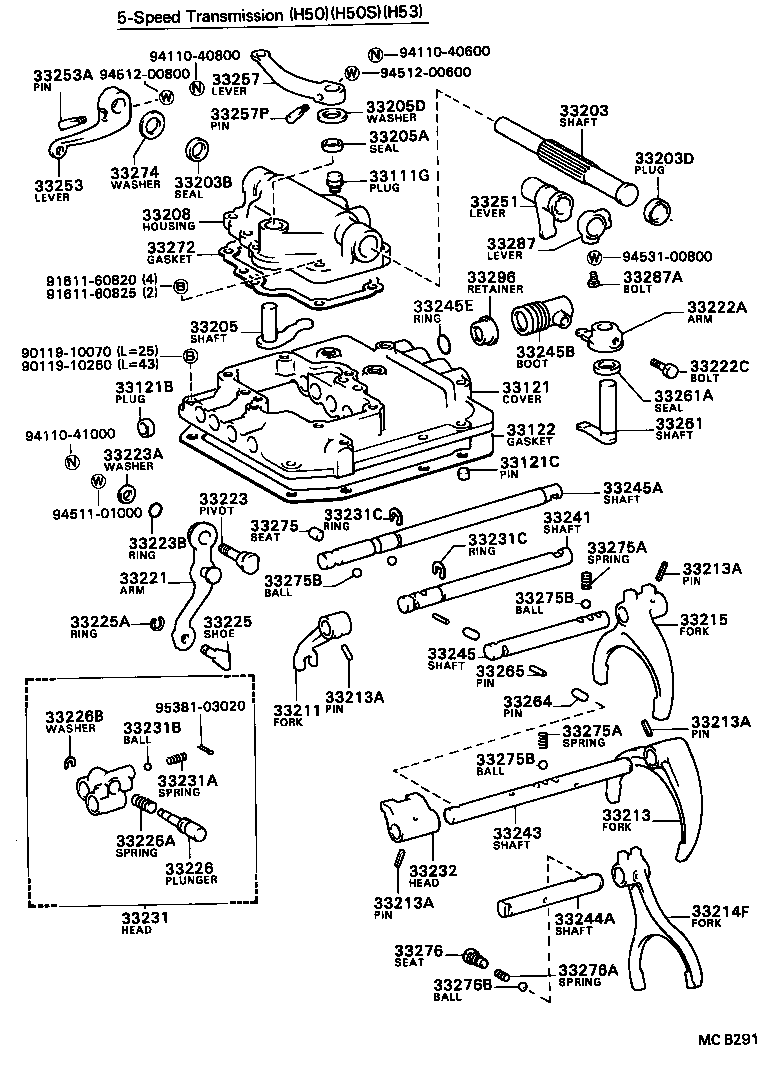

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-36090 |
WU9# |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-16050 |
RU75,85,WU9#,YU6#,70,80 |
6 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
RU75,85,WU9#,YU6#,70,80 L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-36011 |
WU9# |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-36012 |
WU9# |
1 | ||
| 33261-36060 |
WU9#..GEN |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
WU9#..GEN |
1 | ||
| 90312-17001 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT) | ||||
| 96411-12500 |
WU9# |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-36031 |
WU9# |
1 | ||
| 33262-36050 |
WU9#..GEN |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 90311-13001 |
WU9#..GEN |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 94612-11300 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-36090 |
WU9# |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-36011 |
WU9# |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-36020 |
WU9# |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RU75,85,WU9#,YU6#,70,80 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RU75,85,WU9#,YU6#,70,80 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RU75,85,WU9#,YU6#,70,80 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RU75,85,WU9#,YU6#,70,80 |
5 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-36041 |
WU9# |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-36030 |
WU9# |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-36030 |
WU9# |
1 | ||
| 33222A - ARM, 5TH SHIFT | ||||
| 33222-36040 |
WU9# |
1 | ||
| 33222C - BOLT(FOR 5TH SHIFT ARM) | ||||
| 90105-08079 |
WU9# |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-36020 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33223A - WASHER(FOR SHIFT ARM PIVOT) | ||||
| 90201-10092 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33223B - RING, O(FOR SHIFT ARM PIVOT) | ||||
| 96711-19010 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36030 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 90520-08098 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-36011 |
WU9# |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90501-16051 |
WU9# |
1 | ||
| 33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90213-06001 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-36040 |
WU9# |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-09031 |
WU9# |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
RU75,85,WU9#,YU6#,70,80 |
5 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90523-15025 |
RU75,85,WU9#,YU6#,70,80 |
2 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90523-15025 |
RU75,85,WU9#,YU6#,70,80 |
2 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-36020 |
WU9# |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-36050 |
WU9# |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-36030 |
WU9# |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33244-36030 |
WU9# |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-36031 |
WU9# |
1 | ||
| 33245A - SHAFT, 5TH SHIFT ARM | ||||
| 33245-36030 |
WU9# |
1 | ||
| 33245B - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-36040 |
WU9# |
1 | ||
| 33245E - RING, O (FOR 5TH SHIFT ARM SHAFT) | ||||
| 96711-19016 |
WU9# |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36090 |
WU9#..GEN |
1 | ||
| 33251-36013 |
WU9# |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-36110 |
RU75,85,WU9#..GEN |
1 | ||
| 33253-36090 |
WU9# |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
WU9#..GEN |
1 | ||
| 33282-57010 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-36080 |
WU9# |
1 | ||
| 33257-36100 |
RU75,85,WU9#..GEN |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33261 - SHAFT, 5TH SHIFT ARM | ||||
| 33251-36080 |
WU9# |
1 | ||
| 33261A - SEAL, OIL (FOR 5TH SHIFT ARM SHAFT) | ||||
| 90312-17001 |
WU9# |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10037 |
WU9# L=17.9 |
2 | ||
| 90250-10011 |
WU9#..GEN L=13.4,OD=9.53 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10014 |
WU9#..GEN L=37.4,OD=9.53 |
1 | ||
| 90361-05001 |
RU75,85,WU9#,YU6#,70,80 L=13 |
2 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-36011 |
WU9# |
1 | ||
| 33274 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.2 | ||||
| 90201-17048 |
WU9# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90250-10215 |
RU75,85,WU9#,YU6#,70,80 L=9,OD=9 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14772 |
WU9# |
3 | ||
| 90501-16099 |
RU75,85,WU9#,YU6#,7#,8# |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14772 |
WU9# |
3 | ||
| 90501-16099 |
RU75,85,WU9#,YU6#,7#,8# |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
RU75,85,WU9#,YU6#,7#,8# |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
RU75,85,WU9#,YU6#,7#,8# |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
RU75,85,WU9#,YU6#,7#,8# |
5 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-10004 |
WU9# |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-16075 |
WU9# |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-08009 |
WU9# |
1 | ||
| 33287 - LEVER, SWITCH PRESSURE | ||||
| 33287-36012 |
WU9# |
1 | ||
| 33287A - BOLT, SHAFT RETAINING | ||||
| 33454-12010 |
WU9# |
1 | ||
| 33296 - RETAINER, SHIFT FORK SHAFT | ||||
| 33296-36010 |
WU9# |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10260 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 95381-03020 | ||||
(8508- )WU9#..GEN ; (8508- )RU75,85,YU6#,7#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-36012 |
WU9# |
1 | ||
| 33261-36060 |
WU9#..GEN |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
WU9#..GEN |
1 | ||
| 90312-17001 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-36031 |
WU9# |
1 | ||
| 33262-36050 |
WU9#..GEN |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 90311-13001 |
WU9#..GEN |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 94612-11300 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33212 - FORK, 1ST & REVERSE SHIFT | ||||
| 33212-36031 |
WU9#..GEN |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
WU9#..GEN |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
WU9#..GEN |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
WU9#..GEN |
3 | ||
| 33214 - FORK, 2ND & 3RD SHIFT | ||||
| 33213-36041 |
WU9#..GEN |
1 | ||
| 33216 - FORK, 4TH & 5TH SHIFT | ||||
| 33214-36051 |
WU9#..GEN |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
WU9#..GEN |
1 | ||
| 33236 - HEAD, 4TH & 5TH SHIFT | ||||
| 33234-36011 |
WU9#..GEN |
1 | ||
| 33244 - SHAFT, 2ND & 3RD SHIFT FORK | ||||
| 33243-36061 |
WU9#..GEN |
1 | ||
| 33246 - SHAFT, 4TH & 5TH SHIFT FORK | ||||
| 33244-36041 |
WU9#..GEN |
1 | ||
| 33247 - SHAFT, 1ST & REVERSE SHIFT FORK | ||||
| 33205-36061 |
WU9#..GEN |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36090 |
WU9#..GEN |
1 | ||
| 33251-36013 |
WU9# |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 90254-05016 |
WU9#..GEN |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
WU9#..GEN |
1 | ||
| 90501-18059 |
WU9#..GEN |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
WU9#..GEN |
1 | ||
| 90501-18059 |
WU9#..GEN |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-36010 |
WU9#..GEN |
1 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
WU9#..GEN |
2 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-36110 |
RU75,85,WU9#..GEN |
1 | ||
| 33253-36090 |
WU9# |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
WU9#..GEN |
1 | ||
| 33282-57010 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-36080 |
WU9# |
1 | ||
| 33257-36100 |
RU75,85,WU9#..GEN |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33263C - SHAFT, SHIFT LEVER, NO.2 | ||||
| 33263-36010 |
WU9#..GEN |
1 | ||
| 33263D - PIN (FOR SHIFT LEVER SHAFT) | ||||
| 90250-04060 |
WU9#..GEN |
1 | ||
| 33263E - PLUG (FOR SHIFT LEVER SHAFT) | ||||
| 90331-14004 |
WU9#..GEN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10037 |
WU9# L=17.9 |
2 | ||
| 90250-10011 |
WU9#..GEN L=13.4,OD=9.53 |
1 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90250-10015 |
WU9#..GEN L=7.5,OD=9.67 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-05001 |
WU9#..GEN L=13 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10014 |
WU9#..GEN L=37.4,OD=9.53 |
1 | ||
| 90361-05001 |
RU75,85,WU9#,YU6#,70,80 L=13 |
2 | ||
| 33271 - HOUSING, SHIFT LEVER SHAFT | ||||
| 33207-36010 |
WU9# |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14772 |
WU9# |
3 | ||
| 90501-16099 |
RU75,85,WU9#,YU6#,7#,8# |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14772 |
WU9# |
3 | ||
| 90501-16099 |
RU75,85,WU9#,YU6#,7#,8# |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14772 |
WU9# |
3 | ||
| 90501-16099 |
RU75,85,WU9#,YU6#,7#,8# |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
RU75,85,WU9#,YU6#,7#,8# |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
RU75,85,WU9#,YU6#,7#,8# |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
RU75,85,WU9#,YU6#,7#,8# |
5 | ||
| 33276C - SEAT, SELECT SPRING | ||||
| 33276-36010 |
WU9#..GEN |
1 | ||
| 33276-36011 |
WU9#..GEN |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-36060 |
WU9#..GEN |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
