WU90L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

Click highlighted areas on diagram

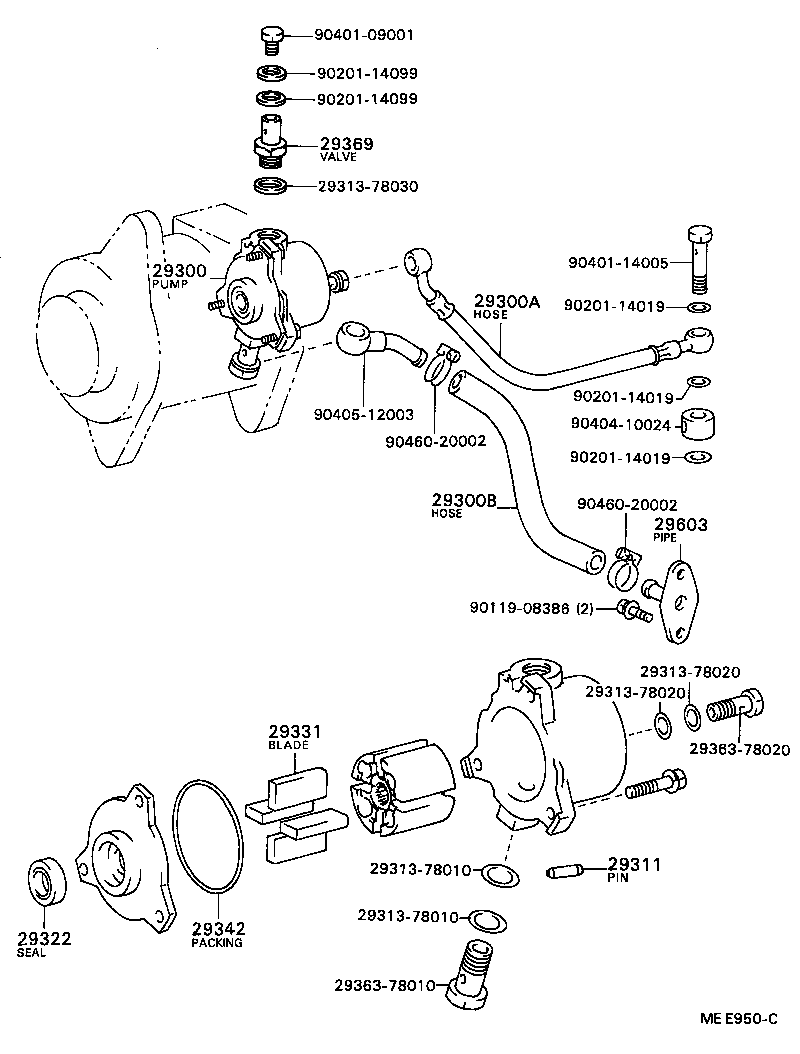

diagram 29300 29300A 29300B 29311 2931378010 2931378010 2931378020 2931378020 2931378030 29322 29331 29342 2936378010 2936378020 29369 29603 9011908386 9020114019 9020114019 9020114019 9020114099 9020114099 9040109001 9040114005 9040410024 9040512003 9046020002 9046020002
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-78010

1W..WU9#

ALTERNATOR:12V 40A

 1
29300-78020

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02091

1W..WU9#

ALTERNATOR:12V 40A

 1
90923-02090

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02092

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
90923-02093

1W..WU9#

ALTERNATOR:12V 40A

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1W..WU9#

ALTERNATOR:12V 40A

 1
29322 - BUSH, OIL SEAL, VACUUM PUMP
29322-78011

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
29331 - BLADE, VACUUM PUMP, A
29331-78020

1W..WU9#..LHD

ALTERNATOR:24V 20A

 4
29331-78010

1W..WU9#

ALTERNATOR:12V 40A

 4
29342 - PACKING, VACUUM PUMP
29342-78010

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
96740-02063

1W..WU9#

ALTERNATOR:12V 40A

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

1W..WU9#

ALTERNATOR:12V 40A

 1
29369-78010

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
29603 - PIPE, VACUUM PUMP OIL OUTLET
15773-78010

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
Common parts
29313-78010
29313-78020
29313-78030
29363-78010
29363-78020
90119-08386
90201-14019
90201-14099
90401-09001
90401-14005
90404-10024
90405-12003
90460-20002

(8409- )1W

Click highlighted areas on diagram

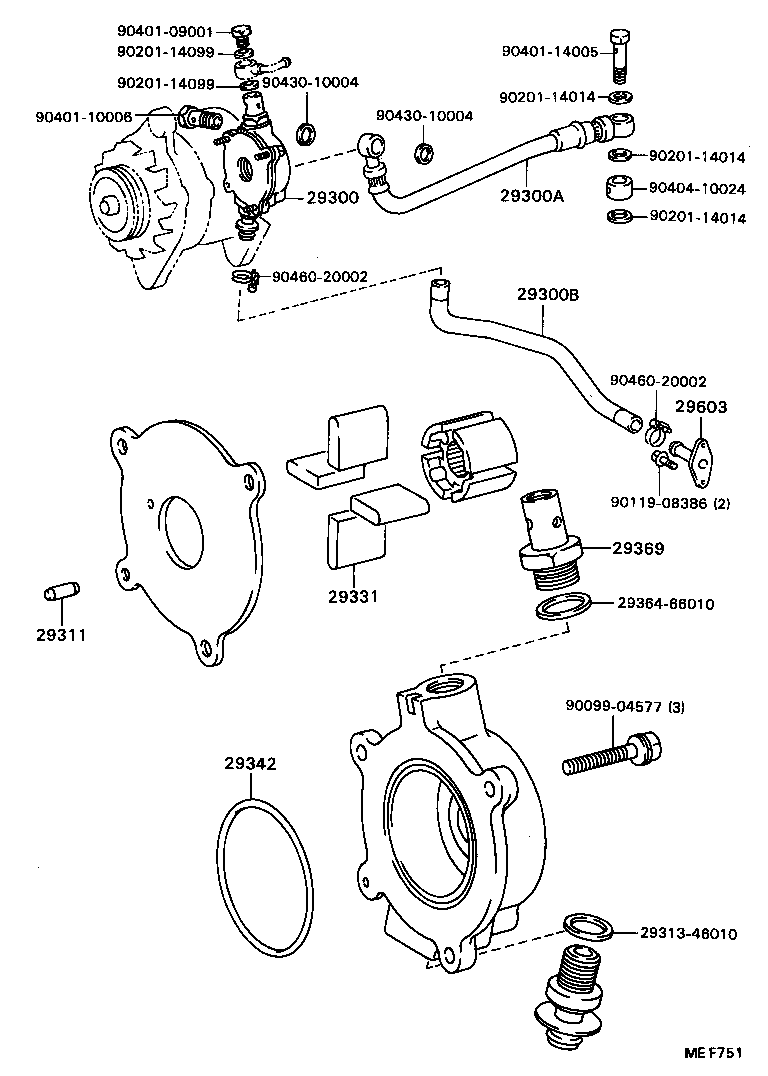

diagram 29300 29300A 29300B 29311 2931346010 29331 29342 2936466010 29369 29603 9009904577 9011908386 9020114014 9020114014 9020114014 9020114099 9020114099 9040109001 9040110006 9040114005 9040410024 9043010004 9043010004 9046020002 9046020002
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-78010

1W..WU9#

ALTERNATOR:12V 40A

 1
29300-78020

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02091

1W..WU9#

ALTERNATOR:12V 40A

 1
90923-02090

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02092

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
90923-02093

1W..WU9#

ALTERNATOR:12V 40A

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1W..WU9#

ALTERNATOR:12V 40A

 1
29331 - BLADE, VACUUM PUMP, A
29331-78020

1W..WU9#..LHD

ALTERNATOR:24V 20A

 4
29331-78010

1W..WU9#

ALTERNATOR:12V 40A

 4
29342 - PACKING, VACUUM PUMP
29342-78010

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
96740-02063

1W..WU9#

ALTERNATOR:12V 40A

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

1W..WU9#

ALTERNATOR:12V 40A

 1
29369-78010

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
29603 - PIPE, VACUUM PUMP OIL OUTLET
15773-78010

1W..WU9#..LHD

ALTERNATOR:24V 20A

 1
Common parts
29313-46010
29364-66010
90099-04577
90119-08386
90201-14014
90201-14099
90401-09001
90401-10006
90401-14005
90404-10024
90430-10004
90460-20002
