WU90L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

Click highlighted areas on diagram

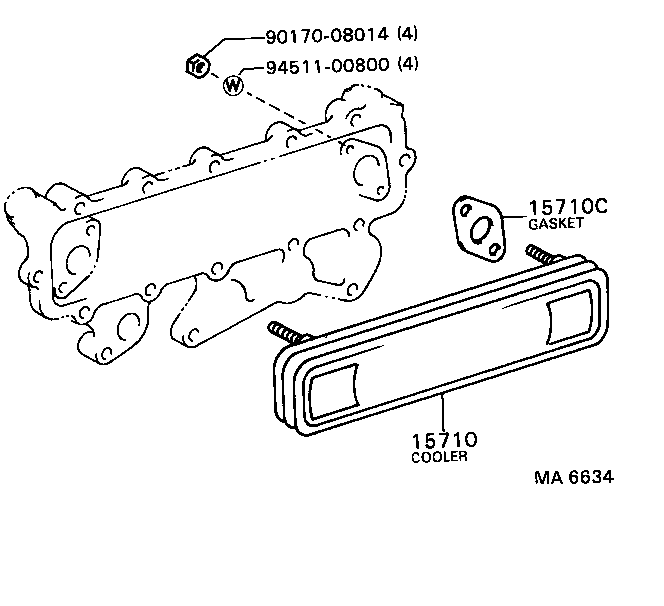

diagram 15710 15710C 9017008014 9451100800
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-78010

1W..WU9#

 1
15710C - GASKET(FOR OIL COOLER)
15725-78010

1W..WU9#

 2
Common parts
90170-08014
94511-00800
