WU90L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

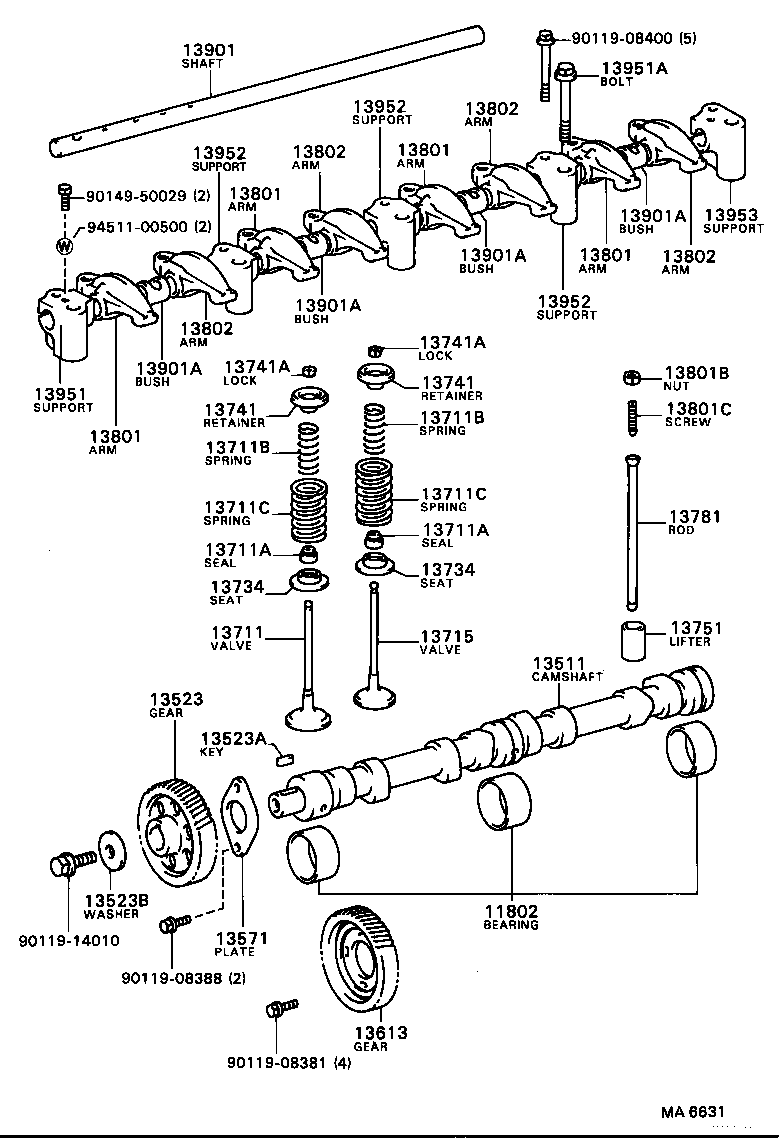

Click highlighted areas on diagram

diagram 11802 13511 13523 13523A 13523B 13571 13613 13711 13711A 13711A 13711B 13711B 13711C 13711C 13715 13734 13734 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801B 13801C 13802 13802 13802 13802 13901 13901A 13901A 13901A 13901A 13951 13951A 13952 13952 13952 13953 9011908381 9011908388 9011908400 9011914010 9014950029 9451100500
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11801-78010

1W..WU9#

STD

 1
13511 - CAMSHAFT
13501-78010

1W..WU9#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-78010

1W..WU9#

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90281-07001

1W..WU9#

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-15010

1W..WU9#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-67010

1W..WU9#

 1
13613 - GEAR, INJECTION PUMP DRIVE
13613-78010

1W..WU9#

 1
13711 - VALVE, INTAKE
13711-78010

1W..WU9#

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02047

1W..WU9#

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02047

1W..WU9#

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26029

1W..WU9#

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26029

1W..WU9#

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-44003

1W..WU9#

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-44003

1W..WU9#

 8
13715 - VALVE, EXHAUST
13715-78010

1W..WU9#

 4
13734 - SEAT, VALVE SPRING
13734-78010

1W..WU9#

 8
13734 - SEAT, VALVE SPRING
13734-78010

1W..WU9#

 8
13741 - RETAINER, VALVE SPRING
13741-78010

1W..WU9#

 8
13741 - RETAINER, VALVE SPRING
13741-78010

1W..WU9#

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03023

1W..WU9#

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03023

1W..WU9#

 16
13751 - LIFTER, VALVE
13751-78010

1W..WU9#

 8
13781 - ROD, VALVE PUSH
13781-78010

1W..WU9#

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-78011

1W..WU9#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-78011

1W..WU9#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-78011

1W..WU9#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-78011

1W..WU9#

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08013

1W..WU9#

 8
13801C - SCREW, VALVE ADJUSTING
13788-78011

1W..WU9#

 8
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-78010

1W..WU9#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-78010

1W..WU9#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-78010

1W..WU9#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-78010

1W..WU9#

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-78010

1W..WU9#

 1
13901A - BUSH(FOR VALVE ROCKER SHAFT)
90387-19001

1W..WU9#

 4
13901A - BUSH(FOR VALVE ROCKER SHAFT)
90387-19001

1W..WU9#

 4
13901A - BUSH(FOR VALVE ROCKER SHAFT)
90387-19001

1W..WU9#

 4
13901A - BUSH(FOR VALVE ROCKER SHAFT)
90387-19001

1W..WU9#

 4
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-78010

1W..WU9#

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
90105-12074

1W..WU9#

 5
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-78010

1W..WU9#

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-78010

1W..WU9#

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-78010

1W..WU9#

 3
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-78010

1W..WU9#

 1
Common parts
90119-08381
90119-08388
90119-08400
90119-14010
90149-50029
94511-00500
