WU90L-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

Click highlighted areas on diagram

diagram 23338 23351 23351 23353 23353 23930 23930 23930 23930 8401 9017908146 9017908146 9165540825 9165540825
Part # Description Qty Price
23338 - GASKET(FOR WARNING SWITCH)
23338-54010

1W..WU9#

SEDIMENTER

 1
23351 - PLUG, AIR VENT
23322-78030

1W..WU9#

 1
23322-78010

1W..WU9#

 1
23351-54010

1W..WU9#

SEDIMENTER

 2
23322-78020

1W..WU9#..GEN

ELEMENT TYPE

 1
23351 - PLUG, AIR VENT
23322-78030

1W..WU9#

 1
23322-78010

1W..WU9#

 1
23351-54010

1W..WU9#

SEDIMENTER

 2
23322-78020

1W..WU9#..GEN

ELEMENT TYPE

 1
23353 - RING, O(FOR AIR VENT PLUG)
23364-78010

1W..WU9#

 1
23353-54010

1W..WU9#

SEDIMENTER

 2
23353 - RING, O(FOR AIR VENT PLUG)
23364-78010

1W..WU9#

 1
23353-54010

1W..WU9#

SEDIMENTER

 2

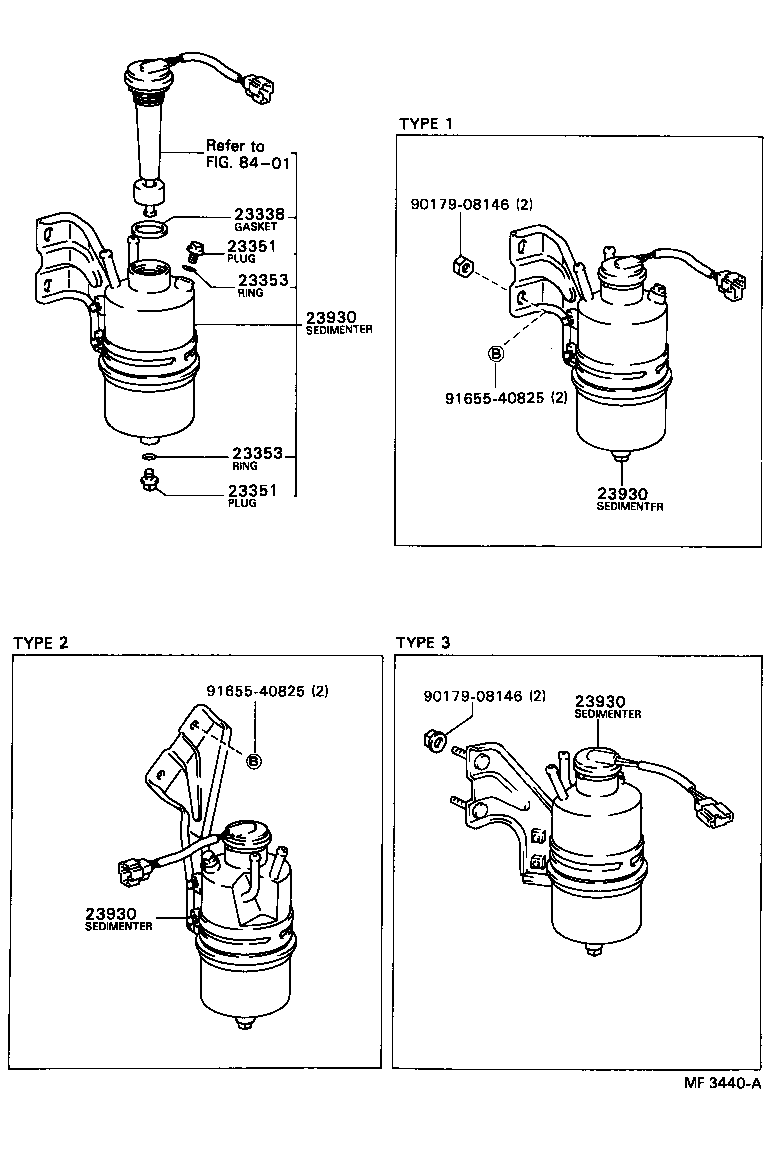

23930 - SEDIMENTER ASSY, FUEL
23930-58040

1W..WU9#

TYPE 1

 1
23930-58042

1W..WU9#

TYPE 1

 1
23930-58041

1W..WU9#

TYPE 1

 1
23930 - SEDIMENTER ASSY, FUEL
23930-58040

1W..WU9#

TYPE 1

 1
23930-58042

1W..WU9#

TYPE 1

 1
23930-58041

1W..WU9#

TYPE 1

 1
23930 - SEDIMENTER ASSY, FUEL
23930-58040

1W..WU9#

TYPE 1

 1
23930-58042

1W..WU9#

TYPE 1

 1
23930-58041

1W..WU9#

TYPE 1

 1
23930 - SEDIMENTER ASSY, FUEL
23930-58040

1W..WU9#

TYPE 1

 1
23930-58042

1W..WU9#

TYPE 1

 1
23930-58041

1W..WU9#

TYPE 1

 1
Common parts
90179-08146
91655-40825
Linked diagrams
8401

(8409- )1W

Click highlighted areas on diagram

diagram 23300D 23301 23302 23303 23312 23329 23329A 23333 23334 23351 23353 9011910302
Part # Description Qty Price

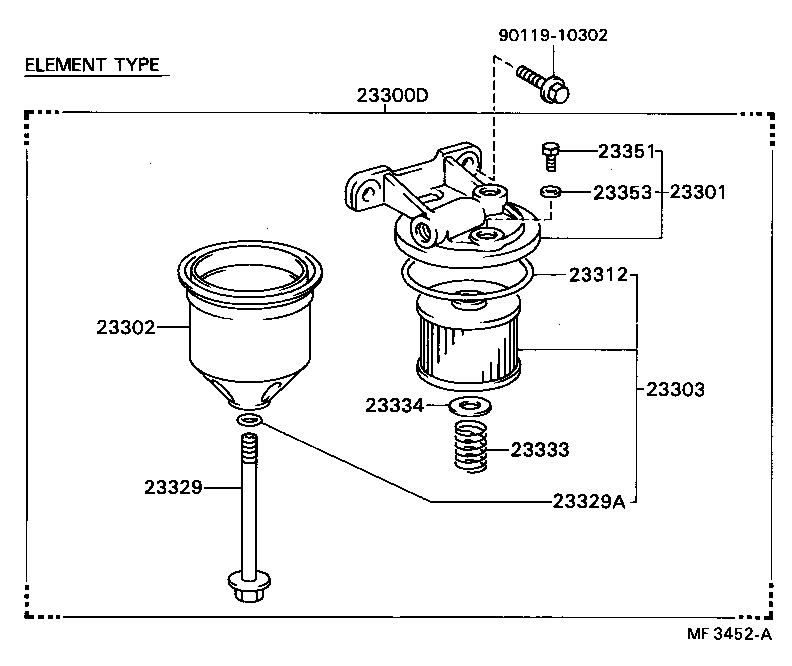

23301 - BODY SUB-ASSY, FUEL FILTER
23310-78030

1W..WU9#..GEN

ELEMENT TYPE

 1
23310-78040

1W..WU9#

 1
23310-78020

1W..WU9#

 1
23302 - BODY SUB-ASSY, FUEL FILTER, LOWER
23320-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23304-78030

1W..WU9#..GEN

ELEMENT TYPE

 1
23304-78020

1W..WU9#

 1
23312 - GASKET, FILTER BOWL
23314-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
23329 - BOLT, FUEL FILTER CENTER
23329-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
23329A - RING, O(FOR FUEL FILTER CENTER BOLT)
90301-11007

1W..WU9#..GEN

ELEMENT TYPE

 1
23333 - SPRING, FILTER ELEMENT SET
23333-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
23334 - PLATE, SPRING(FOR FILTER ELEMENT)
23334-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
23351 - PLUG, AIR VENT
23322-78030

1W..WU9#

 1
23322-78010

1W..WU9#

 1
23351-54010

1W..WU9#

SEDIMENTER

 2
23322-78020

1W..WU9#..GEN

ELEMENT TYPE

 1
23353 - RING, O(FOR AIR VENT PLUG)
23364-78010

1W..WU9#

 1
23353-54010

1W..WU9#

SEDIMENTER

 2
Common parts
90119-10302

(8409- )1W

Click highlighted areas on diagram

diagram 23091A 23091B 23091C 23091C 23300A 23300B 23300C 23300C 23300C 23300C 23301 23303 23351 23353 9011910302
Part # Description Qty Price

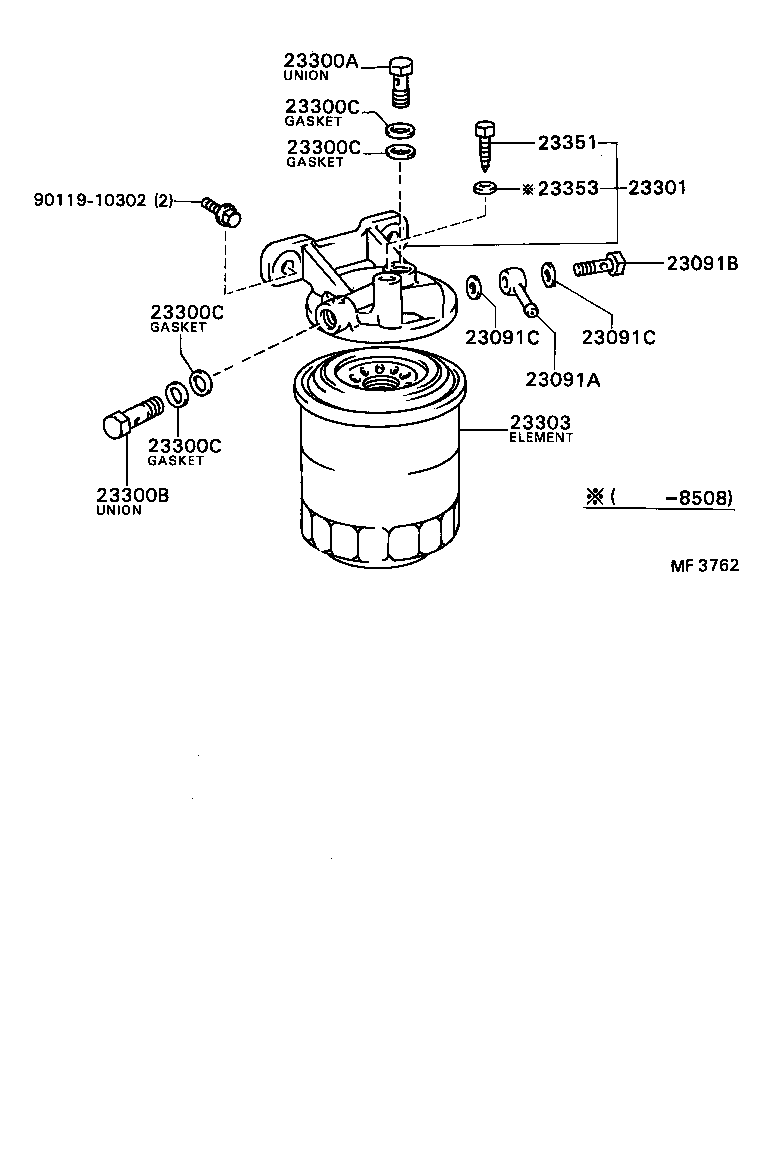

23091A - PIPE SUB-ASSY, DRAIN
90405-06009

1W..WU9#

 1
23091B - BOLT(FOR DRAIN PIPE)
90031-02009

1W..WU9#

 1
23091C - WASHER, PLATE(FOR DRAIN PIPE)
90201-08048

1W..WU9#

 2
23091C - WASHER, PLATE(FOR DRAIN PIPE)
90201-08048

1W..WU9#

 2
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14004

1W..WU9#

 1
23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET)
90401-14004

1W..WU9#

 1
23300C - GASKET, NIPPLE UNION(FOR FUEL)
90202-14004

1W..WU9#

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
90202-14004

1W..WU9#

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
90202-14004

1W..WU9#

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
90202-14004

1W..WU9#

 4
23301 - BODY SUB-ASSY, FUEL FILTER
23310-78030

1W..WU9#..GEN

ELEMENT TYPE

 1
23310-78040

1W..WU9#

 1
23310-78020

1W..WU9#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23304-78030

1W..WU9#..GEN

ELEMENT TYPE

 1
23304-78020

1W..WU9#

 1
23351 - PLUG, AIR VENT
23322-78030

1W..WU9#

 1
23322-78010

1W..WU9#

 1
23351-54010

1W..WU9#

SEDIMENTER

 2
23322-78020

1W..WU9#..GEN

ELEMENT TYPE

 1
23353 - RING, O(FOR AIR VENT PLUG)
23364-78010

1W..WU9#

 1
23353-54010

1W..WU9#

SEDIMENTER

 2
Common parts
90119-10302
