WU720L-TKMRL3 (2011)
Toyota Dyna
Production
Jul 2011
-
Sep 9999
Engine
W04D
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )W04D

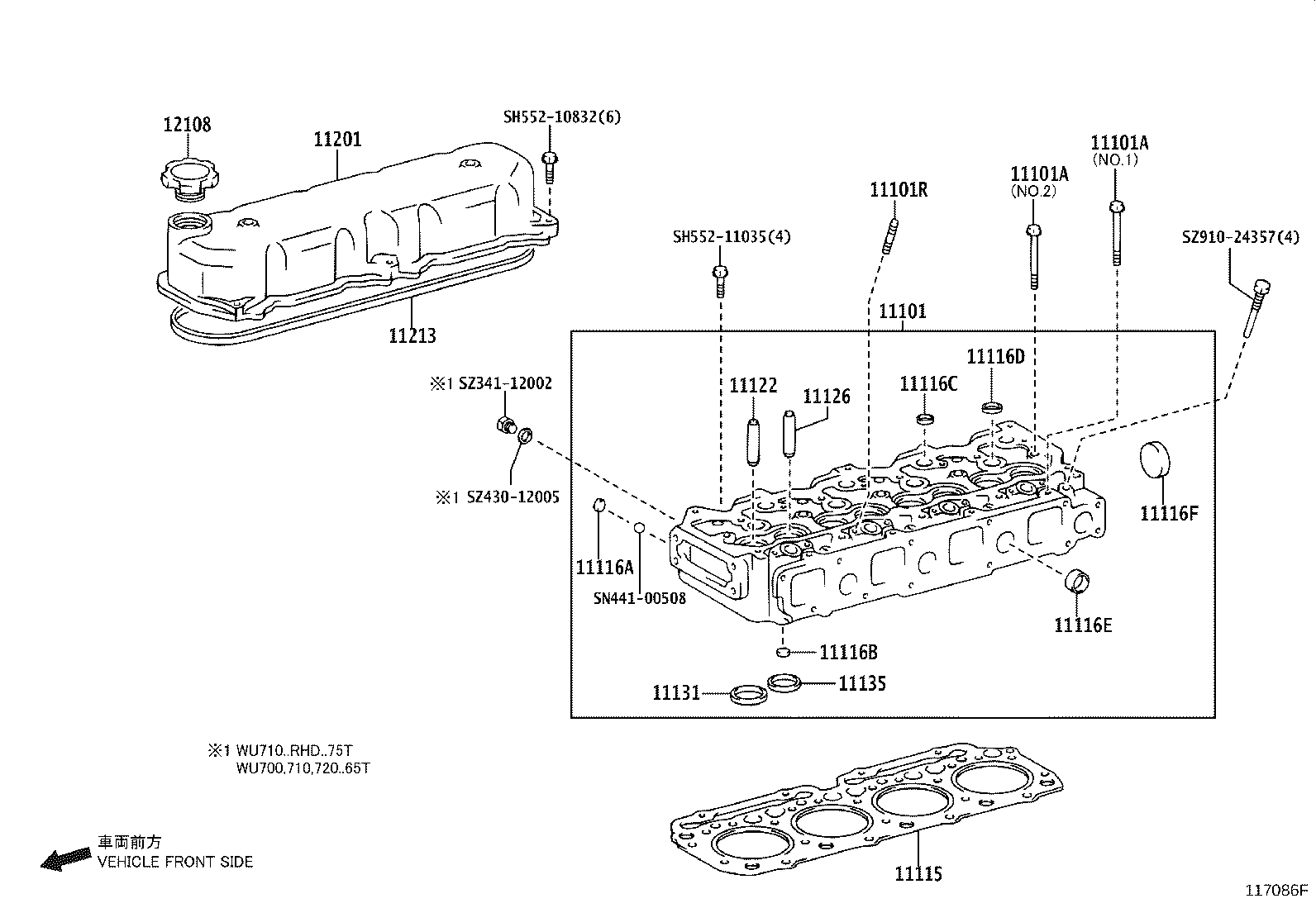

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-EW020 |
W04D..WU710,720 |
1 | ||
| 11101-E0A31 |
W04D..WU700,710,720 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| S1115-E0040 |
W04D..WU700,710,720 NO.2 |
5 | ||
| S1115-E0030 |
W04D..WU700,710,720 NO.1 |
13 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| S1115-E0040 |
W04D..WU700,710,720 NO.2 |
5 | ||
| S1115-E0030 |
W04D..WU700,710,720 NO.1 |
13 | ||
| 11101R - BOLT, STUD(FOR FUEL PIPE) | ||||
| SZ116-08009 |
W04D..WU710,720..LHD..(75T,85T) |
8 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-E0031 |
W04D..WU710,720 |
1 | ||
| 11115-78101 |
W04D..WU710,720 |
1 | ||
| 11115-E0030 |
W04D..WU700,710,720 |
1 | ||
| 11115-78100 |
W04D..WU710,720 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| SN411-01412 |
W04D..WU700,710,720 |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| SZ331-22004 |
W04D..WU700,710,720 |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| SN411-02616 |
W04D..WU710,720 |
4 | ||
| SZ331-24002 |
W04D..WU700,710,720 |
4 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| SZ331-26001 |
W04D..WU700,710,720 |
4 | ||
| SN411-02416 |
W04D..WU710,720 |
4 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| SZ331-30002 |
W04D..WU700,710,720 |
4 | ||
| SN411-03016 |
W04D..WU710,720 |
4 | ||
| 11116F - PLUG, TIGHT, NO.6 | ||||
| SN411-05016 |
W04D..WU700,710,720 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| S1112-21250 |
W04D..WU700,710,720 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| S1112-21250 |
W04D..WU700,710,720 STD |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| S1113-11490 |
W04D..WU700,710,720 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-E0070 |
W04D..WU700,710,720 STD |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11211-E0240 |
W04D..WU700,710,720 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| S1121-31550 |
W04D..WU700,710,720 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-E0010 |
W04D..WU700,710,720 |
1 | ||
| Common parts | ||||
| SH552-10832 | ||||
| SH552-11035 | ||||
| SN441-00508 | ||||
| SZ341-12002 | ||||
| SZ430-12005 | ||||
| SZ910-24357 | ||||
