WU720L-TKMQJV3 (2011)
Toyota Dyna

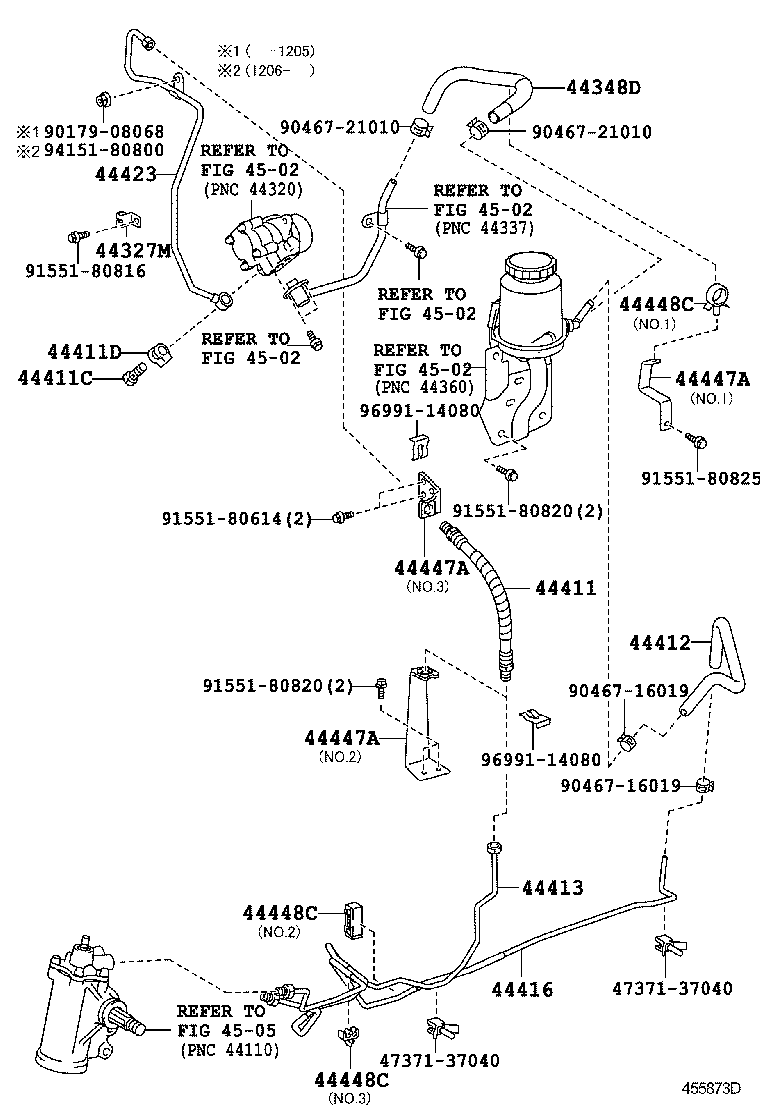

(1107- )WU700,710,720..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327M - GASKET, PRESSURE PORT, NO.2 | ||||
| 90461-10832 |
WU700,710,720 |
1 | ||
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37640 |
WU700,710,720 |
1 | ||
| 44348-37560 |
XZU710,720..SCB..MTM..GCC |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37141 |
WU700,710,720 |
1 | ||
| 44411-37570 |
XZU710,720..GCC..IV3 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37360 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-37330 |
WU700,710,720..LHD |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37760 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37070 |
WU710..RHD..75T;WU700,710,720..65T |
1 | ||
| 44423-37150 |
XZU710,720..MTM..GCC |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
WU700,710,720 NO.3 |
1 | ||
| 44447-37220 |
XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44447-37260 |
WU700,710,720 NO.2 |
1 | ||
| 44447-37270 |
XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44447-37321 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
WU700,710,720 NO.3 |
1 | ||
| 44447-37220 |
XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44447-37260 |
WU700,710,720 NO.2 |
1 | ||
| 44447-37270 |
XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44447-37321 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
WU700,710,720 NO.3 |
1 | ||
| 44447-37220 |
XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44447-37260 |
WU700,710,720 NO.2 |
1 | ||
| 44447-37270 |
XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44447-37321 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37080 |
WU700,710,720;XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44448-37030 |
WU700,710,720;XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44448-37060 |
XZU710,720..MTM..GCC NO.4 |
1 | ||
| 44448-37090 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37080 |
WU700,710,720;XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44448-37030 |
WU700,710,720;XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44448-37060 |
XZU710,720..MTM..GCC NO.4 |
1 | ||
| 44448-37090 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37080 |
WU700,710,720;XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44448-37030 |
WU700,710,720;XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44448-37060 |
XZU710,720..MTM..GCC NO.4 |
1 | ||
| 44448-37090 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08068 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91551-80614 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96991-14080 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||

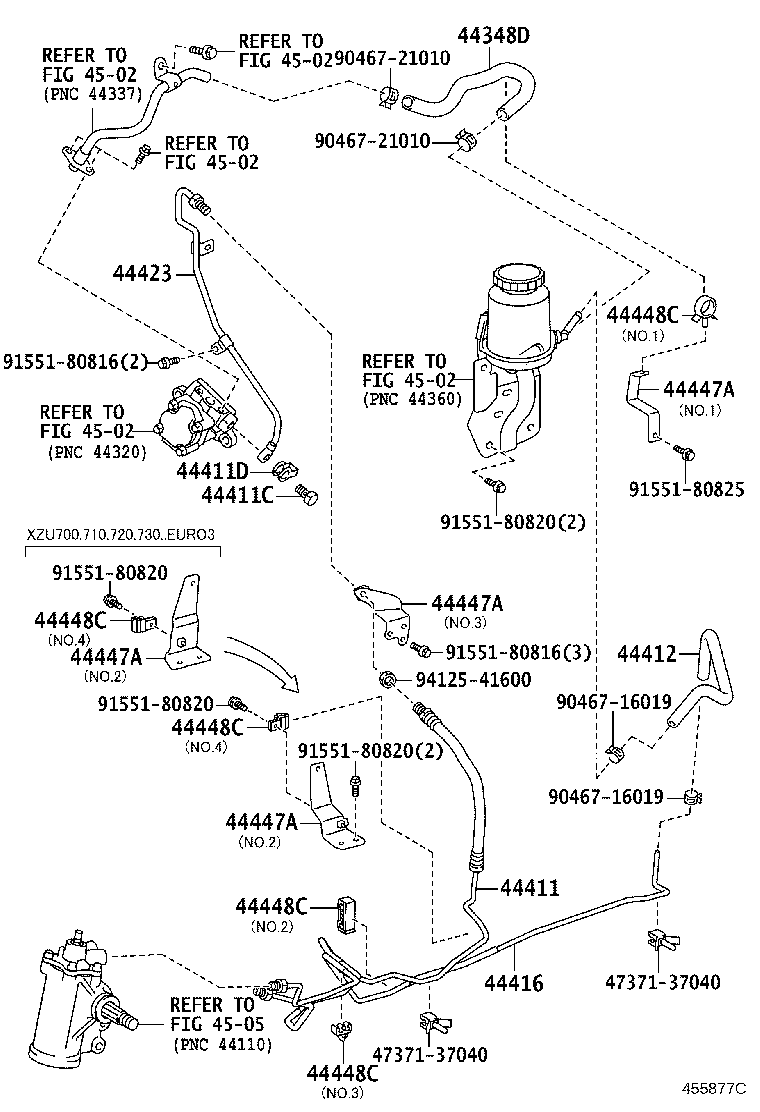

(1107- )XZU710,720,730..SCB..EUR,GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37640 |
WU700,710,720 |
1 | ||
| 44348-37560 |
XZU710,720..SCB..MTM..GCC |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37141 |
WU700,710,720 |
1 | ||
| 44411-37570 |
XZU710,720..GCC..IV3 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37360 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37760 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37070 |
WU710..RHD..75T;WU700,710,720..65T |
1 | ||
| 44423-37150 |
XZU710,720..MTM..GCC |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
WU700,710,720 NO.3 |
1 | ||
| 44447-37220 |
XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44447-37260 |
WU700,710,720 NO.2 |
1 | ||
| 44447-37270 |
XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44447-37321 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
WU700,710,720 NO.3 |
1 | ||
| 44447-37220 |
XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44447-37260 |
WU700,710,720 NO.2 |
1 | ||
| 44447-37270 |
XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44447-37321 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
WU700,710,720 NO.3 |
1 | ||
| 44447-37220 |
XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44447-37260 |
WU700,710,720 NO.2 |
1 | ||
| 44447-37270 |
XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44447-37321 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
WU700,710,720 NO.3 |
1 | ||
| 44447-37220 |
XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44447-37260 |
WU700,710,720 NO.2 |
1 | ||
| 44447-37270 |
XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44447-37321 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37080 |
WU700,710,720;XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44448-37030 |
WU700,710,720;XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44448-37060 |
XZU710,720..MTM..GCC NO.4 |
1 | ||
| 44448-37090 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37080 |
WU700,710,720;XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44448-37030 |
WU700,710,720;XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44448-37060 |
XZU710,720..MTM..GCC NO.4 |
1 | ||
| 44448-37090 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37080 |
WU700,710,720;XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44448-37030 |
WU700,710,720;XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44448-37060 |
XZU710,720..MTM..GCC NO.4 |
1 | ||
| 44448-37090 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37080 |
WU700,710,720;XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44448-37030 |
WU700,710,720;XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44448-37060 |
XZU710,720..MTM..GCC NO.4 |
1 | ||
| 44448-37090 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37080 |
WU700,710,720;XZU710,720..MTM..GCC NO.3 |
1 | ||
| 44448-37030 |
WU700,710,720;XZU710,720..MTM..GCC NO.2 |
1 | ||
| 44448-37060 |
XZU710,720..MTM..GCC NO.4 |
1 | ||
| 44448-37090 |
WU700,710,720;XZU710,720..MTM..GCC NO.1 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 94125-41600 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
