WU720L-TKMQJV3 (2011)
Toyota Dyna
(1107- )XZU710,720,730..EUR,GCC

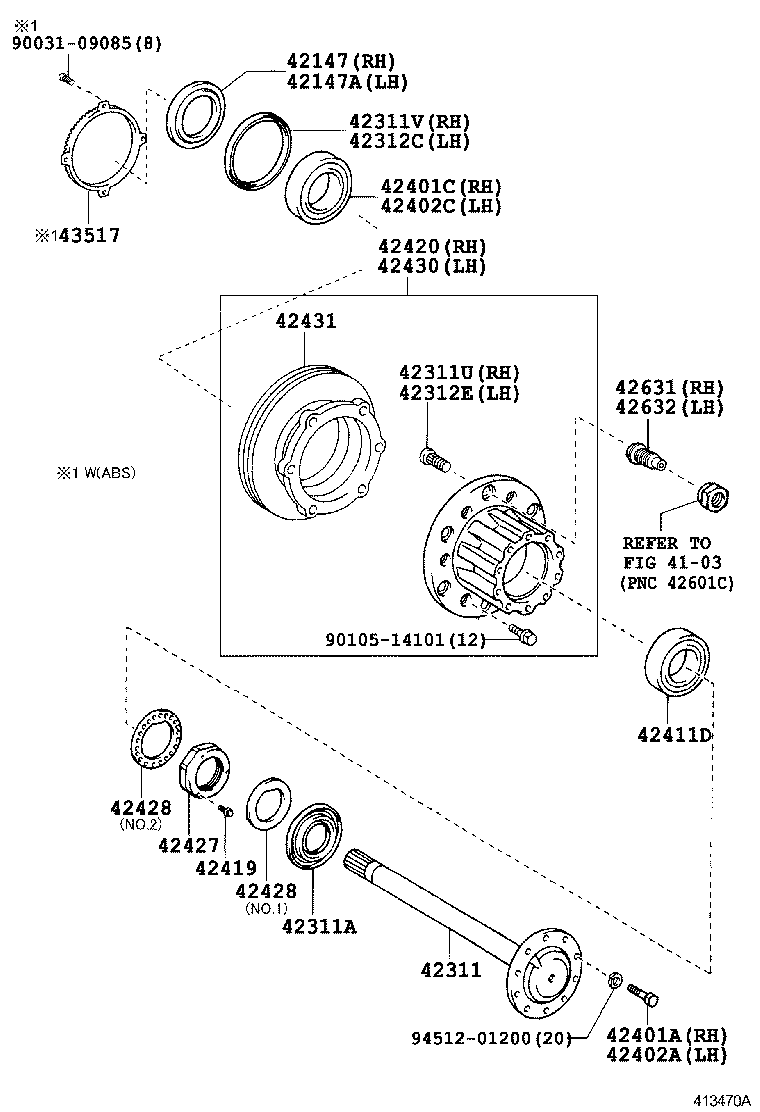

REAR DISC(T=40)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42147 - GUIDE, REAR AXLE OIL SEAL, RH | ||||
| 42147-37010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 42147A - GUIDE, REAR AXLE OIL SEAL, LH | ||||
| 42147-37010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37140 |
WU710..GEN;WU720..65T,75T;XZU720..75T..GCC |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90033-11032 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
2 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02045 |
WU720;WU710..GEN;WU710..85T |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90033-11031 |
WU710..GEN;WU710..85T;WU720,XZU710,720,730..SCB..MTM |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90033-11031 |
WU710..GEN;WU710..85T;WU720,XZU710,720,730..SCB..MTM |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02046 |
WU720;WU710..GEN;WU710..85T |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90031-01163 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
10 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90033-66030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90031-01163 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
10 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90033-66030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90033-66031 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 90119-06199 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39125 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 42428-37030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC NO.2 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 42428-37030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC NO.2 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39125 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-37020 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-37020 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| Common parts | ||||
| 90031-09085 | ||||
| 90105-14101 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(1107- )WU710..85T ; (1107- )WU710,XZU730..EUR,GEN ; (1107- )WU720,XZU710,

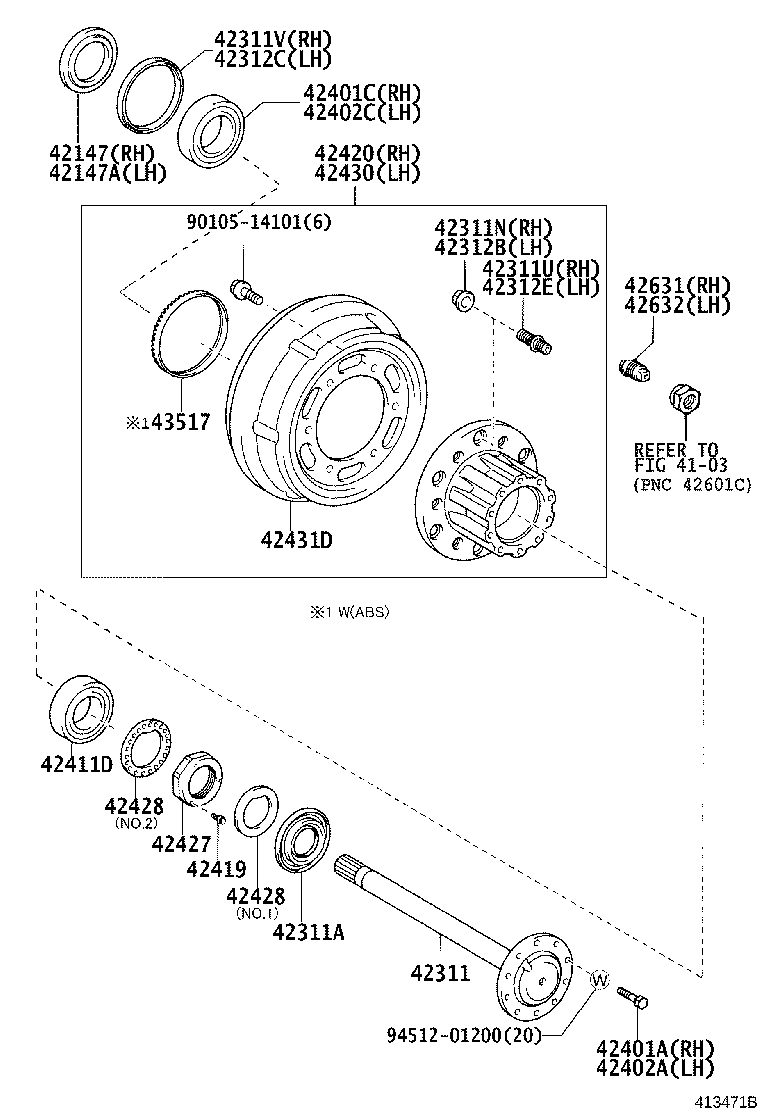

DRUM BRAKE(LINING WIDTH 115)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42147 - GUIDE, REAR AXLE OIL SEAL, RH | ||||
| 42147-37010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 42147A - GUIDE, REAR AXLE OIL SEAL, LH | ||||
| 42147-37010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37140 |
WU710..GEN;WU720..65T,75T;XZU720..75T..GCC |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90033-11032 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
2 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-20007 |
WU720;WU710..GEN;WU710..85T |
6 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02045 |
WU720;WU710..GEN;WU710..85T |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90033-11031 |
WU710..GEN;WU710..85T;WU720,XZU710,720,730..SCB..MTM |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-20007 |
WU720;WU710..GEN;WU710..85T |
6 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90033-11031 |
WU710..GEN;WU710..85T;WU720,XZU710,720,730..SCB..MTM |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02046 |
WU720;WU710..GEN;WU710..85T |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90031-01163 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
10 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90033-66030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90031-01163 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
10 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90033-66030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90033-66031 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 90119-06199 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39125 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 42428-37030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC NO.2 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 42428-37030 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC NO.2 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39125 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 42431D - DRUM, BRAKE | ||||
| 42431-37101 |
WU720;WU710..GEN;WU710..85T |
2 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-37020 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-37020 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
