WU720L-TKMQJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )W04D..65T ; (1107- )W04D..WU710..RHD..75T

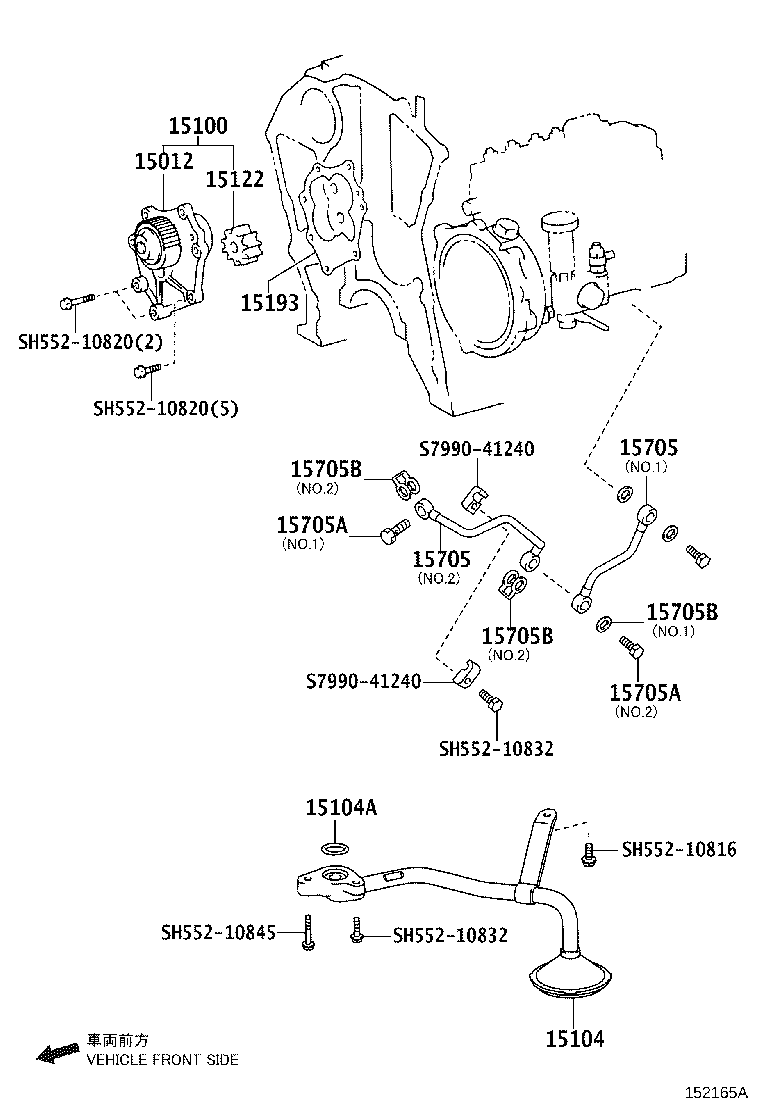

Click highlighted areas on diagram

diagram 15012 15100 15104 15104A 15122 15193 15705 15705 15705A 15705A 15705B 15705B 15705B S799041240 S799041240 SH55210816 SH55210820 SH55210820 SH55210832 SH55210832 SH55210845
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-E0120

W04D..WU700,710,720

 1
15100 - PUMP ASSY, OIL
15110-E0320

W04D..WU700,710,720

 1
15104 - STRAINER SUB-ASSY, OIL
15104-E0120

W04D..WU700,710,720

 1
15104A - RING, O(FOR OIL STRAINER)
SN741-00213

W04D..WU700,710,720

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-E0110

W04D..WU700,710,720

 1
15193 - GASKET, OIL PUMP
S1511-91121

W04D..WU700,710,720

 1
15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
S1577-32310

W04D..WU710..RHD..75T;W04D..WU700,710,720..65T

NO.2

 1
S1577-32300

W04D..WU710..RHD..75T;W04D..WU700,710,720..65T

NO.1

 1
15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
S1577-32310

W04D..WU710..RHD..75T;W04D..WU700,710,720..65T

NO.2

 1
S1577-32300

W04D..WU710..RHD..75T;W04D..WU700,710,720..65T

NO.1

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
SZ401-10010

W04D..WU700,710,720

NO.1

 1
SZ401-10009

W04D..WU700,710,720

NO.2

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
SZ401-10010

W04D..WU700,710,720

NO.1

 1
SZ401-10009

W04D..WU700,710,720

NO.2

 1
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
SZ430-10004

W04D..WU700,710,720

NO.1

 1
SZ430-10011

W04D..WU700,710,720

NO.2

 2
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
SZ430-10004

W04D..WU700,710,720

NO.1

 1
SZ430-10011

W04D..WU700,710,720

NO.2

 2
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
SZ430-10004

W04D..WU700,710,720

NO.1

 1
SZ430-10011

W04D..WU700,710,720

NO.2

 2
Common parts
S7990-41240
SH552-10816
SH552-10820
SH552-10832
SH552-10845
