WU720L-TKMQJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

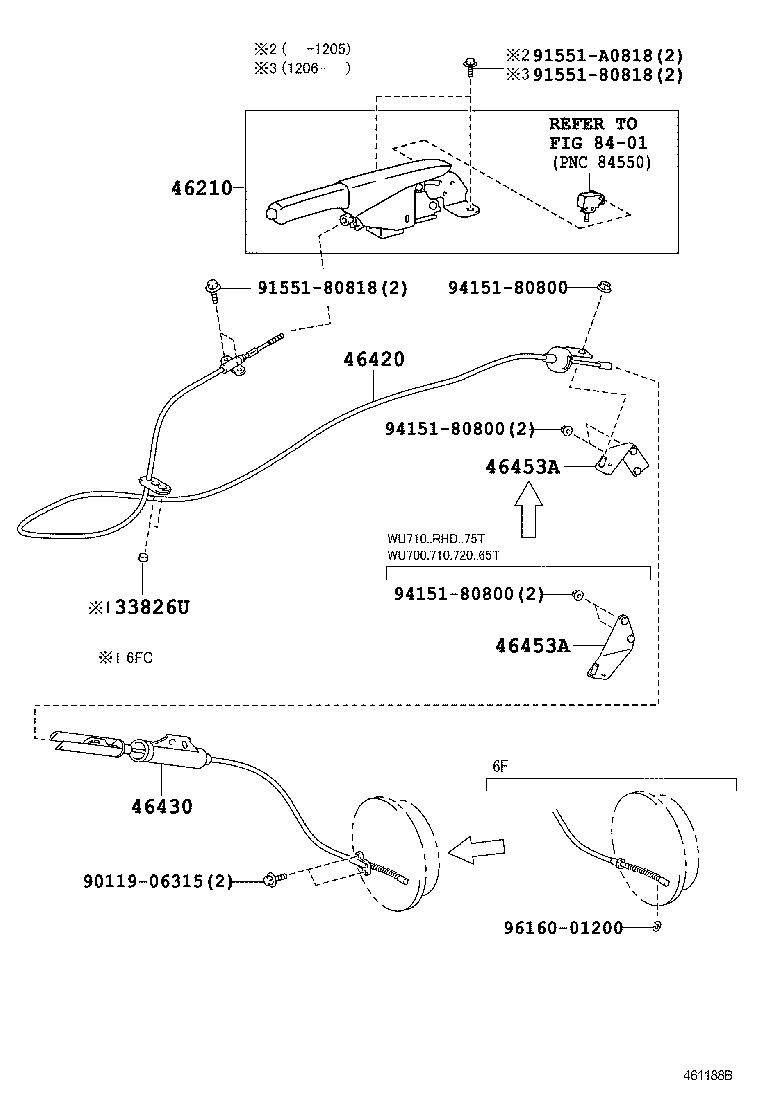

ILLUST NO. 1 OF 2(1107- )XZU710,720..EUR,GCC ; (1107- )WU700,710,720,XZU730

Click highlighted areas on diagram

diagram 33826U 46210 46420 46430 46453A 46453A 8401 9011906315 9155180818 9155180818 91551A0818 9415180800 9415180800 9415180800 9616001200
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-37130C0

WU700,710,720;XZU710,720..MTM..GCC

BLACK,TRIM1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37B20

WU700,710,720..LHD..65T

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37A60

WU710..RHD..75T;WU700,710,720..65T

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37320

WU710..RHD..75T;WU700,710,720..65T

 1
46453-37200

XZU710,720..MTM..GCC;WU710,720..LHD..(75T,85T)

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37320

WU710..RHD..75T;WU700,710,720..65T

 1
46453-37200

XZU710,720..MTM..GCC;WU710,720..LHD..(75T,85T)

 1
Common parts
90119-06315
91551-80818
91551-A0818
94151-80800
96160-01200
Linked diagrams
8401

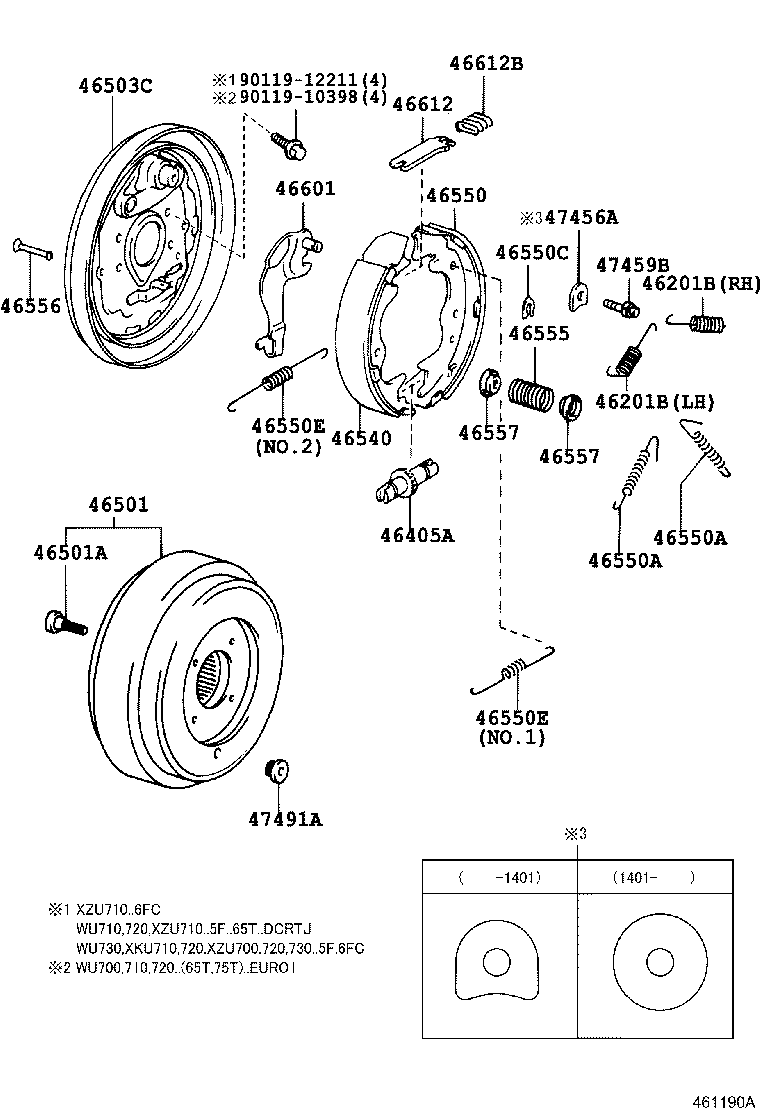

ILLUST NO. 2 OF 2(1107- )XZU710..65T ; (1107- )WU700,710,720..5F

Click highlighted areas on diagram

diagram 46201B 46201B 46405A 46501 46501A 46503C 46540 46550 46550A 46550A 46550C 46550E 46550E 46555 46556 46557 46557 46601 46612 46612B 47456A 47459B 47491A 9011910398 9011912211
Part # Description Qty Price
46201B - SPRING, TENSION
90507-20021

XZU710..5F..GCC;WU700,710,720..5F

LH

 1
90507-20020

XZU710..5F..GCC;WU700,710,720..5F

RH

 1
46201B - SPRING, TENSION
90507-20021

XZU710..5F..GCC;WU700,710,720..5F

LH

 1
90507-20020

XZU710..5F..GCC;WU700,710,720..5F

RH

 1
46405A - SCREW SET, SHOE ADJUSTING, RH
47405-36010

XZU710..5F..GCC;WU700,710,720..5F

 1
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-37050

XZU710..5F..GCC;WU700,710,720..5F

 1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90031-01170

XZU710..5F..GCC;WU700,710,720..5F

 4
46503C - PLATE SUB-ASSY, PARKING BRAKE
46503-37710

WU710..RHD..75T;WU700,710,720..65T

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-37040

XZU710..5F..GCC;WU700,710,720..5F

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-37040

XZU710..5F..GCC;WU700,710,720..5F

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020

XZU710..5F..GCC;WU700,710,720..5F

 2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020

XZU710..5F..GCC;WU700,710,720..5F

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06003

XZU710..5F..GCC;WU700,710,720..5F

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14054

XZU710..5F..GCC;WU700,710,720..5F

NO.2

 1
90506-23049

XZU710..5F..GCC;WU700,710,720..5F

NO.1

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14054

XZU710..5F..GCC;WU700,710,720..5F

NO.2

 1
90506-23049

XZU710..5F..GCC;WU700,710,720..5F

NO.1

 1
46555 - SPRING, BRAKE SHOE HOLD DOWN
90501-16108

XZU710..5F..GCC;WU700,710,720..5F

 2
46556 - PIN, SHOE HOLD DOWN SPRING
47447-20030

XZU710..5F..GCC;WU700,710,720..5F

 2
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011

XZU710..5F..GCC;WU700,710,720..5F

 4
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011

XZU710..5F..GCC;WU700,710,720..5F

 4
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-36051

XZU710..5F..GCC;WU700,710,720..5F

 1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-36050

XZU710..5F..GCC;WU700,710,720..5F

 1
46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-10010

XZU710..5F..GCC;WU700,710,720..5F

 1
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-20030

WU700,710,720,XZU710..5F,6FC

 1
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010

XZU710..5F..GCC;WU700,710,720..5F

 1
47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE)
47491-22020

XZU710..5F..GCC;WU700,710,720..5F

 1
Common parts
90119-10398
90119-12211
