WU720L-TKMQJV (2011)
Toyota Dyna

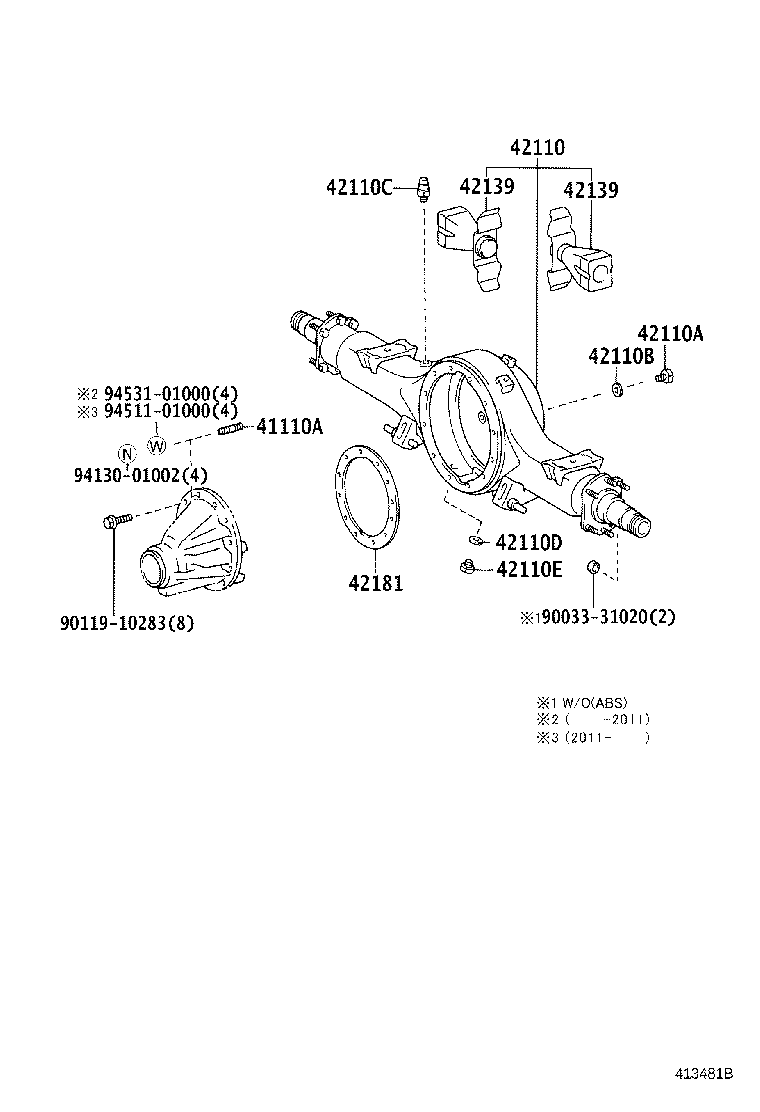

ILLUST NO. 2 OF 2(1107- )65T,75T
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10059 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC S=19 & 12,L=57 |
2 | ||
| 90116-10060 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC S=19 & 12,L=46 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37A60 |
WU720..(65T,75T)..GCC |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37020 |
WU700,710,720,XZU720..(65T,75T)..GCC |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37020 |
WU700,710,720,XZU720..(65T,75T)..GCC |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-37030 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| Common parts | ||||
| 90033-31020 | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94511-01000 | ||||
| 94531-01000 | ||||

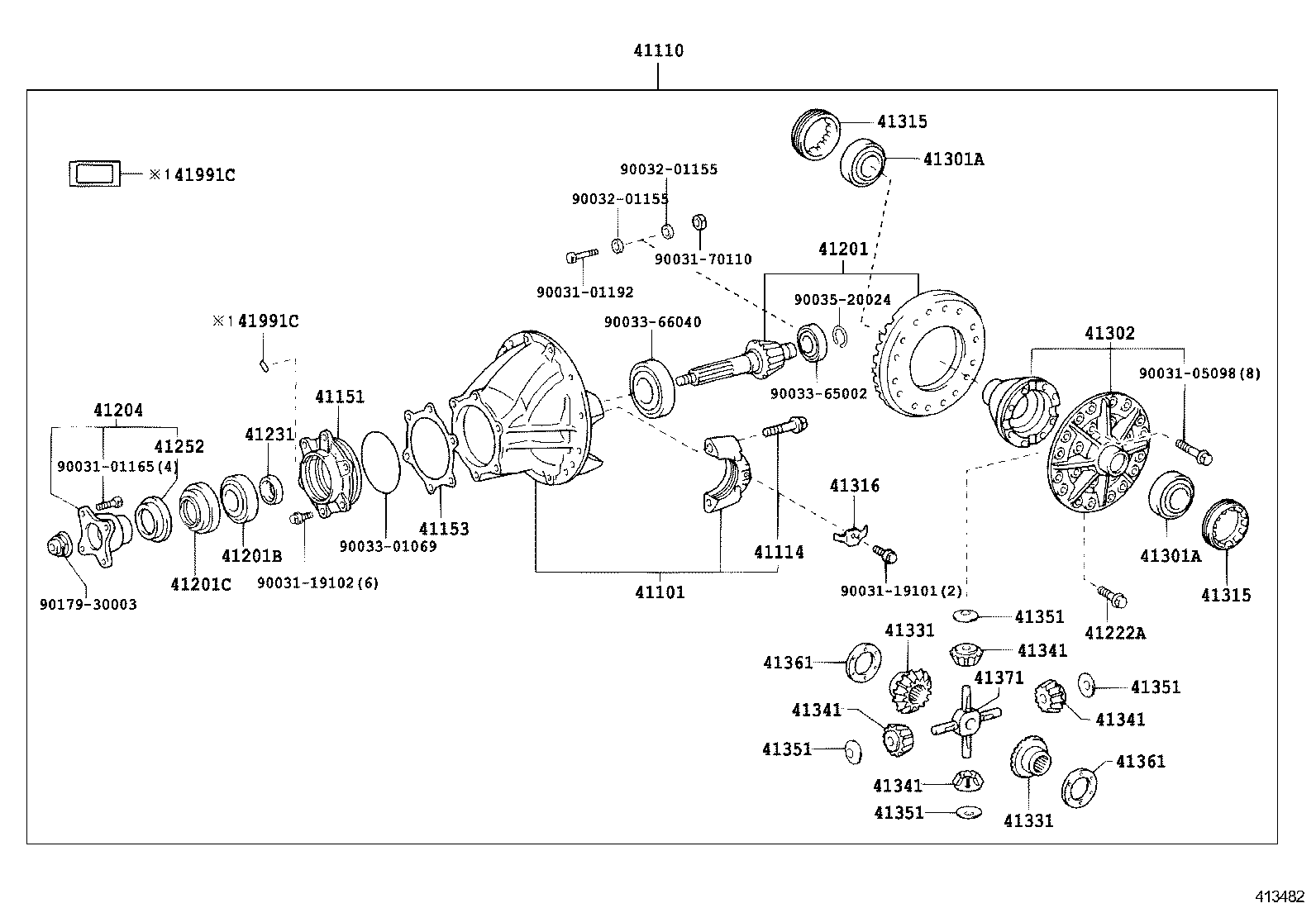

ILLUST NO. 1 OF 2(1107- )65T,75T
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37061 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37380 |
WU700,710,720..65T..GCC *FGR=39:7=5.571 |
1 | ||
| 41110-37390 |
WU700,710,720..65T..GCC *FGR=35:6=5.833,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.833 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90031-05043 |
WU700,710,720,XZU710 |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37031 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-37100 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=0.40 |
4 | ||
| 41153-37090 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=0.30 |
4 | ||
| 41153-37120 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=0.50 |
4 | ||
| 41153-37110 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=0.45 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-37250 |
WU700,710,720..65T..GCC *FGR=39:7=5.571 |
1 | ||
| 41201-37260 |
WU700,710,720..65T..GCC *FGR=35:6=5.833,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.833 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
WU700,710,720,XZU710 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37080 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01203 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37440 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.450 |
1 | ||
| 41231-37450 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.475 |
1 | ||
| 41231-37420 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.400 |
1 | ||
| 41231-37430 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.425 |
1 | ||
| 41231-37490 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.575 |
1 | ||
| 41231-37460 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.500 |
1 | ||
| 41231-37470 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.525 |
1 | ||
| 41231-37520 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.650 |
1 | ||
| 41231-37580 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.800 |
1 | ||
| 41231-37480 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.550 |
1 | ||
| 41231-37550 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.725 |
1 | ||
| 41231-37610 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.875 |
1 | ||
| 41231-37510 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.625 |
1 | ||
| 41231-37500 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.600 |
1 | ||
| 41231-37560 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.750 |
1 | ||
| 41231-37540 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.700 |
1 | ||
| 41231-37570 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.775 |
1 | ||
| 41231-37530 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.675 |
1 | ||
| 41231-37600 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.850 |
1 | ||
| 41231-37590 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=14.825 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| S3734-11560 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55054 |
WU700,710,720,XZU710,720..MTM..(65T,75T)..(GCC,GEN) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55054 |
WU700,710,720,XZU710,720..MTM..(65T,75T)..(GCC,GEN) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37040 |
WU700,710,720,XZU710,720..MTM..(65T,75T)..(GCC,GEN) |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC T=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37030 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37010 |
WU700,710,720..65T..GCC |
1 | ||
| 41991-37100 |
WU700,710,720..65T..GCC REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.833 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37010 |
WU700,710,720..65T..GCC |
1 | ||
| 41991-37100 |
WU700,710,720..65T..GCC REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.833 |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-05098 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90033-01069 | ||||
| 90033-65002 | ||||
| 90033-66040 | ||||
| 90035-20024 | ||||
| 90179-30003 | ||||
