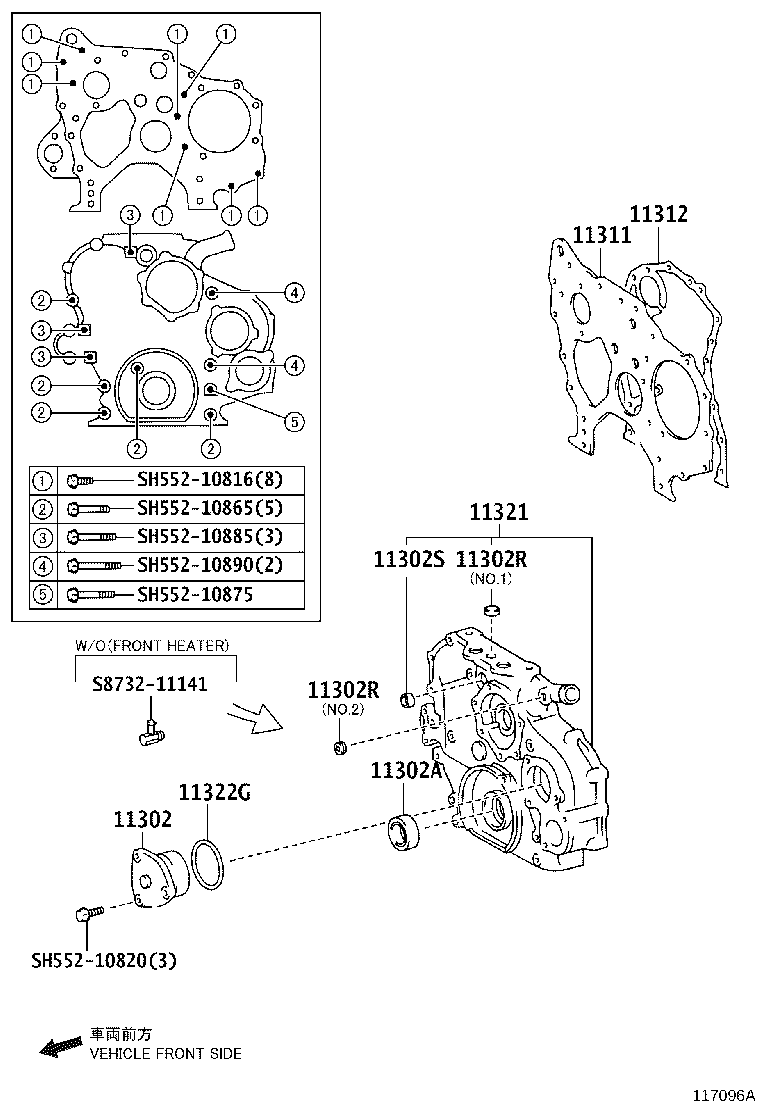

Toyota Dyna WU720 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
S1369-01220	W04D..WU710,720..LHD..(75T,85T)	07/2011 - 05/2020	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
SZ313-58002	W04D..WU700,710,720	04/2014 - 05/2020	1
SZ313-58001	W04D..WU700,710,720	07/2011 - 03/2014	1
11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
SN490-02611	W04D..WU720..6F;W04D..WU710..GCC..IV3;W04D..WU710..65T..GCC..CBU NO.2	07/2011 - 01/2016	1
SZ331-22003	W04D..WU700,710,720 NO.1	07/2011 - 05/2020	1
SN490-02611	W04D..WU710,720..GCC FRONT HEATER-WITHOUT(W/BOOST VENTILATOR),NO.2	01/2016 - 05/2020	1
11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
SN490-02611	W04D..WU720..6F;W04D..WU710..GCC..IV3;W04D..WU710..65T..GCC..CBU NO.2	07/2011 - 01/2016	1
SZ331-22003	W04D..WU700,710,720 NO.1	07/2011 - 05/2020	1
SN490-02611	W04D..WU710,720..GCC FRONT HEATER-WITHOUT(W/BOOST VENTILATOR),NO.2	01/2016 - 05/2020	1
11302S - PLUG, TIGHT, NO.2(FOR TIMING GEAR COVER)
SZ331-32002	W04D..WU700,710,720	07/2011 - 05/2020	1
11311 - PLATE, FRONT END
S1131-11591	W04D..WU710,720..LHD..(75T,85T)	07/2011 - 05/2020	1
11312 - GASKET, FRONT END PLATE
S1131-21170	W04D..WU700,710,720	07/2011 - 05/2020	1
11321 - CASE, TIMING GEAR
11310-E0061	W04D..WU710,720..LHD..(75T,85T)	10/2012 - 05/2020	1
11310-E0060	W04D..WU710,720..LHD..(75T,85T)	07/2011 - 10/2012	1
11322G - RING, O(FOR TIMING GEAR COVER)
SZ301-81002	W04D..WU700,710,720	07/2011 - 05/2020	1
Common parts
S8732-11141
SH552-10816
SH552-10820
SH552-10865
SH552-10875
SH552-10885
SH552-10890

WU720L-TKFTLV3 (2011)
