Toyota Dyna WU720 SEAT & SEAT TRACK

Manufacturers Home
Toyota
EU
DYNA
WU720L-TKFTLV (2011)
7151 - SEAT & SEAT TRACK

WU720L-TKFTLV (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999

Engine W04D

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )LHD..SCB

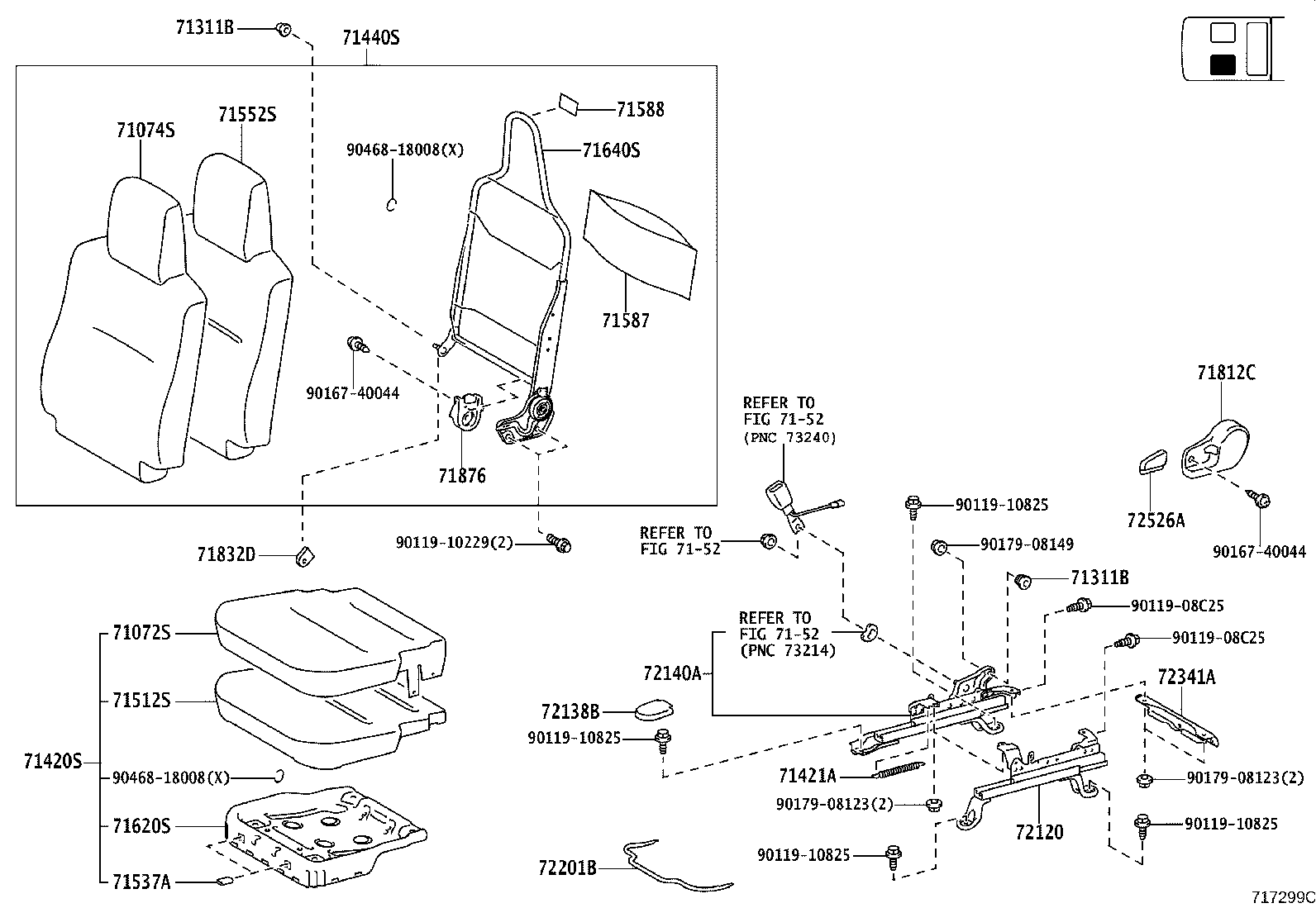

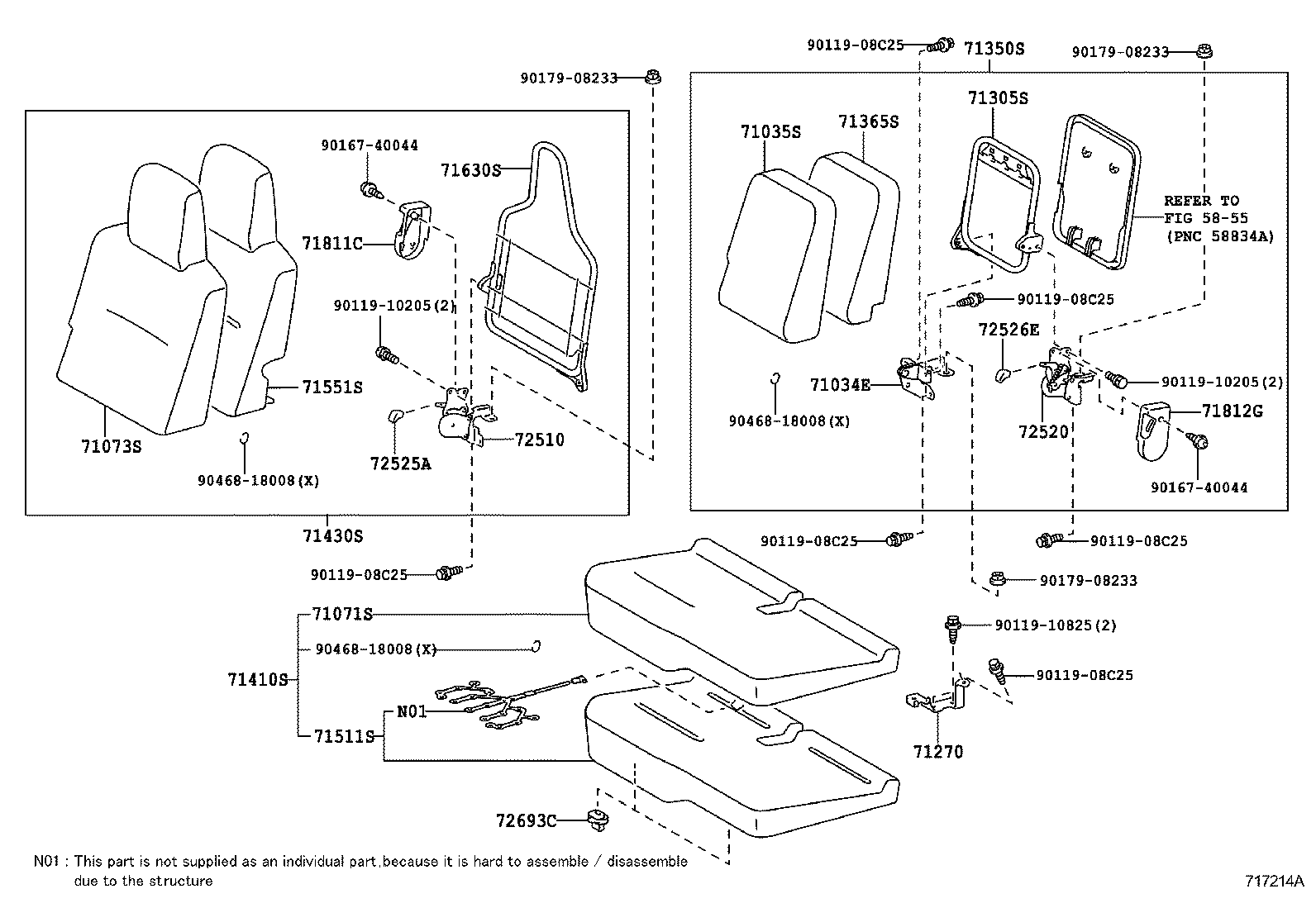

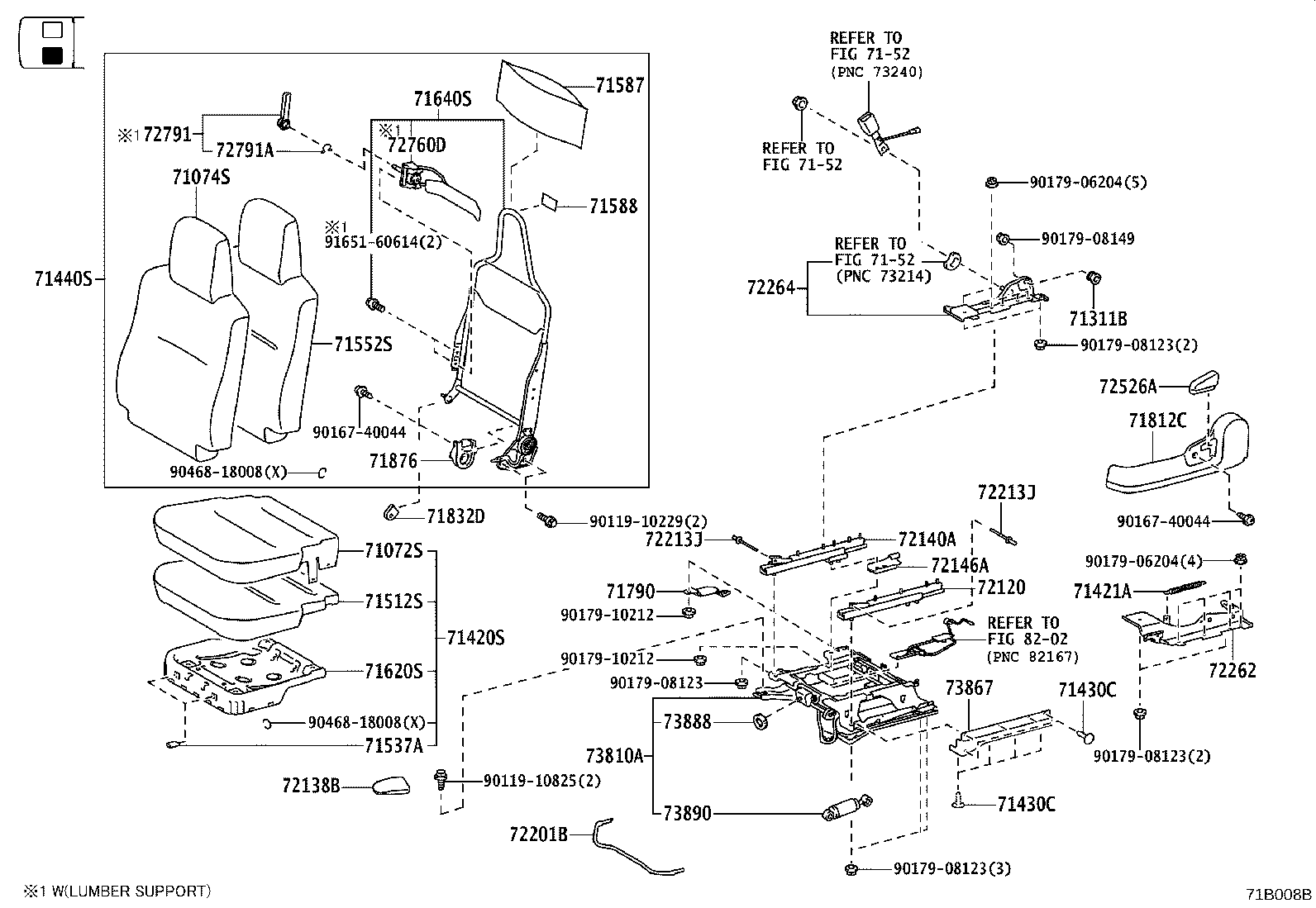

Click highlighted areas on diagram

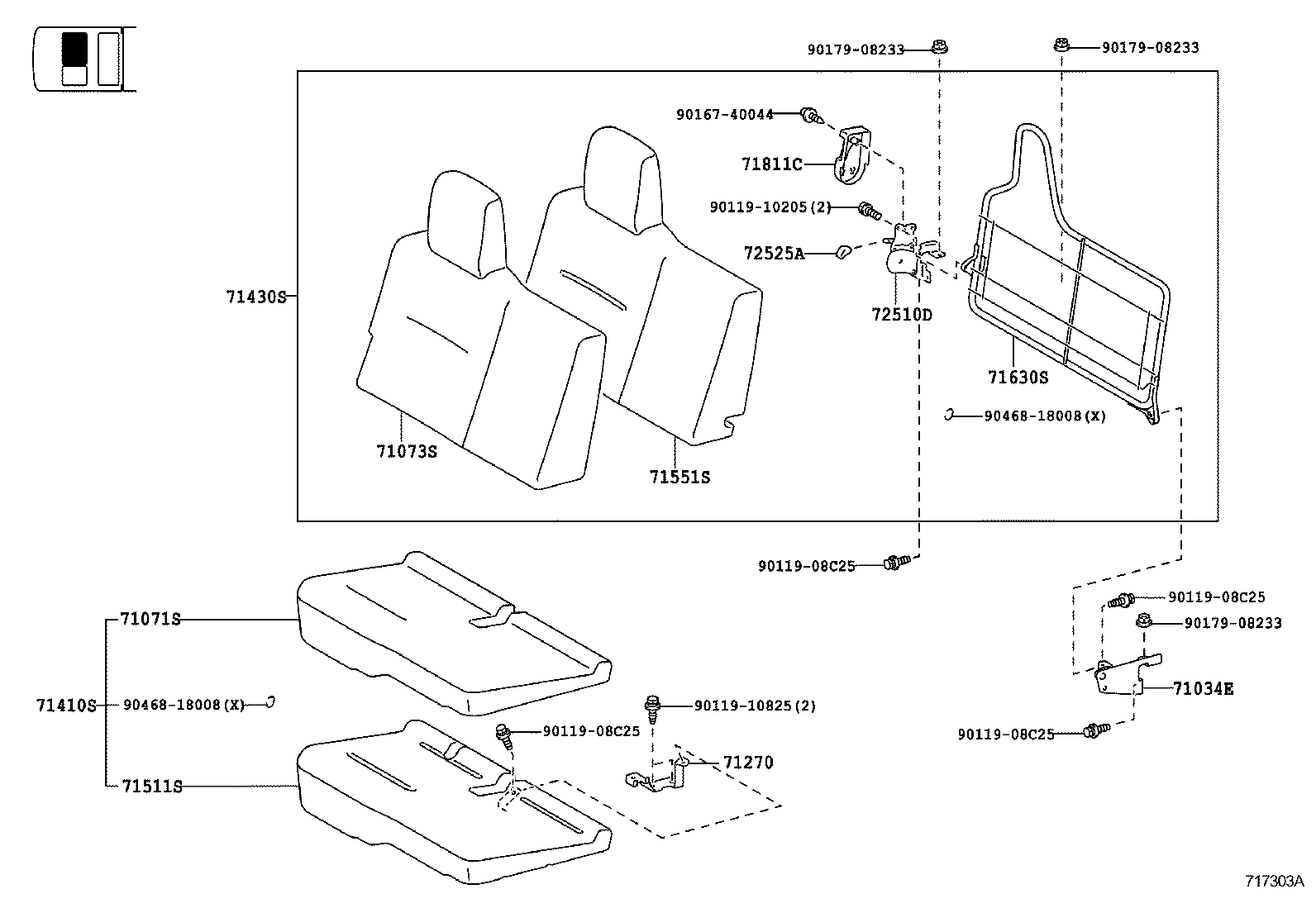

PASSENGER SEAT(SEPARATE TYPE)

Part #	Description	Period	Qty
71034E - HINGE SUB-ASSY, FRONT CENTER SEAT
71034-37020	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC	07/2011 - 06/2013	1
71034-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71034-37020	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE	07/2011 - 05/2020	1
71034-37040	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71034-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71034-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71034-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71034-37020	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER	06/2013 - 05/2020	1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-37680B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	07/2011 - 06/2013	1
71095-37670B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71095-37680B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71095-37660B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71095-37670B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71095-37680B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71095-37660B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71095-37670B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	06/2013 - 05/2020	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37A80B0	WU710..GCC..IV3;WU710..65T..GCC..CBU;WU720,XZU710,720..(6F,6FC)..GCC GRAY,TRIM1#	06/2013 - 05/2015	1
71071-37A90B0	WU700,710,720,XZU710,720..SCB..GCC GRAY,TRIM1#	07/2011 - 06/2013	1
71071-37A80B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71071-37A80B0	WU700,710,720,XZU710,720..SCB..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71071-37A70B0	XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2015	1
71071-37A90B0	WU700,710,720,XZU710,720..SCB..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2015	1
71071-37A90B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2015	1
71071-37B50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B60B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B40B0	WU710,720,XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B50B0	WU710,720,XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B50B0	XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B50B0	WU710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B60B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-37C10B0	WU700,710,720,XZU710,720..SCB..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71073-37C00B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	07/2011 - 06/2013	1
71073-37C20B0	WU700,710,720,XZU710,720..SCB..GCC GRAY,TRIM1#	07/2011 - 06/2013	1
71073-37B90B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71073-37B80B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71073-37C00B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71073-37B80B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71073-37C20B0	XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71073-37B90B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71073-37C10B0	WU700,710,720,XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	06/2013 - 05/2020	1
71073-37C20B0	WU700,710,720,XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71073-37B90B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	06/2013 - 05/2020	1
71073-37C00B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71270 - BRACKET ASSY, SEAT, INNER RH
71270-37010	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37160	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC	08/2012 - 06/2013	1
71305-37140	WU700,710,720,XZU710..LHD..SCB FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE	07/2011 - 07/2012	1
71305-37140	WU700,710,720,XZU710..LHD..SCB FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC	07/2011 - 07/2012	1
71305-37160	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE	08/2012 - 05/2020	1
71305-37160	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71305-37160	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER	06/2013 - 05/2020	1
71305-37160	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71305-37160	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	08/2012 - 05/2020	1
71305-37160	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-37840B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71350-37850B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	07/2011 - 06/2013	1
71350-37830B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71350-37850B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71350-37840B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER &PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71350-37850B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71350-37840B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	06/2013 - 05/2020	1
71350-37830B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71365S - PAD, CENTER SEAT BACK
71365-37130	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC	07/2011 - 06/2013	1
71365-37130	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER	06/2013 - 05/2020	1
71365-37130	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71365-37130	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71365-37130	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE	07/2011 - 05/2020	1
71365-37130	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71365-37130	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37C40B0	WU700,710,720,XZU710,720..SCB..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71410-37C50B0	WU700,710,720,XZU710,720..SCB..GCC ***,GRAY,TRIM1#	07/2011 - 06/2013	1
71410-37C50B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 03/2014	1
71410-37C40B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71410-37C30B0	XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 03/2014	1
71410-37C50B0	WU700,710,720,XZU710,720..SCB..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 03/2014	1
71410-37C40B0	WU700,710,720,XZU710,720,730..SCB..(EUR,GCC) ***,GRAY,TRIM1#	06/2013 - 03/2014	1
71410-37C41B0	WU710..GCC..IV3;WU710..65T..GCC..CBU;WU720,XZU710,720..(6F,6FC)..GCC ***,GRAY,TRIM1#	04/2014 - 05/2015	1
71410-37C51B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	04/2014 - 05/2015	1
71410-37C51B0	WU700,710,720,XZU710,720..SCB..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	04/2014 - 05/2015	1
71410-37D30B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER &PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37C31B0	XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	04/2014 - 05/2015	1
71410-37D40B0	XZU710,720..SCB..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D80B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D50B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D30B0	XZU710,720..SCB..MTM..GCC ***,SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37E00B0	WU710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D90B0	WU710,720,XZU710,720..SCB..MTM..GCC ***,GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37E00B0	WU710,720,XZU710,720..SCB..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	05/2015 - 05/2020	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37C60B0	WU700,710,720,XZU710,720..SCB..GCC ***,GRAY,TRIM1#	07/2011 - 06/2013	1
71430-37C30B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71430-37C40B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	07/2011 - 06/2013	1
71430-37C50B0	WU700,710,720,XZU710,720..SCB..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71430-37C30B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	06/2013 - 05/2020	1
71430-37C20B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71430-37C20B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71430-37C40B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71430-37C50B0	WU700,710,720,XZU710,720..SCB..MTM..GCC ***,GRAY,TRIM1#	06/2013 - 05/2020	1
71430-37C40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71430-37C30B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER &PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71430-37C60B0	XZU710,720..SCB..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71430-37C60B0	WU700,710,720,XZU710,720..SCB..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-37071	WU710..GCC..IV3;WU710..65T..GCC..CBU;WU720,XZU710,720..(6F,6FC)..GCC	04/2014 - 05/2015	1
71051-37010	XZU710,720..SCB..MTM..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71051-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71051-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71501-37070	WU700,710,720,XZU710,720,730..LHD..SCB	07/2011 - 03/2014	1
71051-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71501-37080	WU710,720,XZU710,720..SCB..MTM..GCC	05/2015 - 05/2020	1
71051-37010	XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37250	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC	07/2011 - 06/2013	1
71551-37250	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE	07/2011 - 05/2020	1
71551-37250	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER	06/2013 - 05/2020	1
71551-37250	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71551-37260	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71551-37250	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71551-37250	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71551-37250	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71013-37150	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71013-37140	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC	07/2011 - 06/2013	1
71013-37140	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71013-37140	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE	07/2011 - 05/2020	1
71013-37140	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71013-37140	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER	06/2013 - 05/2020	1
71013-37140	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71013-37140	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37040B0	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
71812G - COVER, RECLINING ADJUSTER, LH
71812-37040B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71812-37040B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71812-37040B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71812-37040B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71812-37040B0	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	07/2011 - 05/2020	1
71812-37040B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71812-37040B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-37080B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
72520-37080B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
72520-37080B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
72520-37080B0	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	07/2011 - 05/2020	1
72520-37080B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
72520-37080B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
72520-37080B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37030B0	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-37040B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
72526-37040B0	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	07/2011 - 05/2020	1
72526-37040B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
72526-37040B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
72526-37040B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
72526-37040B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
72526-37040B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
72693C - HOOK, FRONT SEAT CUSHION LOCK
72693-43011	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	2
Common parts
90119-08C25
90119-10205
90119-10825
90167-40044
90179-08233
90468-18008
Linked diagrams
5855

(1107- )LHD

Click highlighted areas on diagram

DRIVER SEAT

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37D70B0	WU700,710,720,XZU710,720..GCC GRAY,TRIM1#	07/2011 - 06/2013	1
71072-37D60B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71072-37D60B0	WU700,710,720,XZU710,720..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71072-37D50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71072-37D70B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71072-37D60B0	WU700,710,720,XZU710,720..MTM..GCC GRAY,TRIM1#	06/2013 - 05/2020	1
71072-37D70B0	WU700,710,720,XZU710,720..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71072-37D70B0	XZU710,720..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71072-37D70B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71072-37D50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37C70B0	WU700,710,720,XZU710,720..GCC GRAY,TRIM1#	07/2011 - 06/2013	1
71074-37C60B0	WU700,710,720,XZU710,720..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71074-37C50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71074-37C60B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71074-37C70B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71074-37C60B0	WU700,710,720,XZU710,720..MTM..GCC GRAY,TRIM1#	06/2013 - 05/2020	1
71074-37C70B0	WU700,710,720,XZU710,720..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71074-37C70B0	XZU710,720..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71074-37C70B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71074-37C50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-37L30B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71420-37L40B0	WU700,710,720,XZU710,720..GCC ***,GRAY,TRIM1#	07/2011 - 06/2013	1
71420-37F10B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71420-37L40B0	WU700,710,720,XZU710,720..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71420-37L30B0	WU700,710,720,XZU710,720..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71420-37L30B0	WU700,710,720,XZU710,720..MTM..GCC ***,GRAY,TRIM1#	06/2013 - 05/2020	1
71420-37L40B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71420-37L40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71420-37F10B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71420-37L40B0	XZU710,720..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71421A - SPRING, FRONT SEAT CUSHION
71421-37040	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-37D50B0	WU700,710,720,XZU710,720..MTM..GCC ***,GRAY,TRIM1#	06/2013 - 05/2020	1
71440-37D60B0	WU700,710,720,XZU710,720..GCC ***,GRAY,TRIM1#	07/2011 - 06/2013	1
71440-37D50B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71440-37D50B0	WU700,710,720,XZU710,720..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71440-37D40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71440-37D60B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71440-37D60B0	WU700,710,720,XZU710,720..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71440-37D40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71440-37D60B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71440-37D60B0	XZU710,720..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-37160	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71511-37170	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71511-37160	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37220	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71552-37220	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71552-37230	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37021	WU700,710,720;XZU710,720..SCB..MTM..GCC	10/2012 - 05/2020	1
71587-37020	WU700,710,720,XZU710..SCB	07/2011 - 09/2012	1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-37010	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-37070	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71620-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71620-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-37060	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71640-37080	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71640-37060	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-37031B1	WU700,710,720,XZU710,720..LHD GRAY,TRIM1#	07/2011 - 02/2013	1
71812-37051B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71812-37032B1	WU700,710,720..LHD;XZU710,720..MTM..GCC GRAY,TRIM1#	03/2013 - 05/2020	1
71812-37051B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	08/2012 - 05/2020	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-37010	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-37010	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-37050	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72120-37040	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
72120-37050	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72138B - COVER, SEAT TRACK, LH
72137-37030B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
72138-37020B0	WU700,710,720..LHD;XZU710,720..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-37020	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
72140-37030	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72140-37030	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72202-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72202-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72201-37030	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
72341A - REINFORCE, FRONT SEAT STAND FRAME
72341-37010	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-37030B1	WU700,710,720..LHD;XZU710,720..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
Common parts
90119-08C25
90119-10229
90119-10825
90167-40044
90179-08123
90179-08149
90468-18008
Linked diagrams
7152

(1107- )LHD..SCB

Click highlighted areas on diagram

PASSENGER SEAT

Part #	Description	Period	Qty
71034E - HINGE SUB-ASSY, FRONT CENTER SEAT
71034-37020	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC	07/2011 - 06/2013	1
71034-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71034-37020	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE	07/2011 - 05/2020	1
71034-37040	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71034-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71034-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71034-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71034-37020	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER	06/2013 - 05/2020	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37A80B0	WU710..GCC..IV3;WU710..65T..GCC..CBU;WU720,XZU710,720..(6F,6FC)..GCC GRAY,TRIM1#	06/2013 - 05/2015	1
71071-37A90B0	WU700,710,720,XZU710,720..SCB..GCC GRAY,TRIM1#	07/2011 - 06/2013	1
71071-37A80B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71071-37A80B0	WU700,710,720,XZU710,720..SCB..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71071-37A70B0	XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2015	1
71071-37A90B0	WU700,710,720,XZU710,720..SCB..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2015	1
71071-37A90B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2015	1
71071-37B50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B60B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B40B0	WU710,720,XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B50B0	WU710,720,XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B50B0	XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B50B0	WU710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	05/2015 - 05/2020	1
71071-37B60B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-37C10B0	WU700,710,720,XZU710,720..SCB..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71073-37C00B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	07/2011 - 06/2013	1
71073-37C20B0	WU700,710,720,XZU710,720..SCB..GCC GRAY,TRIM1#	07/2011 - 06/2013	1
71073-37B90B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71073-37B80B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71073-37C00B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71073-37B80B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71073-37C20B0	XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71073-37B90B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71073-37C10B0	WU700,710,720,XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	06/2013 - 05/2020	1
71073-37C20B0	WU700,710,720,XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71073-37B90B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	06/2013 - 05/2020	1
71073-37C00B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71270 - BRACKET ASSY, SEAT, INNER RH
71270-37010	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37C40B0	WU700,710,720,XZU710,720..SCB..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71410-37C50B0	WU700,710,720,XZU710,720..SCB..GCC ***,GRAY,TRIM1#	07/2011 - 06/2013	1
71410-37C50B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 03/2014	1
71410-37C40B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71410-37C30B0	XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 03/2014	1
71410-37C50B0	WU700,710,720,XZU710,720..SCB..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 03/2014	1
71410-37C40B0	WU700,710,720,XZU710,720,730..SCB..(EUR,GCC) ***,GRAY,TRIM1#	06/2013 - 03/2014	1
71410-37C41B0	WU710..GCC..IV3;WU710..65T..GCC..CBU;WU720,XZU710,720..(6F,6FC)..GCC ***,GRAY,TRIM1#	04/2014 - 05/2015	1
71410-37C51B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	04/2014 - 05/2015	1
71410-37C51B0	WU700,710,720,XZU710,720..SCB..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	04/2014 - 05/2015	1
71410-37D30B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER &PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37C31B0	XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	04/2014 - 05/2015	1
71410-37D40B0	XZU710,720..SCB..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D80B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D50B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D30B0	XZU710,720..SCB..MTM..GCC ***,SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37E00B0	WU710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37D90B0	WU710,720,XZU710,720..SCB..MTM..GCC ***,GRAY,TRIM1#	05/2015 - 05/2020	1
71410-37E00B0	WU710,720,XZU710,720..SCB..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	05/2015 - 05/2020	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37C60B0	WU700,710,720,XZU710,720..SCB..GCC ***,GRAY,TRIM1#	07/2011 - 06/2013	1
71430-37C30B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71430-37C40B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	07/2011 - 06/2013	1
71430-37C50B0	WU700,710,720,XZU710,720..SCB..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71430-37C30B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#	06/2013 - 05/2020	1
71430-37C20B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71430-37C20B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71430-37C40B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71430-37C50B0	WU700,710,720,XZU710,720..SCB..MTM..GCC ***,GRAY,TRIM1#	06/2013 - 05/2020	1
71430-37C40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71430-37C30B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER &PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71430-37C60B0	XZU710,720..SCB..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71430-37C60B0	WU700,710,720,XZU710,720..SCB..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-37071	WU710..GCC..IV3;WU710..65T..GCC..CBU;WU720,XZU710,720..(6F,6FC)..GCC	04/2014 - 05/2015	1
71051-37010	XZU710,720..SCB..MTM..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71051-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71051-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71501-37070	WU700,710,720,XZU710,720,730..LHD..SCB	07/2011 - 03/2014	1
71051-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71501-37080	WU710,720,XZU710,720..SCB..MTM..GCC	05/2015 - 05/2020	1
71051-37010	XZU710,720..SCB..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37250	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC	07/2011 - 06/2013	1
71551-37250	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE	07/2011 - 05/2020	1
71551-37250	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER	06/2013 - 05/2020	1
71551-37250	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71551-37260	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71551-37250	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71551-37250	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71551-37250	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71013-37150	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71013-37140	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC	07/2011 - 06/2013	1
71013-37140	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71013-37140	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE	07/2011 - 05/2020	1
71013-37140	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71013-37140	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER	06/2013 - 05/2020	1
71013-37140	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71013-37140	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37040B0	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH
72510-37080B0	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37030B0	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
Common parts
90119-08C25
90119-10205
90119-10825
90167-40044
90179-08233
90468-18008

(1107- )

Click highlighted areas on diagram

CLIP

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

(1107- )XZU710,720..SCB..MTM..GCC

Click highlighted areas on diagram

DRIVER SEAT-W(SEAT SUSPENSION)

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37D70B0	WU700,710,720,XZU710,720..GCC GRAY,TRIM1#	07/2011 - 06/2013	1
71072-37D60B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71072-37D60B0	WU700,710,720,XZU710,720..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71072-37D50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71072-37D70B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71072-37D60B0	WU700,710,720,XZU710,720..MTM..GCC GRAY,TRIM1#	06/2013 - 05/2020	1
71072-37D70B0	WU700,710,720,XZU710,720..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71072-37D70B0	XZU710,720..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71072-37D70B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71072-37D50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37C70B0	WU700,710,720,XZU710,720..GCC GRAY,TRIM1#	07/2011 - 06/2013	1
71074-37C60B0	WU700,710,720,XZU710,720..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71074-37C50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71074-37C60B0	WU700,710,720,XZU710,720..SCB..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71074-37C70B0	WU700,710,720,XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71074-37C60B0	WU700,710,720,XZU710,720..MTM..GCC GRAY,TRIM1#	06/2013 - 05/2020	1
71074-37C70B0	WU700,710,720,XZU710,720..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71074-37C70B0	XZU710,720..MTM..GCC SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71074-37C70B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71074-37C50B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-37L30B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71420-37L40B0	WU700,710,720,XZU710,720..GCC ***,GRAY,TRIM1#	07/2011 - 06/2013	1
71420-37F10B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71420-37L40B0	WU700,710,720,XZU710,720..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71420-37L30B0	WU700,710,720,XZU710,720..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71420-37L30B0	WU700,710,720,XZU710,720..MTM..GCC ***,GRAY,TRIM1#	06/2013 - 05/2020	1
71420-37L40B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71420-37L40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71420-37F10B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71420-37L40B0	XZU710,720..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71421A - SPRING, FRONT SEAT CUSHION
71421-37040	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71430C - CLIP
90467-0501422	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),BLACK	07/2011 - 05/2020	9
90467-0501422	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK	05/2015 - 05/2020	9
71430C - CLIP
90467-0501422	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),BLACK	07/2011 - 05/2020	9
90467-0501422	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK	05/2015 - 05/2020	9
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-37D50B0	WU700,710,720,XZU710,720..MTM..GCC ***,GRAY,TRIM1#	06/2013 - 05/2020	1
71440-37D60B0	WU700,710,720,XZU710,720..GCC ***,GRAY,TRIM1#	07/2011 - 06/2013	1
71440-37D50B0	WU700,710,720,XZU710,720..SCB..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71440-37D50B0	WU700,710,720,XZU710,720..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#	07/2011 - 06/2013	1
71440-37D40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
71440-37D60B0	WU700,710,720,XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71440-37D60B0	WU700,710,720,XZU710,720..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#	06/2013 - 05/2020	1
71440-37D40B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71440-37D60B0	XZU710,720..SCB..MTM..GCC **,FRONT SEAT-PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71440-37D60B0	XZU710,720..MTM..GCC ***,SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-37160	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71511-37170	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71511-37160	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37220	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71552-37220	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71552-37230	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37021	WU700,710,720;XZU710,720..SCB..MTM..GCC	10/2012 - 05/2020	1
71587-37020	WU700,710,720,XZU710..SCB	07/2011 - 09/2012	1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-37010	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-37070	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71620-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71620-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-37060	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71640-37080	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71640-37060	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71790 - BELT ASSY, SIDE SEAT
71790-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
71790-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-37031B1	WU700,710,720,XZU710,720..LHD GRAY,TRIM1#	07/2011 - 02/2013	1
71812-37051B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
71812-37032B1	WU700,710,720..LHD;XZU710,720..MTM..GCC GRAY,TRIM1#	03/2013 - 05/2020	1
71812-37051B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	08/2012 - 05/2020	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-37010	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-37010	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-37050	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72120-37040	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
72120-37050	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72138B - COVER, SEAT TRACK, LH
72137-37030B0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
72138-37020B0	WU700,710,720..LHD;XZU710,720..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-37020	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
72140-37030	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72140-37030	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72146A - BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT LH
72146-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72146-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72202-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72202-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72201-37030	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
72213J - PIN, FRONT SEAT TRACK HANDLE SET
72213-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	2
72213-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	2
72213J - PIN, FRONT SEAT TRACK HANDLE SET
72213-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	2
72213-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	2
72262 - REINFORCEMENT, SEAT TRACK
72262-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72262-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72264 - REINFORCEMENT, INNER SEAT TRACK, LH
72264-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72264-37010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-37030B1	WU700,710,720..LHD;XZU710,720..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72760-25010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
72760-25010	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
72791 - LEVER, LUMBAR SUPPORT
72791-12010P0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#	07/2011 - 05/2020	1
72791-12010P0	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#	05/2015 - 05/2020	1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01006	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
90520-01006	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
73810A - SUSPENSION ASSY, SEAT, LH
73810-37031	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	10/2015 - 05/2019	1
73810-37031	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	10/2015 - 05/2019	1
73810-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	06/2019 - 05/2020	1
73810-37040	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	06/2019 - 05/2020	1
73867 - GUARD, SEAT SUSPENSION, UPPER
73867-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2020	1
73867-37020	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
73888 - HANDLE, SEAT SUSPENSION CONTROL
73888-37030	XZU710,720..SCB FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 03/2013	1
73888-37031	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER)	05/2015 - 05/2020	1
73888-37031	XZU710,720..SCB..MTM..GCC FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	04/2013 - 05/2020	1
73890 - ABSORBER ASSY, SEAT SUSPENSION
73890-37020	XZU710,720..SCB..MTM..GCC SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	11/2012 - 05/2020	1
Common parts
90119-10229
90119-10825
90167-40044
90179-06204
90179-08123
90179-08149
90179-10212
90468-18008
91651-60614
Linked diagrams
7152
8202

WU720L-TKFTLV (2011)

(1107- )LHD..SCB

(1107- )LHD

(1107- )LHD..SCB

(1107- )

(1107- )XZU710,720..SCB..MTM..GCC

Part Price Details
