WU720L-TKFTLV (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

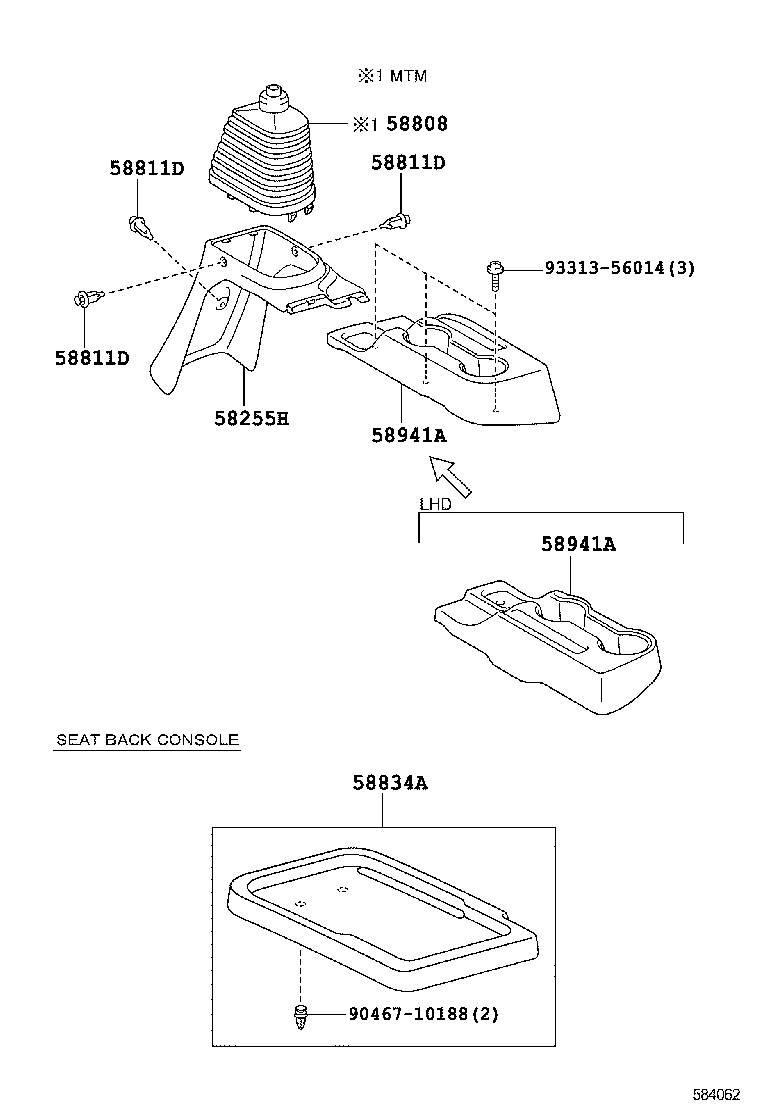

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

diagram 58255H 58808 58811D 58811D 58811D 58834A 58941A 58941A 9046710188 9331356014
Part # Description Qty Price
58255H - COVER, SHIFT LEVER BOOT
58255-37100B0

WU700,710,720..LHD;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-37030C0

WU700,710,720;XZU710,720..MTM..GCC

BLACK,TRIM1#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-07191C1

WU700,710,720;XZU710,720..MTM..GCC

BLACK,TRIM1#

 3
58811D - CLIP(FOR CONSOLE BOX)
90467-07191C1

WU700,710,720;XZU710,720..MTM..GCC

BLACK,TRIM1#

 3
58811D - CLIP(FOR CONSOLE BOX)
90467-07191C1

WU700,710,720;XZU710,720..MTM..GCC

BLACK,TRIM1#

 3
58834A - COVER, CONSOLE, LOWER
58834-37050B0

WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC

FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#

 1
58834-37050B0

XZU710,720..SCB..MTM..GCC

FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#

 1
58834-37050B0

XZU710,720..SCB..MTM..GCC

FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
58834-37050B0

WU700,710,720,XZU710,720..SCB..MTM..GCC

FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#

 1
58834-37050B0

WU700,710,720,XZU710,720..SCB..GCC

FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#

 1
58834-37050B0

XZU710,720..SCB..MTM..GCC

FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
58834-37050B0

XZU710,720..SCB..MTM..GCC

FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58941-37100B0

WU700,710,720..LHD;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58941-37100B0

WU700,710,720..LHD;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
Common parts
90467-10188
93313-56014
