WU720L-TKFTLV (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )WU710,720 ; (1107- )XZU710,720..EUR,GCC

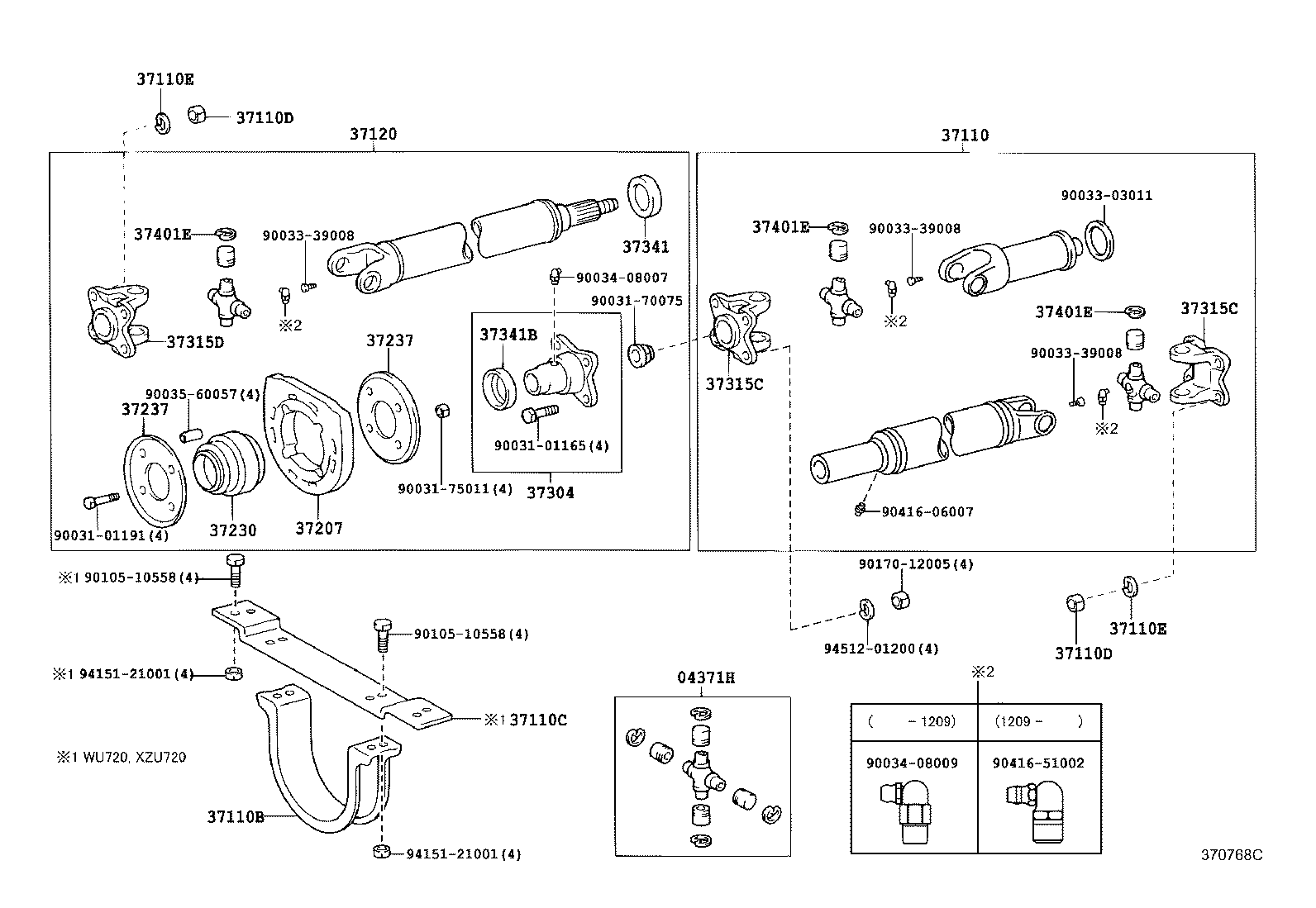

Click highlighted areas on diagram

diagram 04371H 37110 37110B 37110C 37110D 37110D 37110E 37110E 37120 37207 37230 37237 37237 37304 37315C 37315C 37315D 37341 37341B 37401E 37401E 37401E 9003101165 9003101191 9003170075 9003175011 9003303011 9003339008 9003339008 9003339008 9003408007 9003560057 9010510558 9010510558 9017012005 9041606007 9415121001 9415121001 9451201200
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-37080

WU700,710,720,XZU710,720,730

 1
04371-37081

WU700,710,720,XZU710,720..MTM..(GCC,GEN)

 1
04371-37110

WU710,720;XZU710,720..MTM..GCC

 3
37110 - SHAFT ASSY, PROPELLER
37110-37B91

WU720,XZU720..85T

 1
37110B - GUARD, PROPELLER SHAFT
37231-37020

WU710,720;XZU710,720..MTM..GCC

 1
37110C - BRACKET, PROPELLER SHAFT GUARD
51241-37090

WU720;XZU720..GCC

 1
37110D - NUT (FOR PROPELLER SHAFT)
90170-12005

WU700,710,720;XZU710,720..MTM..GCC

 8
37110D - NUT (FOR PROPELLER SHAFT)
90170-12005

WU700,710,720;XZU710,720..MTM..GCC

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-01200

WU700,710,720;XZU710,720..MTM..GCC

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-01200

WU700,710,720;XZU710,720..MTM..GCC

 8
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-37570

WU720,XZU720..6F..GCC

 1
37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37235-37030

WU710,720;XZU710,720..MTM..GCC

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37201-37020

WU710,720;XZU710,720..MTM..GCC

 1
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37020

WU710,720;XZU710,720..MTM..GCC

T=3.0

 2
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37020

WU710,720;XZU710,720..MTM..GCC

T=3.0

 2
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-37040

WU710,720;XZU710,720..MTM..GCC

 1
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37070

WU710,720;XZU710,720..MTM..GCC

 2
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37070

WU710,720;XZU710,720..MTM..GCC

 2
37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37050

WU710,720,XZU710,720..6F..GCC

 1
37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37341-37030

WU710,720;XZU710,720..MTM..GCC

 1
37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5
37341-37030

WU710,720;XZU710,720..MTM..GCC

 1
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21040

WU700,710,720;XZU710,720..MTM..GCC

T=1.62

 8
90035-21038

WU700,710,720;XZU710,720..MTM..GCC

T=1.68

 8
90035-21043

WU700,710,720;XZU710,720..MTM..GCC

T=1.53

 8
90035-21044

WU700,710,720;XZU710,720..MTM..GCC

T=1.50

 8
90035-21039

WU700,710,720;XZU710,720..MTM..GCC

T=1.65

 8
90035-21041

WU700,710,720;XZU710,720..MTM..GCC

T=1.59

 8
90035-21042

WU700,710,720;XZU710,720..MTM..GCC

T=1.56

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21040

WU700,710,720;XZU710,720..MTM..GCC

T=1.62

 8
90035-21038

WU700,710,720;XZU710,720..MTM..GCC

T=1.68

 8
90035-21043

WU700,710,720;XZU710,720..MTM..GCC

T=1.53

 8
90035-21044

WU700,710,720;XZU710,720..MTM..GCC

T=1.50

 8
90035-21039

WU700,710,720;XZU710,720..MTM..GCC

T=1.65

 8
90035-21041

WU700,710,720;XZU710,720..MTM..GCC

T=1.59

 8
90035-21042

WU700,710,720;XZU710,720..MTM..GCC

T=1.56

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21040

WU700,710,720;XZU710,720..MTM..GCC

T=1.62

 8
90035-21038

WU700,710,720;XZU710,720..MTM..GCC

T=1.68

 8
90035-21043

WU700,710,720;XZU710,720..MTM..GCC

T=1.53

 8
90035-21044

WU700,710,720;XZU710,720..MTM..GCC

T=1.50

 8
90035-21039

WU700,710,720;XZU710,720..MTM..GCC

T=1.65

 8
90035-21041

WU700,710,720;XZU710,720..MTM..GCC

T=1.59

 8
90035-21042

WU700,710,720;XZU710,720..MTM..GCC

T=1.56

 8
Common parts
90031-01165
90031-01191
90031-70075
90031-75011
90033-03011
90033-39008
90034-08007
90035-60057
90105-10558
90170-12005
90416-06007
94151-21001
94512-01200
