WU720L-TKFRLV3 (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

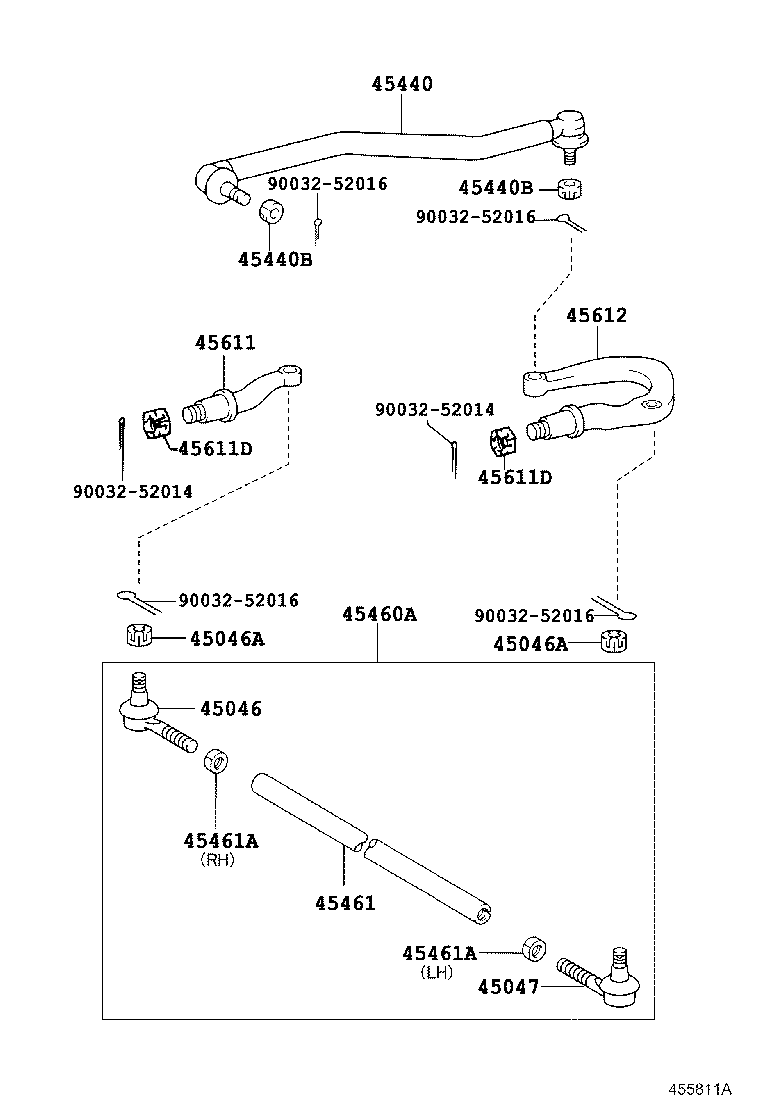

ILLUST NO. 2 OF 2(1107- )WU720 ; (1107- )LHD..65T..GEN ; (1107- )XZU710,720..GCC ; (1107-

Click highlighted areas on diagram

PNC45611=TYPEB

diagram 45046 45046A 45046A 45047 45440 45440B 45440B 45460A 45461 45461A 45461A 45611 45611D 45611D 45612 9003252014 9003252014 9003252016 9003252016 9003252016 9003252016
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-37133

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90031-71018

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90031-71018

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-37103

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 1
45440 - LINK ASSY, STEERING DRAG
45440-37320

WU720;XZU710,720..6F..GCC;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T)

 1
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90031-71018

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 2
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90031-71018

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 2
45460A - ROD ASSY, TIE
45460-37152

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 1
45461 - ROD, STEERING TIE
45461-37111

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 1
45461A - NUT(FOR STEERING TIE ROD LOCK)
90031-70113

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

RH

 1
90031-70114

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

LH

 1
45461A - NUT(FOR STEERING TIE ROD LOCK)
90031-70113

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

RH

 1
90031-70114

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

LH

 1
45611 - ARM, STEERING KNUCKLE, RH
45612-37090

WU720;XZU710,720..6F..GCC;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T)

TYPE B

 1
45611D - NUT(FOR STEERING KNUCKLE ARM)
90171-27001

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 2
45611D - NUT(FOR STEERING KNUCKLE ARM)
90171-27001

WU720;WU710..GEN;WU710,XZU710,720..6F..GCC

 2
45612 - ARM, STEERING KNUCKLE, LH
45611-37140

WU720;XZU710,720..6F..GCC;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T)

 1
Common parts
90032-52014
90032-52016

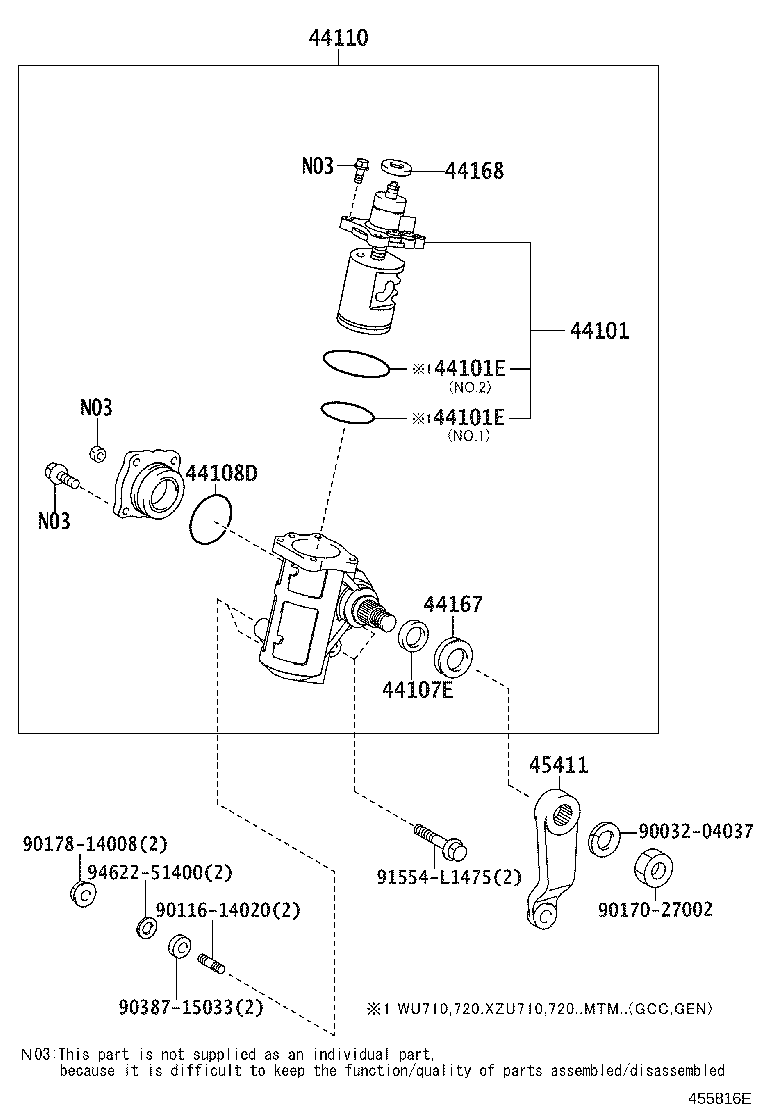

ILLUST NO. 1 OF 2(1107- )XZU710,720..EUR,GCC ; (1107- )WU700,710,720,XZU730..LHD ; (1911- )

Click highlighted areas on diagram

diagram 44101 44101E 44101E 44107E 44108D 44110 44167 44168 45411 9003204037 9011614020 9017027002 9017814008 9038715033 91554L1475 9462251400
Part # Description Qty Price
44101 - WORM SUB-ASSY, STEERING
44101-37061

WU710,720..LHD;XZU710,720..MTM..GCC

 1
44101-37060

WU710,720,XZU710,720..LHD..MTM..(GCC,GEN)

 1
44101E - RING, O(FOR STEERING WORM)
44999-37040

WU710,720;XZU710,720..MTM..GCC

NO.2

 1
44999-37030

WU710,720;XZU710,720..MTM..GCC

NO.1

 1
44101E - RING, O(FOR STEERING WORM)
44999-37040

WU710,720;XZU710,720..MTM..GCC

NO.2

 1
44999-37030

WU710,720;XZU710,720..MTM..GCC

NO.1

 1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
45333-37010

WU710,720,XZU710,720..LHD..MTM..(GCC,GEN)

 1
44108D - RING, O(FOR SECTOR COVER)
44999-37050

WU710,720,XZU710,720..LHD..MTM..(GCC,GEN)

 1
44110 - GEAR ASSY, POWER STEERING
44110-37301

WU710,720..LHD;XZU710,720..MTM..GCC

 1
44110-37300

WU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)

 1
44167 - COVER, SECTOR SHAFT DUST
45222-37050

WU710,720,XZU710,720..LHD..MTM..(GCC,GEN)

 1
44168 - COVER, WORM SHAFT DUST
45222-37040

WU710,720,XZU710,720..LHD..MTM..(GCC,GEN)

 1
45411 - ARM, PITMAN
45411-37350

WU720;XZU710,720..6F..GCC;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T)

 1
Common parts
90032-04037
90116-14020
90170-27002
90178-14008
90387-15033
91554-L1475
94622-51400
