WU720L-TKFRLV (2011)
Toyota Dyna

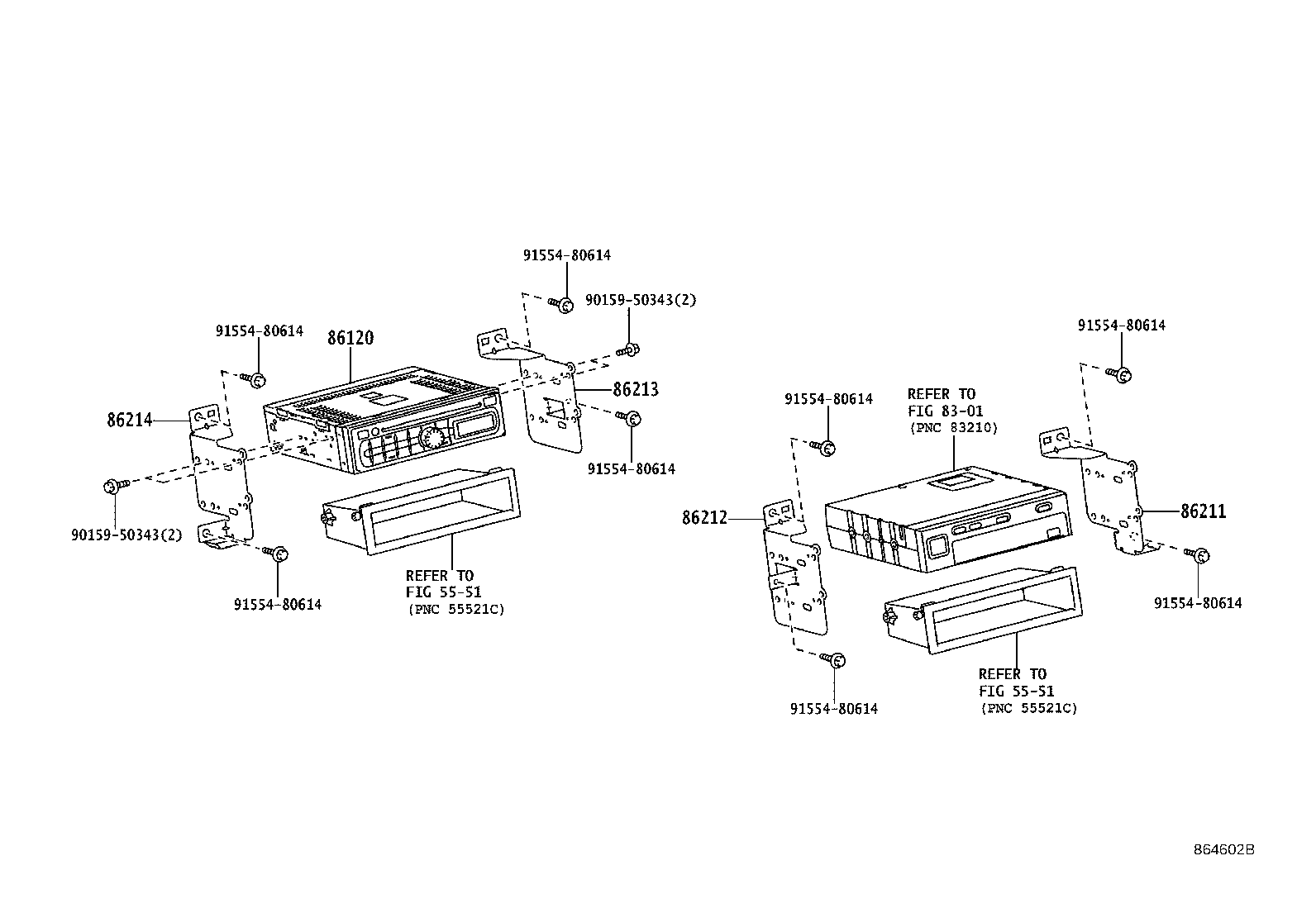

ILLUST NO. 1 OF 2(1107- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-37400 |
WU700,710,720,XZU710,720..GCC,GEN CLARION,TACHOGRAPH-1DIN SIZE 120KM/H 1WEEK&AUDIO-AM/FM/CD(1DIN) 2SPEAKER,TYPE A:REFER ILLUST. |
1 | ||
| 86120-37401 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) CLARION,TACHOGRAPH-1DIN SIZE 120KM/H 1WEEK&AUDIO-AM/FM/CD(1DIN) 2SPEAKER,TYPE A:REFER ILLUST. |
1 | ||
| 86120-37400 |
WU700,710,720,XZU710,720..GCC,GEN CLARION,AUDIO-AM/FM/CD(1DIN) 2SPEAKER,TYPE A:REFER ILLUST. |
1 | ||
| 86120-37390 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) CLARION,AUDIO-AM/FM 2SPEAKER,TYPE B:REFER ILLUST. |
1 | ||
| 86120-37390 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) CLARION,TACHOGRAPH-1DIN SIZE 120KM/H 1WEEK&AUDIO-AM/FM 2SPEAKER,TYPE B:REFER ILLUST. |
1 | ||
| 86120-37480 |
WU710,720,XZU710,720..MTM..(GCC,GEN) CLARION,TACHOGRAPH-1DIN SIZE 120KM/H 1WEEK&AUDIO-AM/FM/CD(1DIN) 2SPEAKER,TYPE E:REFER ILLUST. |
1 | ||
| 86120-37401 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) CLARION,AUDIO-AM/FM/CD(1DIN) 2SPEAKER,TYPE A:REFER ILLUST. |
1 | ||
| 86120-E0310 |
WU710,720;XZU710,720..MTM..GCC CLARION,TACHOGRAPH-1DIN SIZE 120KM/H 1WEEK&AUDIO-AM/FM 2SPEAKER,TYPE D:REFER ILLUST. |
1 | ||
| 86120-37470 |
WU710,720,XZU710,720..MTM..(GCC,GEN) CLARION,AUDIO-AM/FM 2SPEAKER,TYPE D:REFER ILLUST. |
1 | ||
| 86120-E0320 |
WU710,720;XZU710,720..MTM..GCC CLARION,TACHOGRAPH-1DIN SIZE 120KM/H 1WEEK&AUDIO-AM/FM/CD(1DIN) 2SPEAKER,TYPE E:REFER ILLUST. |
1 | ||
| 86120-37480 |
WU710,720,XZU710,720..MTM..(GCC,GEN) CLARION,AUDIO-AM/FM/CD(1DIN) 2SPEAKER,TYPE E:REFER ILLUST. |
1 | ||
| 86120-E0320 |
WU710,720;XZU710,720..MTM..GCC CLARION,AUDIO-AM/FM/CD(1DIN) 2SPEAKER,TYPE E:REFER ILLUST. |
1 | ||
| 86120-37470 |
WU710,720,XZU710,720..MTM..(GCC,GEN) CLARION,TACHOGRAPH-1DIN SIZE 120KM/H 1WEEK&AUDIO-AM/FM 2SPEAKER,TYPE D:REFER ILLUST. |
1 | ||
| 86120-E0310 |
WU710,720;XZU710,720..MTM..GCC CLARION,AUDIO-AM/FM 2SPEAKER,TYPE D:REFER ILLUST. |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-37110 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-37100 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86211-37120 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 86214 - BRACKET, RADIO, NO.4 | ||||
| 86212-37090 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 90159-50343 | ||||
| 91554-80614 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8301 | ||||

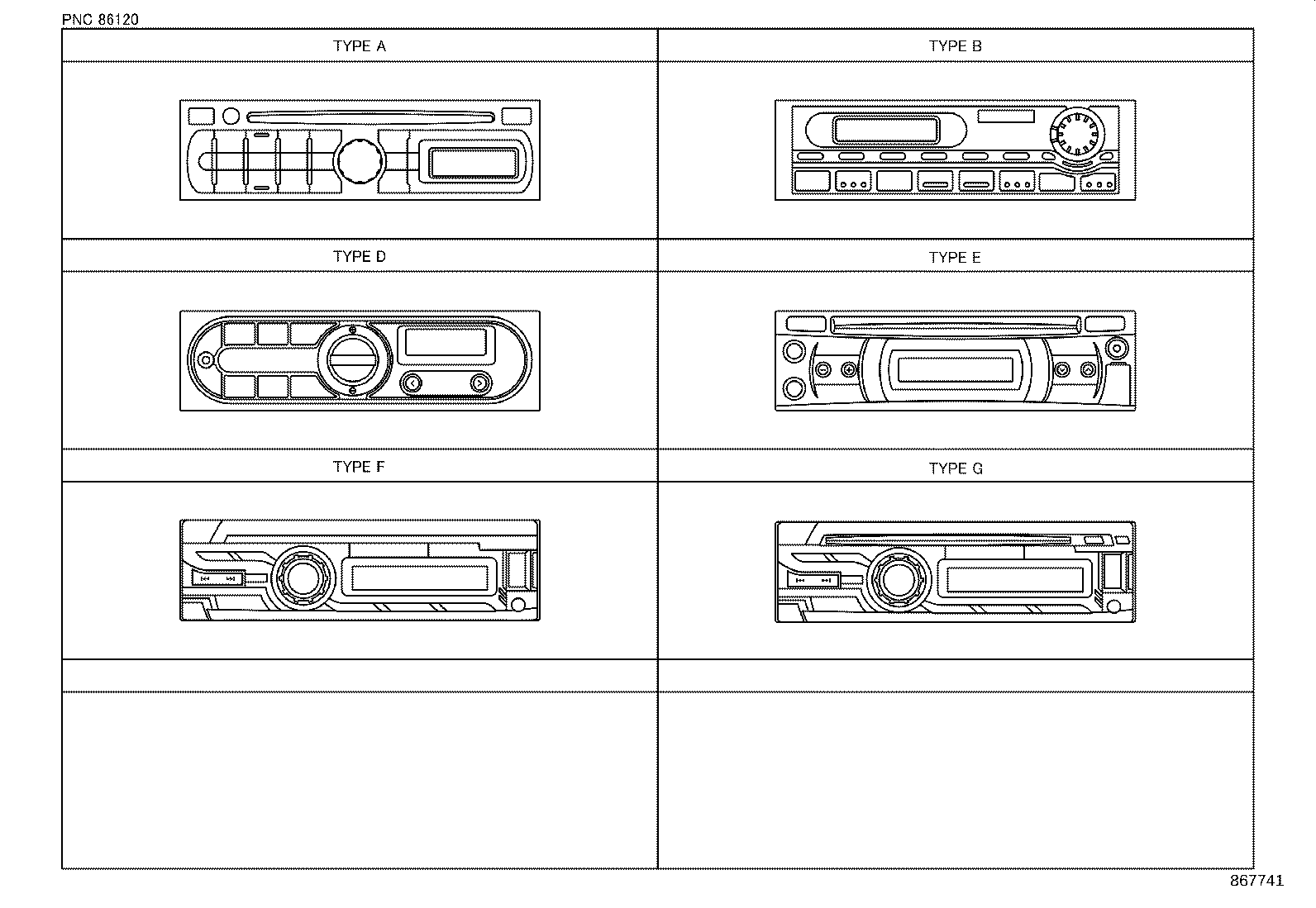

ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price |
|---|
