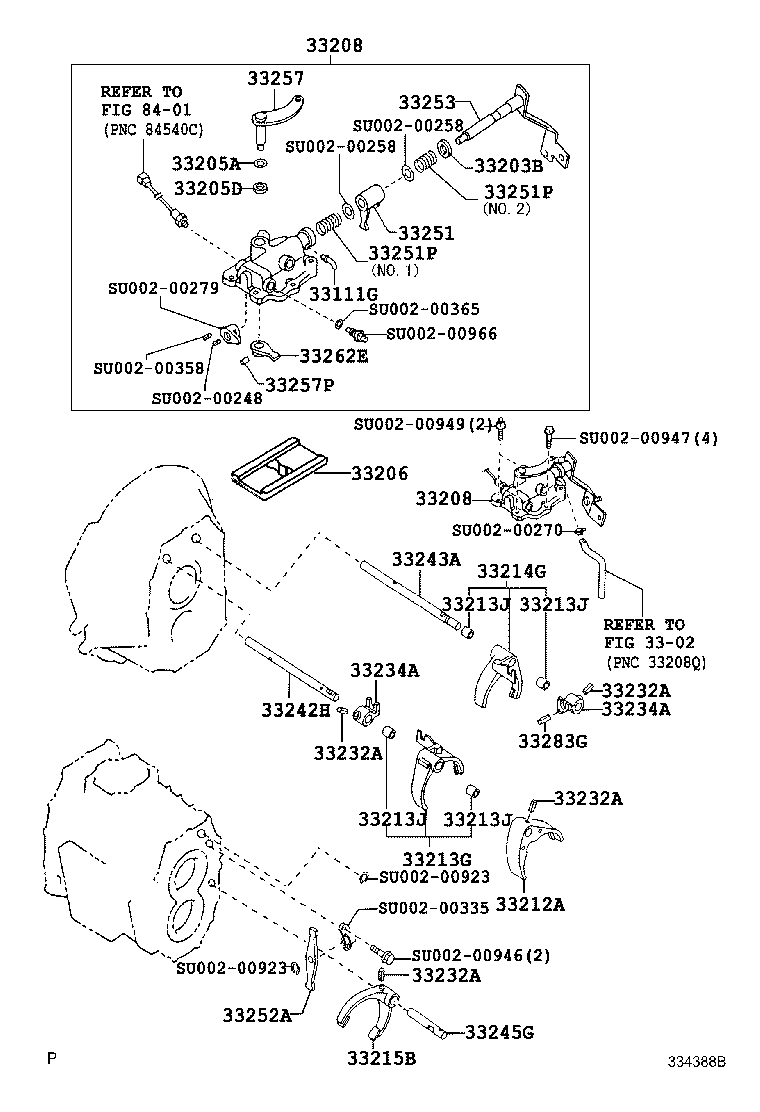

Toyota Dyna WU720 GEAR SHIFT FORK & LEVER SHAFT (MTM)

Part #	Description	Period	Qty
33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
SU002-00471	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
SU002-00355	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
SU002-00264	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
SU002-00357	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33206 - PLATE SUB-ASSY, SHIFT INTER LOCK
SU002-01049	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
SU002-00986	XZU710,720..6F..GCC	11/2012 - 05/2020	1
SU002-00987	WU710,720..6F	07/2011 - 05/2020	1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
SU002-00986	XZU710,720..6F..GCC	11/2012 - 05/2020	1
SU002-00987	WU710,720..6F	07/2011 - 05/2020	1
33212A - FORK, GEAR SHIFT, NO.1
SU002-00240	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33213G - FORK, GEAR SHIFT, NO.2
SU002-00939	WU710,720..6F	07/2011 - 11/2011	1
SU002-01090	WU710,720,XZU710,720..6F..GCC	07/2017 - 05/2020	1
SU002-01056	WU710,720,XZU710,720..6F..GCC	11/2011 - 07/2017	1
33213J - BUSHING, SHIFT ARM
SU002-01017	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	4
33213J - BUSHING, SHIFT ARM
SU002-01017	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	4
33213J - BUSHING, SHIFT ARM
SU002-01017	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	4
33213J - BUSHING, SHIFT ARM
SU002-01017	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	4
33214G - FORK, GEAR SHIFT, NO.3
SU002-00708	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33215B - FORK, GEAR SHIFT, NO.4
SU002-00331	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	4
33234A - HEAD, GEAR SHIFT, NO.3
SU002-00281	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	2
33234A - HEAD, GEAR SHIFT, NO.3
SU002-00281	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	2
33242H - SHAFT, GEAR SHIFT FORK, NO.1
SU002-00518	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
SU002-00709	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33245G - SHAFT, GEAR SHIFT FORK, NO.4
SU002-01033	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33251 - LEVER, SHIFT & SELECT
SU002-00249	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33251P - SPRING (FOR SHIFT & SELECT LEVER)
SU002-00352	WU710,720,XZU710,720..6F..GCC NO.1	07/2011 - 05/2020	1
SU002-00353	WU710,720,XZU710,720..6F..GCC NO.2	07/2011 - 05/2020	1
33251P - SPRING (FOR SHIFT & SELECT LEVER)
SU002-00352	WU710,720,XZU710,720..6F..GCC NO.1	07/2011 - 05/2020	1
SU002-00353	WU710,720,XZU710,720..6F..GCC NO.2	07/2011 - 05/2020	1
33252A - LEVER, SHIFT, INNER NO.2
SU002-00334	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33253 - LEVER, SHIFT OUTER, NO.1
SU002-00246	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33257 - LEVER, SELECT OUTER
SU002-00983	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33257P - PIN, SELECT OUTER LEVER LOCK
SU002-00271	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33262E - SHAFT, SELECT LEVER
SU002-00252	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
SU002-00272	WU710,720,XZU710,720..6F..GCC	07/2011 - 05/2020	1
Common parts
SU002-00248
SU002-00258
SU002-00270
SU002-00279
SU002-00335
SU002-00358
SU002-00365
SU002-00923
SU002-00946
SU002-00947
SU002-00949
SU002-00966
Linked diagrams
3302
8401

WU720L-TKFRLV (2011)

(1107- )6F
