WU700L-TKMQJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

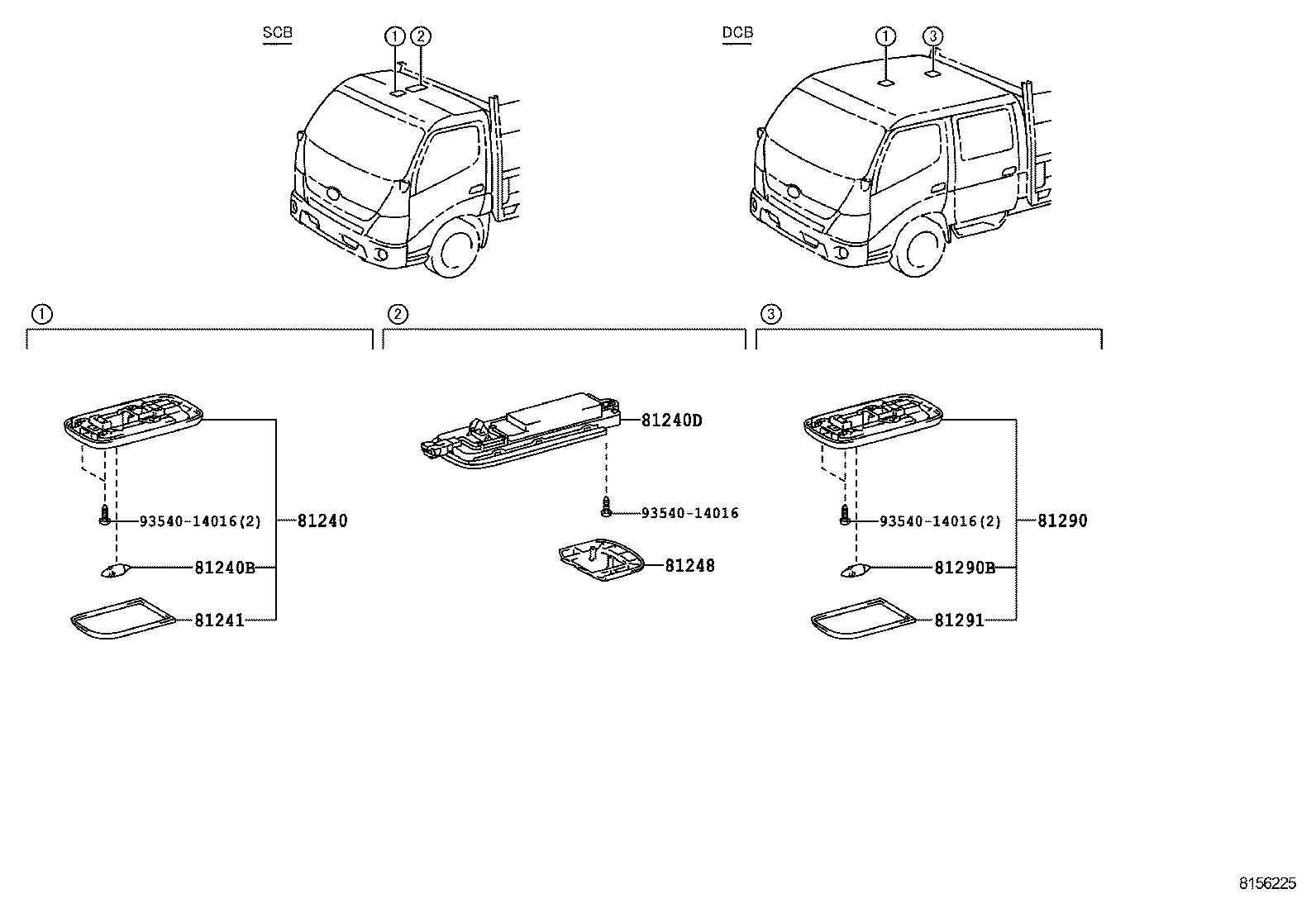

Click highlighted areas on diagram

diagram 81240 81240B 81240D 81241 81248 81290 81290B 81291 9354014016 9354014016 9354014016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-E0090

WU700,710,720;XZU710,720..MTM..GCC

 1
81240B - BULB, ROOM LAMP, NO.1
SZ980-32045

WU700,710,720;XZU710,720..MTM..GCC

24V 10W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-37090B0

WU700,710,720;XZU710,720..SCB..MTM..GCC

ROOM LAMP-WITH(LED LAMP),GRAY,TRIM1#

 1
81241 - LENS, ROOM LAMP, NO.1
S8124-11140

WU700,710,720;XZU710,720..MTM..GCC

 1
81248 - COVER, ROOM LAMP, NO.1
87834-37040B0

WU700,710,720;XZU710,720..SCB..MTM..GCC

ROOM LAMP-WITH(LED LAMP),GRAY,TRIM1#

 1
Common parts
93540-14016
