WU700L-TKMQJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

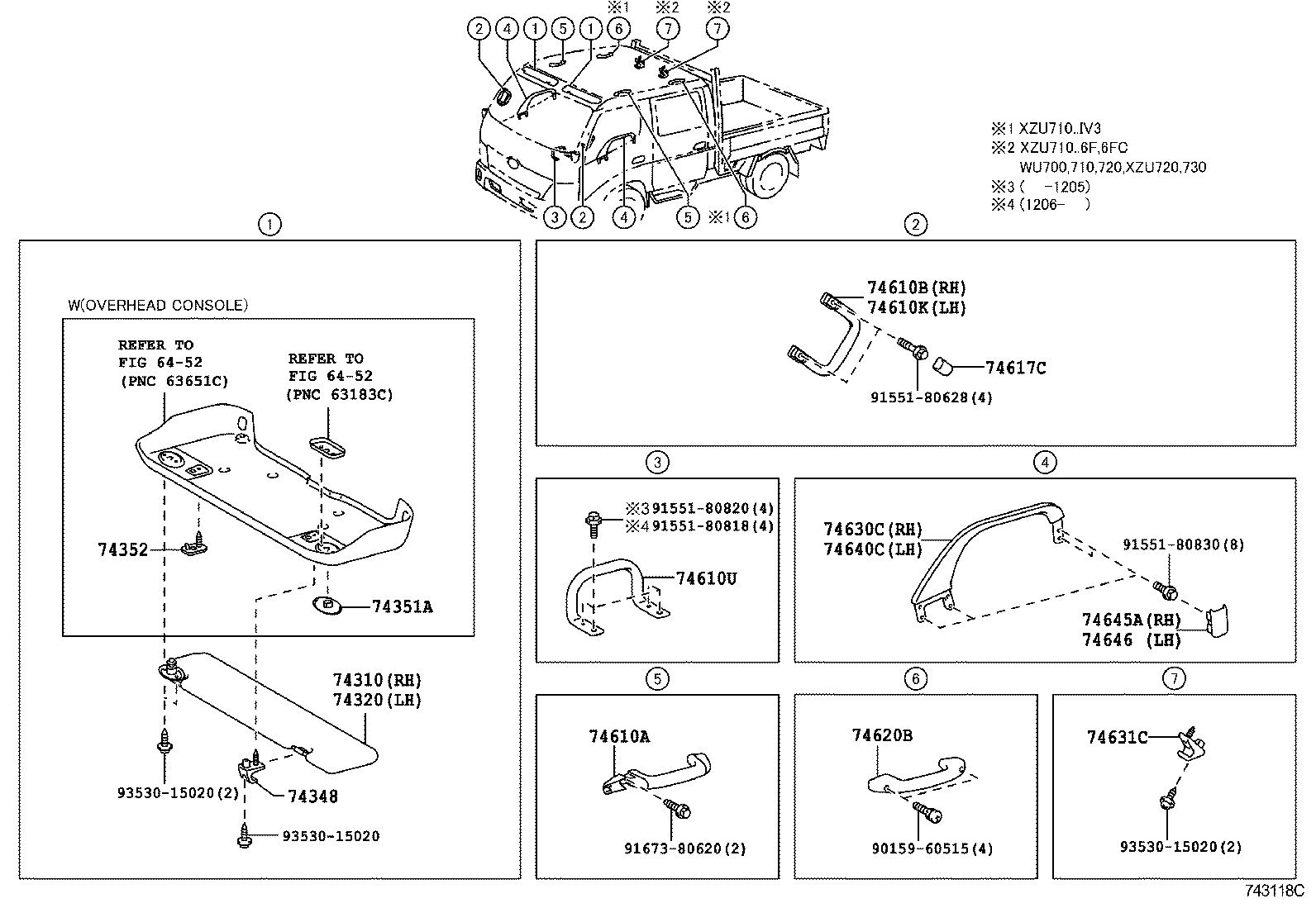

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 6452 6452 74310 74320 74348 74351A 74352 74610A 74610B 74610K 74610U 74617C 74620B 74630C 74631C 74640C 74645A 74646 9015960515 9155180628 9155180818 9155180820 9155180830 9167380620 9353015020 9353015020 9353015020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-37820B0

WU710..RHD;WU700,710,720,XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
74310-37A50B0

WU710..RHD;WU700,710,720,XZU710,720..MTM..GCC

OVER HEAD CONSOLE-WITH,GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-37300B0

WU700,710,720..LHD;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
74320-37500B0

WU700,710,720..LHD;XZU710,720..MTM..GCC

OVER HEAD CONSOLE-WITH,GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-22020B9

WU700,710,720;XZU710,720..MTM..GCC

MD.CHARCOAL,TRIM1#

 1
74348-22020P4

WU700,710,720;XZU710,720..MTM..GCC

OVER HEAD CONSOLE-WITH,GRAY,TRIM1#

 1
74351A - COVER, VISOR, NO.1
74351-35010B3

WU700,710,720,XZU710

OVER HEAD CONSOLE-WITH,GRAY,TRIM1#

 1
74352 - COVER, VISOR, NO.2
74352-35010B3

WU700,710,720,XZU710

OVER HEAD CONSOLE-WITH,GRAY,TRIM1#

 1
74610A - GRIP SUB-ASSY, ASSIST
74611-48010B0

WU710..GEN;WU700,720..5F;WU710..85T..CBU

ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1),GRAY,TRIM1#

 1
74611-48010B0

WU700,710,720;XZU710,720..SCB..MTM..GCC

ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2),GRAY,TRIM1#

 1
74610B - GRIP ASSY, ASSIST, NO.2 RH
74610-37040B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
74610K - GRIP ASSY, ASSIST, NO.2 LH
74610-37040B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
74610U - GRIP ASSY, ASSIST
74610-37030

WU710..GEN;WU700,720..5F;WU710..85T..CBU

ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1)

 1
74610-37030

WU710..GEN;WU700,720..5F;WU710..85T..CBU

ASSIST GRIP-WITH(DRIVER:1,PASSENGER:1,CENTER:1)

 1
74617C - PLUG, ASSIST GRIP
74617-37010B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 4
74630C - GRIP ASSY, DOOR ASSIST, RH
74630-37030C0

WU700,710,720;XZU710,720..MTM..GCC

BLACK,TRIM1#

 1
74631C - HOOK, COAT
74348-22020B9

WU700,710,720;XZU710,720..SCB..MTM..GCC

MD.CHARCOAL,TRIM1#

 2
74640C - GRIP ASSY, DOOR ASSIST, LH
74640-37020C0

WU700,710,720;XZU710,720..MTM..GCC

BLACK,TRIM1#

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74645-37020B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-37020B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
Common parts
90159-60515
91551-80628
91551-80818
91551-80820
91551-80830
91673-80620
93530-15020
Linked diagrams
6452

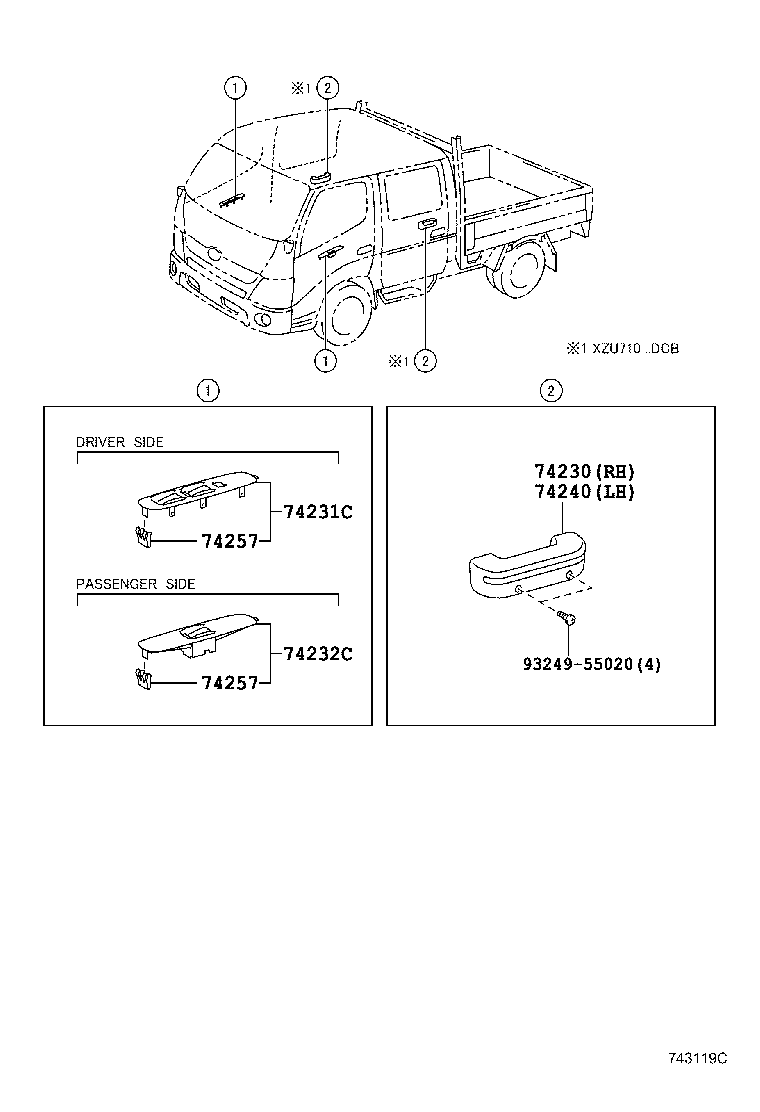

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

ARMREST

diagram 74230 74231C 74232C 74240 74257 74257 9324955020
Part # Description Qty Price
74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
74231-37012B1

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY),GRAY,TRIM1#

 1
74201-37010

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)&INSTRUMENT PANEL CENTER CLUSTER-CUSTUM PANEL

 1
74232C - PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
74232-37010B1

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY),GRAY,TRIM1#

 1
74202-37010

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)&INSTRUMENT PANEL CENTER CLUSTER-CUSTUM PANEL

 1
74257 - SPRING, ARMREST, NO.1
74257-37010

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 2
74257-37010

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)&INSTRUMENT PANEL CENTER CLUSTER-CUSTUM PANEL

 2
74257 - SPRING, ARMREST, NO.1
74257-37010

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 2
74257-37010

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)&INSTRUMENT PANEL CENTER CLUSTER-CUSTUM PANEL

 2
Common parts
93249-55020
