WU700L-TKMQJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1207)WU700,710,720..GCC ; (1108- )DCB

Click highlighted areas on diagram

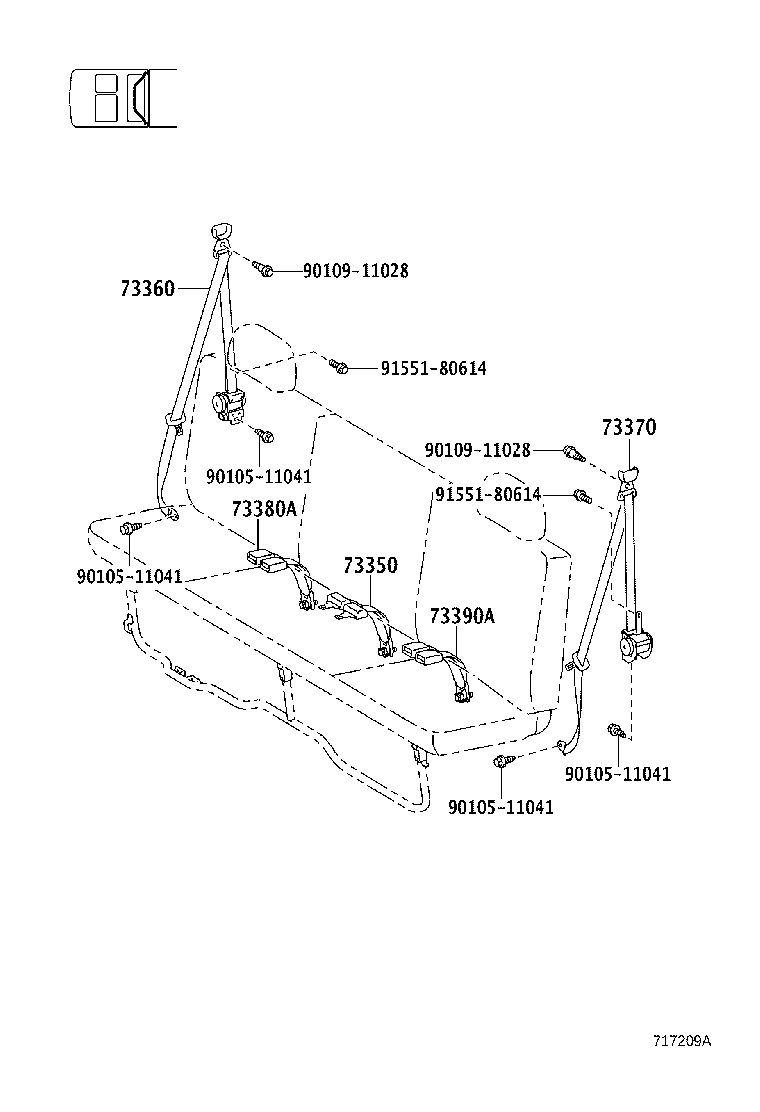

REAR SEAT

diagram 73350 73360 73370 73380A 73390A 9010511041 9010511041 9010511041 9010511041 9010911028 9010911028 9155180614 9155180614
Part # Description Qty Price
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-37120B0

WU700,710,720..GCC

BAHRAIN SPEC,GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-37050B0

WU700,710,720..GCC

BAHRAIN SPEC,GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-37050B0

WU700,710,720..GCC

BAHRAIN SPEC,GRAY,TRIM1#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-37040B0

WU700,710,720..GCC

BAHRAIN SPEC,GRAY,TRIM1#

 1
73390A - BELT ASSY, REAR SEAT, INNER
73380-37040B0

WU700,710,720..GCC

BAHRAIN SPEC,GRAY,TRIM1#

 1
Common parts
90105-11041
90109-11028
91551-80614

(1107- )LHD..GCC,GEN

Click highlighted areas on diagram

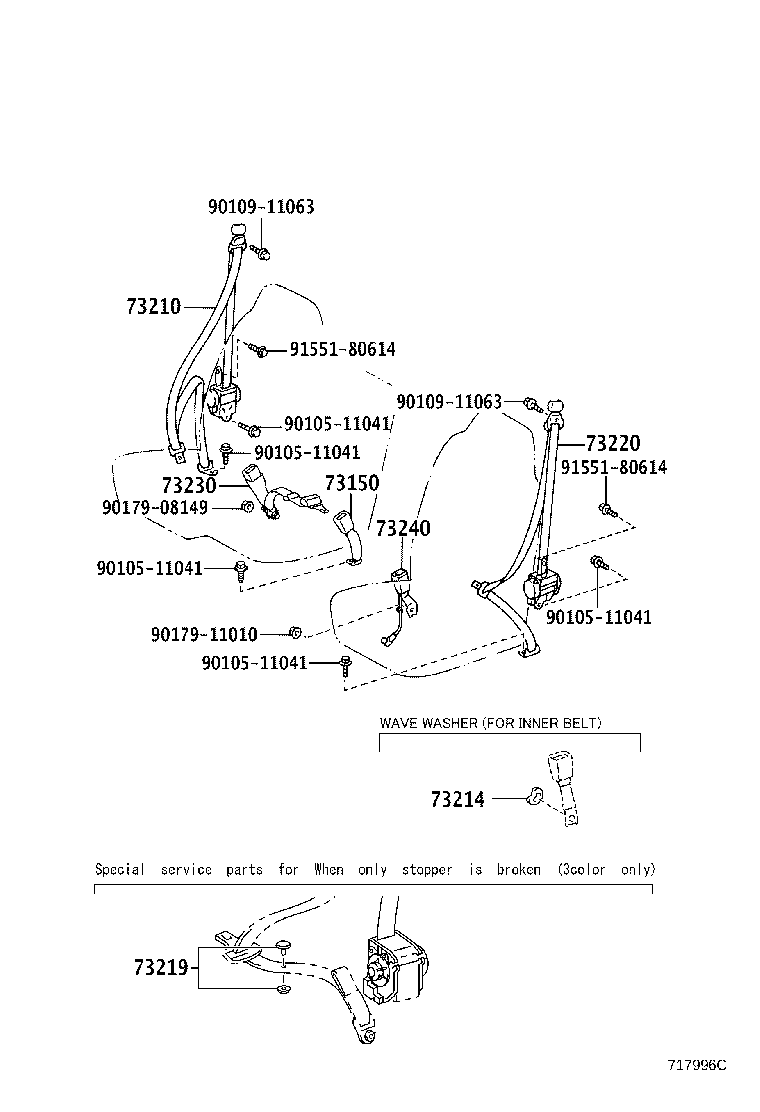

FRONT SEAT

diagram 73150 73210 73214 73219 73220 73230 73240 9010511041 9010511041 9010511041 9010511041 9010511041 9010911063 9010911063 9017908149 9017911010 9155180614 9155180614
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37080B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37340B0

WU700,710,720,XZU710,720

GRAY,TRIM1#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-37010

WU700,710,720;XZU710,720..MTM..GCC

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

WU700,710,720;XZU710,720..MTM..GCC

BLACK

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37340B0

WU700,710,720,XZU710,720

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37250B0

WU700,710,720,XZU710,720..LHD..SCB

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37240B0

WU700,710,720,XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
Common parts
90105-11041
90109-11063
90179-08149
90179-11010
91551-80614
