WU700L-TKMQJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1506)LHD

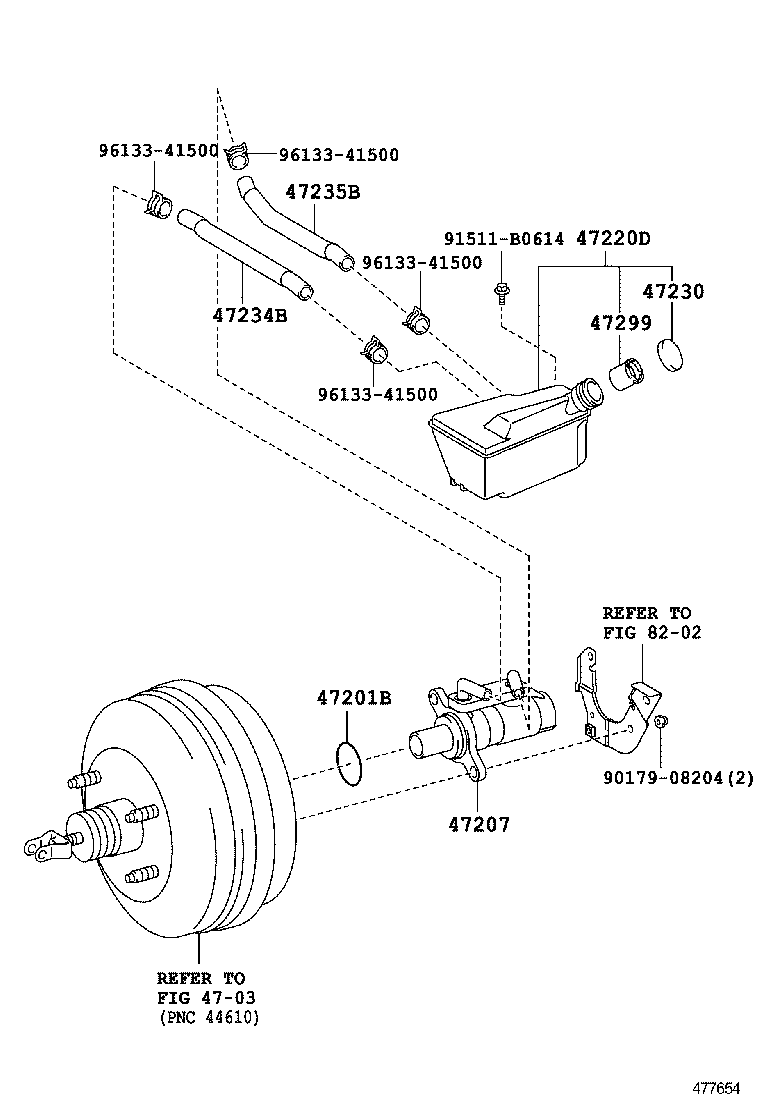

Click highlighted areas on diagram

diagram 4703 47201B 47207 47220D 47230 47234B 47235B 47299 8202 9017908204 91511B0614 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH001

WU700,710,720;XZU710,720..MTM..GCC

 1
47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK
47207-37170

WU700,710,720,XZU710,720,730..LHD..MTM

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-37190

XZU710..5F..GCC;WU700,710,720..LHD

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-37020

WU700,710,720;XZU710..5F..GCC

 1
47234B - TUBE, RESERVOIR, NO.1
47234-37190

WU700,710,720..LHD;XZU710,720..MTM..GCC

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-37180

WU700,710,720..LHD;XZU710,720..MTM..GCC

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-28010

WU700,710,720;XZU710..5F..GCC

 1
Common parts
90179-08204
91511-B0614
96133-41500
Linked diagrams
4703
8202
