WU700L-TKMQJV3 (2011)
Toyota Dyna

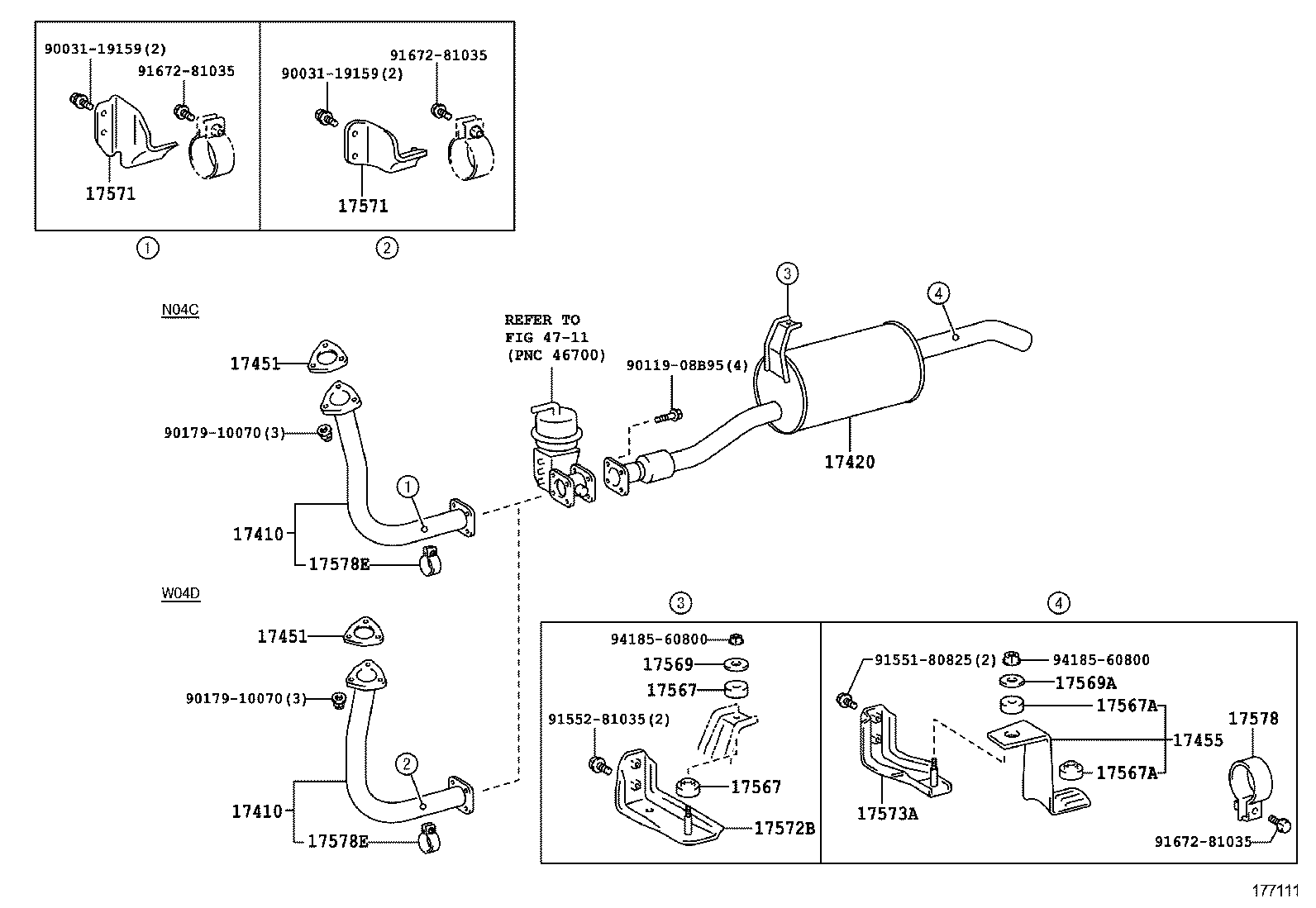

(1107- )N04C..XZU720..6F ; (1107- )N04C..XZU710..GCC ; (1107- )N04C,W04D..
SHORT TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78340 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78340 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78480 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17403-78A40 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-E0110 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-E0110 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78070 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17569 - PLATE, EXHAUST PIPE SUPPORT | ||||
| 16721-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17569A - PLATE, EXHAUST PIPE SUPPORT | ||||
| 16721-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-E0230 |
W04D..WU700,710,720 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-E0230 |
W04D..WU700,710,720 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-78072 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78082 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T NO.1 |
1 | ||
| 17578-78040 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T NO.2 |
1 | ||
| 17578-78010 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90119-08B95 | ||||
| 90179-10070 | ||||
| 91551-80825 | ||||
| 91552-81035 | ||||
| 91672-81035 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 4711 | ||||

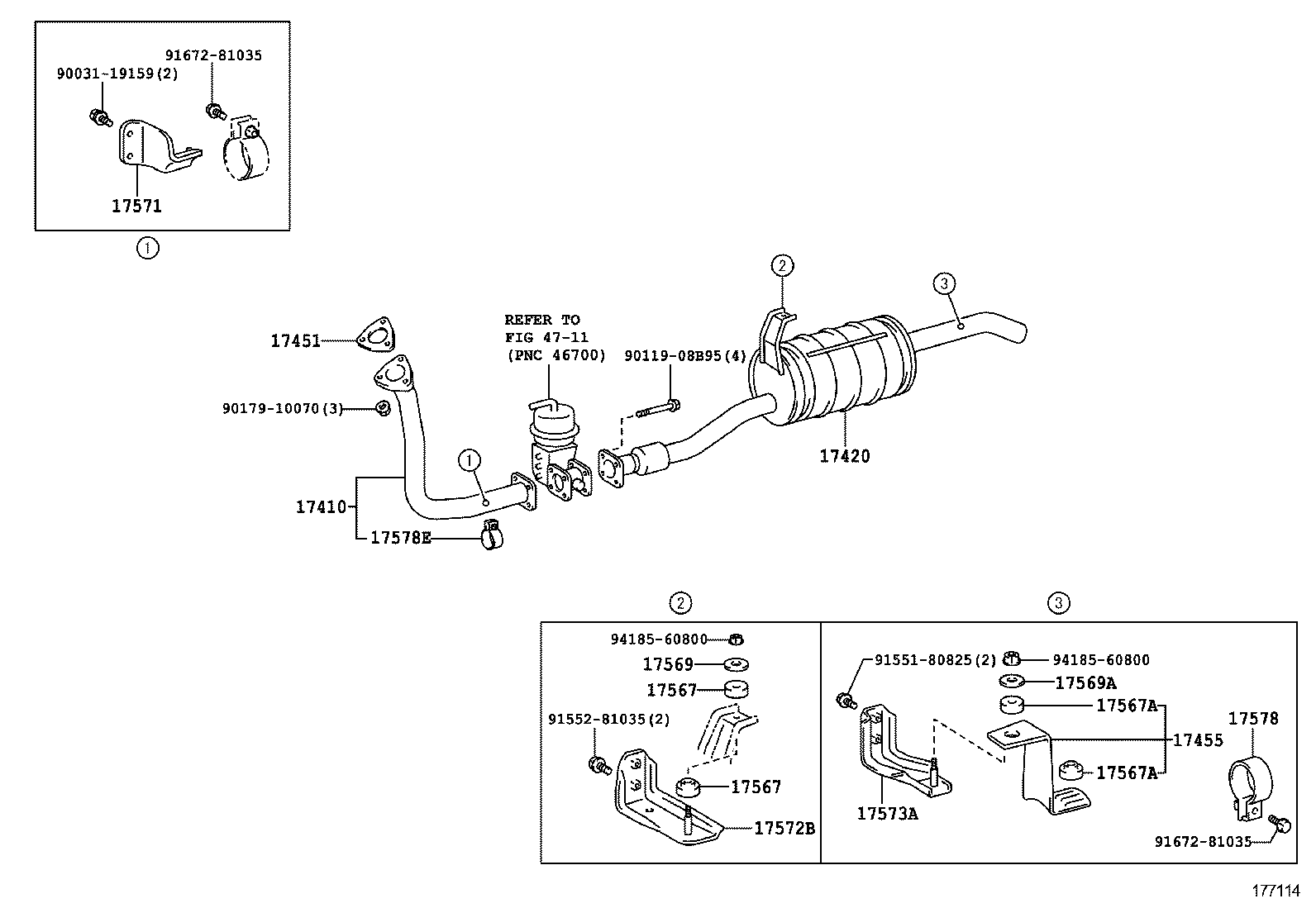

(1107- )W04D..65T ; (1107- )W04D..WU710..RHD..75T
SHORT TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78340 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78480 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17403-78A40 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-E0110 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78070 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17569 - PLATE, EXHAUST PIPE SUPPORT | ||||
| 16721-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17569A - PLATE, EXHAUST PIPE SUPPORT | ||||
| 16721-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-E0230 |
W04D..WU700,710,720 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-78072 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78082 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T NO.1 |
1 | ||
| 17578-78040 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T NO.2 |
1 | ||
| 17578-78010 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90119-08B95 | ||||
| 90179-10070 | ||||
| 91551-80825 | ||||
| 91552-81035 | ||||
| 91672-81035 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 4711 | ||||

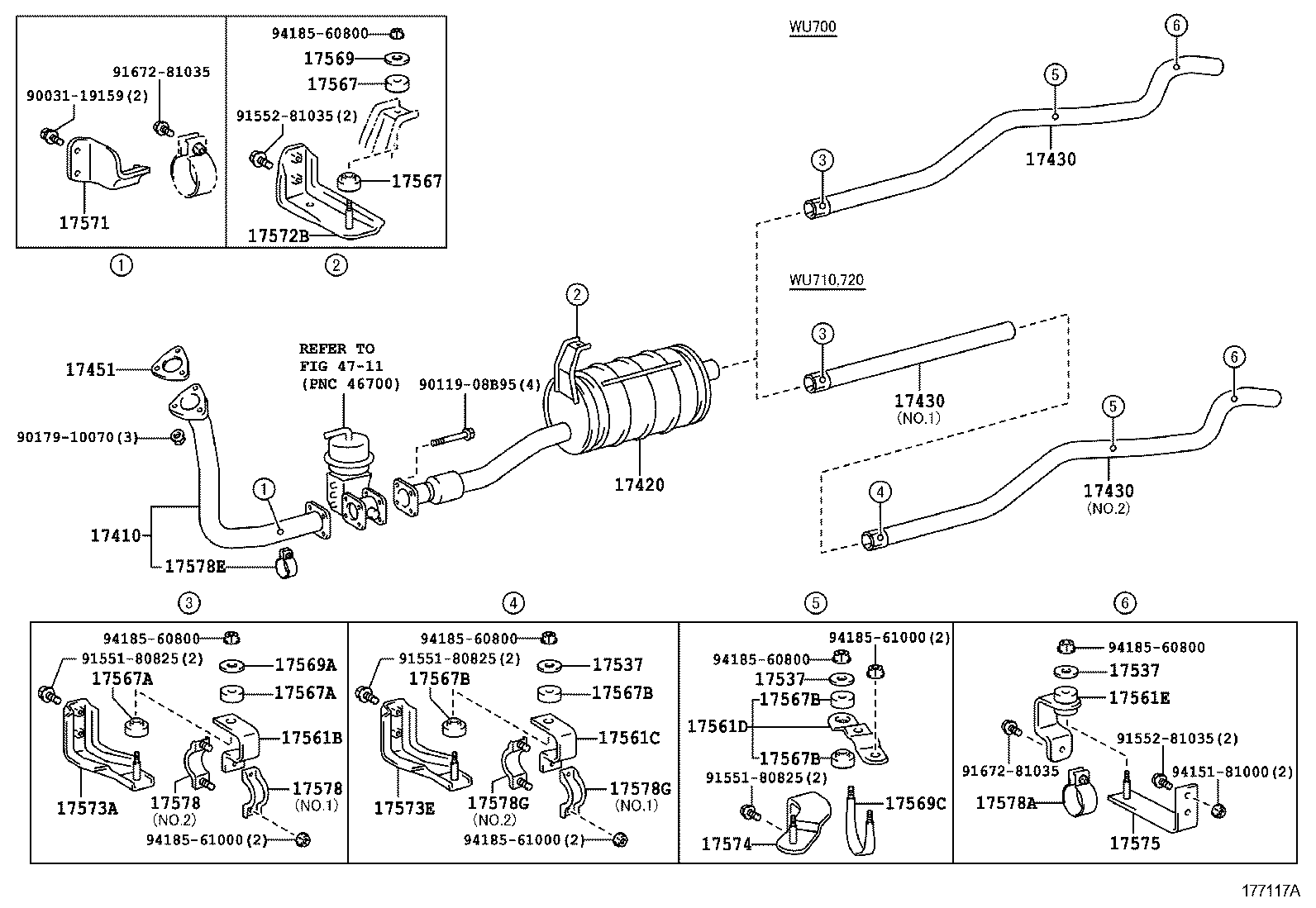

(1107- )W04D..65T ; (1107- )W04D..WU710..RHD..75T
REAR OUT TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78340 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78480 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17403-78A40 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78C81 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17405-78C81 |
W04D..WU700 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78C81 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17405-78C81 |
W04D..WU700 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78C81 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17405-78C81 |
W04D..WU700 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-E0110 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17537 - PLATE, EXHAUST PIPE | ||||
| 16721-78010 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
2 | ||
| 16721-78010 |
W04D..WU700 |
2 | ||
| 17537 - PLATE, EXHAUST PIPE | ||||
| 16721-78010 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
2 | ||
| 16721-78010 |
W04D..WU700 |
2 | ||
| 17537 - PLATE, EXHAUST PIPE | ||||
| 16721-78010 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
2 | ||
| 16721-78010 |
W04D..WU700 |
2 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78030 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17561-78030 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17561E - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17561-78080 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
2 | ||
| 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17567-78010 |
W04D..WU700 |
2 | ||
| 17567-78010 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
2 | ||
| 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17567-78010 |
W04D..WU700 |
2 | ||
| 17567-78010 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
2 | ||
| 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17567-78010 |
W04D..WU700 |
2 | ||
| 17567-78010 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
2 | ||
| 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17567-78010 |
W04D..WU700 |
2 | ||
| 17567-78010 |
W04D..WU700 EXHAUST TAIL PIPE & DIFFUSER-SHORT |
2 | ||
| 17569 - PLATE, EXHAUST PIPE SUPPORT | ||||
| 16721-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17569A - PLATE, EXHAUST PIPE SUPPORT | ||||
| 16721-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17569C - BOLT, EXHAUST PIPE SUPPORT | ||||
| 17569-78010 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17569-78010 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-E0230 |
W04D..WU700,710,720 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-78072 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78082 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78110 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17574-78110 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78120 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17575-78120 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T NO.1 |
1 | ||
| 17578-78040 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T NO.2 |
1 | ||
| 17578-78010 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78030 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T NO.1 |
1 | ||
| 17578-78040 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T NO.2 |
1 | ||
| 17578-78010 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T EXHAUST TAIL PIPE & DIFFUSER-SHORT |
1 | ||
| 17578-78020 |
W04D..WU710..RHD..75T;W04D..WU700,710,720..65T |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90119-08B95 | ||||
| 90179-10070 | ||||
| 91551-80825 | ||||
| 91552-81035 | ||||
| 91672-81035 | ||||
| 94151-81000 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
