WU412L-TKFTBV3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

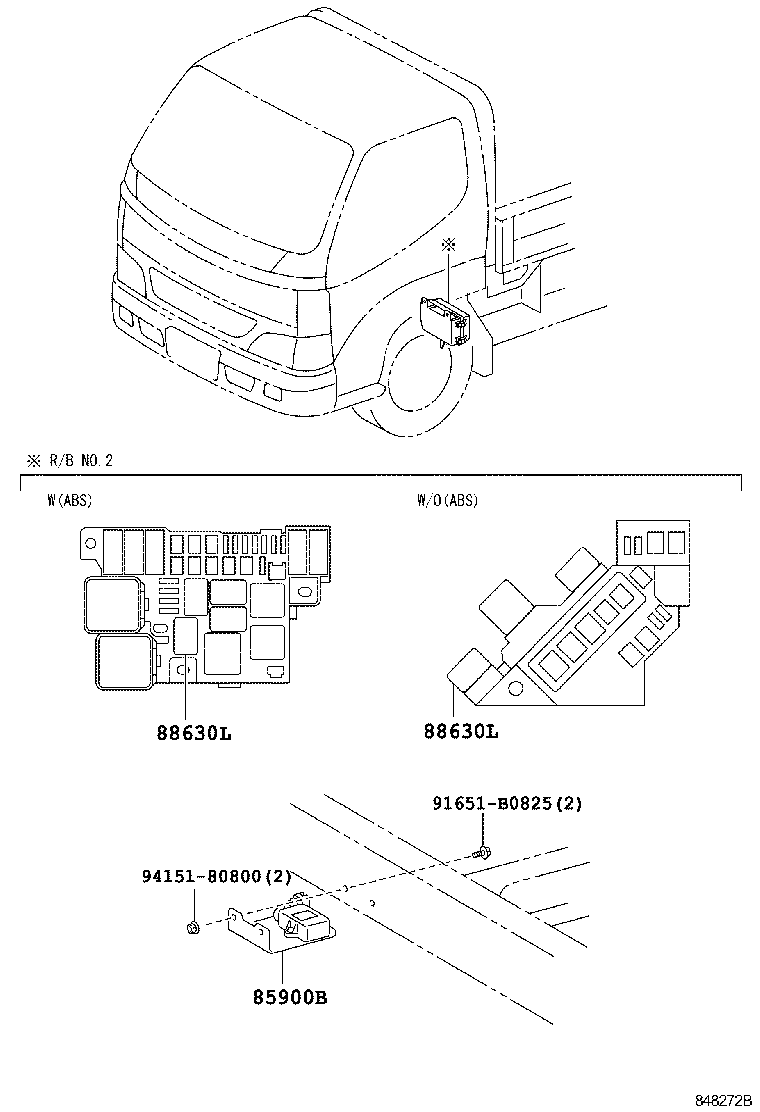

ILLUST NO. 2 OF 2(0610- )WU412,422,XZU417,423,427,433..6F..GCC,SA,TAIW

Click highlighted areas on diagram

diagram 85900B 88630L 88630L 91651B0825 9415180800
Part # Description Qty Price
85900B - RELAY ASSY, CONTROL UNIT
85900-37081

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
88630L - RELAY, POWER TAKE-OFF CONTROL
90987-02017

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
88630L - RELAY, POWER TAKE-OFF CONTROL
90987-02017

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
Common parts
91651-B0825
94151-80800
