WU412L-TKFTBV3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )WU412..75T,85T..IV3

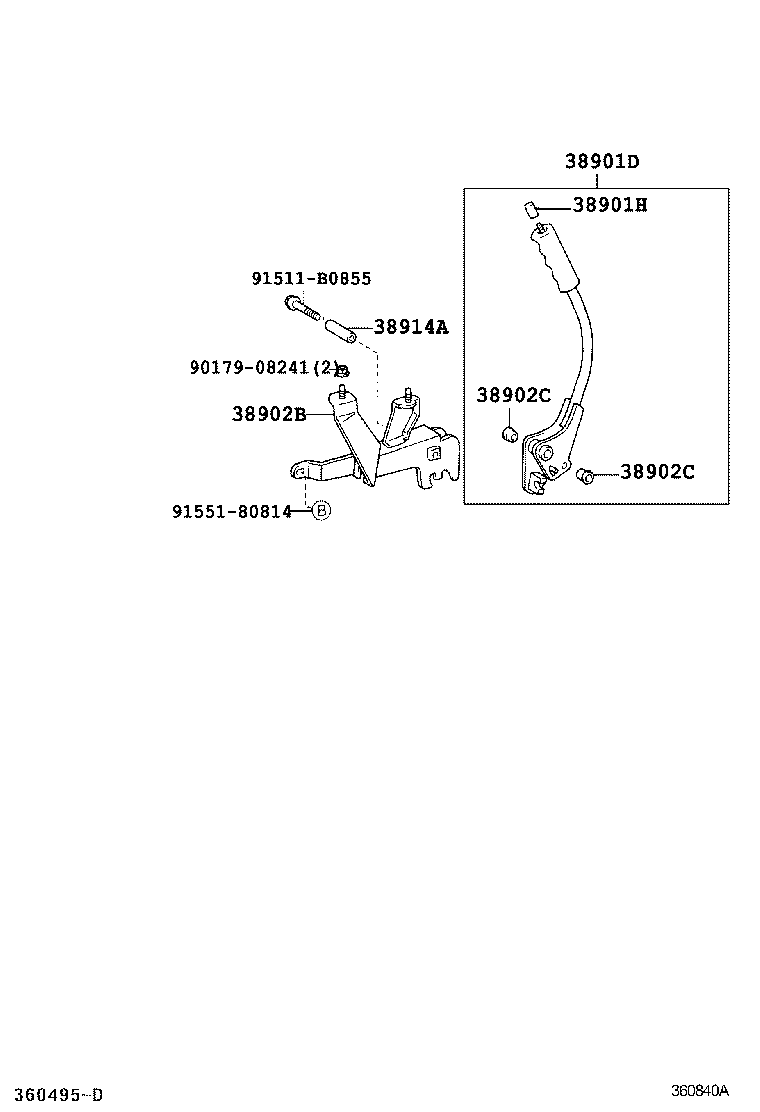

Click highlighted areas on diagram

diagram 38901D 38901H 38902B 38902C 38902C 38914A 9017908241 91511B0855 9155180814
Part # Description Qty Price
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37040B0

WU410..GCC..IV3;WU412..(75T,85T)..IV3

MD.CHARCOAL,TRIM1#

 1
38901-37040B0

WU410..GCC..IV3;WU412..(75T,85T)..IV3

MD.CHARCOAL,TRIM1#

 1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020B1

WU410..GCC..IV3;WU412..(75T,85T)..IV3

MD.CHARCOAL,TRIM1#

 1
46217-20020B1

WU410..GCC..IV3;WU412..(75T,85T)..IV3

MD.CHARCOAL,TRIM1#

 1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37050

WU410..GCC..IV3;WU412..(75T,85T)..IV3

 1
38902-37050

WU410..GCC..IV3;WU412..(75T,85T)..IV3

 1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034

WU410..GCC..IV3;WU412..(75T,85T)..IV3

 2
90386-12034

WU410..GCC..IV3;WU412..(75T,85T)..IV3

 2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034

WU410..GCC..IV3;WU412..(75T,85T)..IV3

 2
90386-12034

WU410..GCC..IV3;WU412..(75T,85T)..IV3

 2
38914A - PIPE, VALVE CONTROL LEVER
38914-37010

WU410..GCC..IV3;WU412..(75T,85T)..IV3

 1
38914-37010

WU410..GCC..IV3;WU412..(75T,85T)..IV3

 1
Common parts
90179-08241
91511-B0855
91551-80814
