WU412L-TKFTBV3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0110-0701)BU410,420,WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN,TAIW ; (0212-

Click highlighted areas on diagram

VACUUM TYPE

diagram 27679C 27679C 27690J 27690J 44754H 44763E 44763F 44763H 44771G 44779J 4703 4737137040 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9544609400 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44763E - TUBE, HOSE TO HOSE, NO.1
44763-37350

BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW

 1
Common parts
47371-37040
90119-08676
95446-09400
96133-41500
Linked diagrams
4703

(0610- )WU412,422,XZU413,417,423,427,433..6F

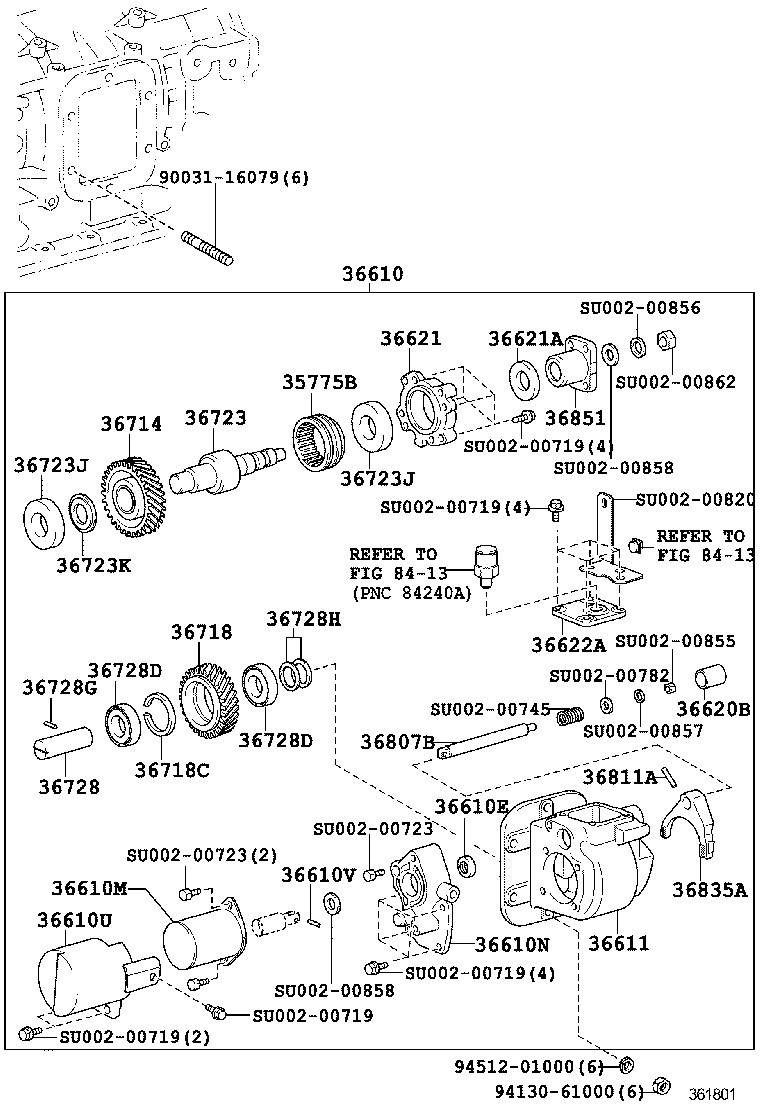

Click highlighted areas on diagram

ELECTRIC TYPE 20KG

diagram 35775B 36610 36610E 36610M 36610N 36610U 36610V 36611 36620B 36621 36621A 36622A 36714 36718 36718C 36723 36723J 36723J 36723K 36728 36728D 36728D 36728G 36728H 36807B 36811A 36835A 36851 8413 8413 9003116079 9413061000 9451201000 SU00200719 SU00200719 SU00200719 SU00200719 SU00200719 SU00200723 SU00200723 SU00200745 SU00200782 SU00200820 SU00200855 SU00200856 SU00200857 SU00200858 SU00200858 SU00200862
Part # Description Qty Price
35775B - SLEEVE, OUTPUT SHAFT
35775-37010

BU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW

 1
SU002-00751

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36610 - POWER TAKE-OFF ASSY
36610-37290

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

ELECTRIC TYPE, 20KG

 1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
SU002-00727

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36610M - SOLENOID ASSY, POWER TAKE-OFF
SU002-00789

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36610N - ADAPTER, POWER TAKE-OFF SOLENOID
SU002-00781

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36610U - COVER, POWER TAKE-OFF DUST
SU002-00766

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36610V - PIN ASSY, SPRING (FOR POWER TAKE-OFF SOLENOID)
SU002-00736

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36611 - CASE, POWER TAKE-OFF
SU002-00758

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36620B - PLUG(FOR POWER TAKE-OFF)
SU002-00821

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36621 - RETAINER, POWER TAKE-OFF BEARING
SU002-00788

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
SU002-00752

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36622A - COVER, POWER TAKE-OFF
SU002-00784

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36714 - GEAR, POWER TAKE-OFF OUTPUT
SU002-00759

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
SU002-01030

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36718 - GEAR, POWER TAKE-OFF IDLER
SU002-00762

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
SU002-00747

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
SU002-00831

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00740

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00740

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 2
36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00834

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36728 - SHAFT, POWER TAKE-OFF IDLER
SU002-00850

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00743

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00743

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00725

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00838

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

T=1.50

 2
SU002-00840

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

T=1.65

 2
SU002-00841

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

T=1.70

 2
SU002-00839

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

T=1.60

 2
SU002-00842

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

T=1.80

 2
SU002-00843

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

T=1.85

 2
36807B - ROD SUB-ASSY, POWER TAKE-OFF SHIFT
SU002-00780

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36811A - PIN, SLOTTED SPRING (FOR POWER TAKE-OFF SHIFT FORK)
SU002-00851

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36835A - ARM, POWER TAKE-OFF SHIFT
SU002-00828

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
36851 - RETAINER, POWER TAKE-OFF JOINT
SU002-00798

WU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)

 1
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00723
SU002-00745
SU002-00782
SU002-00820
SU002-00855
SU002-00856
SU002-00857
SU002-00858
SU002-00862
Linked diagrams
8413
