WU412L-TKFTBV3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )6F..DCRTJ,DCRTK

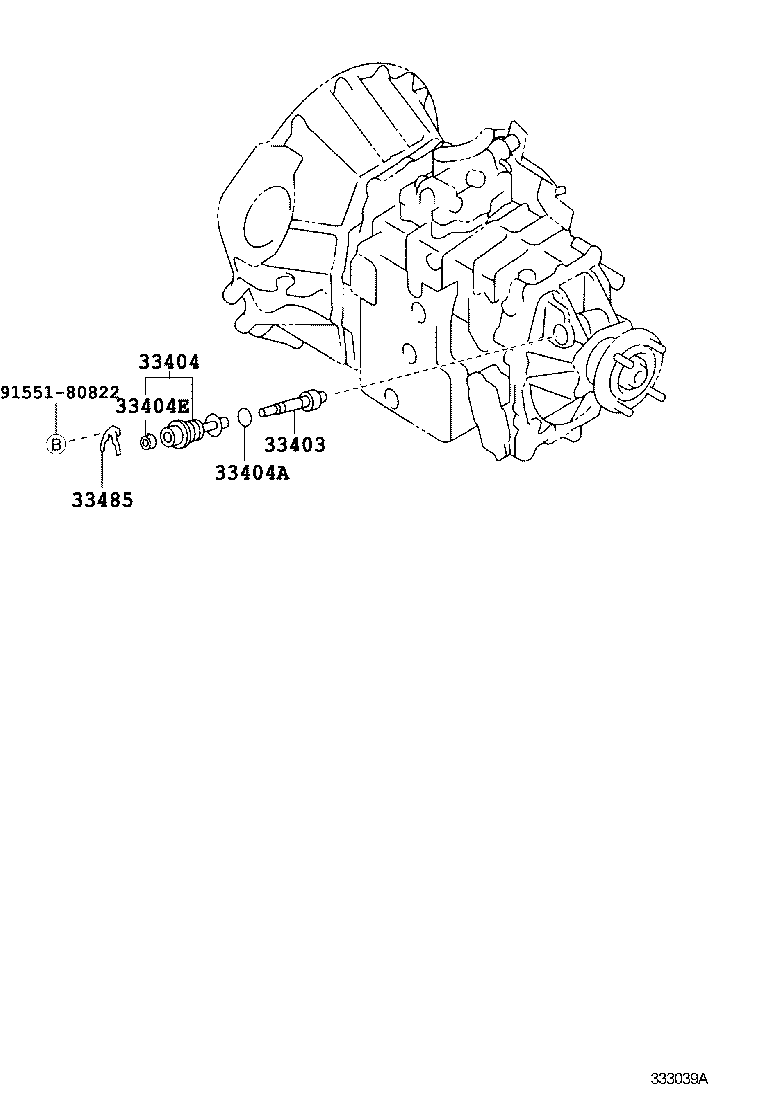

Click highlighted areas on diagram

MYY6S

diagram 33403 33404 33404A 33404E 33485 9155180822
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
SU002-00171

WU412,422,XZU423,433..6F..(GCC,SA)

N=15

 1
SU002-00170

WU412,422,XZU433..85T

N=16

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
SU002-00173

WU412,422,XZU433..85T

N=16

 1
SU002-00174

WU412,422,XZU413,423,433..6F

N=13,14,15

 1
Common parts
91551-80822
