WU412L-TKFTBV3 (2006)
Toyota Dyna
(0610- )W04D..WU422..GCC ; (0610- )W04D..WU412..GCC..IV3

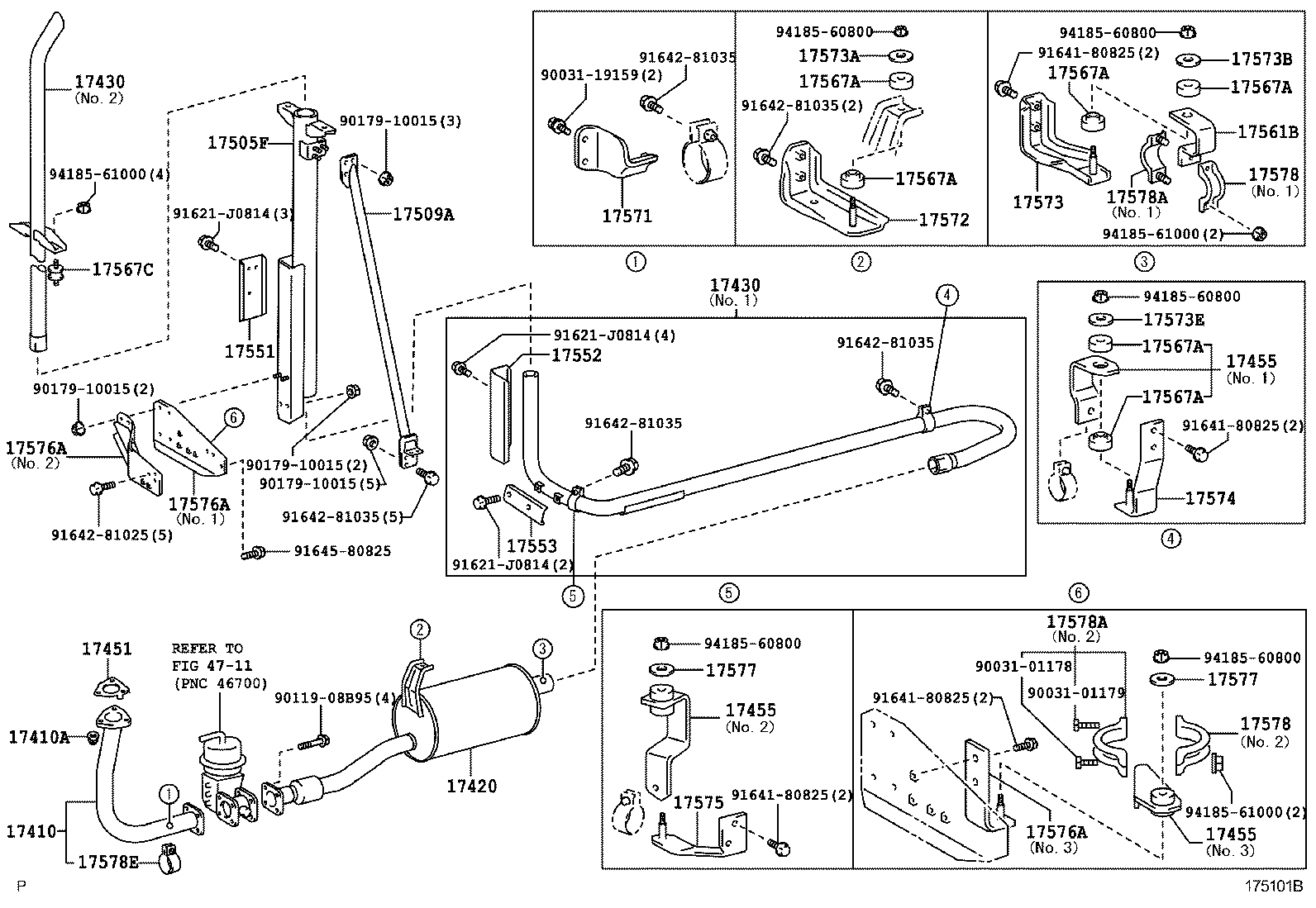

VERTICAL TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78330 |
W04D..WU412,422 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78860 |
N04C,W04D..WU412,422,XZU413,423,433 SHORT TAIL PIPE |
1 | ||
| 17403-78840 |
W04D..WU412,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17403-78A30 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78400 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17405-78411 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17405-78C80 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.2 |
1 | ||
| 17405-78390 |
W04D..WU41#..GCC EXHAUST TAIL PIPE=REAR,NO.1 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78400 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17405-78411 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17405-78C80 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.2 |
1 | ||
| 17405-78390 |
W04D..WU41#..GCC EXHAUST TAIL PIPE=REAR,NO.1 |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78030 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17455-78100 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.3 |
1 | ||
| 17455-78070 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 NO.1 |
1 | ||
| 17455-78040 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78030 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17455-78100 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.3 |
1 | ||
| 17455-78070 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 NO.1 |
1 | ||
| 17455-78040 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78030 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17455-78100 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.3 |
1 | ||
| 17455-78070 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 NO.1 |
1 | ||
| 17455-78040 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17505F - SUPPORT SUB-ASSY, EXHAUST PIPE | ||||
| 17505-78081 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-78021 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-78020 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17552-78010 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3 | ||||
| 17553-78010 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17561-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17567-78020 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78040 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78072 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17573-78082 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 16721-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17573E - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78090 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17574-78110 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78120 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17575-78110 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 16721-78010 |
N04C..XZU413,423..GEN;W04D..WU412..GCC..IV3;N04C,W04D..WU422,XZU417,427..GCC,TAIW |
1 | ||
| 17576-78020 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17576-78031 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17576-78050 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.3 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 16721-78010 |
N04C..XZU413,423..GEN;W04D..WU412..GCC..IV3;N04C,W04D..WU422,XZU417,427..GCC,TAIW |
1 | ||
| 17576-78020 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17576-78031 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17576-78050 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.3 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 16721-78010 |
N04C..XZU413,423..GEN;W04D..WU412..GCC..IV3;N04C,W04D..WU422,XZU417,427..GCC,TAIW |
1 | ||
| 17576-78020 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17576-78031 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17576-78050 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.3 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
2 | ||
| 16721-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
2 | ||
| 16721-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17578-78030 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17578-78030 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17578-78060 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17578-78030 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17578-78030 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17578-78060 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78040 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17578-78040 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.1 |
2 | ||
| 17578-78070 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17578-78020 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.2 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78040 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17578-78040 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.1 |
2 | ||
| 17578-78070 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17578-78020 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.2 |
1 | ||
| Common parts | ||||
| 90031-01178 | ||||
| 90031-01179 | ||||
| 90031-19159 | ||||
| 90119-08B95 | ||||
| 90179-10015 | ||||
| 91621-J0814 | ||||
| 91641-80825 | ||||
| 91642-81025 | ||||
| 91642-81035 | ||||
| 91645-80825 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
(0610- )N04C,W04D..WU412,422,XZU413,423,433
SHORT TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78330 |
W04D..WU412,422 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78330 |
W04D..WU412,422 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78860 |
N04C,W04D..WU412,422,XZU413,423,433 SHORT TAIL PIPE |
1 | ||
| 17403-78840 |
W04D..WU412,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17403-78A30 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78030 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17455-78100 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.3 |
1 | ||
| 17455-78070 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 NO.1 |
1 | ||
| 17455-78040 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78040 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78040 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78072 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17573-78082 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 16721-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17578-78030 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17578-78030 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17578-78060 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90119-08B95 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 4711 | ||||
(0610- )N04C..XZU413,423..GEN ; (0801- )W04D..WU41#,422..GCC
LONG TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78330 |
W04D..WU412,422 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78860 |
N04C,W04D..WU412,422,XZU413,423,433 SHORT TAIL PIPE |
1 | ||
| 17403-78840 |
W04D..WU412,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17403-78A30 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78400 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17405-78411 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17405-78C80 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.2 |
1 | ||
| 17405-78390 |
W04D..WU41#..GCC EXHAUST TAIL PIPE=REAR,NO.1 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78400 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17405-78411 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17405-78C80 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.2 |
1 | ||
| 17405-78390 |
W04D..WU41#..GCC EXHAUST TAIL PIPE=REAR,NO.1 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17561-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78030 |
W04D..WU41#,422..GCC |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
W04D..WU41#,422..GCC |
1 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
4 | ||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17567-78020 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17567-78020 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
2 | ||
| 17569C - BOLT, EXHAUST PIPE SUPPORT | ||||
| 17569-78010 |
W04D..WU41#,422..GCC |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78040 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78072 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17573-78082 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 16721-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78090 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17574-78110 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78120 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17575-78110 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 16721-78010 |
N04C..XZU413,423..GEN;W04D..WU412..GCC..IV3;N04C,W04D..WU422,XZU417,427..GCC,TAIW |
1 | ||
| 17576-78020 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17576-78031 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17576-78050 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.3 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 |
2 | ||
| 16721-78010 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17578-78030 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR |
2 | ||
| 17578-78030 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17578-78060 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78040 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17578-78040 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.1 |
2 | ||
| 17578-78070 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17578-78020 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.2 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78040 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.1 |
1 | ||
| 17578-78040 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.1 |
2 | ||
| 17578-78070 |
W04D..WU422..GCC;W04D..WU412..GCC..IV3 NO.2 |
1 | ||
| 17578-78020 |
W04D..WU41#,422..GCC EXHAUST TAIL PIPE=REAR,NO.2 |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90119-08B95 | ||||
| 90179-10015 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
