WU412L-TKFTBV3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )W04D..WU412,422..85T

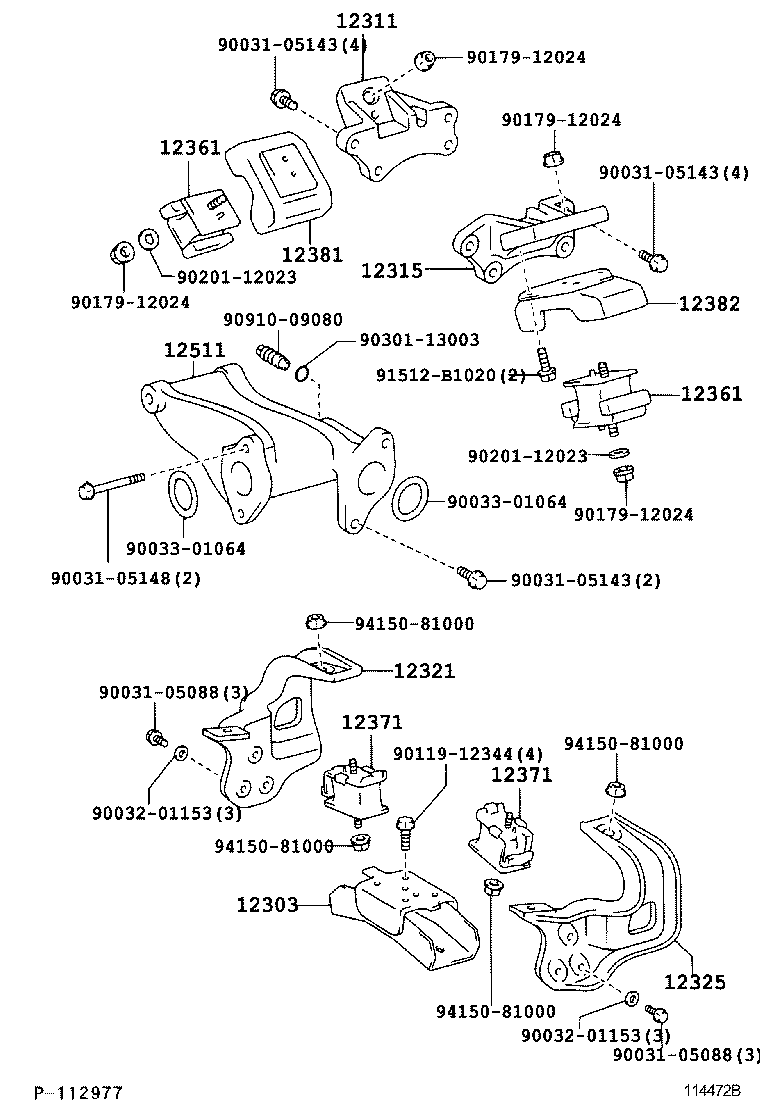

Click highlighted areas on diagram

diagram 12303 12311 12315 12321 12325 12361 12361 12371 12371 12381 12382 12511 9003105088 9003105088 9003105143 9003105143 9003105143 9003105148 9003201153 9003201153 9003301064 9003301064 9011912344 9017912024 9017912024 9017912024 9017912024 9020112023 9020112023 9030113003 9091009080 91512B1020 9415081000 9415081000 9415081000 9415081000
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78010

W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78050

W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78030

W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78230

W04D..WU412,422..85T

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78210

W04D..WU412,422..85T

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78080

W04D..WU412,422

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78080

W04D..WU412,422

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-78030

W04D..WU412,422

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-78040

W04D..WU412,422

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-78050

W04D..WU412,422

 1
Common parts
90031-05088
90031-05143
90031-05148
90032-01153
90033-01064
90119-12344
90179-12024
90201-12023
90301-13003
90910-09080
91512-B1020
94150-81000
