WU410R-TKMRSN3 (2003)
Toyota Dyna
(0110- )WU410,420,XZU412,414,415,420,422,424,425..DCR,DSL,TD ; (0411-0701)BU410,

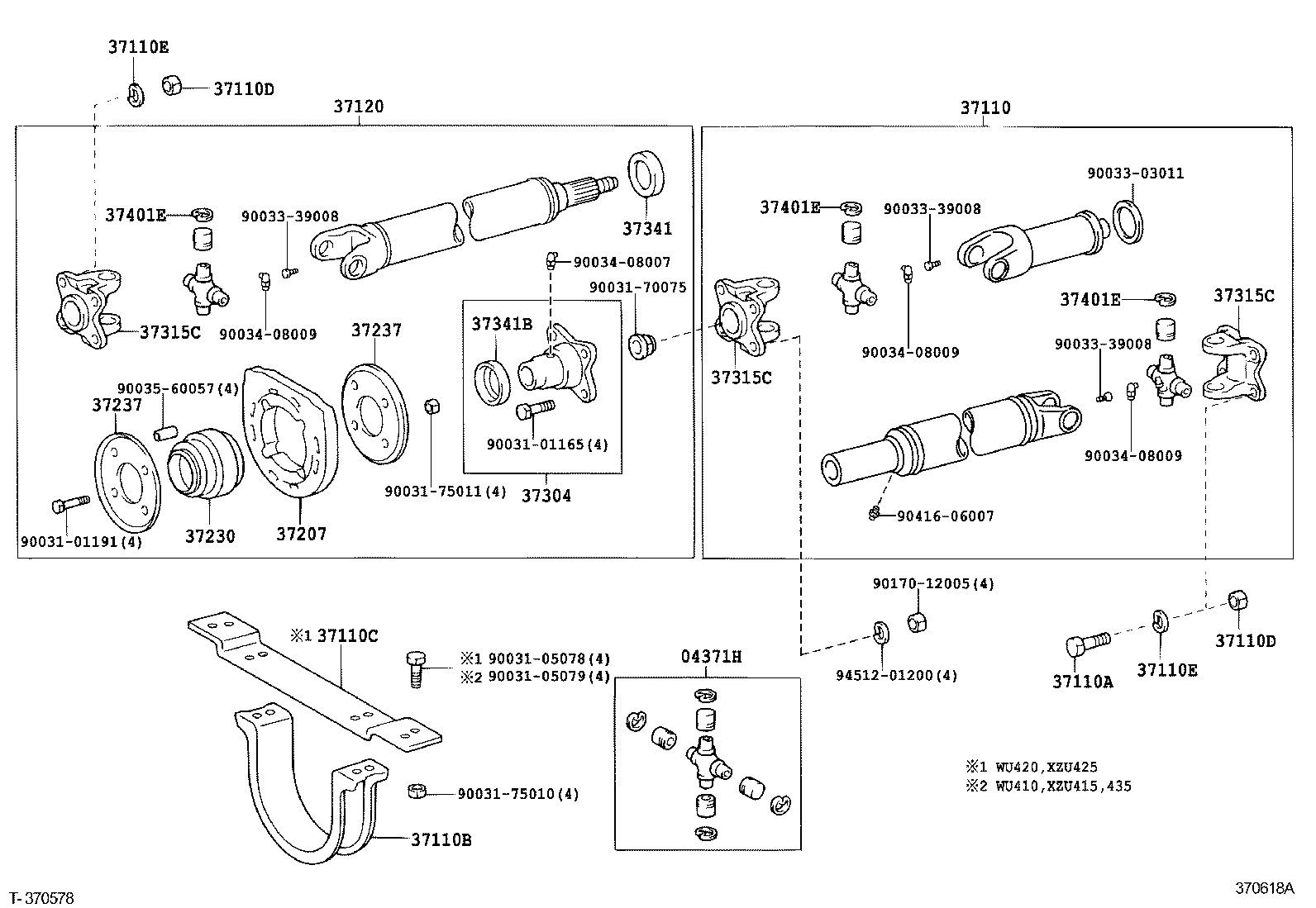

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
WU410,420,XZU420,430..SA |
3 | ||
| 04371-37080 |
WU410,420,XZU420,430..SA |
4 | ||
| 04371-37011 |
XZU415,425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 6G |
1 | ||
| 90039-13003 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 25G |
1 | ||
| 90039-13002 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 12G |
1 | ||
| 90039-13004 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 50G |
1 | ||
| 90039-13005 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 75G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 6G |
1 | ||
| 90039-13003 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 25G |
1 | ||
| 90039-13002 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 12G |
1 | ||
| 90039-13004 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 50G |
1 | ||
| 90039-13005 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 75G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 6G |
1 | ||
| 90039-13003 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 25G |
1 | ||
| 90039-13002 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 12G |
1 | ||
| 90039-13004 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 50G |
1 | ||
| 90039-13005 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 75G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 6G |
1 | ||
| 90039-13003 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 25G |
1 | ||
| 90039-13002 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 12G |
1 | ||
| 90039-13004 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 50G |
1 | ||
| 90039-13005 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA 75G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-37B70 |
WU410..SA |
1 | ||
| 37110-37580 |
XZU415,435;XZU412..5F..(55T,65T,75T);WU410,XZU414..ARL,GCC,GEN,SA |
1 | ||
| 37110-37F40 |
WU410..SA |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90031-01165 |
WU410,XZU420..75T..SA *12-1.25PX35-17 |
4 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
WU410..75T..SA;XZU412,420,422..6F |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37500 |
WU410..75T..SA |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37020 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37235-37030 |
WU410,XZU420..75T..SA |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37010 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37201-37020 |
WU410,XZU420..75T..SA |
1 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA T=3.0 |
2 | ||
| 37237-37020 |
WU410,XZU420..75T..SA T=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA T=3.0 |
2 | ||
| 37237-37020 |
WU410,XZU420..75T..SA T=3.0 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37020 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37304-37040 |
WU410,XZU420..75T..SA |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
WU410,XZU420..75T..SA |
3 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
WU410,XZU420..75T..SA |
3 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
WU410,XZU420..75T..SA |
3 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-37020 |
XZU415,425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37341-37030 |
WU410,XZU420..75T..SA |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37020 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37341-37030 |
WU410,XZU420..75T..SA |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21023 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.55 |
8 | ||
| 90035-21022 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.50 |
8 | ||
| 90035-21025 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.65 |
8 | ||
| 90035-21024 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.60 |
8 | ||
| 90035-21026 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.70 |
8 | ||
| 90035-21041 |
WU410,XZU420,430..(75T,85T)..SA T=1.59 |
8 | ||
| 90035-21038 |
WU410,XZU420,430..(75T,85T)..SA T=1.68 |
8 | ||
| 90035-21040 |
WU410,XZU420,430..(75T,85T)..SA T=1.62 |
8 | ||
| 90035-21044 |
WU410,XZU420,430..(75T,85T)..SA T=1.50 |
8 | ||
| 90035-21043 |
WU410,XZU420,430..(75T,85T)..SA T=1.53 |
8 | ||
| 90035-21042 |
WU410,XZU420,430..(75T,85T)..SA T=1.56 |
8 | ||
| 90035-21039 |
WU410,XZU420,430..(75T,85T)..SA T=1.65 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21023 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.55 |
8 | ||
| 90035-21022 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.50 |
8 | ||
| 90035-21025 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.65 |
8 | ||
| 90035-21024 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.60 |
8 | ||
| 90035-21026 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.70 |
8 | ||
| 90035-21041 |
WU410,XZU420,430..(75T,85T)..SA T=1.59 |
8 | ||
| 90035-21038 |
WU410,XZU420,430..(75T,85T)..SA T=1.68 |
8 | ||
| 90035-21040 |
WU410,XZU420,430..(75T,85T)..SA T=1.62 |
8 | ||
| 90035-21044 |
WU410,XZU420,430..(75T,85T)..SA T=1.50 |
8 | ||
| 90035-21043 |
WU410,XZU420,430..(75T,85T)..SA T=1.53 |
8 | ||
| 90035-21042 |
WU410,XZU420,430..(75T,85T)..SA T=1.56 |
8 | ||
| 90035-21039 |
WU410,XZU420,430..(75T,85T)..SA T=1.65 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21023 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.55 |
8 | ||
| 90035-21022 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.50 |
8 | ||
| 90035-21025 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.65 |
8 | ||
| 90035-21024 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.60 |
8 | ||
| 90035-21026 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.70 |
8 | ||
| 90035-21041 |
WU410,XZU420,430..(75T,85T)..SA T=1.59 |
8 | ||
| 90035-21038 |
WU410,XZU420,430..(75T,85T)..SA T=1.68 |
8 | ||
| 90035-21040 |
WU410,XZU420,430..(75T,85T)..SA T=1.62 |
8 | ||
| 90035-21044 |
WU410,XZU420,430..(75T,85T)..SA T=1.50 |
8 | ||
| 90035-21043 |
WU410,XZU420,430..(75T,85T)..SA T=1.53 |
8 | ||
| 90035-21042 |
WU410,XZU420,430..(75T,85T)..SA T=1.56 |
8 | ||
| 90035-21039 |
WU410,XZU420,430..(75T,85T)..SA T=1.65 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
12 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-05078 | ||||
| 90031-05079 | ||||
| 90031-05111 | ||||
| 90031-70075 | ||||
| 90031-75010 | ||||
| 90031-75011 | ||||
| 90032-01069 | ||||
| 90032-04031 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-12005 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
(0610- )WU410,420,XZU415,420,425..EUR,SA..DCR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
WU410,420,XZU420,430..SA |
3 | ||
| 04371-37080 |
WU410,420,XZU420,430..SA |
4 | ||
| 04371-37011 |
XZU415,425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-37B70 |
WU410..SA |
1 | ||
| 37110-37580 |
XZU415,435;XZU412..5F..(55T,65T,75T);WU410,XZU414..ARL,GCC,GEN,SA |
1 | ||
| 37110-37F40 |
WU410..SA |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90031-01165 |
WU410,XZU420..75T..SA *12-1.25PX35-17 |
4 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
WU410..75T..SA;XZU412,420,422..6F |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37500 |
WU410..75T..SA |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37020 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37235-37030 |
WU410,XZU420..75T..SA |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37010 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37201-37020 |
WU410,XZU420..75T..SA |
1 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA T=3.0 |
2 | ||
| 37237-37020 |
WU410,XZU420..75T..SA T=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA T=3.0 |
2 | ||
| 37237-37020 |
WU410,XZU420..75T..SA T=3.0 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37020 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37304-37040 |
WU410,XZU420..75T..SA |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
WU410,XZU420..75T..SA |
3 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
WU410,XZU420..75T..SA |
3 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
WU410,XZU420..75T..SA |
3 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-37020 |
XZU415,425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37341-37030 |
WU410,XZU420..75T..SA |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37020 |
XZU425;WU410,420,XZU412,422..5F;XZU414,420,424..ARL,GEN,SA |
1 | ||
| 37341-37030 |
WU410,XZU420..75T..SA |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21023 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.55 |
8 | ||
| 90035-21022 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.50 |
8 | ||
| 90035-21025 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.65 |
8 | ||
| 90035-21024 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.60 |
8 | ||
| 90035-21026 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.70 |
8 | ||
| 90035-21041 |
WU410,XZU420,430..(75T,85T)..SA T=1.59 |
8 | ||
| 90035-21038 |
WU410,XZU420,430..(75T,85T)..SA T=1.68 |
8 | ||
| 90035-21040 |
WU410,XZU420,430..(75T,85T)..SA T=1.62 |
8 | ||
| 90035-21044 |
WU410,XZU420,430..(75T,85T)..SA T=1.50 |
8 | ||
| 90035-21043 |
WU410,XZU420,430..(75T,85T)..SA T=1.53 |
8 | ||
| 90035-21042 |
WU410,XZU420,430..(75T,85T)..SA T=1.56 |
8 | ||
| 90035-21039 |
WU410,XZU420,430..(75T,85T)..SA T=1.65 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21023 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.55 |
8 | ||
| 90035-21022 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.50 |
8 | ||
| 90035-21025 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.65 |
8 | ||
| 90035-21024 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.60 |
8 | ||
| 90035-21026 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.70 |
8 | ||
| 90035-21041 |
WU410,XZU420,430..(75T,85T)..SA T=1.59 |
8 | ||
| 90035-21038 |
WU410,XZU420,430..(75T,85T)..SA T=1.68 |
8 | ||
| 90035-21040 |
WU410,XZU420,430..(75T,85T)..SA T=1.62 |
8 | ||
| 90035-21044 |
WU410,XZU420,430..(75T,85T)..SA T=1.50 |
8 | ||
| 90035-21043 |
WU410,XZU420,430..(75T,85T)..SA T=1.53 |
8 | ||
| 90035-21042 |
WU410,XZU420,430..(75T,85T)..SA T=1.56 |
8 | ||
| 90035-21039 |
WU410,XZU420,430..(75T,85T)..SA T=1.65 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21023 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.55 |
8 | ||
| 90035-21022 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.50 |
8 | ||
| 90035-21025 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.65 |
8 | ||
| 90035-21024 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.60 |
8 | ||
| 90035-21026 |
XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA T=1.70 |
8 | ||
| 90035-21041 |
WU410,XZU420,430..(75T,85T)..SA T=1.59 |
8 | ||
| 90035-21038 |
WU410,XZU420,430..(75T,85T)..SA T=1.68 |
8 | ||
| 90035-21040 |
WU410,XZU420,430..(75T,85T)..SA T=1.62 |
8 | ||
| 90035-21044 |
WU410,XZU420,430..(75T,85T)..SA T=1.50 |
8 | ||
| 90035-21043 |
WU410,XZU420,430..(75T,85T)..SA T=1.53 |
8 | ||
| 90035-21042 |
WU410,XZU420,430..(75T,85T)..SA T=1.56 |
8 | ||
| 90035-21039 |
WU410,XZU420,430..(75T,85T)..SA T=1.65 |
8 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-05078 | ||||
| 90031-05079 | ||||
| 90031-70075 | ||||
| 90031-75010 | ||||
| 90031-75011 | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08007 | ||||
| 90034-08009 | ||||
| 90035-60057 | ||||
| 90170-12005 | ||||
| 90416-06007 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
