Toyota Dyna WU410 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
DYNA
WU410R-TKMQS (2002)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

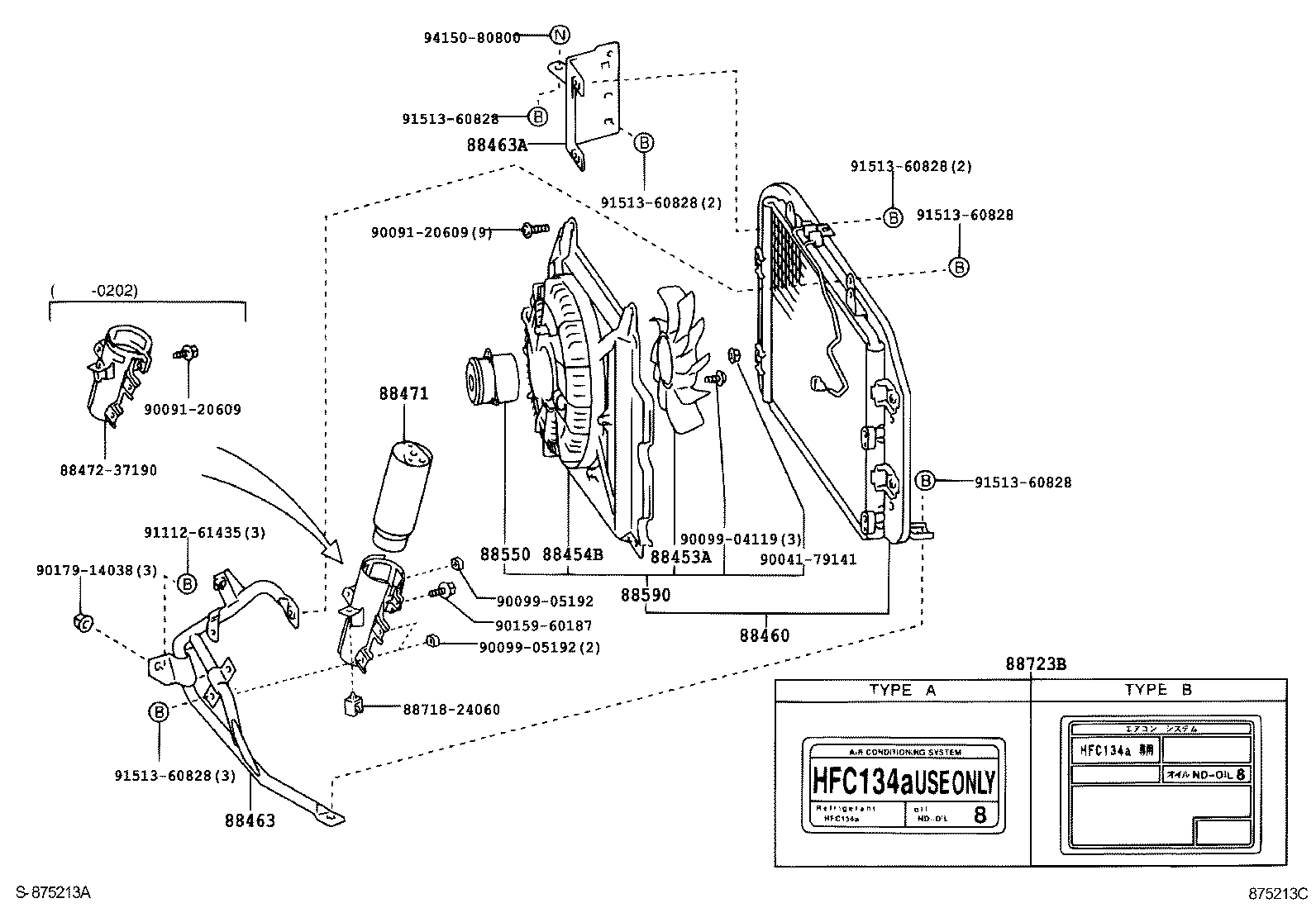

ILLUST NO. 1 OF 3(0110-0610)RHD..GEN ; (0212-0610)ARL

Click highlighted areas on diagram

CONDENSER & RECEIVER

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-37010	WU410,XZU404,41#,42#,434..RHD	10/2001 - 02/2003	1
88454B - SHROUD, FAN
88454-37040	WU410..RHD..GEN	10/2006 - 06/2011	1
88454-37040	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88460 - CONDENSER ASSY, COOLER
88460-37381	WU410..RHD..GEN	10/2006 - 06/2011	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37261	WU410..RHD..GEN	10/2006 - 03/2009	1
88463-37262	WU410..RHD	03/2009 - 06/2011	1
88463-37261	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37440	WU410..RHD..GEN	10/2006 - 06/2011	1
88463-37281	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88550-37060	WU410..RHD..GEN	10/2006 - 06/2011	1
88590 - BLOWER ASSY, W/SHROUD
88590-37070	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88590-37070	WU410..RHD..GEN	10/2006 - 06/2011	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) TYPE A:REFER ILLUST.	10/2001 - 10/2006	1
88723-20040	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 04/2008	1
Common parts
88472-37190
88718-24060
90041-79141
90091-20609
90099-04119
90099-05192
90159-60187
90179-14038
91112-61435
91513-60828
94150-80800

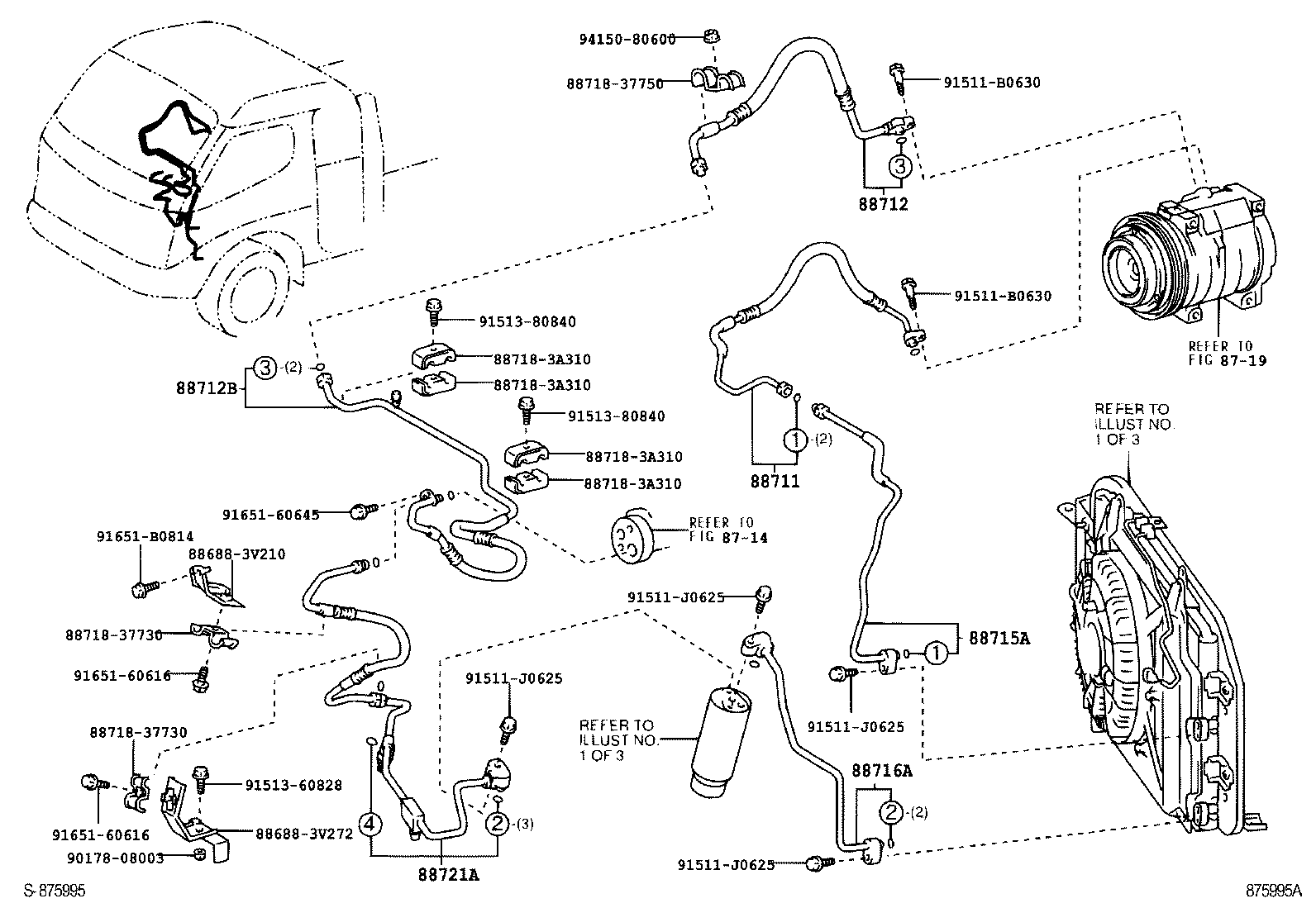

ILLUST NO. 2 OF 3(0212-0610)WU410..RHD..GEN

Click highlighted areas on diagram

PIPING

Part #	Description	Period	Qty
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37820	WU410..RHD..GEN	12/2002 - 10/2006	1
88711-3V091	WU410..RHD..GEN	11/2006 - 06/2011	1
88711-3V090	WU410..RHD..GEN	10/2006 - 11/2006	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V380	WU410..GCC,GEN	12/2002 - 10/2006	1
88712-3V670	WU41#,422..GCC,GEN	10/2006 - 11/2006	1
88712-3V671	WU41#,422..GCC,GEN	11/2006 - 06/2011	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V340	XZU412..RHD..TD;WU410,XZU404,414,424,434..RHD..(ARL,GEN)	10/2001 - 08/2004	1
88712-3V341	XZU412..RHD..TD;WU410,XZU404,414,424,434..RHD..(ARL,GEN)	09/2004 - 10/2006	1
88712-3V690	WU410..RHD..GEN	10/2006 - 06/2011	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37430	WU410..RHD..GEN	10/2006 - 06/2011	1
88715-37350	XZU412..RHD..TD;WU410,XZU404,414,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37780	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88716-37780	WU410..RHD..GEN	10/2006 - 06/2011	1
88721A - HOSE, LIQUID, A
88721-3V040	WU410..RHD..GEN	10/2006 - 06/2011	1
88721-37552	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
Common parts
88688-3V210
88688-3V272
88718-37730
88718-37750
88718-3A310
90178-08003
91511-B0630
91511-J0625
91513-60828
91513-80840
91651-60616
91651-60645
91651-B0814
94150-80600
Linked diagrams
8714
8719

ILLUST NO. 1 OF 3(0610-0805)XZU413,423..GEN ; (0610- )WU41#,422,XZU419,429,439..LHD ; (0701-0810)

Click highlighted areas on diagram

CONDENSER & RECEIVER

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-37010	WU410,XZU404,41#,42#,434..RHD	10/2001 - 02/2003	1
88454B - SHROUD, FAN
88454-37040	WU410..RHD..GEN	10/2006 - 06/2011	1
88454-37040	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88460 - CONDENSER ASSY, COOLER
88460-37381	WU410..RHD..GEN	10/2006 - 06/2011	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37440	WU410..RHD..GEN	10/2006 - 06/2011	1
88463-37281	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88550-37060	WU410..RHD..GEN	10/2006 - 06/2011	1
88590 - BLOWER ASSY, W/SHROUD
88590-37070	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88590-37070	WU410..RHD..GEN	10/2006 - 06/2011	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) TYPE A:REFER ILLUST.	10/2001 - 10/2006	1
88723-20040	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 04/2008	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) TYPE A:REFER ILLUST.	10/2001 - 10/2006	1
88723-20040	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 04/2008	1
Common parts
88472-37170
88472-37220
90041-79141
90091-20609
90099-00148
90099-00968
90099-04119
90105-14090
90179-14038
91513-60828
93385-16016
94150-10801
94151-80800

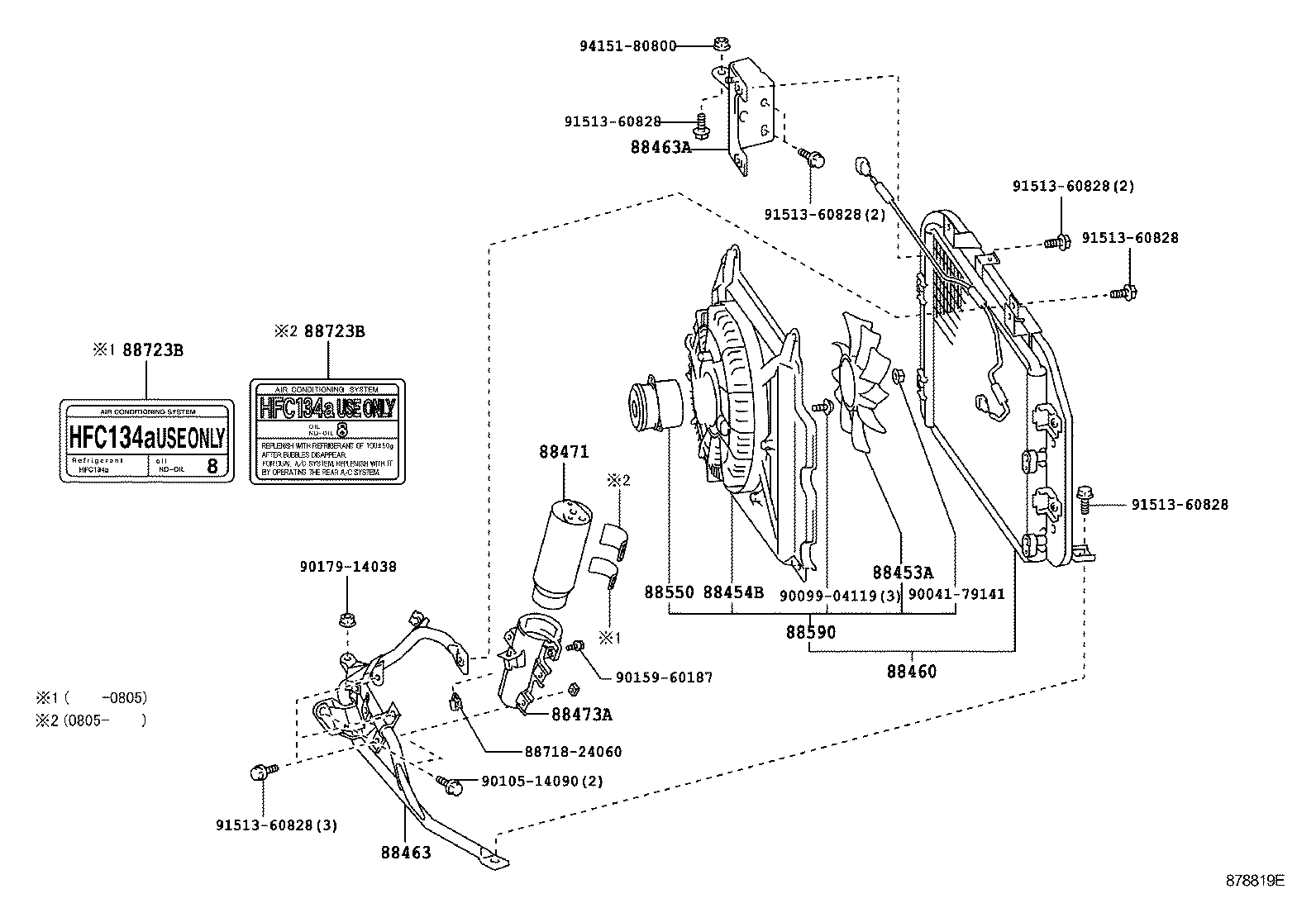

ILLUST NO. 1 OF 3(0610- )RHD..GEN

Click highlighted areas on diagram

CONDENSER & RECEIVER

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-37010	WU410,XZU404,41#,42#,434..RHD	10/2001 - 02/2003	1
88454B - SHROUD, FAN
88454-37040	WU410..RHD..GEN	10/2006 - 06/2011	1
88454-37040	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88460 - CONDENSER ASSY, COOLER
88460-37381	WU410..RHD..GEN	10/2006 - 06/2011	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37261	WU410..RHD..GEN	10/2006 - 03/2009	1
88463-37262	WU410..RHD	03/2009 - 06/2011	1
88463-37261	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37440	WU410..RHD..GEN	10/2006 - 06/2011	1
88463-37281	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88473A - HOLDER, RECEIVER
88473-37040	WU410..RHD..GEN	10/2006 - 06/2011	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88550-37060	WU410..RHD..GEN	10/2006 - 06/2011	1
88590 - BLOWER ASSY, W/SHROUD
88590-37070	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88590-37070	WU410..RHD..GEN	10/2006 - 06/2011	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) TYPE A:REFER ILLUST.	10/2001 - 10/2006	1
88723-20040	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 04/2008	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) TYPE A:REFER ILLUST.	10/2001 - 10/2006	1
88723-20040	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 04/2008	1
Common parts
88718-24060
90041-79141
90099-04119
90105-14090
90159-60187
90179-14038
91513-60828
94151-80800

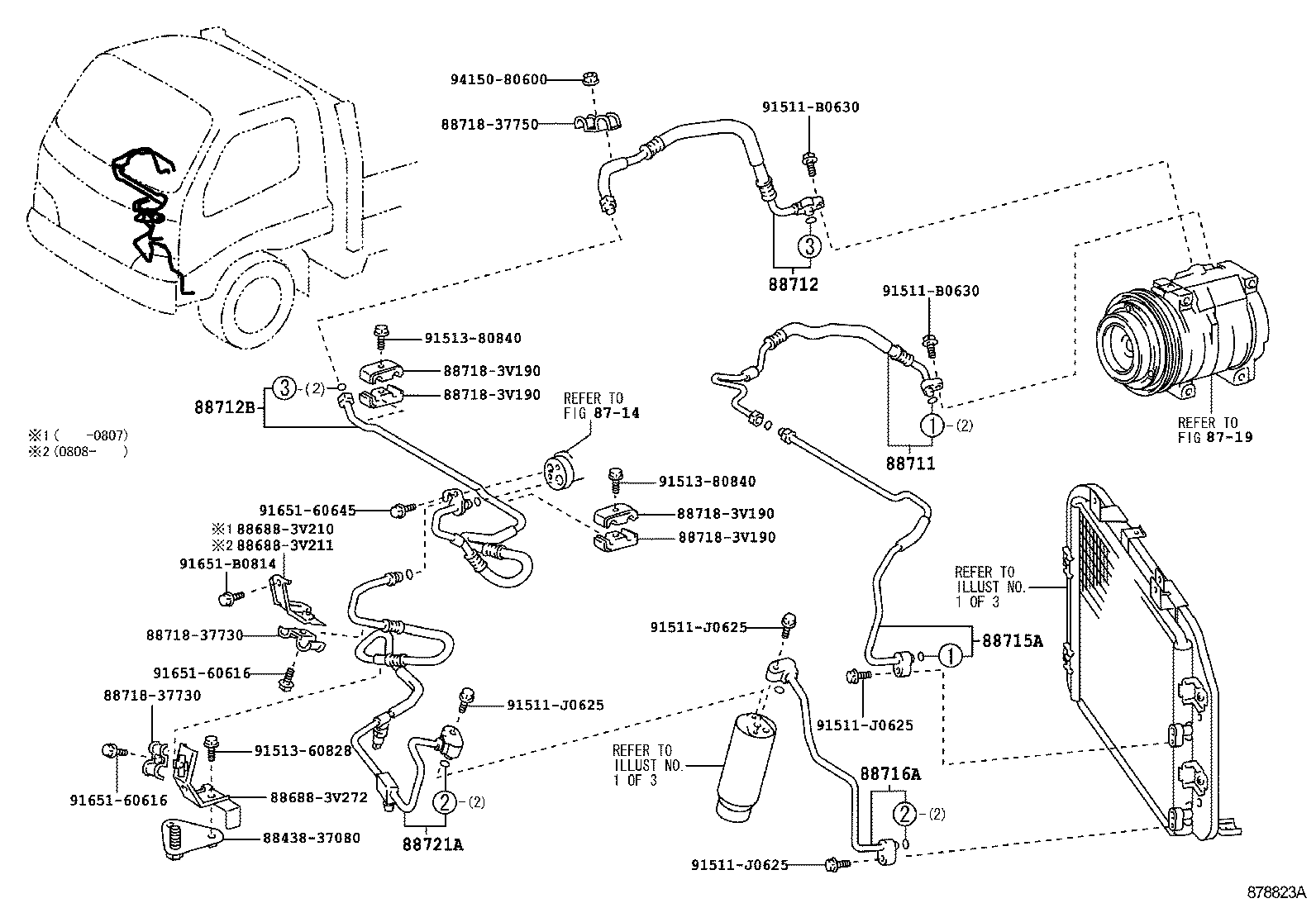

ILLUST NO. 2 OF 3(0610- )RHD..GEN

Click highlighted areas on diagram

PIPING

Part #	Description	Period	Qty
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37820	WU410..RHD..GEN	12/2002 - 10/2006	1
88711-3V091	WU410..RHD..GEN	11/2006 - 06/2011	1
88711-3V090	WU410..RHD..GEN	10/2006 - 11/2006	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V380	WU410..GCC,GEN	12/2002 - 10/2006	1
88712-3V670	WU41#,422..GCC,GEN	10/2006 - 11/2006	1
88712-3V671	WU41#,422..GCC,GEN	11/2006 - 06/2011	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V340	XZU412..RHD..TD;WU410,XZU404,414,424,434..RHD..(ARL,GEN)	10/2001 - 08/2004	1
88712-3V341	XZU412..RHD..TD;WU410,XZU404,414,424,434..RHD..(ARL,GEN)	09/2004 - 10/2006	1
88712-3V690	WU410..RHD..GEN	10/2006 - 06/2011	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37430	WU410..RHD..GEN	10/2006 - 06/2011	1
88715-37350	XZU412..RHD..TD;WU410,XZU404,414,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37780	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
88716-37780	WU410..RHD..GEN	10/2006 - 06/2011	1
88721A - HOSE, LIQUID, A
88721-3V040	WU410..RHD..GEN	10/2006 - 06/2011	1
88721-37552	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
Common parts
88438-37080
88688-3V210
88688-3V211
88688-3V272
88718-37730
88718-37750
88718-3V190
91511-B0630
91511-J0625
91513-60828
91513-80840
91651-60616
91651-60645
91651-B0814
94150-80600
Linked diagrams
8714
8719
