WU410R-TKMQS (2002)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0212-0610)GCC,GEN..DSL ; (0304- )WU410,420,XZU420,430..SA

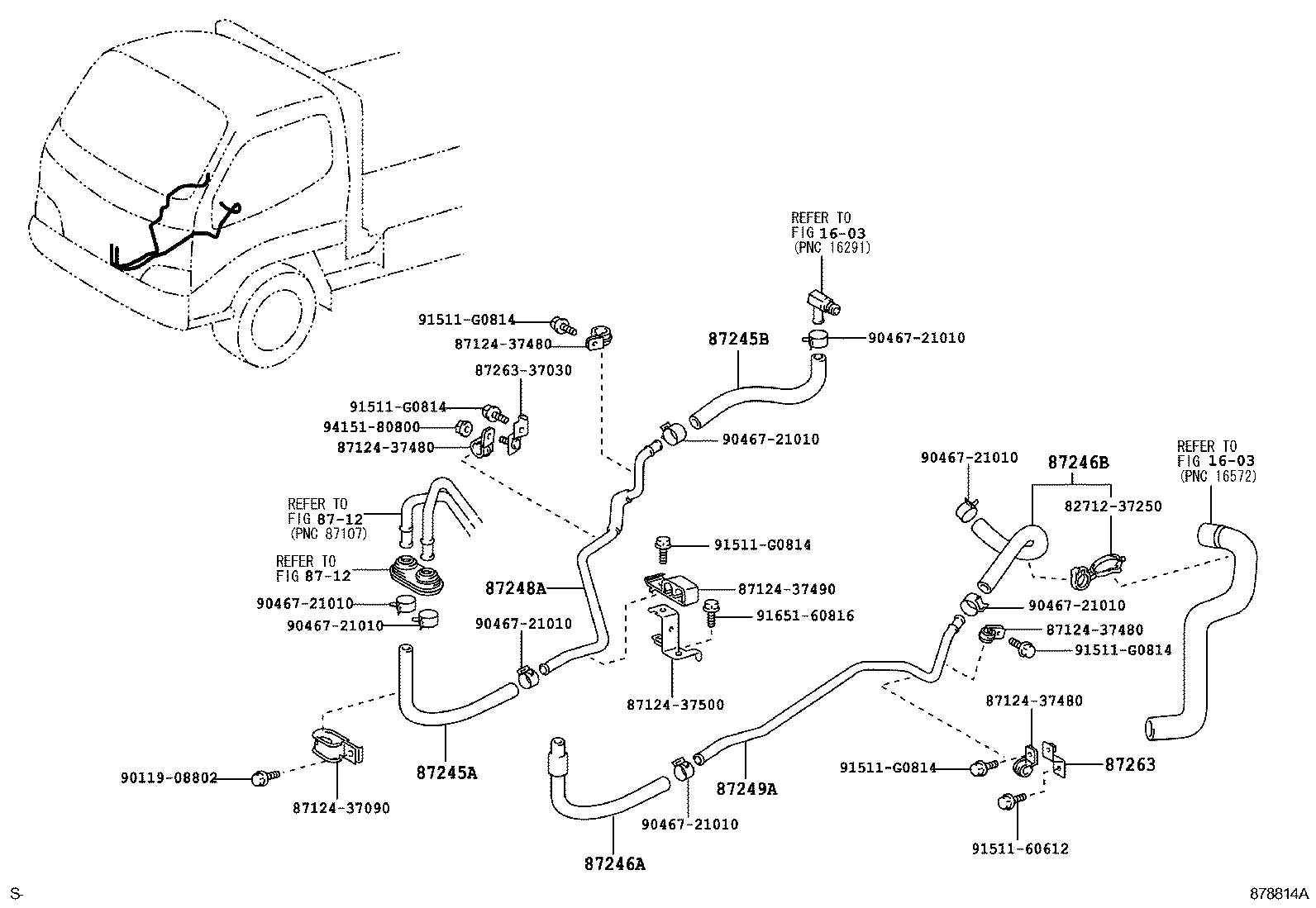

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87245A - HOSE, HEATER WATER, INLET A
99556-30500	XZU412,422..5F..TD;WU410,XZU404,414,424,434..ARL,GCC,GEN *H,L=320	12/2002 - 10/2006	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V150	WU410..GCC,GEN	12/2002 - 10/2006	1
87245-37C60	WU412,42#;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V150	WU410..GCC,GEN	12/2002 - 10/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37280	WU410..GCC,GEN	12/2002 - 10/2006	1
87246-37660	WU41#,422..GCC,GEN L=440	10/2006 - 12/2006	1
87246-37661	WU412,42#;WU410..65T;WU410..75T..GEN	01/2007 - 06/2011	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37280	WU410..GCC,GEN	12/2002 - 10/2006	1
87246-37660	WU41#,422..GCC,GEN L=440	10/2006 - 12/2006	1
87246-37661	WU412,42#;WU410..65T;WU410..75T..GEN	01/2007 - 06/2011	1
87248A - PIPE, HEATER WATER INLET, A
87248-37300	WU410..GCC,GEN	12/2002 - 10/2006	1
87248-37580	WU410..GCC,GEN	10/2006 - 05/2007	1
87248-37581	WU420;WU410..65T;WU410..75T..GEN	06/2007 - 06/2011	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37310	WU410..GCC,GEN	12/2002 - 10/2006	1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-37020	XZU412,422..5F..TD;WU410,XZU404,414,424,434..ARL,GCC,GEN	10/2001 - 10/2006	1
87263-37110	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
Common parts
82712-37250
87124-37090
87124-37100
87124-37480
87263-37030
90119-08802
90467-21010
91511-G0814
91651-60816
94150-80800
Linked diagrams
1603
8712

(0610- )WU420 ; (0610- )WU410..65T ; (0610- )WU410..75T..GEN

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87245A - HOSE, HEATER WATER, INLET A
99556-30500	XZU412,422..5F..TD;WU410,XZU404,414,424,434..ARL,GCC,GEN *H,L=320	12/2002 - 10/2006	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V150	WU410..GCC,GEN	12/2002 - 10/2006	1
87245-37C60	WU412,42#;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V150	WU410..GCC,GEN	12/2002 - 10/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37280	WU410..GCC,GEN	12/2002 - 10/2006	1
87246-37660	WU41#,422..GCC,GEN L=440	10/2006 - 12/2006	1
87246-37661	WU412,42#;WU410..65T;WU410..75T..GEN	01/2007 - 06/2011	1
87248A - PIPE, HEATER WATER INLET, A
87248-37300	WU410..GCC,GEN	12/2002 - 10/2006	1
87248-37580	WU410..GCC,GEN	10/2006 - 05/2007	1
87248-37581	WU420;WU410..65T;WU410..75T..GEN	06/2007 - 06/2011	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37310	WU410..GCC,GEN	12/2002 - 10/2006	1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-37020	XZU412,422..5F..TD;WU410,XZU404,414,424,434..ARL,GCC,GEN	10/2001 - 10/2006	1
87263-37110	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
Common parts
82712-37250
87124-37090
87124-37480
87124-37490
87124-37500
87263-37030
90119-08802
90467-21010
91511-60612
91511-G0814
91651-60816
94151-80800
Linked diagrams
1603
8712
