WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0608)EUR ; (0110-0610)5F..GEN ; (0212-0610)ARL,GCC ; (0304-0802)SA ; (0401-08

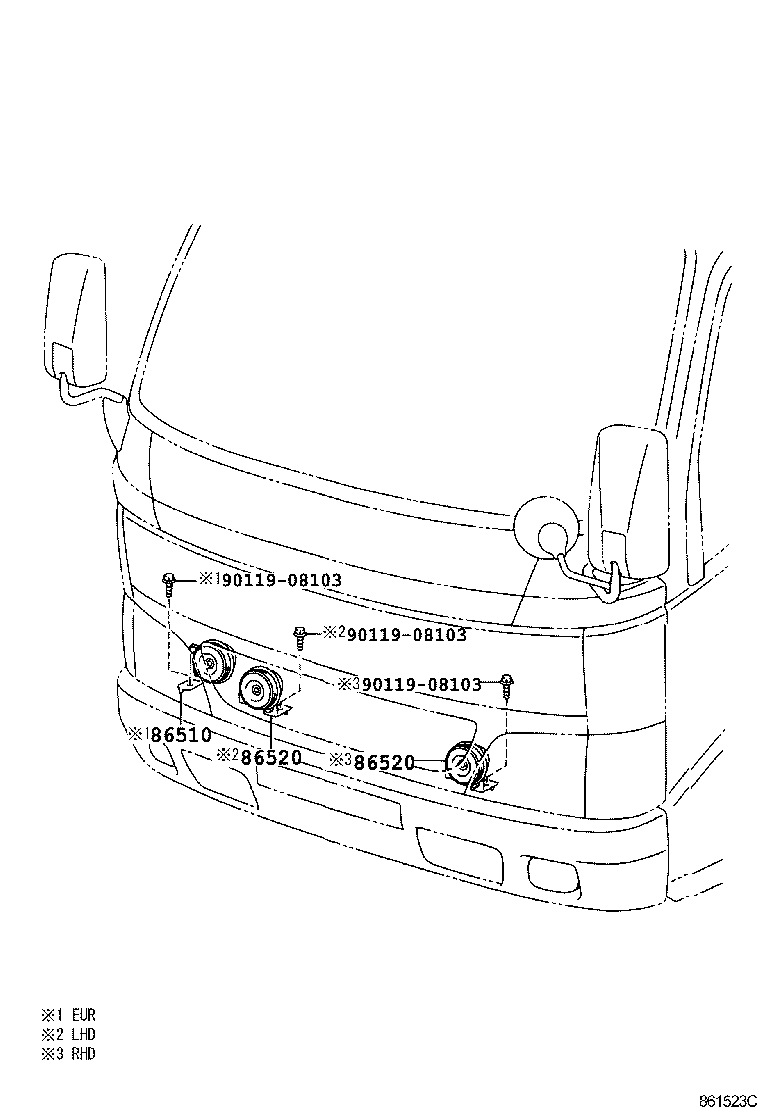

Click highlighted areas on diagram

diagram 86510 86520 86520 9011908103 9011908103 9011908103
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
86520-37100

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
86520 - HORN ASSY, LOW PITCHED
86520-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
86520-37100

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
Common parts
90119-08103
