WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 6(0110- )XZU404,412,414,420,422,424,430,434..RHD ; (0212-0610)WU410..RHD..GEN ; (

Click highlighted areas on diagram

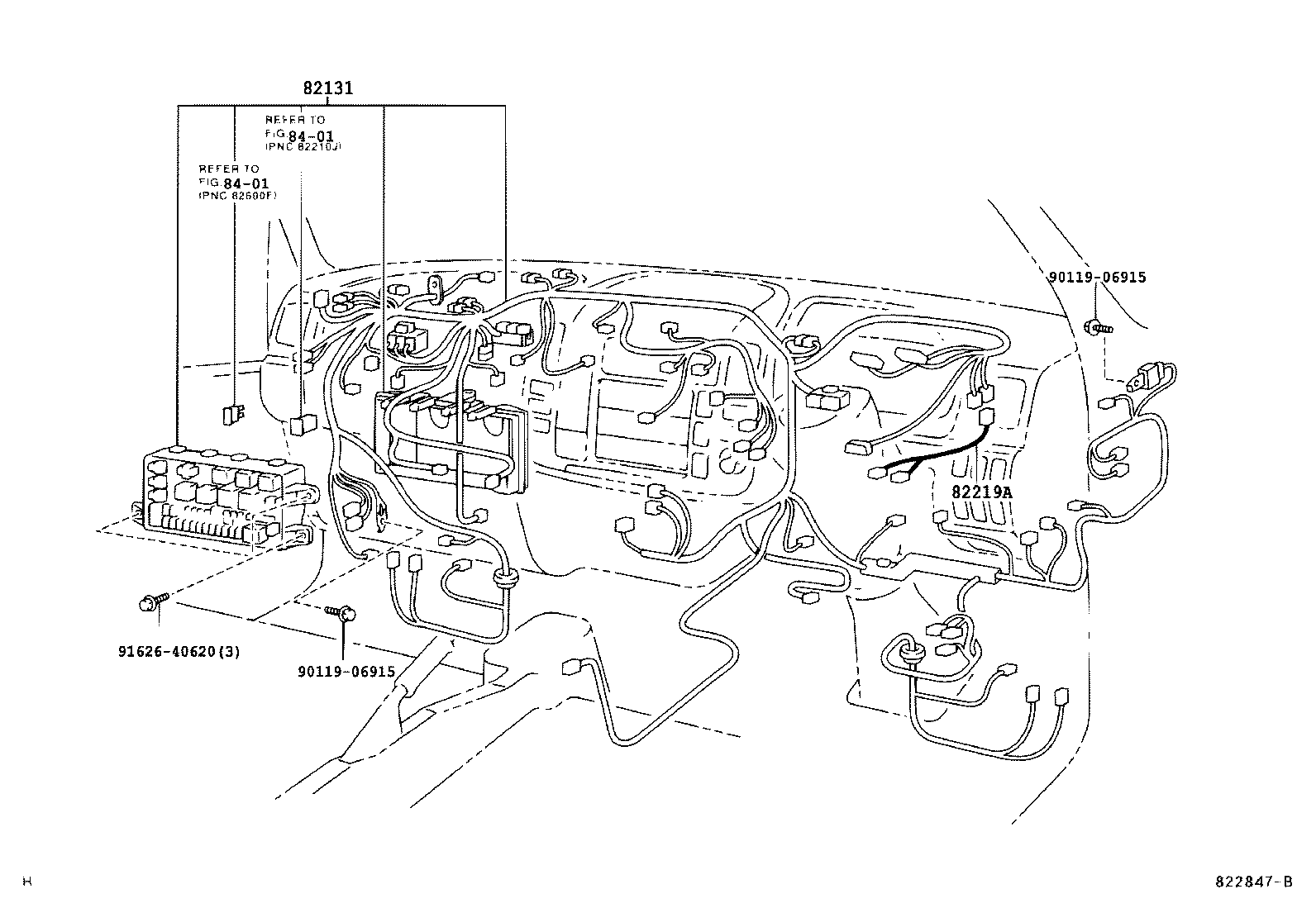

COWL

diagram 82131 82219A 8401 8401 9011906915 9011906915 9162640620
Part # Description Qty Price
82131 - WIRE, COWL
82147-37850

WU410..RHD..GEN;XZU412..RHD..TD

 1
82147-37851

WU410..RHD..GEN;XZU412..RHD..TD

 1
82135-37J70

WU410..RHD..GEN

PART NUMBER LABEL=82135-37J70

 1
82135-37J71

WU410..RHD..GEN

PART NUMBER LABEL=82135-37J71

 1
82135-37J72

WU410..RHD..GEN

PART NUMBER LABEL=82135-37J72

 1
Common parts
90119-06915
91626-40620
Linked diagrams
8401

ILLUST NO. 4 OF 6(0110- )BU410,420,XZU404,412,414,420,422,424,430,434 ; (0212-0610)WU410..GCC,GEN

Click highlighted areas on diagram

BODY

diagram 82151 82152 82161 82161 82164 82165 82169 82171 82284 8271237082 82817 82817 8414 9011908103 9011908375 9011908827 9046312011 9356015014 9356015014
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-37320

WU410,XZU412,422..RHD..GEN

 1
82151-37550

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
82152 - WIRE, FRONT DOOR, LH
82152-37390

WU410,XZU412,422..RHD..GEN

 1
82152-37600

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
82161 - WIRE, FLOOR
82161-37750

WU420;WU410..RHD..65T;WU410..75T..GEN

 1
82161-37260

WU410,XZU412,422..RHD..GEN

 1
82161 - WIRE, FLOOR
82161-37750

WU420;WU410..RHD..65T;WU410..75T..GEN

 1
82161-37260

WU410,XZU412,422..RHD..GEN

 1
82164 - WIRE, FRAME
82137-37560

XZU414..55T..ARL;XZU414..LHD..GEN;BU410,WU410,XZU412..GCC,GEN,TAIW

 1
82164-37M80

WU41#,XZU413,417..GCC,GEN,TAIW

 1
82165 - WIRE, FRAME, NO.2
82165-37420

WU410,XZU412,422..CBU

 1
82165-37171

WU410,XZU412,422..CBU

 1
82165-37420

WU41#,422..CBU

 1
82169 - WIRE FRAME, NO.3
82169-37090

WU410,XZU412,414..5F..(GCC,GEN)

 1
82169-37090

WU412;WU410..65T;WU410..75T..GEN

 1
82171 - WIRE, ROOF, NO.1
82171-37520

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
82284 - WIRE, EARTH
82284-37080

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
82817-37110

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
82817-37110

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
Common parts
82712-37082
90119-08103
90119-08375
90119-08827
90463-12011
93560-15014
Linked diagrams
8414

ILLUST NO. 5 OF 6(0110- )BU410,420,XZU404,412,414,420,422,424,430,434 ; (0212-0610)WU410..GCC,GEN

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 4445737080 4445737130 8270237080 8270237180 8270237190 8271126070 827113H530 8271237210 8271534080 8271537750 8271537760 827153V160 827153V290 827153V300 827153V310 827153V320 827153V340 827153V460 827153V590 827153V650 8271637100 8271637280 8271637290 8271637300 8271637310 8272837060 8272837080 8272837191 8272837200 8272937270 8272937340 9003105123 9003105124 9003105124 9003116068 9003175001 9003175001 9003175001 9011908A46 9161961218 9165160816 9165160816 9165160816 9165160816 9165160816 91651B0820 91651B0825 9413000802 9413000802 9413000802
Part # Description Qty Price
Common parts
44457-37080
44457-37130
82702-37080
82702-37180
82702-37190
82711-26070
82711-3H530
82712-37210
82715-34080
82715-37750
82715-37760
82715-3V160
82715-3V290
82715-3V300
82715-3V310
82715-3V320
82715-3V340
82715-3V460
82715-3V590
82715-3V650
82716-37100
82716-37280
82716-37290
82716-37300
82716-37310
82728-37060
82728-37080
82728-37191
82728-37200
82729-37270
82729-37340
90031-05123
90031-05124
90031-16068
90031-75001
90119-08A46
91619-61218
91651-60816
91651-B0820
91651-B0825
94130-00802

ILLUST NO. 5 OF 6(0110- )BU410,420,XZU404,412,414,420,422,424,430,434 ; (0212-0610)WU410..GCC,GEN

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8270237110 8271114110 8271534100 827153V890 8271637210 8271637220 8271637230 8271637510 8271637520 8271637530 8271637540 8271637550 8272837080 8272837191 9003105123 9003560063 9010510407 91621B0816 91621B0816 91621B0816 9165160816 9165160816 9165160816 9165160816 91651B0820
Part # Description Qty Price
Common parts
82702-37110
82711-14110
82715-34100
82715-3V890
82716-37210
82716-37220
82716-37230
82716-37510
82716-37520
82716-37530
82716-37540
82716-37550
82728-37080
82728-37191
90031-05123
90035-60063
90105-10407
91621-B0816
91651-60816
91651-B0820

ILLUST NO. 1 OF 6(0110- )XZU404,412,414,420,422,424,430,434 ;(0212-0610)WU410..GCC,GEN ; (0304-

Click highlighted areas on diagram

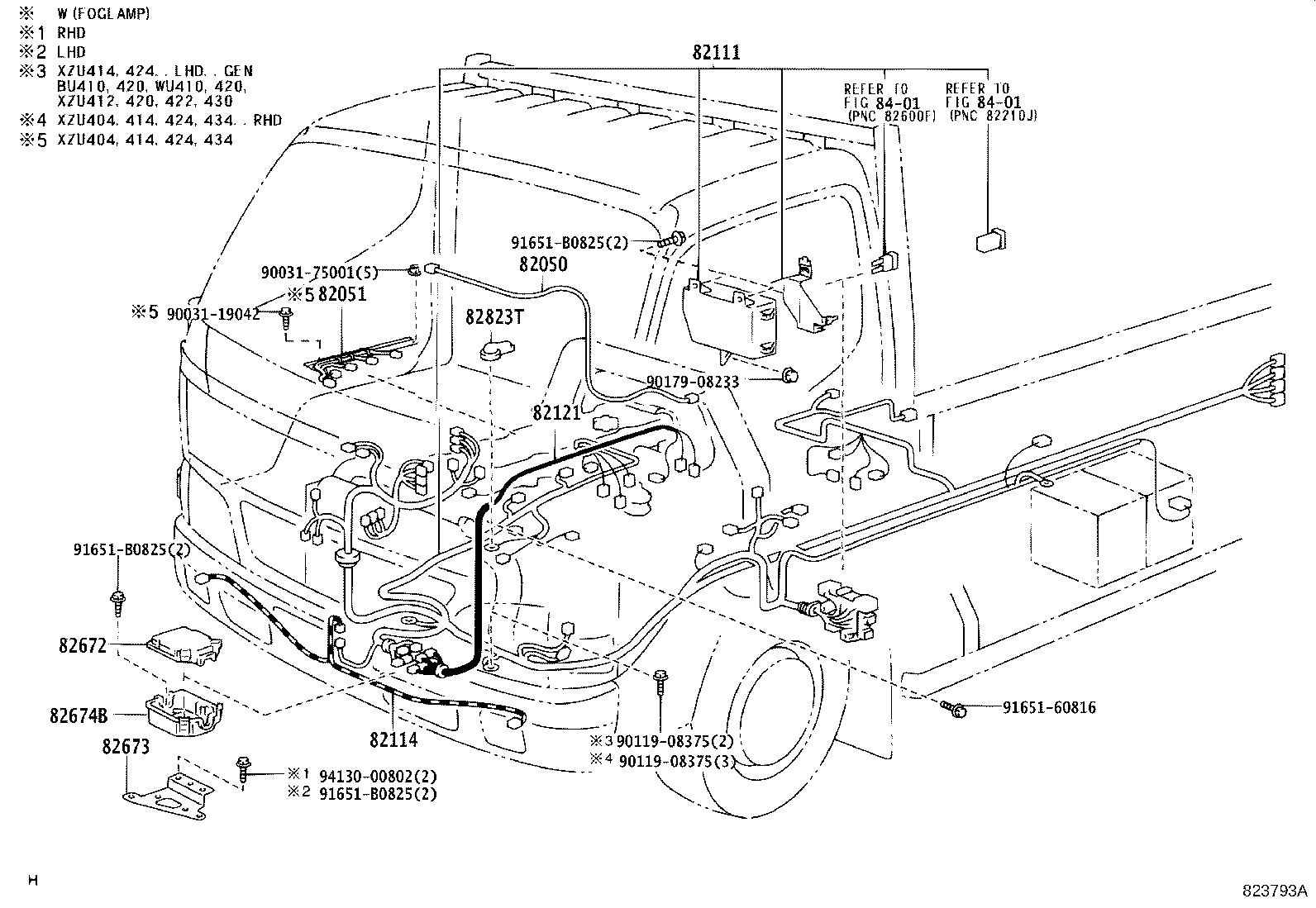

ENGINE ROOM

diagram 82050 82051 82111 82114 82121 82672 82673 82674B 82823T 8401 8401 9003119042 9003175001 9011908375 9011908375 9017908233 9165160816 91651B0825 91651B0825 91651B0825 9413000802
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82115-3V660

WU410..RHD..GEN

 1
82111-3VW91

WU410..RHD..GEN

PART NUMBER LABEL=82111-3VW91

 1
82111-3VW90

WU410..RHD..GEN

PART NUMBER LABEL=82111-3VW90

 1
82111-3VW92

WU410..RHD..GEN

PART NUMBER LABEL=82111-3VW92

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37030

WU410,XZU404,412,414,422,424..5F..(GCC,GEN)

 1
82114-37030

XZU413,423..5F;WU41#,422..GCC,GEN

W(FOG LAMP)

 1
82121 - WIRE, ENGINE
82139-37150

WU410..GCC,GEN

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90031-19042
90031-75001
90119-08375
90179-08233
91651-60816
91651-B0825
94130-00802
Linked diagrams
8401

ILLUST NO. 2 OF 6(0610- )RHD..GEN ; (0610- )XZU423,433..SA

Click highlighted areas on diagram

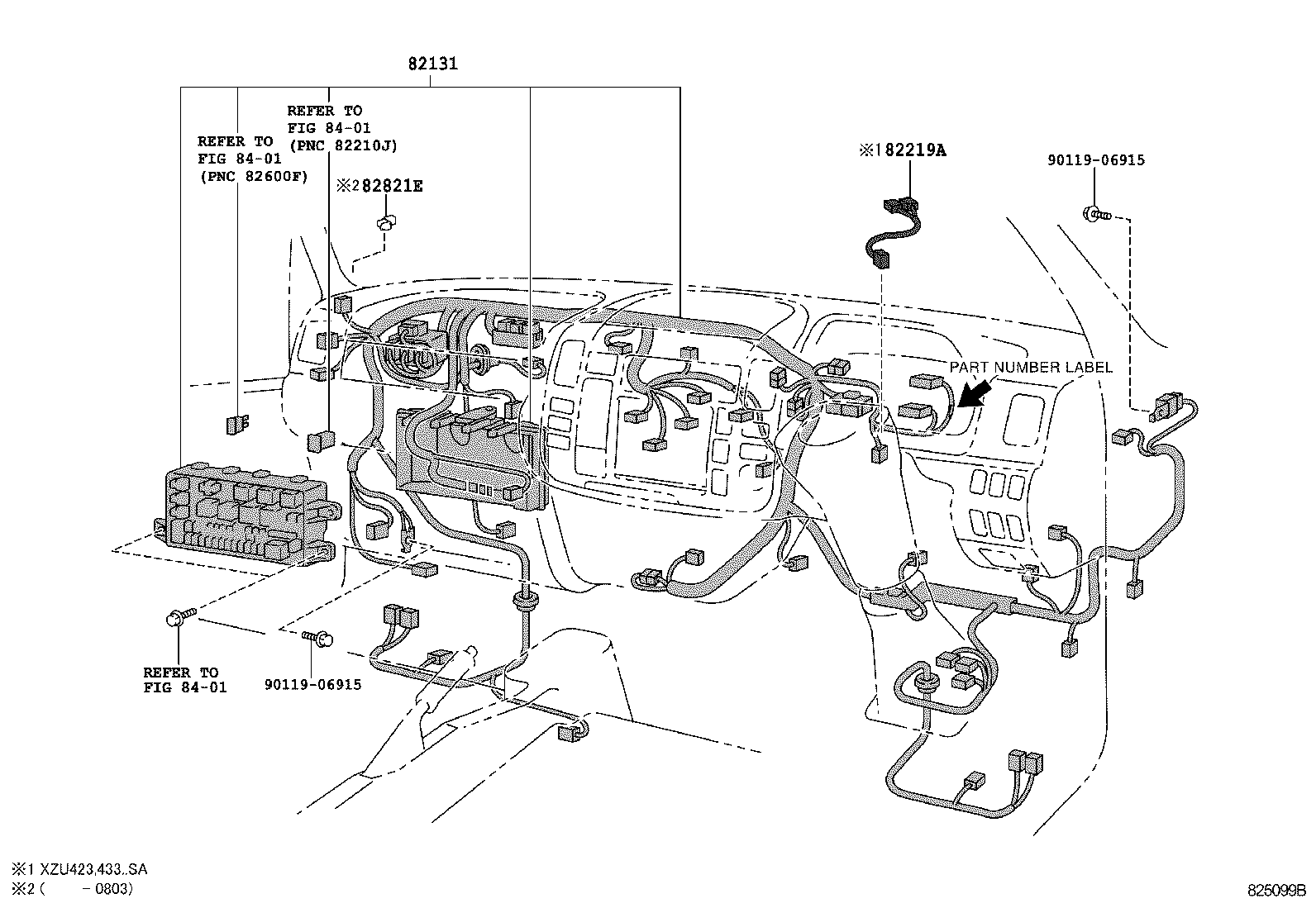

COWL

diagram 82131 82219A 82821E 8401 8401 8401 9011906915 9011906915
Part # Description Qty Price
82131 - WIRE, COWL
82147-37850

WU410..RHD..GEN;XZU412..RHD..TD

 1
82147-37851

WU410..RHD..GEN;XZU412..RHD..TD

 1
82135-37J70

WU410..RHD..GEN

PART NUMBER LABEL=82135-37J70

 1
82135-37J71

WU410..RHD..GEN

PART NUMBER LABEL=82135-37J71

 1
82135-37J72

WU410..RHD..GEN

PART NUMBER LABEL=82135-37J72

 1
82821E - COVER, CONNECTOR
82821-37080

WU410..RHD..GEN

 1
Common parts
90119-06915
Linked diagrams
8401

ILLUST NO. 4 OF 6(0610- )XZU423,433 ; (0610- )WU41#,422,XZU413,415,417,419,425,427,429,435,439

Click highlighted areas on diagram

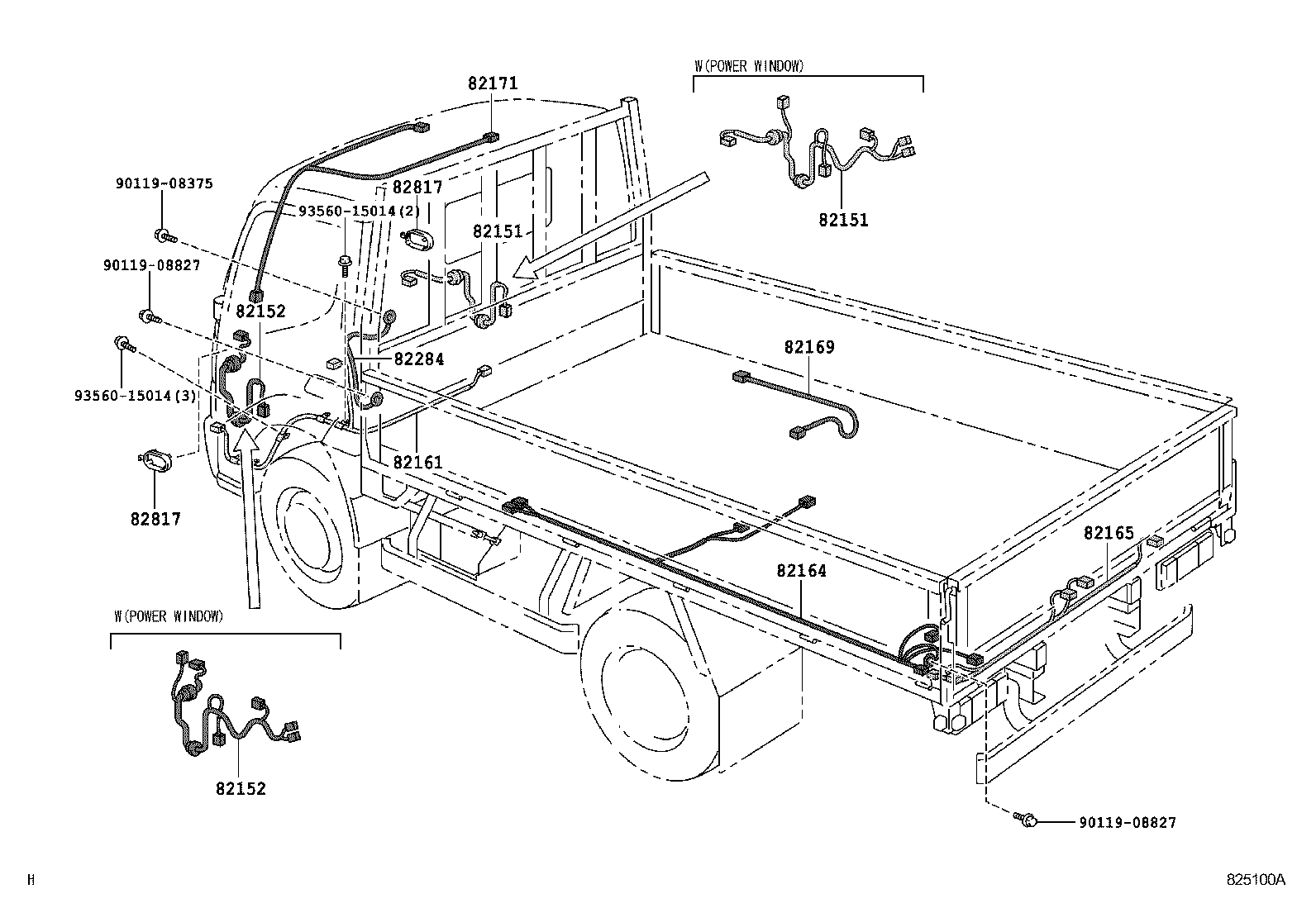

BODY

diagram 82151 82151 82152 82152 82161 82164 82165 82169 82171 82284 82817 82817 9011908375 9011908827 9011908827 9356015014 9356015014
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-37320

WU410,XZU412,422..RHD..GEN

 1
82151-37550

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
82151 - WIRE, FRONT DOOR, RH
82151-37320

WU410,XZU412,422..RHD..GEN

 1
82151-37550

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
82152 - WIRE, FRONT DOOR, LH
82152-37390

WU410,XZU412,422..RHD..GEN

 1
82152-37600

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
82152 - WIRE, FRONT DOOR, LH
82152-37390

WU410,XZU412,422..RHD..GEN

 1
82152-37600

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
82161 - WIRE, FLOOR
82161-37750

WU420;WU410..RHD..65T;WU410..75T..GEN

 1
82161-37260

WU410,XZU412,422..RHD..GEN

 1
82164 - WIRE, FRAME
82137-37560

XZU414..55T..ARL;XZU414..LHD..GEN;BU410,WU410,XZU412..GCC,GEN,TAIW

 1
82164-37M80

WU41#,XZU413,417..GCC,GEN,TAIW

 1
82165 - WIRE, FRAME, NO.2
82165-37420

WU410,XZU412,422..CBU

 1
82165-37171

WU410,XZU412,422..CBU

 1
82165-37420

WU41#,422..CBU

 1
82169 - WIRE FRAME, NO.3
82169-37090

WU410,XZU412,414..5F..(GCC,GEN)

 1
82169-37090

WU412;WU410..65T;WU410..75T..GEN

 1
82171 - WIRE, ROOF, NO.1
82171-37520

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
82284 - WIRE, EARTH
82284-37080

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
82817-37110

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
82817-37110

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
Common parts
90119-08375
90119-08827
93560-15014

ILLUST NO. 5 OF 6(0610- )DCRTJ,DCRTK,DSL,TD

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271126070 827113H350 8271237210 8271537760 8271537B00 8271537B60 8271537B70 8271537B80 8271537J30 8271537J50 8271537M10 8271537M70 8271537P90 8271537Q00 8271537Q20 827153V160 827153V290 827153V300 827153V340 827153V590 827153V650 8271637310 8272837180 8272837200 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 91651B0820 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802
Part # Description Qty Price
Common parts
82711-26070
82711-3H350
82712-37210
82715-37760
82715-37B00
82715-37B60
82715-37B70
82715-37B80
82715-37J30
82715-37J50
82715-37M10
82715-37M70
82715-37P90
82715-37Q00
82715-37Q20
82715-3V160
82715-3V290
82715-3V300
82715-3V340
82715-3V590
82715-3V650
82716-37310
82728-37180
82728-37200
91651-60816
91651-B0820
91651-B0825
94130-00802

ILLUST NO. 1 OF 6(0610- )XZU423,433 ; (0610- )WU41#,422,XZU413,415,417,419,425,427,429,435,439

Click highlighted areas on diagram

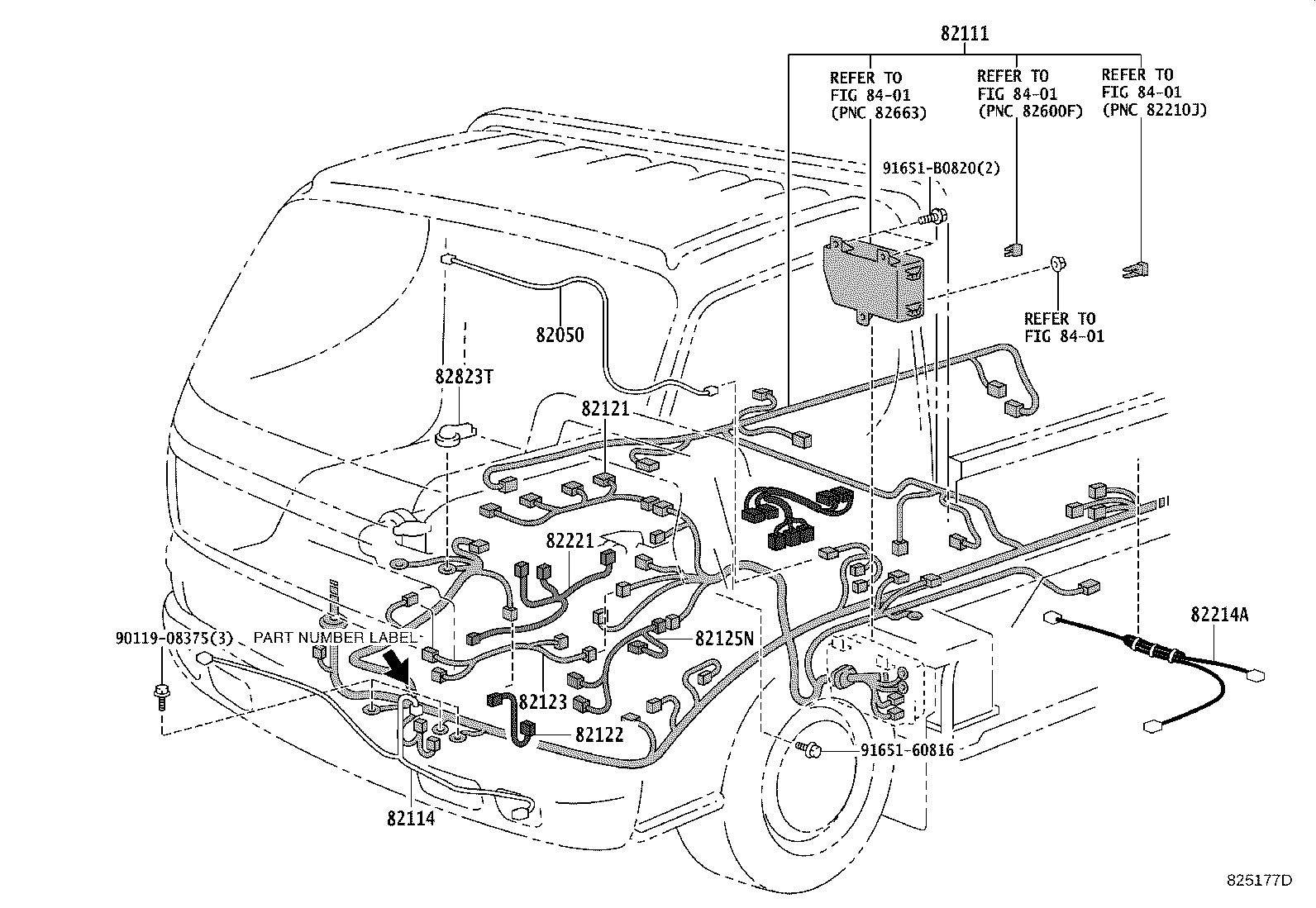

ENGINE ROOM

diagram 82050 82111 82114 82121 82122 82123 82125N 82214A 82221 82823T 8401 8401 8401 8401 9011908375 9165160816 91651B0820
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82115-3V660

WU410..RHD..GEN

 1
82111-3VW91

WU410..RHD..GEN

PART NUMBER LABEL=82111-3VW91

 1
82111-3VW90

WU410..RHD..GEN

PART NUMBER LABEL=82111-3VW90

 1
82111-3VW92

WU410..RHD..GEN

PART NUMBER LABEL=82111-3VW92

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37030

WU410,XZU404,412,414,422,424..5F..(GCC,GEN)

 1
82114-37030

XZU413,423..5F;WU41#,422..GCC,GEN

W(FOG LAMP)

 1
82121 - WIRE, ENGINE
82139-37150

WU410..GCC,GEN

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90119-08375
91651-60816
91651-B0820
Linked diagrams
8401

ILLUST NO. 5 OF 6(0610- )DCRTJ,DCRTK,DSL,TD

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8270237340 8271137050 8271537750 8271537D50 8271537P40 8271537P50 8271537P60 8271537P73 8271537P80 8271537T70 8272937340 9003105123 9003105123 9003105123 9003105123 9003105123 9003105123 9003105123 9003105124 9046312011 91651B0825 9167180816
Part # Description Qty Price
Common parts
82702-37340
82711-37050
82715-37750
82715-37D50
82715-37P40
82715-37P50
82715-37P60
82715-37P73
82715-37P80
82715-37T70
82729-37340
90031-05123
90031-05124
90463-12011
91651-B0825
91671-80816
