WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )RHD

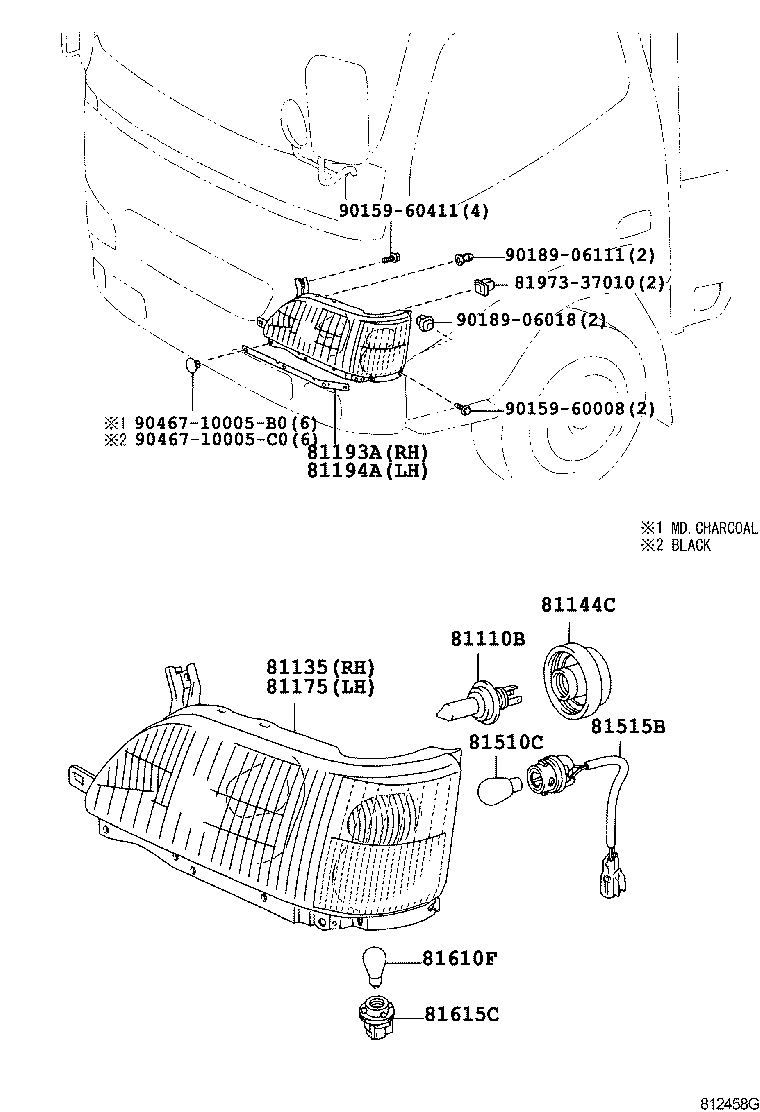

Click highlighted areas on diagram

diagram 81110B 81135 81144C 81175 81193A 81194A 81510C 81515B 81610F 81615C 8197337010 9015960008 9015960411 9018906018 9018906111 9046710005B0 9046710005C0
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17019

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

24V 75/70W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-37210

WU410,XZU412,422..RHD..GEN

 1
81130-37211

WU410,XZU412,422..RHD..GEN

 1
81130-37211

WU410..RHD..GEN

 1
81144C - COVER, HEADLAMP SOCKET
90075-65002

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 2
90075-65002

WU410,XZU412,422..RHD..GEN

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-37210

WU410,XZU412,422..RHD..GEN

 1
81170-37211

WU410,XZU412,422..RHD..GEN

 1
81170-37211

WU410..RHD..GEN

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-37060

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
81193-37040

WU410,420,XZU404,41#,42#,43#..RHD

 1
81193-37060

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
81194A - PROTECTOR, HEADLAMP, LH
81193-37060

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
81193-37040

WU410,420,XZU404,41#,42#,43#..RHD

 1
81193-37060

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16014

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

24V 21W

 2
90981-16014

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

24V 21W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81138-37200

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 2
81138-37351

WU410..RHD

 2
81138-37200

WU410,XZU412,422..RHD..GEN

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-16015

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

24V 21/5W

 2
90981-16015

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

24V 21/5W

 2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-99106

WU410,XZU412,422..RHD..GEN

 2
90075-99106

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 2
Common parts
81973-37010
90159-60008
90159-60411
90189-06018
90189-06111
90467-10005B0
90467-10005C0
