WU410R-TKMQS (2002)
Toyota Dyna

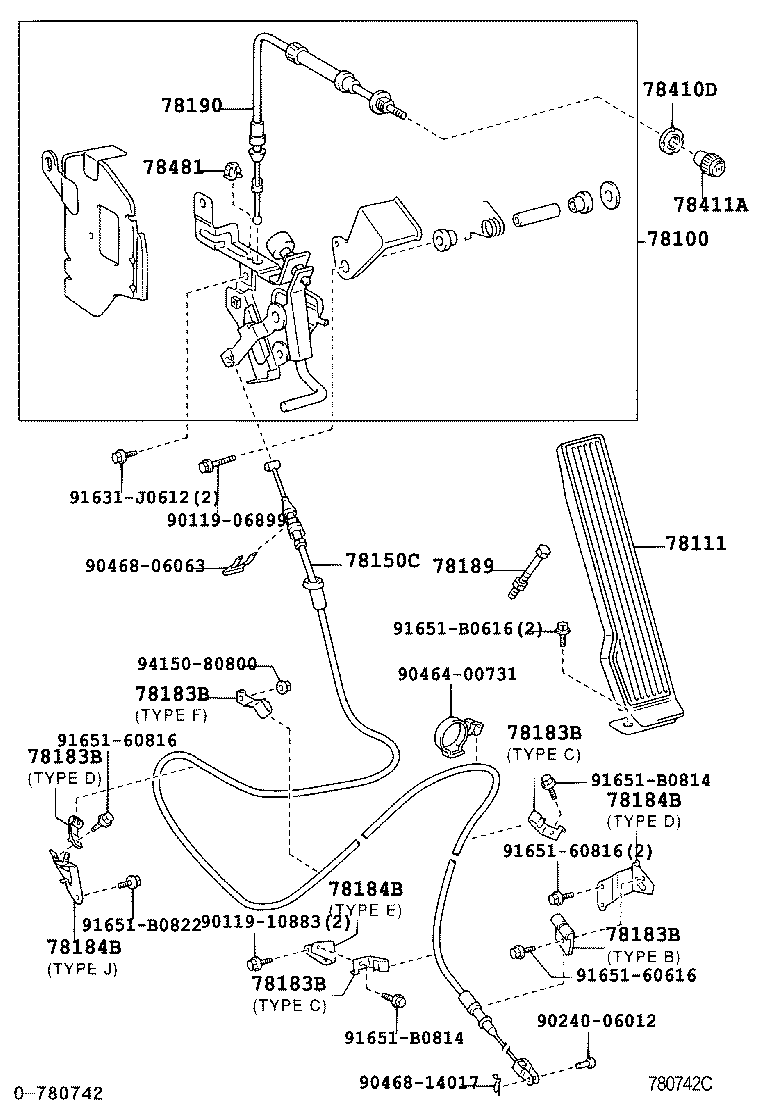

(0212-0610)WU410..RHD..GEN ; (0304-0801)WU410,420..SA ; (0801- )WU410..75T..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37740 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 78100-37740 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37660 |
WU410,420..RHD |
1 | ||
| 78150-37661 |
WU410..RHD..GEN |
1 | ||
| 78150-37721 |
WU410..RHD |
1 | ||
| 78150-37720 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE D:REFER ILLUST. |
1 | ||
| 78183-37310 |
WU410,XZU412,422..RHD..GEN..DSL TYPE F:REFER ILLUST. |
1 | ||
| 78183-37260 |
WU410..RHD..GEN TYPE C:REFER ILLUST. |
2 | ||
| 78183-37330 |
WU410..GCC,GEN;XZU412,422..5F..TD;XZU412,422..RHD..DSL TYPE B:REFER ILLUST. |
1 | ||
| 78184-37461 |
WU410..RHD |
1 | ||
| 78183-37260 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE D:REFER ILLUST. |
1 | ||
| 78183-37310 |
WU410,XZU412,422..RHD..GEN..DSL TYPE F:REFER ILLUST. |
1 | ||
| 78183-37260 |
WU410..RHD..GEN TYPE C:REFER ILLUST. |
2 | ||
| 78183-37330 |
WU410..GCC,GEN;XZU412,422..5F..TD;XZU412,422..RHD..DSL TYPE B:REFER ILLUST. |
1 | ||
| 78184-37461 |
WU410..RHD |
1 | ||
| 78183-37260 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE D:REFER ILLUST. |
1 | ||
| 78183-37310 |
WU410,XZU412,422..RHD..GEN..DSL TYPE F:REFER ILLUST. |
1 | ||
| 78183-37260 |
WU410..RHD..GEN TYPE C:REFER ILLUST. |
2 | ||
| 78183-37330 |
WU410..GCC,GEN;XZU412,422..5F..TD;XZU412,422..RHD..DSL TYPE B:REFER ILLUST. |
1 | ||
| 78184-37461 |
WU410..RHD |
1 | ||
| 78183-37260 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE D:REFER ILLUST. |
1 | ||
| 78183-37310 |
WU410,XZU412,422..RHD..GEN..DSL TYPE F:REFER ILLUST. |
1 | ||
| 78183-37260 |
WU410..RHD..GEN TYPE C:REFER ILLUST. |
2 | ||
| 78183-37330 |
WU410..GCC,GEN;XZU412,422..5F..TD;XZU412,422..RHD..DSL TYPE B:REFER ILLUST. |
1 | ||
| 78184-37461 |
WU410..RHD |
1 | ||
| 78183-37260 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE D:REFER ILLUST. |
1 | ||
| 78183-37310 |
WU410,XZU412,422..RHD..GEN..DSL TYPE F:REFER ILLUST. |
1 | ||
| 78183-37260 |
WU410..RHD..GEN TYPE C:REFER ILLUST. |
2 | ||
| 78183-37330 |
WU410..GCC,GEN;XZU412,422..5F..TD;XZU412,422..RHD..DSL TYPE B:REFER ILLUST. |
1 | ||
| 78184-37461 |
WU410..RHD |
1 | ||
| 78183-37260 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37190 |
WU410..RHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 78184-37160 |
WU410..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 78184-37330 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE J:REFER ILLUST. |
1 | ||
| 78184-37160 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37190 |
WU410..RHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 78184-37160 |
WU410..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 78184-37330 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE J:REFER ILLUST. |
1 | ||
| 78184-37160 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37190 |
WU410..RHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 78184-37160 |
WU410..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 78184-37330 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE J:REFER ILLUST. |
1 | ||
| 78184-37160 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37060 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 78208-37060 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE | ||||
| 78190-37010 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 78190-37010 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 78314-95010 |
WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-95J01 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 78411-95J01 |
WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 78481 - CLAMP, THROTTLE WIRE | ||||
| 78481-37010 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 78481-37010 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| Common parts | ||||
| 90119-06899 | ||||
| 90119-10883 | ||||
| 90240-06012 | ||||
| 90464-00731 | ||||
| 90468-06063 | ||||
| 90468-14017 | ||||
| 91631-J0612 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-B0616 | ||||
| 91651-B0814 | ||||
| 91651-B0822 | ||||
| 94150-80800 | ||||

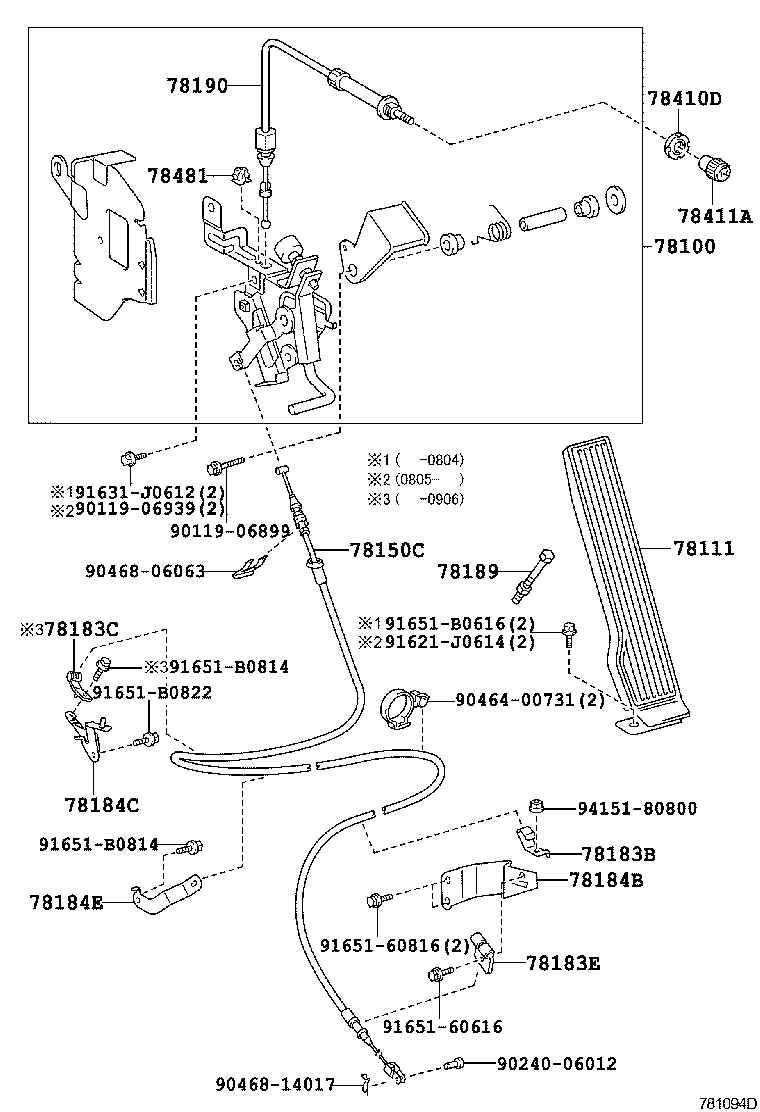

(0610- )RHD..GEN ; (0801- )WU420 ; (0801-)WU410..65T..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37740 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 78100-37740 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37660 |
WU410,420..RHD |
1 | ||
| 78150-37661 |
WU410..RHD..GEN |
1 | ||
| 78150-37721 |
WU410..RHD |
1 | ||
| 78150-37720 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE D:REFER ILLUST. |
1 | ||
| 78183-37310 |
WU410,XZU412,422..RHD..GEN..DSL TYPE F:REFER ILLUST. |
1 | ||
| 78183-37260 |
WU410..RHD..GEN TYPE C:REFER ILLUST. |
2 | ||
| 78183-37330 |
WU410..GCC,GEN;XZU412,422..5F..TD;XZU412,422..RHD..DSL TYPE B:REFER ILLUST. |
1 | ||
| 78184-37461 |
WU410..RHD |
1 | ||
| 78183-37260 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78183C - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37300 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78183E - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37330 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37190 |
WU410..RHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 78184-37160 |
WU410..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 78184-37330 |
WU410..RHD..GEN;XZU412..RHD..TD TYPE J:REFER ILLUST. |
1 | ||
| 78184-37160 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 78184C - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37282 |
WU410..RHD |
1 | ||
| 78184-37281 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78184-37280 |
WU410..RHD..GEN |
1 | ||
| 78184E - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37430 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78184-37431 |
WU410..RHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37060 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 78208-37060 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE | ||||
| 78190-37010 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 78190-37010 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 78314-95010 |
WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-95J01 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 78411-95J01 |
WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 78481 - CLAMP, THROTTLE WIRE | ||||
| 78481-37010 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 78481-37010 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| Common parts | ||||
| 90119-06899 | ||||
| 90119-06939 | ||||
| 90240-06012 | ||||
| 90464-00731 | ||||
| 90468-06063 | ||||
| 90468-14017 | ||||
| 91621-J0614 | ||||
| 91631-J0612 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-B0616 | ||||
| 91651-B0814 | ||||
| 91651-B0822 | ||||
| 94151-80800 | ||||
