Toyota Dyna WU410 TOOL BOX & LICENSE PLATE BRACKET

Manufacturers Home
Toyota
EU
DYNA
WU410R-TKMQS (2002)
7554 - TOOL BOX & LICENSE PLATE BRACKET

WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

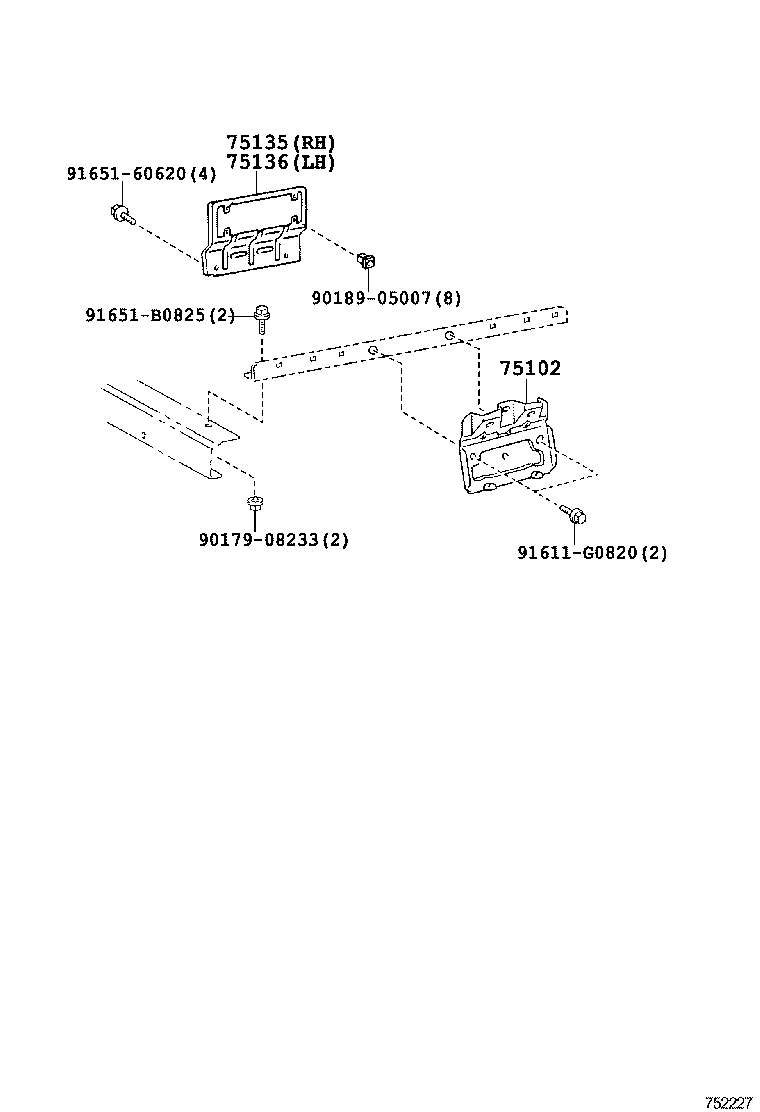

ILLUST NO. 3 OF 3(0212- )XZU413,415,423,425,435..LHD..6F..DCRTK ; (0610- )BU410,420,WU41#,42#,

Click highlighted areas on diagram

LICENSE PLATE BRACKET

Part #	Description	Period	Qty
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 10/2006	1
75102-37030	WU41#..5F..CBU	10/2006 - 06/2011	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
Common parts
90179-08233
90189-05007
91611-G0820
91651-60620
91651-B0825

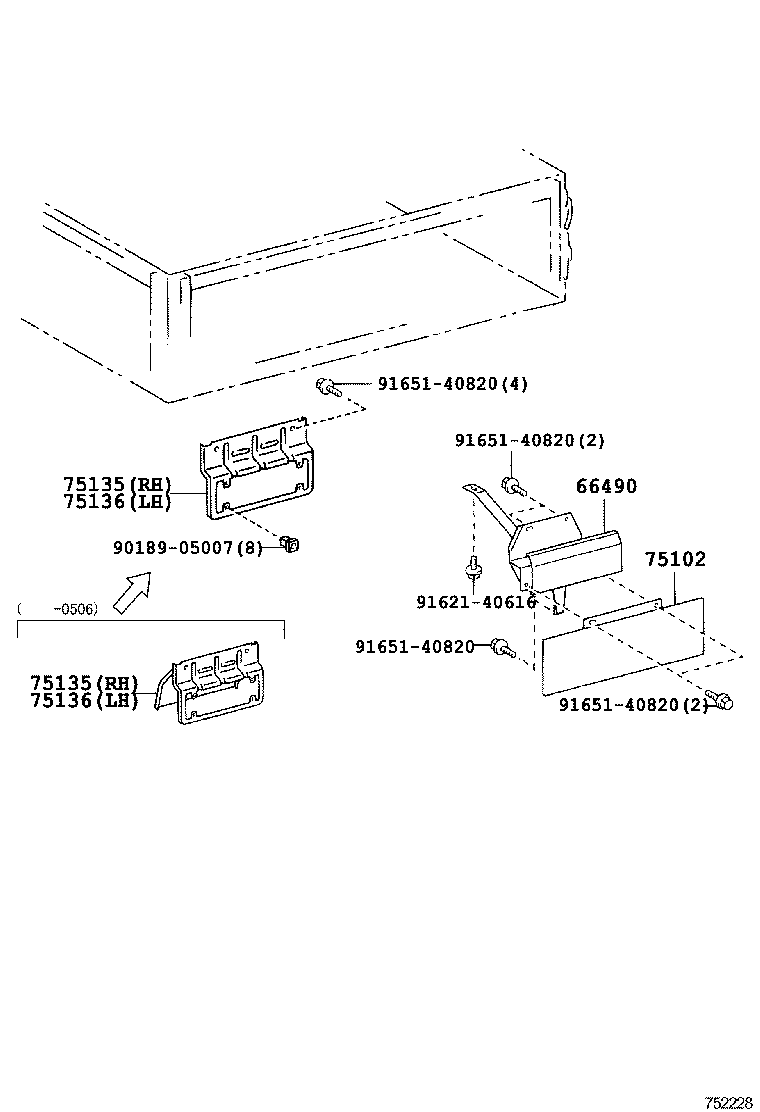

ILLUST NO. 3 OF 3(0212- )WU41#,XZU412..55T,65T,75T..CBU

Click highlighted areas on diagram

LICENSE PLATE BRACKET

Part #	Description	Period	Qty
66490 - HANGER ASSY, LICENSE PLATE BRACKET
66490-37040	WU41#..5F..CBU	10/2006 - 06/2011	1
66490-37040	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 10/2006	1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 10/2006	1
75102-37030	WU41#..5F..CBU	10/2006 - 06/2011	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
Common parts
90189-05007
91621-40616
91651-40820

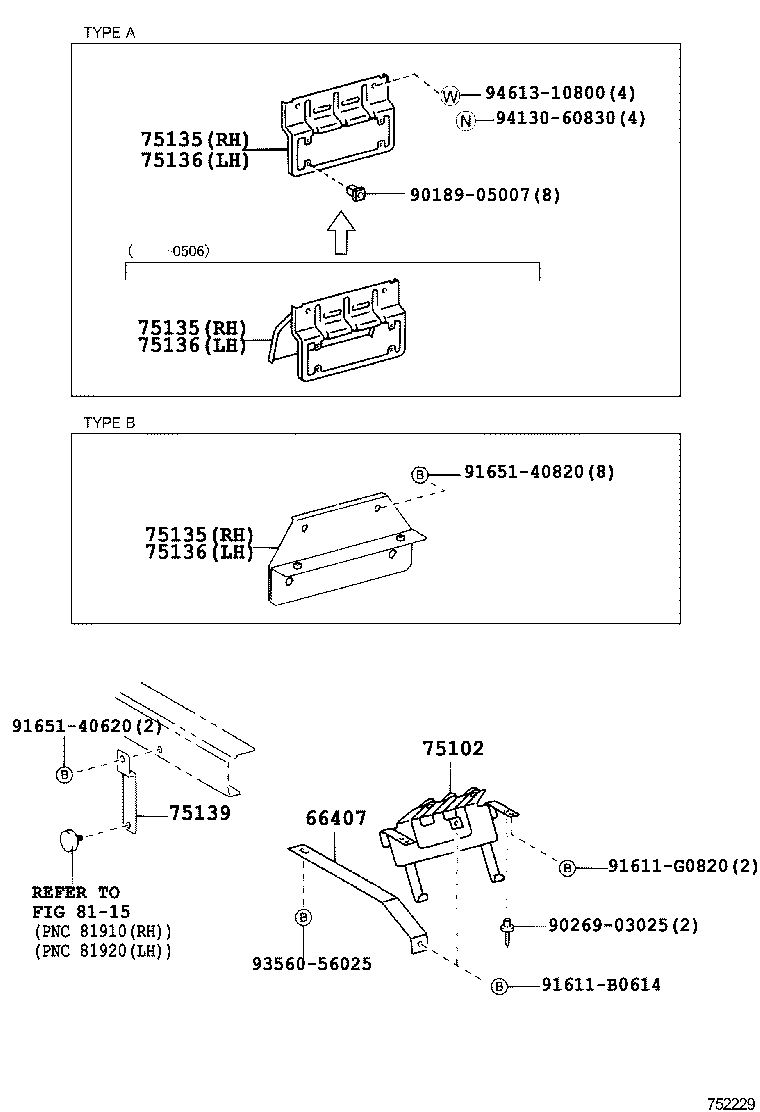

ILLUST NO. 3 OF 3(0212-0610)XZU422..CBU ; (0212-0610)XZU412..85T..CBU ; (0610- )WU422..CBU ; (061

Click highlighted areas on diagram

LICENSE PLATE BRACKET

Part #	Description	Period	Qty
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 10/2006	1
75102-37030	WU41#..5F..CBU	10/2006 - 06/2011	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37030	WU410,XZU412..(55T,65T,75T)..CBU	12/2002 - 06/2005	1
75105-37070	WU410,XZU412..(55T,65T,75T)..CBU	09/2006 - 10/2006	1
58378-37020	WU410,XZU412..(55T,65T,75T)..CBU	06/2005 - 08/2006	1
Common parts
90189-05007
90269-03025
91611-B0614
91611-G0820
91651-40620
91651-40820
93560-56025
94130-60830
94613-10800
Linked diagrams
8115

WU410R-TKMQS (2002)

ILLUST NO. 3 OF 3(0212- )XZU413,415,423,425,435..LHD..6F..DCRTK ; (0610- )BU410,420,WU41#,42#,

ILLUST NO. 3 OF 3(0212- )WU41#,XZU412..55T,65T,75T..CBU

ILLUST NO. 3 OF 3(0212-0610)XZU422..CBU ; (0212-0610)XZU412..85T..CBU ; (0610- )WU422..CBU ; (061
