WU410R-TKMQS (2002)
7151 - SEAT & SEAT TRACK

WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0212-0610)RHD..GEN ; (0212- )WU410,420,XZU404,414,420,424,430,434..ARL,SA

Click highlighted areas on diagram

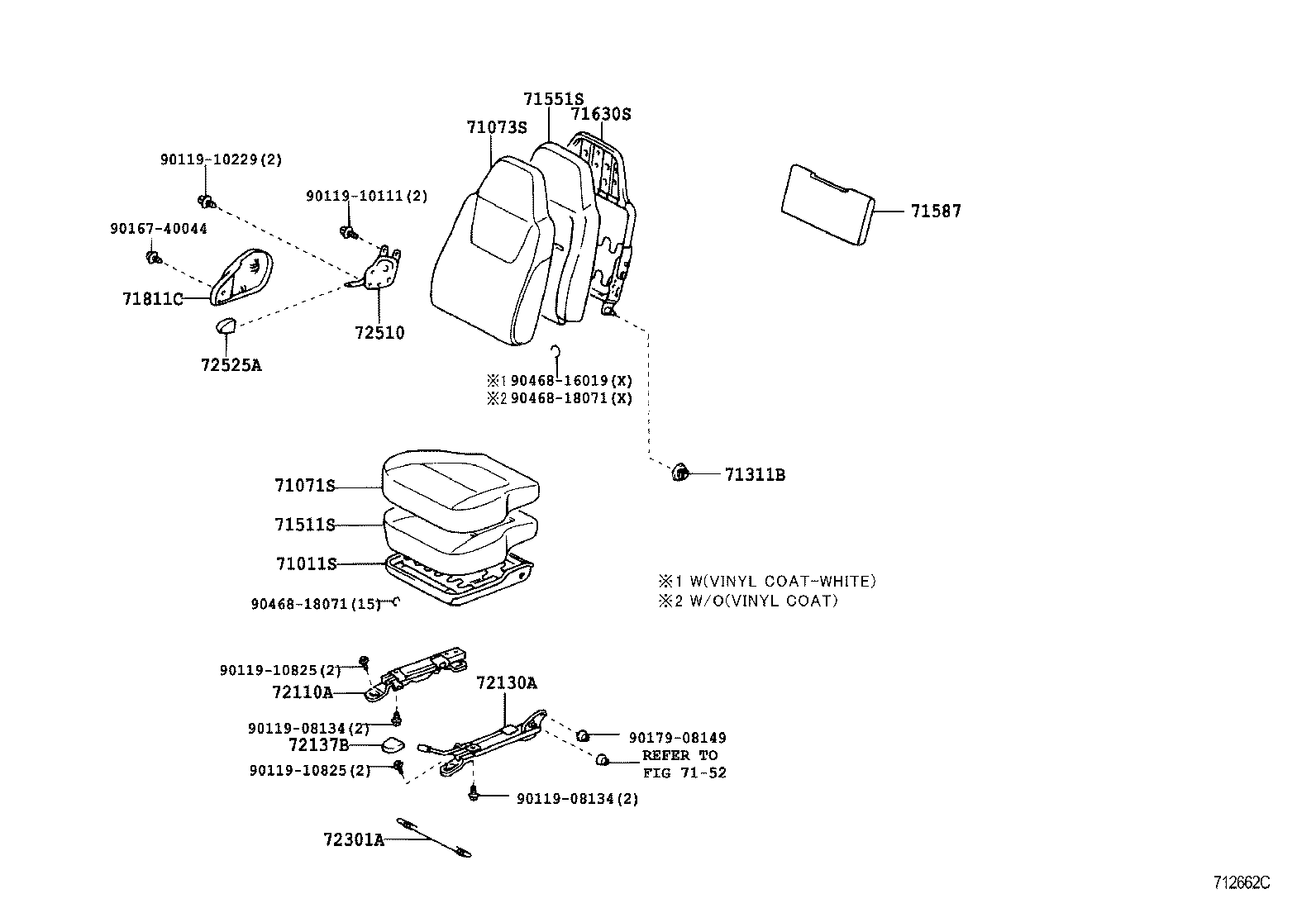

DRIVER SEAT

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71610-37010	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN	12/2002 - 10/2006	1
71610-37050	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37620B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) SEAT = TYPE A-*104,MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71071-37590B0	XZU404,414,424..ARL;WU410,420,XZU412,420,422,43#..RHD SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	12/2002 - 06/2004	1
71071-37600B1	WU410,XZU412,422..RHD..GEN SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2002 - 10/2006	1
71071-37760B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MD. CHARCOAL,TRIM1#	10/2006 - 06/2011	1
71071-37770B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MEDIUM CHARCOAL,TRIM1#	10/2006 - 06/2011	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-37150B0	XZU404,414,424..ARL;WU410,420,XZU412,420,422,43#..RHD SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	12/2002 - 06/2004	1
71027-37160B0	WU410,XZU412,422..RHD..GEN SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2002 - 10/2006	1
71027-37070B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MD. CHARCOAL,TRIM1#	10/2006 - 06/2011	1
71073-37870B0	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71027-37080B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MEDIUM CHARCOAL,TRIM1#	10/2006 - 06/2011	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37080	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN	12/2002 - 10/2006	1
71511-37130	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37150	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN	12/2002 - 10/2006	1
71551-37210	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-37060	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN	12/2002 - 10/2006	1
71630-37110	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37010B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1#	10/2001 - 10/2006	1
71811-37020B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
71811-37021B0	WU410..RHD MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37020	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
72110-37020	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37020	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
72130-37020	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
72137B - COVER, SEAT TRACK, RH
72137-37010B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) DK.CHARCOAL,TRIM1#	10/2001 - 10/2006	1
72137-37010B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA DK.CHARCOAL,TRIM1#	10/2006 - 06/2011	1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-37020	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37010B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1#	10/2001 - 10/2006	1
72525-37020B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MD.CHARCOAL,TRIM1#	10/2006 - 06/2011	1
Common parts
90119-08134
90119-10111
90119-10229
90119-10825
90167-40044
90179-08149
90468-16019
90468-18071
Linked diagrams
7152

(0610- )WU410,420,XZU423,433..RHD

Click highlighted areas on diagram

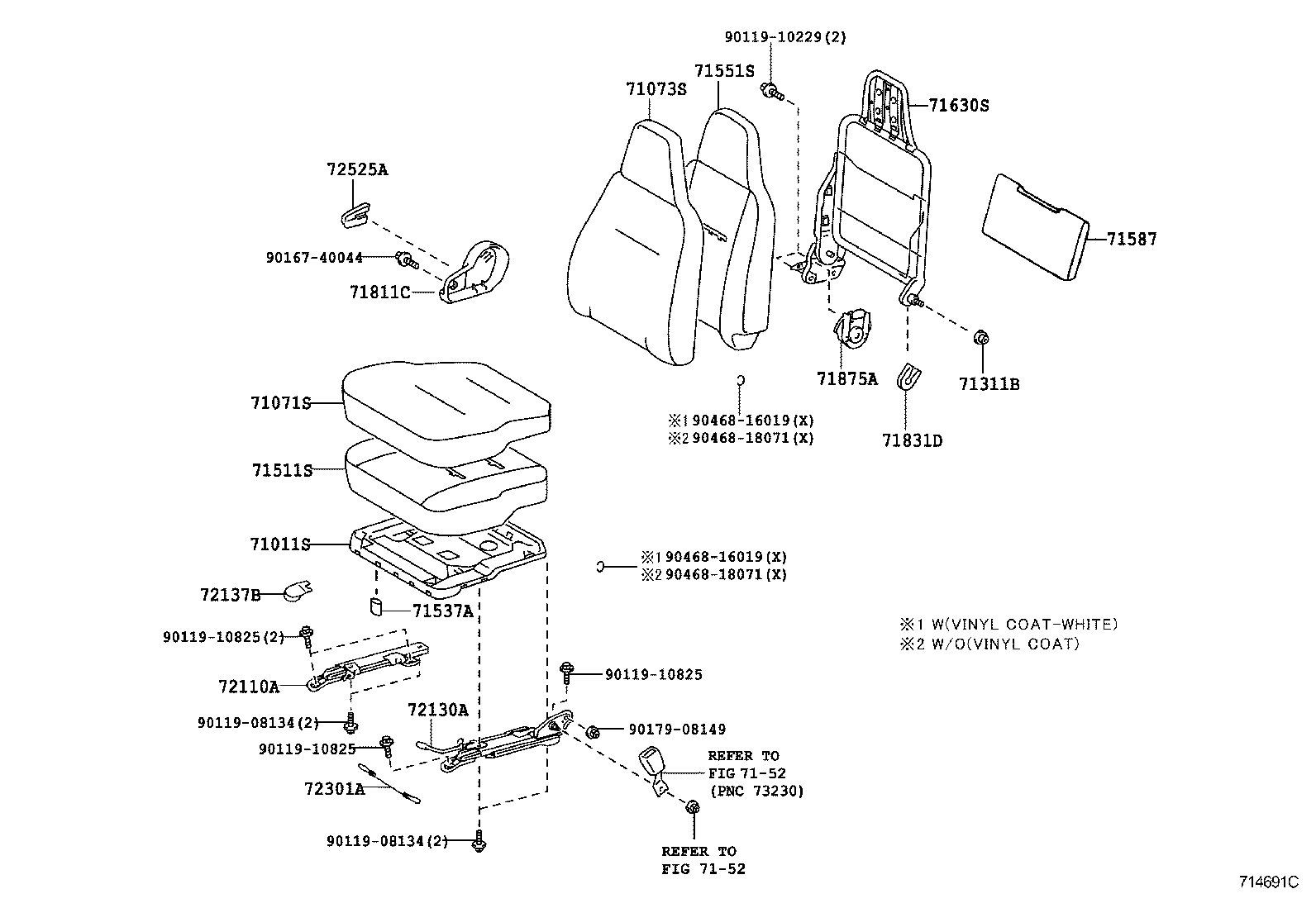

DRIVER SEAT

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71610-37010	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN	12/2002 - 10/2006	1
71610-37050	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37620B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) SEAT = TYPE A-*104,MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71071-37590B0	XZU404,414,424..ARL;WU410,420,XZU412,420,422,43#..RHD SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	12/2002 - 06/2004	1
71071-37600B1	WU410,XZU412,422..RHD..GEN SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2002 - 10/2006	1
71071-37760B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MD. CHARCOAL,TRIM1#	10/2006 - 06/2011	1
71071-37770B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MEDIUM CHARCOAL,TRIM1#	10/2006 - 06/2011	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-37150B0	XZU404,414,424..ARL;WU410,420,XZU412,420,422,43#..RHD SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	12/2002 - 06/2004	1
71027-37160B0	WU410,XZU412,422..RHD..GEN SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	12/2002 - 10/2006	1
71027-37070B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MD. CHARCOAL,TRIM1#	10/2006 - 06/2011	1
71073-37870B0	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71027-37080B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MEDIUM CHARCOAL,TRIM1#	10/2006 - 06/2011	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37080	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN	12/2002 - 10/2006	1
71511-37130	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010	WU410..65T;XZU423..SA;WU412,42#,XZU417,427,433;WU410,XZU413,423..5F..(55T,75T)..GEN	10/2006 - 06/2011	2
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37150	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN	12/2002 - 10/2006	1
71551-37210	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-37060	XZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN	12/2002 - 10/2006	1
71630-37110	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37010B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1#	10/2001 - 10/2006	1
71811-37020B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
71811-37021B0	WU410..RHD MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
71831D - COVER, FRONT SEAT HINGE, RH
71832-37010	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-37010	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37020	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
72110-37020	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37020	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
72130-37020	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA	10/2006 - 06/2011	1
72137B - COVER, SEAT TRACK, RH
72137-37010B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) DK.CHARCOAL,TRIM1#	10/2001 - 10/2006	1
72137-37010B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA DK.CHARCOAL,TRIM1#	10/2006 - 06/2011	1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37010B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1#	10/2001 - 10/2006	1
72525-37020B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA MD.CHARCOAL,TRIM1#	10/2006 - 06/2011	1
Common parts
90119-08134
90119-10229
90119-10825
90167-40044
90179-08149
90468-16019
90468-18071
Linked diagrams
7152

WU410R-TKMQS (2002)

(0212-0610)RHD..GEN ; (0212- )WU410,420,XZU404,414,420,424,430,434..ARL,SA

(0610- )WU410,420,XZU423,433..RHD
