WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

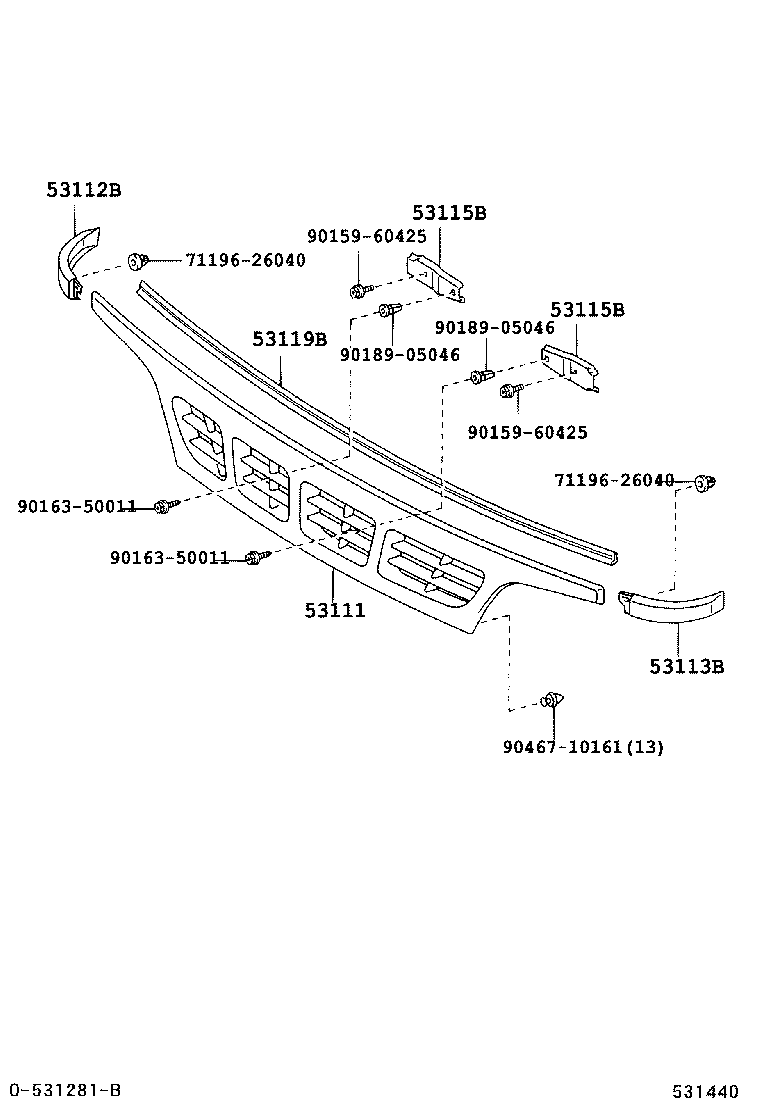

(0212-0610)XZU414,424,434..ARL,GEN ; (0212-0610)WU410,XZU404,412,422..5F..ARL,GCC,G

Click highlighted areas on diagram

diagram 53111 53112B 53113B 53115B 53115B 53119B 7119626040 7119626040 9015960425 9015960425 9016350011 9016350011 9018905046 9018905046 9046710161
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-37470

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

UNPAINTED

 1
53111-37470

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

UNPAINTED

 1
53112B - GRILLE, RADIATOR SIDE, RH
53112-37080

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

UNPAINTED

 1
53112-37080

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

UNPAINTED

 1
53113B - GRILLE, RADIATOR SIDE, LH
53113-37080

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

UNPAINTED

 1
53113-37080

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

UNPAINTED

 1
53115B - BRACKET, RADIATOR GRILLE
53115-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
53115-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
53115B - BRACKET, RADIATOR GRILLE
53115-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
53115-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
53119B - PROTECTOR, RADIATOR GRILLE
53119-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53119-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53119-37110C0

WU41#,422,XZU413,423..GCC,GEN

BLACK,058 ,199 ,766 ,8P0

 1
53119-37110C0

WU41#,422,XZU413,423..GCC,GEN

BLACK,058 ,199 ,766 ,8P0

 1
Common parts
71196-26040
90159-60425
90163-50011
90189-05046
90467-10161

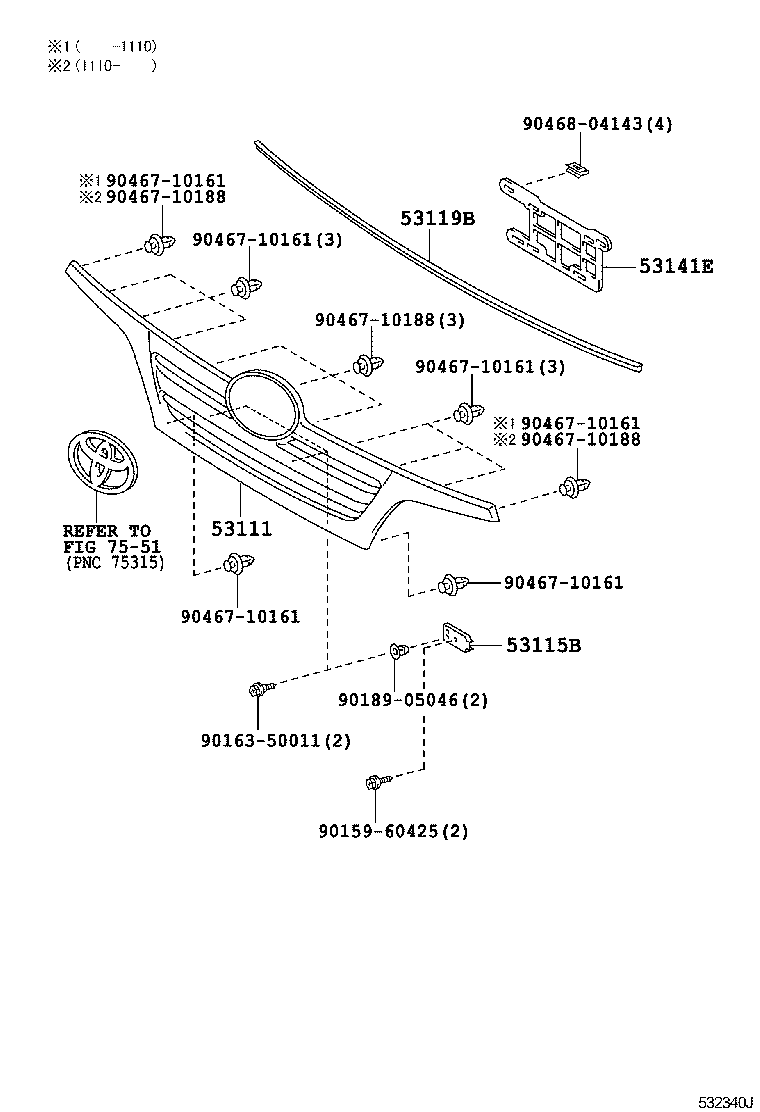

(0610- )XZU423,433 ; (0610- )WU41#,422,XZU413,415,417,419,425,427,429,435,439

Click highlighted areas on diagram

diagram 53111 53115B 53119B 53141E 7551 9015960425 9016350011 9018905046 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710188 9046710188 9046710188 9046804143
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-37470

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

UNPAINTED

 1
53115B - BRACKET, RADIATOR GRILLE
53115-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
53119B - PROTECTOR, RADIATOR GRILLE
53119-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53119-37110C0

WU41#,422,XZU413,423..GCC,GEN

BLACK,058 ,199 ,766 ,8P0

 1
Common parts
90159-60425
90163-50011
90189-05046
90467-10161
90467-10188
90468-04143
Linked diagrams
7551
