WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0212- )WU41#,XZU412..55T,65T,75T..CBU

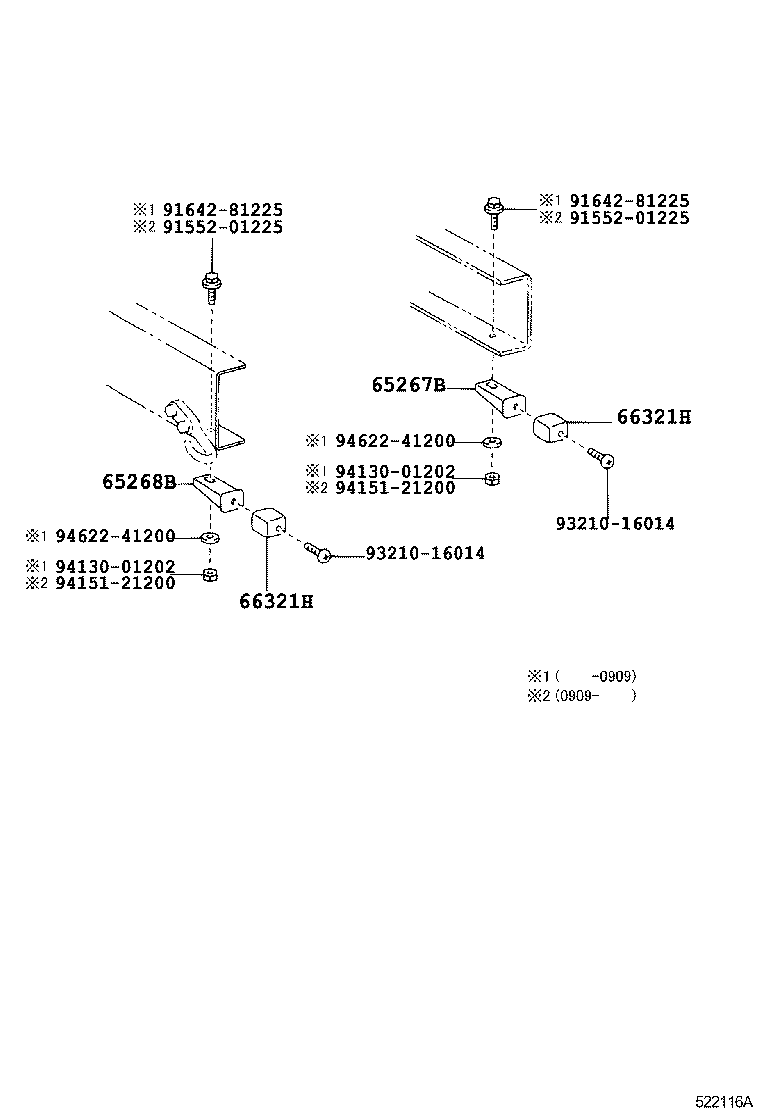

Click highlighted areas on diagram

diagram 65267B 65268B 66321H 66321H 9155201225 9155201225 9164281225 9164281225 9321016014 9321016014 9413001202 9413001202 9415121200 9415121200 9462241200 9462241200
Part # Description Qty Price
65267B - BRACKET SUB-ASSY, TAIL GATE BUMPER STOP, RH
65079-37010

WU410,XZU412..(55T,65T,75T)..CBU

 1
65079-37010

WU41#..5F..CBU

 1
65268B - BRACKET SUB-ASSY, TAIL GATE BUMPER STOP, LH
65079-37010

WU410,XZU412..(55T,65T,75T)..CBU

 1
65079-37010

WU41#..5F..CBU

 1
66321H - BUMPER, GATE RUBBER
66321-92805

WU410,XZU412..(55T,65T,75T)..CBU

 2
66321-92805

WU41#..5F..CBU

 2
66321H - BUMPER, GATE RUBBER
66321-92805

WU410,XZU412..(55T,65T,75T)..CBU

 2
66321-92805

WU41#..5F..CBU

 2
Common parts
91552-01225
91642-81225
93210-16014
94130-01202
94151-21200
94622-41200
