WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

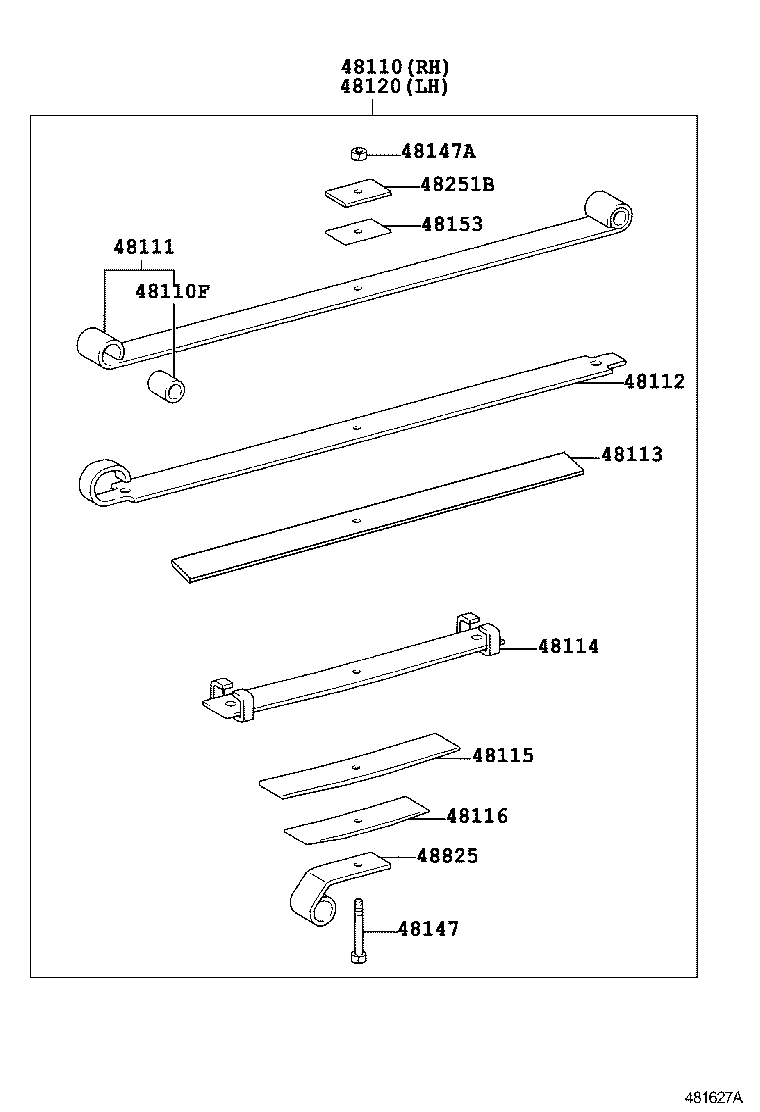

ILLUST NO. 2 OF 2(0110-0801)XZU414,424..RHD..75T..GEN ; (0110-0801)BU410,420,WU410,420,XZU412..65T ;

Click highlighted areas on diagram

5-LEAF 48110-3V620,3V630

diagram 48110 48110F 48111 48112 48113 48114 48115 48120 48147 48147A 48153 48251B 48253C 48253C 48253C 48253E 48253E
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48153 - SPACER, FRONT LEAF SPRING, NO.1
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48251B - SPACER(FOR FRONT SPRING)
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48253C - SPACER, FRONT LEAF SPRING, NO.2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6
48253C - SPACER, FRONT LEAF SPRING, NO.2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6
48253C - SPACER, FRONT LEAF SPRING, NO.2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6
48253E - SPACER, FRONT SPRING, NO.3
48117-37730

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 4
48117-37730

WU410,XZU412..65T..(GCC,GEN)

 4
48253E - SPACER, FRONT SPRING, NO.3
48117-37730

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 4
48117-37730

WU410,XZU412..65T..(GCC,GEN)

 4

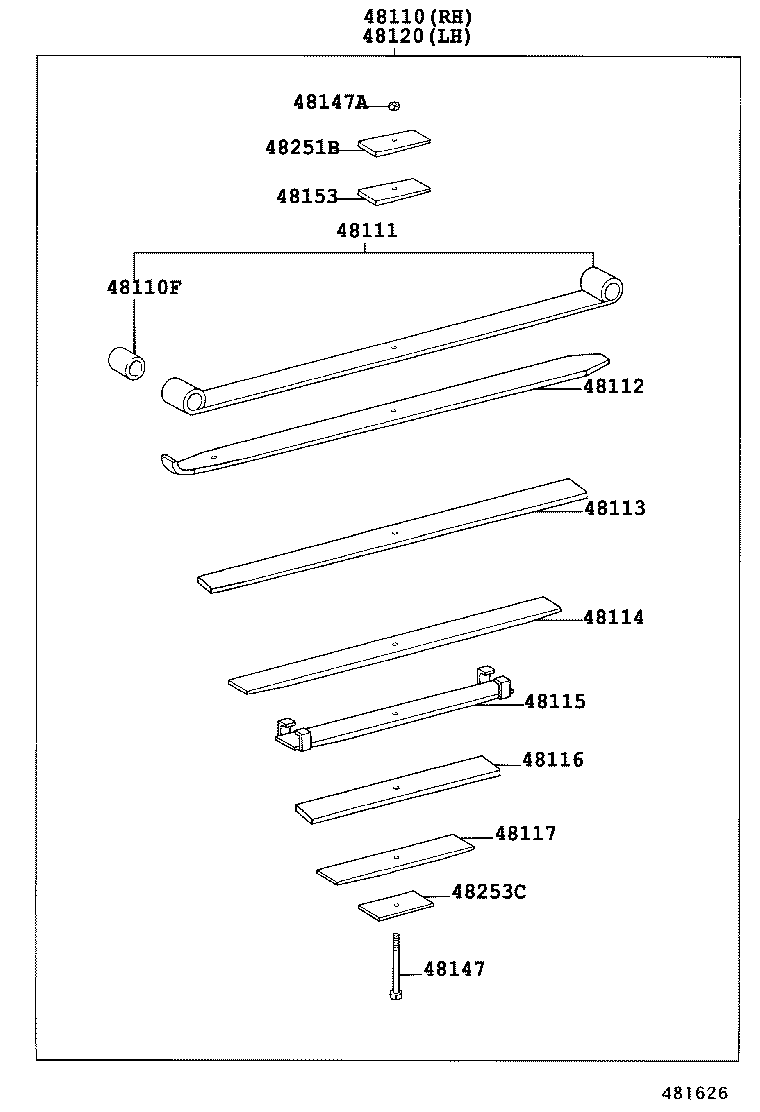

ILLUST NO. 2 OF 2(0212-0610)5F..55T,65T,75T..GCC,GEN ; (0304-)WU420,XZU420 ; (0304- )XZU412,4

Click highlighted areas on diagram

6-LEAF 48110-3V640,3V760

diagram 48110 48110F 48111 48112 48113 48114 48115 48116 48120 48147 48147A 48153 48251B 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116 - LEAF, FRONT SPRING, NO.6
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48153 - SPACER, FRONT LEAF SPRING, NO.1
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48251B - SPACER(FOR FRONT SPRING)
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48253C - SPACER, FRONT LEAF SPRING, NO.2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6

ILLUST NO. 2 OF 2(0610- )WU420,XZU423..75T ; (0610- )WU41#,422,XZU413..55T,65T,75T..GCC,GEN

Click highlighted areas on diagram

6-LEAF 48110-3V640,3V760

diagram 48110 48110F 48111 48112 48113 48114 48115 48116 48120 48147 48147A 48153 48251B 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116 - LEAF, FRONT SPRING, NO.6
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48153 - SPACER, FRONT LEAF SPRING, NO.1
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48251B - SPACER(FOR FRONT SPRING)
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48253C - SPACER, FRONT LEAF SPRING, NO.2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6

ILLUST NO. 2 OF 2(0110-0701)WU410..LHD..GEN..CBU ; (0110-0701)XZU412,422..5F..75T,85T ; (0110-0701)B

Click highlighted areas on diagram

7-LEAF 48110-3V660

diagram 48110 48110F 48111 48112 48113 48114 48115 48116 48117 48120 48147 48147A 48153 48251B 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116 - LEAF, FRONT SPRING, NO.6
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48153 - SPACER, FRONT LEAF SPRING, NO.1
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48251B - SPACER(FOR FRONT SPRING)
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48253C - SPACER, FRONT LEAF SPRING, NO.2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6

ILLUST NO. 2 OF 2(0304- )XZU412,422,430..6F ; (0610- )XZU433 ; (0610- )WU41#,422,XZU413,417

Click highlighted areas on diagram

7-LEAF 48110-3V660

diagram 48110 48110F 48111 48112 48113 48114 48115 48116 48117 48120 48147 48147A 48153 48251B 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116 - LEAF, FRONT SPRING, NO.6
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48153 - SPACER, FRONT LEAF SPRING, NO.1
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48251B - SPACER(FOR FRONT SPRING)
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48253C - SPACER, FRONT LEAF SPRING, NO.2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37780

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-3V620

WU410,XZU412..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 6
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-37780

WU41#..65T..(GCC,GEN)

HEAVY DUTY SUSPENSION

 2
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6
48116-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 6

ILLUST NO. 2 OF 2(0212-0610)XZU414,424..LHD..55T,75T..GEN ; (0212-0610)WU410,XZU412,422..5F..55T,65T

Click highlighted areas on diagram

7-LEAF,W(STABILIZER)48110-3V700,800

diagram 48110 48110F 48111 48112 48113 48114 48115 48116 48120 48147 48147A 48153 48251B 48825
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116 - LEAF, FRONT SPRING, NO.6
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48153 - SPACER, FRONT LEAF SPRING, NO.1
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48251B - SPACER(FOR FRONT SPRING)
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48825 - BRACKET, STABILIZER, NO.2
48825-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48825-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2

ILLUST NO. 2 OF 2(0304- )WU410,420,XZU420..75T..SA ; (0610-)WU420,XZU423..75T ; (0610- )WU

Click highlighted areas on diagram

7-LEAF,W(STABILIZER)48110-3V700,800

diagram 48110 48110F 48111 48112 48113 48114 48115 48116 48120 48147 48147A 48153 48251B 48825
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48116 - LEAF, FRONT SPRING, NO.6
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V640

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48116-3V650

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

PASSENGER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48153 - SPACER, FRONT LEAF SPRING, NO.1
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48251B - SPACER(FOR FRONT SPRING)
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48825 - BRACKET, STABILIZER, NO.2
48825-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48825-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2

ILLUST NO. 2 OF 2(0212-0801)WU410,420,XZU412..65T ; (0610- )65T..GEN,SA

Click highlighted areas on diagram

6-LEAF,W(STABILIZER) 48110-3V680

diagram 48110 48110F 48111 48112 48113 48114 48115 48120 48147 48147A 48153 48251B 48253E 48253E 48825
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-3V700

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V620

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V640

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V680

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V700

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48110-3V680

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V640

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-3V430

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48101-3V420

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48101-3V430

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48101-3V420

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-3V640

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

DRIVER SIDE

 1
48112-3V650

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

PASSENGER SIDE

 1
48112-3V640

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48112-3V650

WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-3V620

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48102-3V630

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48113-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48113-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48113-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V630

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48113-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48102-3V620

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48102-3V640

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48102-3V640

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

DRIVER SIDE

 1
48115-3V650

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),PASSENGER SIDE

 1
48104-37U20

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),DRIVER SIDE

 1
48102-3V650

WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T

PASSENGER SIDE

 1
48115-3V640

WU41#,XZU413..(55T,65T)..GEN

W(STABILIZER),DRIVER SIDE

 1
48104-37T00

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

W(FRONT STABILIZER),PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

DRIVER SIDE

 1
48115-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48116-3V650

XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)

PASSENGER SIDE

 1
48115-3V650

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,PASSENGER SIDE

 1
48115-3V640

WU41#,422,XZU413,423..5F..(GCC,GEN)

HEAVY DUTY SUSPENSION,DRIVER SIDE

 1
48116-3V640

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

DRIVER SIDE

 1
48116-3V650

WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW)

PASSENGER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-3V630

WU410,XZU412..65T..(GCC,GEN)

5-LEAF

 1
48110-3V710

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF,W(STABILIZER)

 1
48110-3V690

WU410,XZU412..65T..(GCC,GEN)

5-LEAF,W(STABILIZER)

 1
48110-3V650

XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN)

6-LEAF

 1
48110-3V650

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF

 1
48110-3V630

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

5-LEAF

 1
48110-3V690

WU41#,420..65T..(GEN,SA)

5-LEAF,W(STABILIZER)

 1
48110-3V710

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

6-LEAF,W(STABILIZER)

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-3V660

WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T

L=100

 2
48147-3V620

BU410,420,WU410,420,XZU412..65T

L=105

 2
48147-37870

WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN)

L=90

 2
48147-3V660

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T)

 2
48147-3V620

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

L=105

 2
48147-37870

WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN

L=90

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48155-3B470

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48155-3B470

XZU413,423..5F;WU41#,422..GCC,GEN

HEAVY DUTY SUSPENSION

 2
48284-0W060

WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN

PASSENGER SIDE

 1
48153 - SPACER, FRONT LEAF SPRING, NO.1
48152-37730

XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48152-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-37730

WU41#,422..GCC,GEN;XZU413,423..5F..75T

HEAVY DUTY SUSPENSION

 2
48152-37P20

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48251B - SPACER(FOR FRONT SPRING)
48116-37730

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 2
48116-37730

WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW)

 2
48116-37730

WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN

DRIVER SIDE

 1
48152-0W110

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

DRIVER SIDE

 1
48253E - SPACER, FRONT SPRING, NO.3
48117-37730

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 4
48117-37730

WU410,XZU412..65T..(GCC,GEN)

 4
48253E - SPACER, FRONT SPRING, NO.3
48117-37730

WU41#,420,XZU417,427..65T..(GEN,SA,TAIW)

 4
48117-37730

WU410,XZU412..65T..(GCC,GEN)

 4
48825 - BRACKET, STABILIZER, NO.2
48825-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2

ILLUST NO. 1 OF 2(0110-0801)WU410..65T ; (0110-0801)XZU412,422..5F ; (0110-0801)XZU414..6F..ARL ; (0

Click highlighted areas on diagram

diagram 48191 48304 48323 48323A 48323B 48323C 48442A 48442B 48443A 48475 48505A 48505A 48510 48510A 48510A 48510B 48510C 48510C 48510N 48514 48515 48520 48520C 48802F 48809 48811 48815 48815 48815 48815 48815 48817 48817 48817A 48817A 48817B 48817B 48819A 48824 48836 48837 9003101174 9003178086 9003178086 9003178086 9003201144 9003201146 9003204032 9003204032 9003204033 9003204034 9003215012 9010112074 9017816004 9017816004 9017910036 9020124003 9413001202 9413001402 9418360801 9418461001
Part # Description Qty Price
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48191-37070

WU410,420,XZU41#,42#,43#..65T,75T,85T

 2
48191-37070

WU410,420,XZU41#,42#,43#..65T,75T,85T

 2
48191-37070

WU410,420,XZU41#,42#,43#..65T,75T,85T

 2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-37080

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48304-37080

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48304-37080

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48323 - PIN, FRONT SPRING BRACKET, FRONT
48323-37020

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48323-37020

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48323-37020

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48323A - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, FRONT PIN)
90034-08004

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
90034-08004

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
90034-08004

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48323B - PIN, FRONT SPRING BRACKET, REAR
48323-37030

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48323-37030

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48323-37030

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48323C - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, REAR PIN)
90034-08006

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90034-08006

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90034-08006

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48442A - SHACKLE, FRONT SPRING, RH
48442-37040

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442-37040

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442-37040

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442B - SHACKLE, FRONT SPRING, LH
48442-37050

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442-37050

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442-37050

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48443A - PLATE, FORNT SPRING SHACKLE, OUTER
48443-37010

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48443-37010

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48443-37010

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48475 - PLATE, DISTANCE(FOR FRONT)
48475-37060

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
48475-37060

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
48475-37060

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
48475-37060

WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW

HEAVY DUTY SUSPENSION

 1
48475-37060

WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW

HEAVY DUTY SUSPENSION

 1
48475-37060

WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW

HEAVY DUTY SUSPENSION

 1
48505A - BOLT, U(FOR FRONT SPRING)
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
48505A - BOLT, U(FOR FRONT SPRING)
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
90948-02017

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
90948-02017

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48514-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48514-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48514-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48515-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48515-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48515-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48802F - LINK SUB-ASSY, FRONT STABILIZER
48802-37040

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48802-37040

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48802-37040

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48809 - BRACKET SUB-ASSY, STABILIZER
48809-37021

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48809-37021

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48809-37021

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48809-37020

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

 2
48809-37020

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

 2
48809-37020

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

 2
48811 - BAR, STABILIZER, FRONT
48811-37070

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48811-37070

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48811-37070

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48817 - CUSHION, FRONT STABILIZER
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817 - CUSHION, FRONT STABILIZER
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48819A - BOLT, FRONT STABILIZER
48819-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48819-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48819-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48824 - BRACKET, STABILIZER, FRONT
48824-37060

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48824-37060

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48824-37060

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48836 - BRACKET, FRONT STABILIZER END, RH
48836-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48836-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48836-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48837 - BRACKET, FRONT STABILIZER END, LH
48837-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48837-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48837-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
Common parts
90031-01174
90031-78086
90032-01144
90032-01146
90032-04032
90032-04033
90032-04034
90032-15012
90101-12074
90178-16004
90179-10036
90201-24003
94130-01202
94130-01402
94183-60801
94184-61001

ILLUST NO. 1 OF 2(0610- )WU410..65T ; (0610- )WU410..75T..GEN ; (0610- )WU412,42#,XZU413,41

Click highlighted areas on diagram

diagram 48191 48304 48323 48323A 48323B 48323C 48442A 48442B 48443A 48475 48505A 48505A 48510 48510A 48510A 48510B 48510C 48510C 48510N 48514 48515 48520 48520C 48802F 48809 48811 48815 48815 48815 48815 48815 48817 48817 48817A 48817A 48817B 48817B 48819A 48824 48836 48837 9003101174 9003178086 9003178086 9003178086 9003201144 9003201146 9003204032 9003204032 9003204033 9003204034 9003215012 9010112074 9017816004 9017816004 9017910036 9020124003 9413001202 9413001402 9418360801 9418461001
Part # Description Qty Price
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48191-37070

WU410,420,XZU41#,42#,43#..65T,75T,85T

 2
48191-37070

WU410,420,XZU41#,42#,43#..65T,75T,85T

 2
48191-37070

WU410,420,XZU41#,42#,43#..65T,75T,85T

 2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-37080

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48304-37080

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48304-37080

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 2
48323 - PIN, FRONT SPRING BRACKET, FRONT
48323-37020

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48323-37020

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48323-37020

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48323A - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, FRONT PIN)
90034-08004

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
90034-08004

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
90034-08004

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48323B - PIN, FRONT SPRING BRACKET, REAR
48323-37030

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48323-37030

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48323-37030

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48323C - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, REAR PIN)
90034-08006

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90034-08006

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90034-08006

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48442A - SHACKLE, FRONT SPRING, RH
48442-37040

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442-37040

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442-37040

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442B - SHACKLE, FRONT SPRING, LH
48442-37050

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442-37050

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48442-37050

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
48443A - PLATE, FORNT SPRING SHACKLE, OUTER
48443-37010

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48443-37010

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48443-37010

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 2
48475 - PLATE, DISTANCE(FOR FRONT)
48475-37060

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
48475-37060

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
48475-37060

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
48475-37060

WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW

HEAVY DUTY SUSPENSION

 1
48475-37060

WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW

HEAVY DUTY SUSPENSION

 1
48475-37060

WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW

HEAVY DUTY SUSPENSION

 1
48505A - BOLT, U(FOR FRONT SPRING)
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
48505A - BOLT, U(FOR FRONT SPRING)
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16065

XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN)

L=150

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16075

XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

L=170

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16082

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=140

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16075

WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T)

L=170

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
90117-16073

WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)

L=160

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-01031

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
90948-02017

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
90948-02017

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-03018

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48514-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48514-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48514-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48515-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48515-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48515-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80115

BU410,420,WU410,420,XZU404,41#,42#,43#

MARK 48511-37161

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-80095

XZU414,420,424,43#;WU410,420,XZU404,412,422..5F

MARK 48511-37160

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48511-89215

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK 48511-37260

 1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90385-19011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48802F - LINK SUB-ASSY, FRONT STABILIZER
48802-37040

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48802-37040

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48802-37040

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48809 - BRACKET SUB-ASSY, STABILIZER
48809-37021

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48809-37021

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48809-37021

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48809-37020

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

 2
48809-37020

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

 2
48809-37020

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

 2
48811 - BAR, STABILIZER, FRONT
48811-37070

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48811-37070

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48811-37070

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.2

 2
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48815-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

NO.1

 4
48817 - CUSHION, FRONT STABILIZER
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817 - CUSHION, FRONT STABILIZER
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817-36011

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02015

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
90948-02167

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 4
48819A - BOLT, FRONT STABILIZER
48819-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48819-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48819-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48824 - BRACKET, STABILIZER, FRONT
48824-37060

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48824-37060

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48824-37060

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48836 - BRACKET, FRONT STABILIZER END, RH
48836-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48836-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48836-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48837 - BRACKET, FRONT STABILIZER END, LH
48837-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48837-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
48837-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
Common parts
90031-01174
90031-78086
90032-01144
90032-01146
90032-04032
90032-04033
90032-04034
90032-15012
90101-12074
90178-16004
90179-10036
90201-24003
94130-01202
94130-01402
94183-60801
94184-61001
