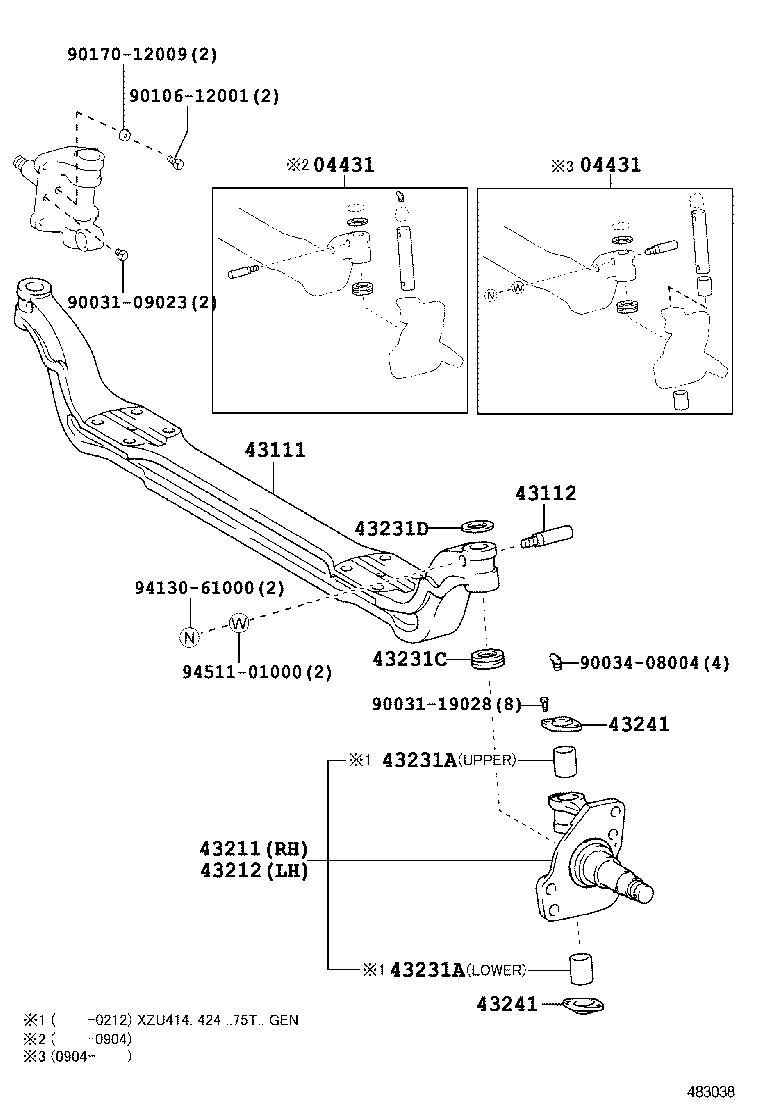

WU410R-TKMQS (2002)
Toyota Dyna
(0411- )BU410,420,XZU415,425,435..DCR,TD ; (0610- )WU410..75T..GEN ; (0610-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-37091 |
XZU414,424..6F;XZU424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,43#..65T,75T,85T |
1 | ||
| 04431-37091 |
XZU414,424..6F;XZU424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,43#..65T,75T,85T |
1 | ||
| 04431-37400 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 04431-37400 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-37091 |
XZU414,424..6F;XZU424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,43#..65T,75T,85T |
1 | ||
| 04431-37091 |
XZU414,424..6F;XZU424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,43#..65T,75T,85T |
1 | ||
| 04431-37400 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 04431-37400 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43111-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43111-37060 |
XZU424..LHD..GEN;XZU414,424..6F..ARL;WU410,420,XZU412,420,422,43#..(65T,75T,85T)..(ARL,GCC,GEN,SA) |
2 | ||
| 43111-37060 |
XZU424..LHD..GEN;XZU414,424..6F..ARL;WU410,420,XZU412,420,422,43#..(65T,75T,85T)..(ARL,GCC,GEN,SA) |
2 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-36030 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43112-36030 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-37060 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43201-37060 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43201-37061 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43201-37061 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43201-37061 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43201-37061 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-37060 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43202-37060 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43202-37061 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43202-37061 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43202-37061 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43202-37061 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-35001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 90367-35001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90032-09024 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.1 |
1 | ||
| 90032-09024 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.1 |
1 | ||
| 90032-09022 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=1.9 |
1 | ||
| 90032-09022 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=1.9 |
1 | ||
| 90032-09027 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.4 |
1 | ||
| 90032-09027 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.4 |
1 | ||
| 90032-09026 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.3 |
1 | ||
| 90032-09026 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.3 |
1 | ||
| 90032-09025 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.2 |
1 | ||
| 90032-09025 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.2 |
1 | ||
| 90032-09029 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.6 |
1 | ||
| 90032-09029 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.6 |
1 | ||
| 90032-09023 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.0 |
1 | ||
| 90032-09023 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.0 |
1 | ||
| 90032-09028 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.5 |
1 | ||
| 90032-09028 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.5 |
1 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 43241-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 43241-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| Common parts | ||||
| 90031-09023 | ||||
| 90031-19028 | ||||
| 90033-31020 | ||||
| 90034-08004 | ||||
| 90106-12001 | ||||
| 90170-12009 | ||||
| 94130-61000 | ||||
| 94511-01000 | ||||
(0110-0610)XZU412,422..5F..65T,75T,85T ; (0110-0610)WU410,XZU414,424,434..65T,75T,8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-37091 |
XZU414,424..6F;XZU424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,43#..65T,75T,85T |
1 | ||
| 04431-37091 |
XZU414,424..6F;XZU424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,43#..65T,75T,85T |
1 | ||
| 04431-37400 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 04431-37400 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-37091 |
XZU414,424..6F;XZU424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,43#..65T,75T,85T |
1 | ||
| 04431-37091 |
XZU414,424..6F;XZU424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,43#..65T,75T,85T |
1 | ||
| 04431-37400 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 04431-37400 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 04431-37400 |
WU410..RHD..GEN |
2 | ||
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43111-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43111-37060 |
XZU424..LHD..GEN;XZU414,424..6F..ARL;WU410,420,XZU412,420,422,43#..(65T,75T,85T)..(ARL,GCC,GEN,SA) |
2 | ||
| 43111-37060 |
XZU424..LHD..GEN;XZU414,424..6F..ARL;WU410,420,XZU412,420,422,43#..(65T,75T,85T)..(ARL,GCC,GEN,SA) |
2 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-36030 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43112-36030 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-37060 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43201-37060 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43201-37061 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43201-37061 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43201-37061 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43201-37061 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-37060 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43202-37060 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43202-37061 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43202-37061 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43202-37061 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43202-37061 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-35001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 90367-35001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90032-09024 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.1 |
1 | ||
| 90032-09024 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.1 |
1 | ||
| 90032-09022 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=1.9 |
1 | ||
| 90032-09022 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=1.9 |
1 | ||
| 90032-09027 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.4 |
1 | ||
| 90032-09027 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.4 |
1 | ||
| 90032-09026 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.3 |
1 | ||
| 90032-09026 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.3 |
1 | ||
| 90032-09025 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.2 |
1 | ||
| 90032-09025 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.2 |
1 | ||
| 90032-09029 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.6 |
1 | ||
| 90032-09029 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.6 |
1 | ||
| 90032-09023 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.0 |
1 | ||
| 90032-09023 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.0 |
1 | ||
| 90032-09028 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.5 |
1 | ||
| 90032-09028 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) T=2.5 |
1 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 43241-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 43241-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| Common parts | ||||
| 90031-09023 | ||||
| 90031-19028 | ||||
| 90034-08004 | ||||
| 90106-12001 | ||||
| 90170-12009 | ||||
| 94130-61000 | ||||
| 94511-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
