WU410R-TKMQS (2002)
Toyota Dyna

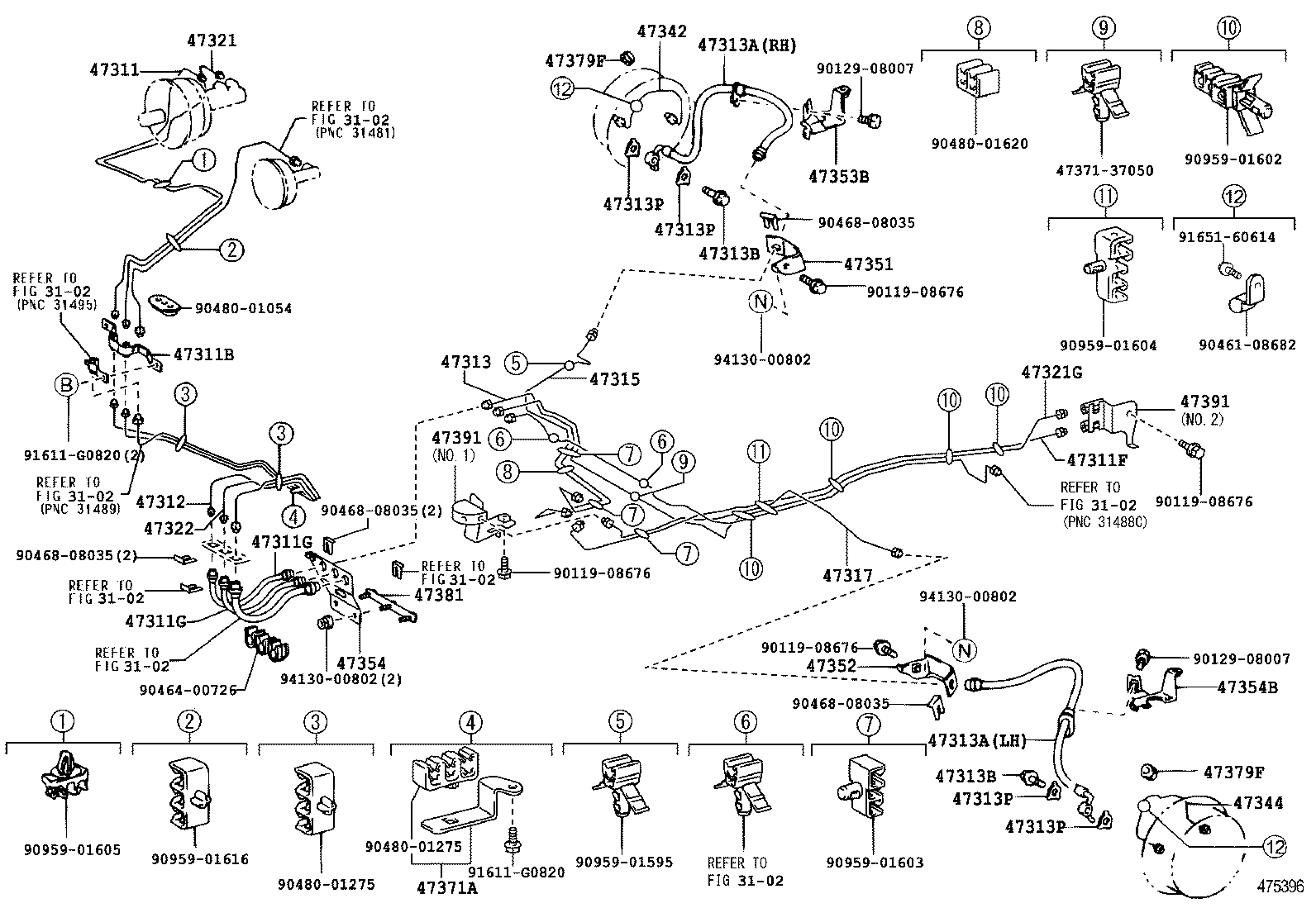

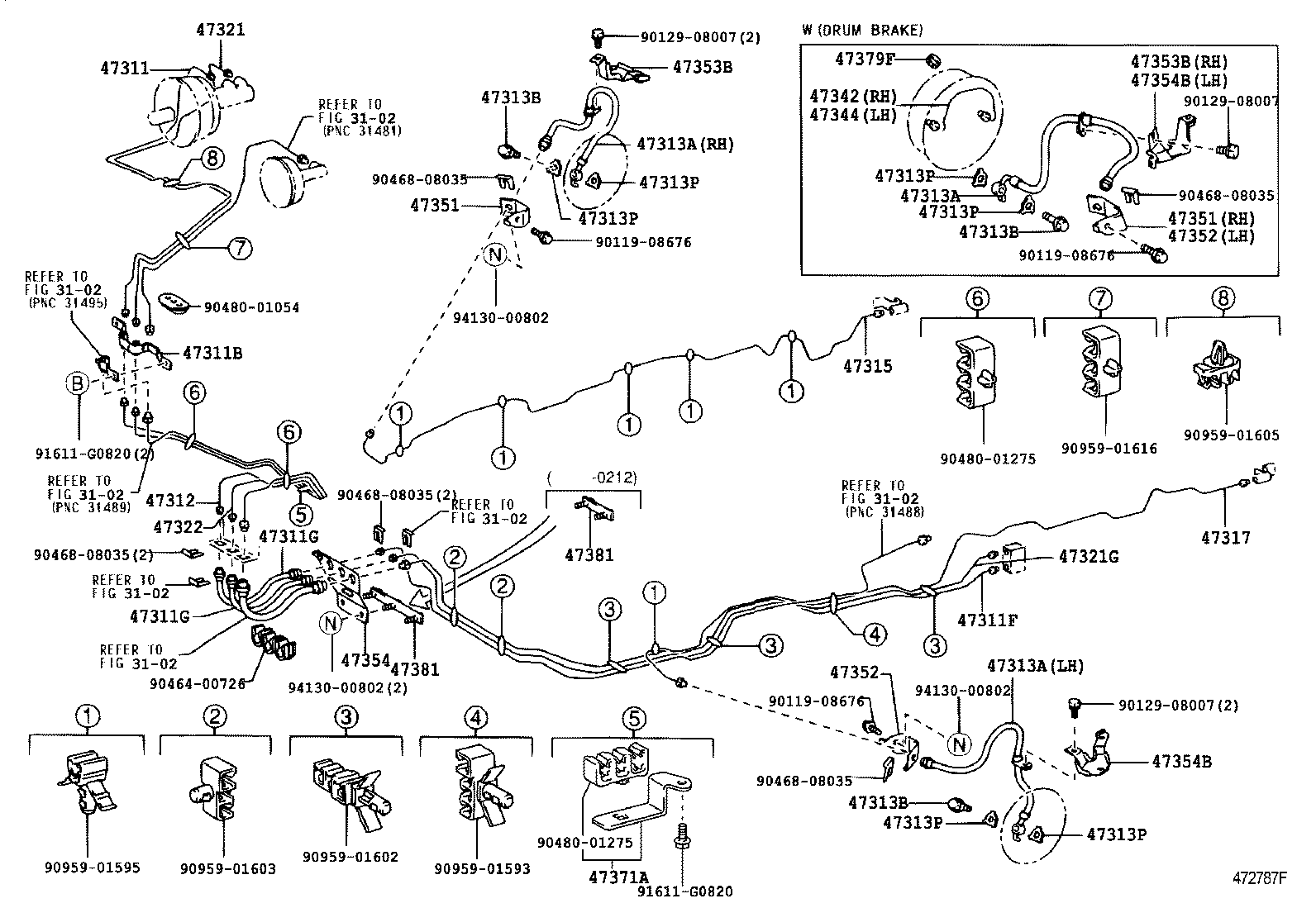

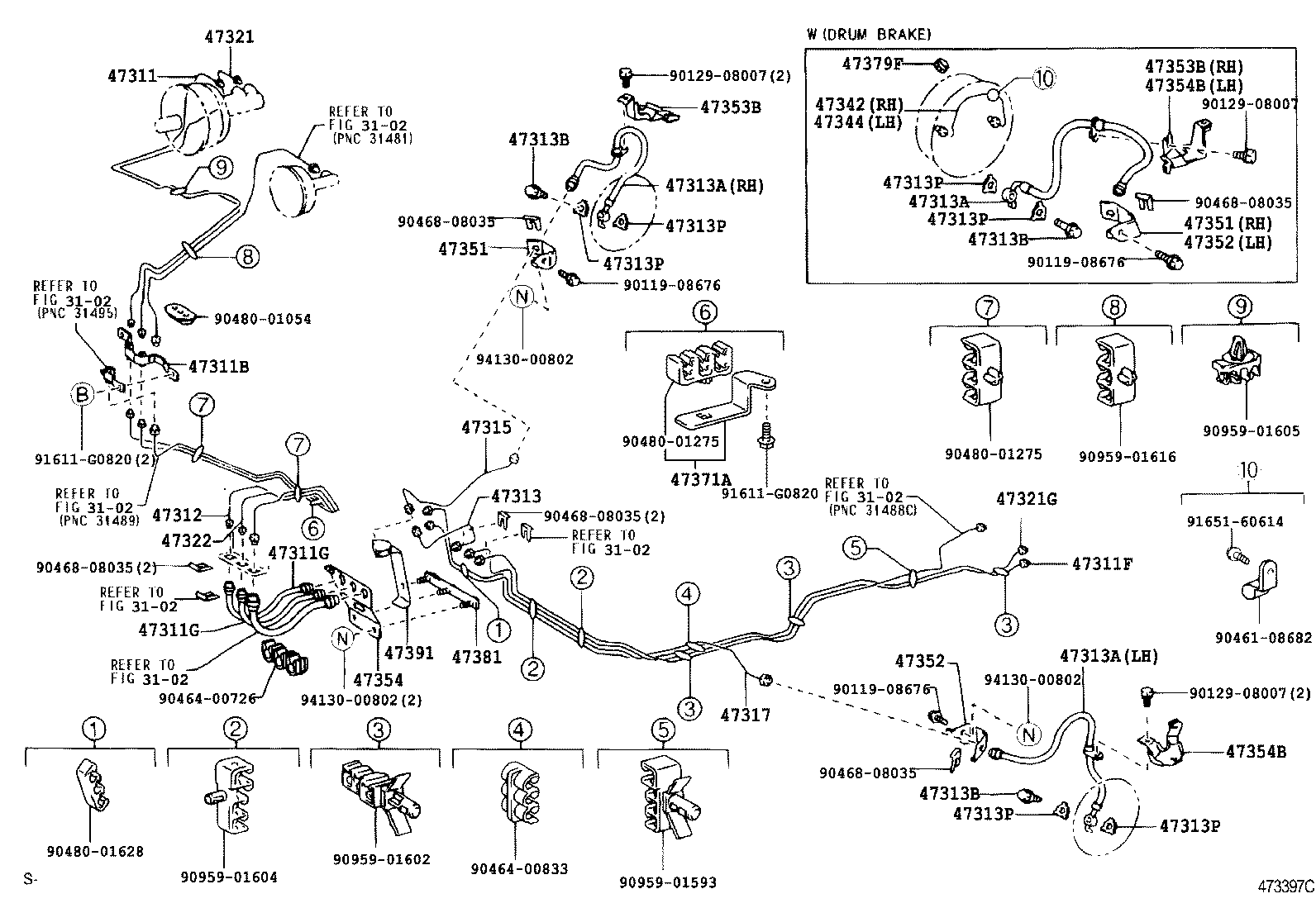

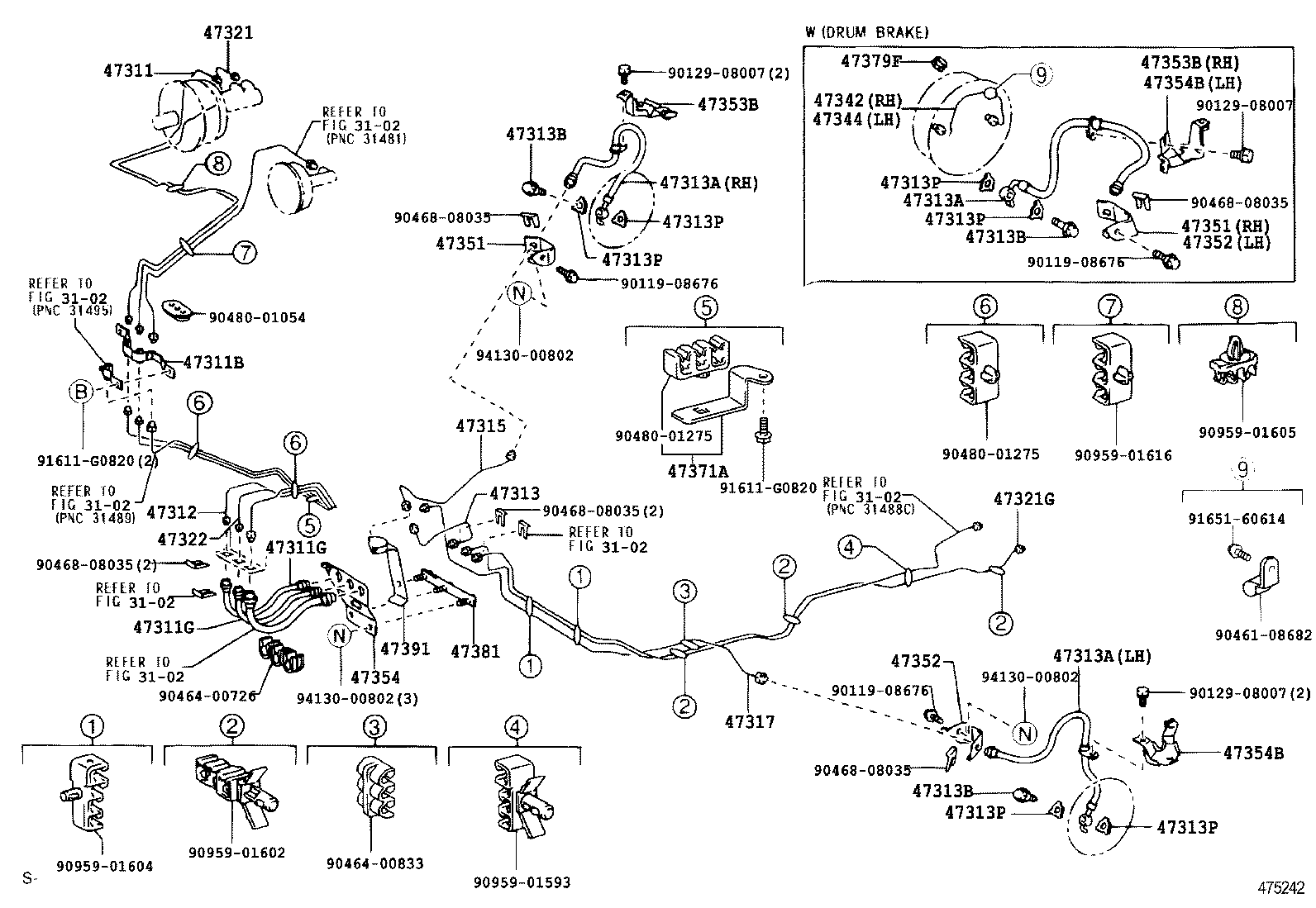

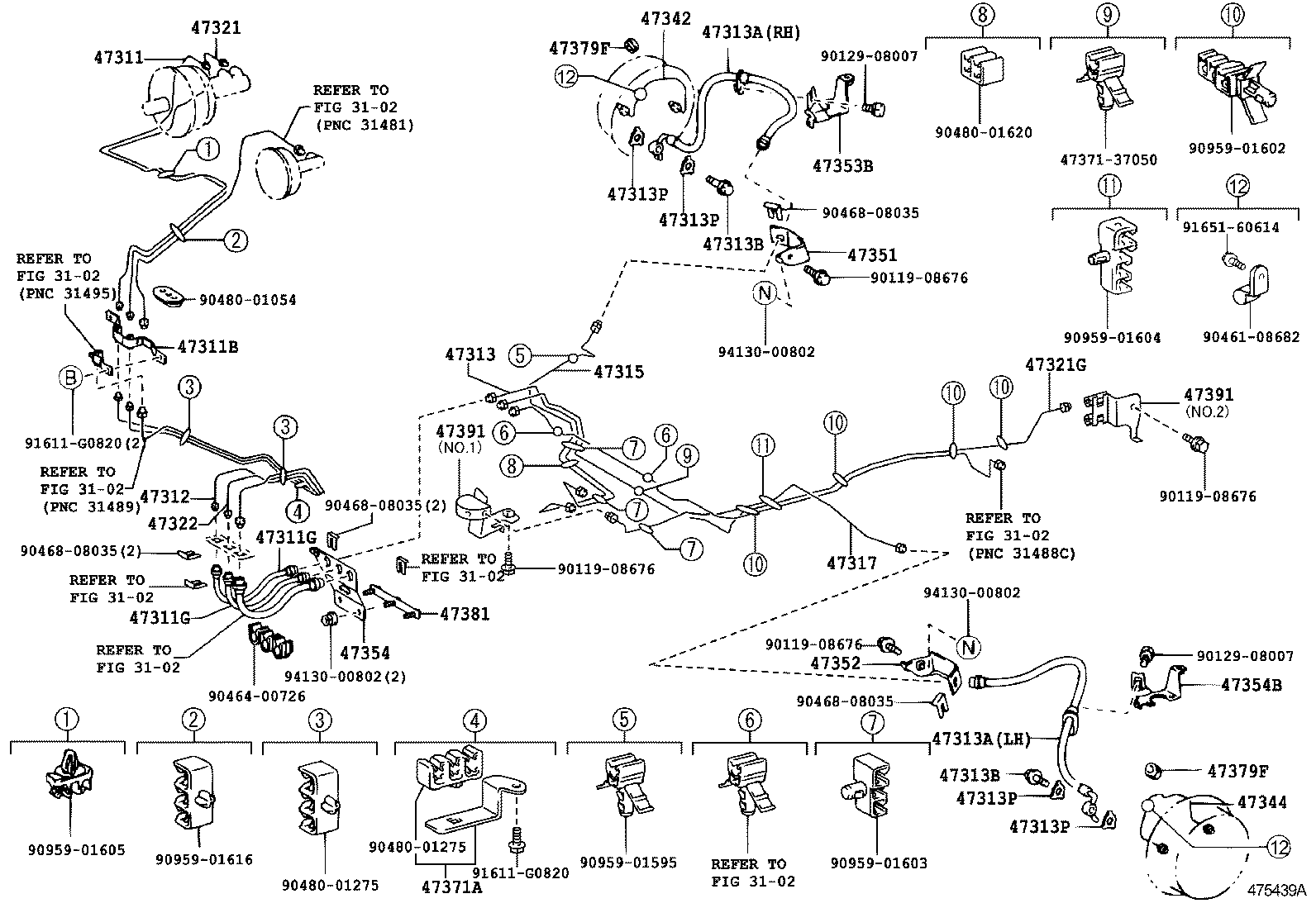

ILLUST NO. 1 OF 4(0110-0610)RHD..GEN ; (0212-0801)WU420 ; (0212-0801)WU410..65T..SA ; (0212- )WU4
W(ABS) & W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37161 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37162 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47311-37162 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47311-37400 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37500 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37270 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47312-37270 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37520 |
WU410,XZU412,422..RHD..(65T,75T)..GEN W/O(ABS) |
1 | ||
| 47315-37600 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37500 |
WU410,XZU412,422..RHD..(65T,75T)..GEN |
1 | ||
| 47317-37550 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47321-37160 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37470 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47321-37390 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W/O(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37370 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47322-37371 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47322-37371 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47354-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47354-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47371-37030 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47379-37010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37280 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47381-37280 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37280 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47381-37280 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90959-01593 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||

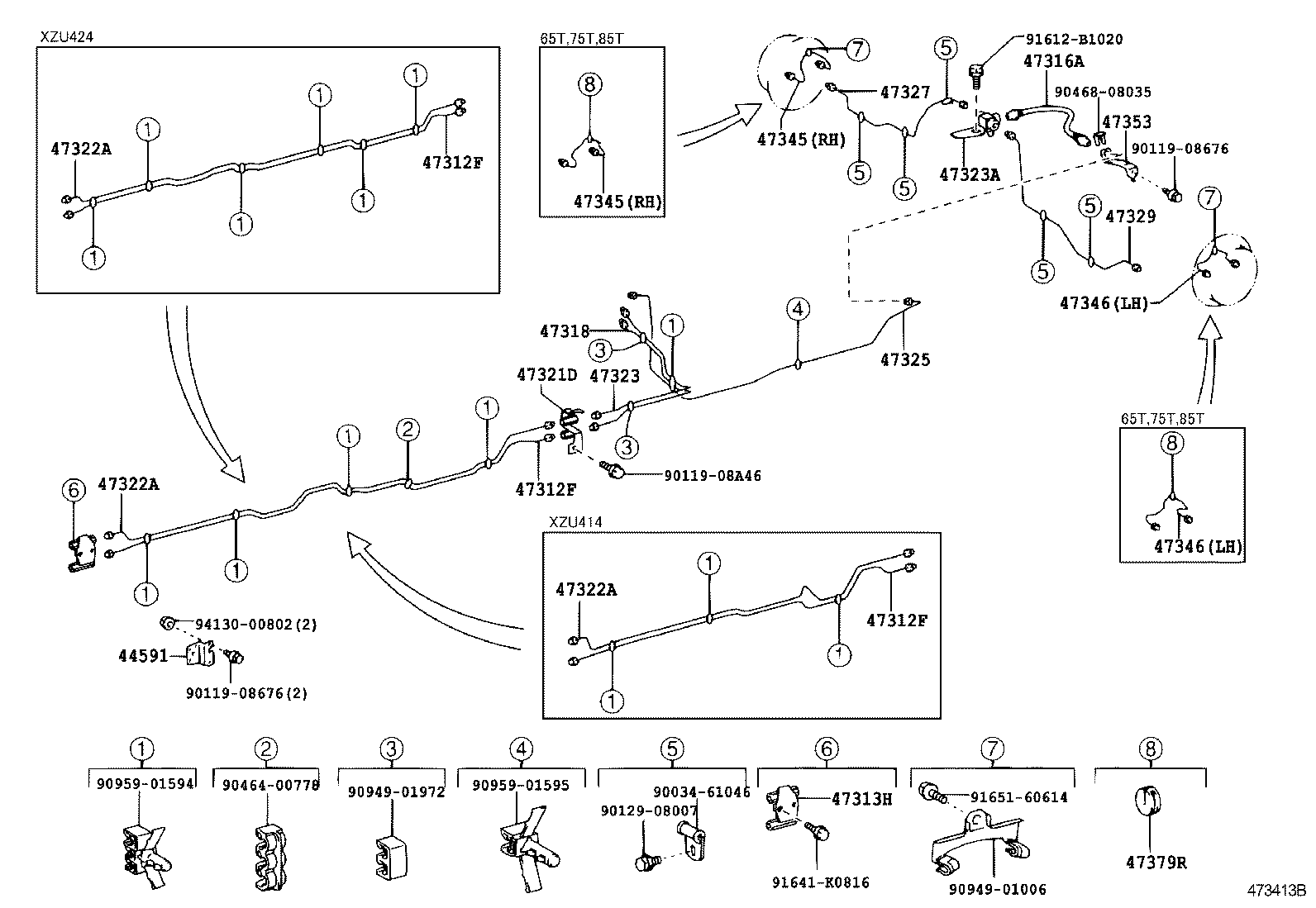

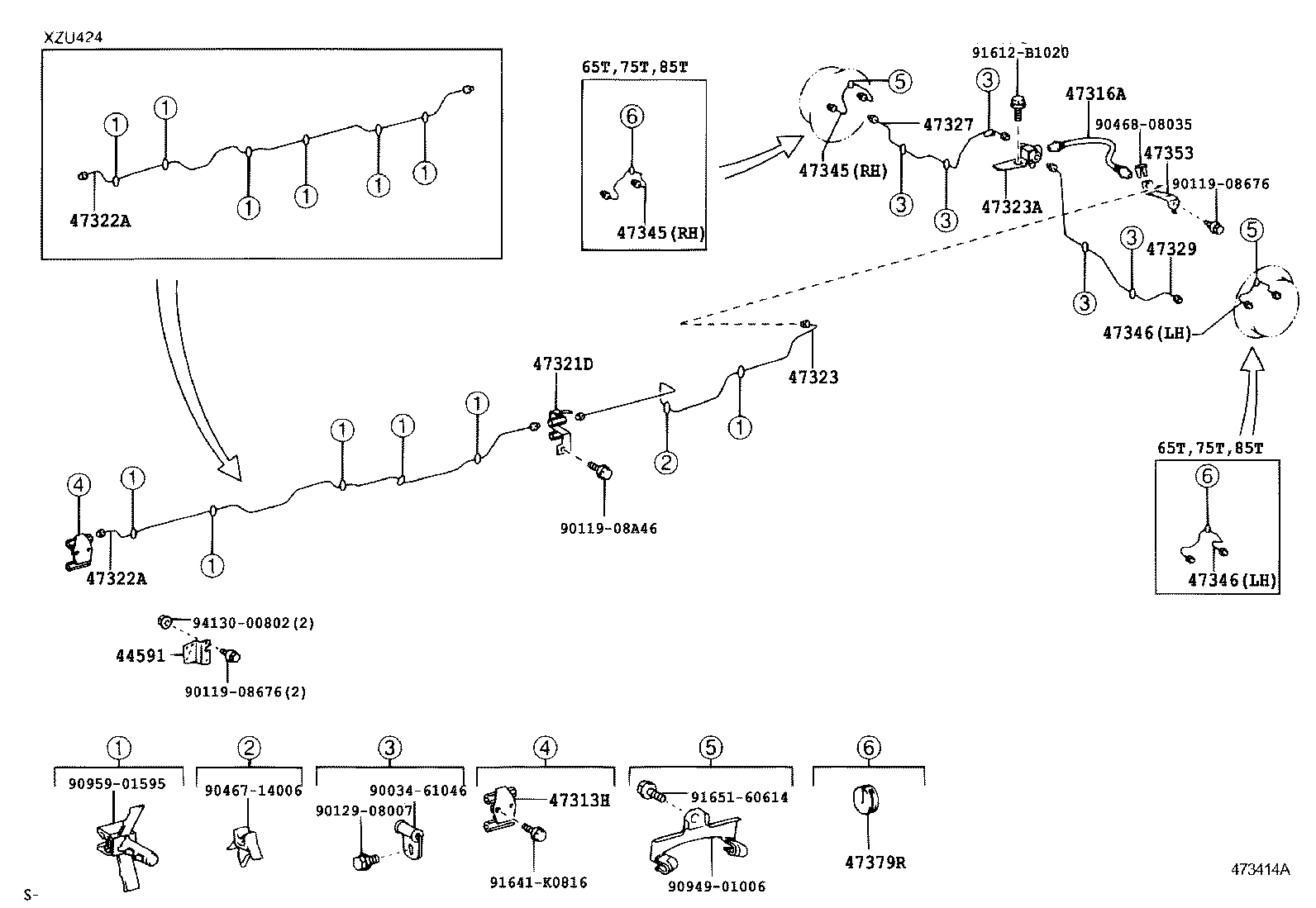

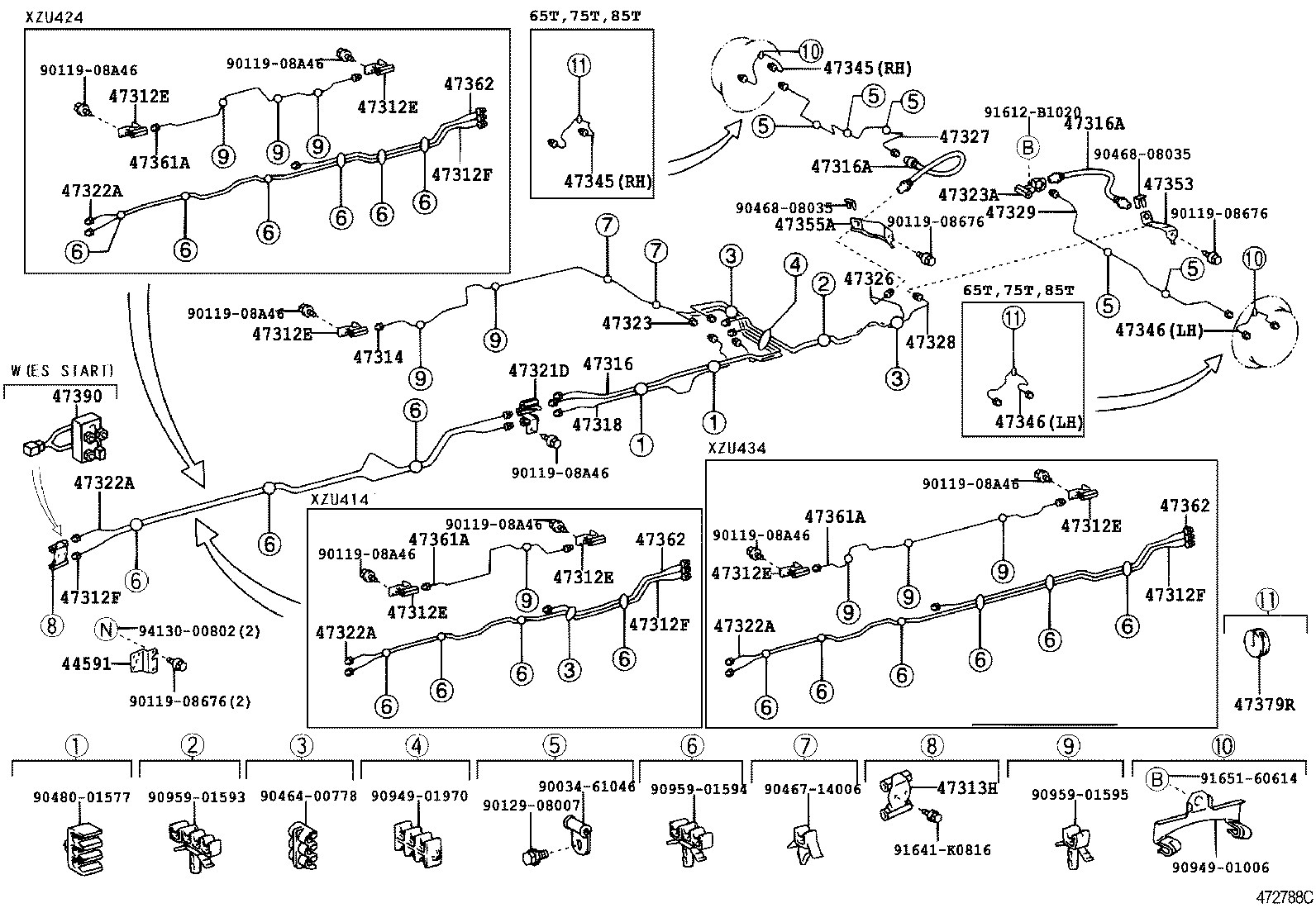

ILLUST NO. 2 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
W(ABS) & W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37130 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44591-37130 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 90904-12076 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37390 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47318-37390 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47318-37390 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47318-37390 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90412-10229 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37470 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W(LSPV) & W/O(ABS) |
1 | ||
| 47323-37470 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W(LSPV) & W/O(ABS) |
1 | ||
| 47323-37480 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN W/O(ABS & LSPV) |
1 | ||
| 47323-37480 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN W/O(ABS & LSPV) |
1 | ||
| 47323-37480 |
WU41#,422,XZU413,423..GEN |
1 | ||
| 47323-37480 |
WU41#,422,XZU413,423..GEN |
1 | ||
| 47323-37470 |
WU41#,422,XZU413,423..GEN W(LSPV) |
1 | ||
| 47323-37470 |
WU41#,422,XZU413,423..GEN W(LSPV) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37150 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47391-37150 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47391-37150 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47391-37150 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37610 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47327-37610 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47327-37610 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47327-37610 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37250 |
XZU414,424..(65T,75T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47329-37250 |
XZU414,424..(65T,75T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47329-37250 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423..65T,75T |
1 | ||
| 47329-37250 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423..65T,75T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47353-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47379-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01006 | ||||
| 90949-01970 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||

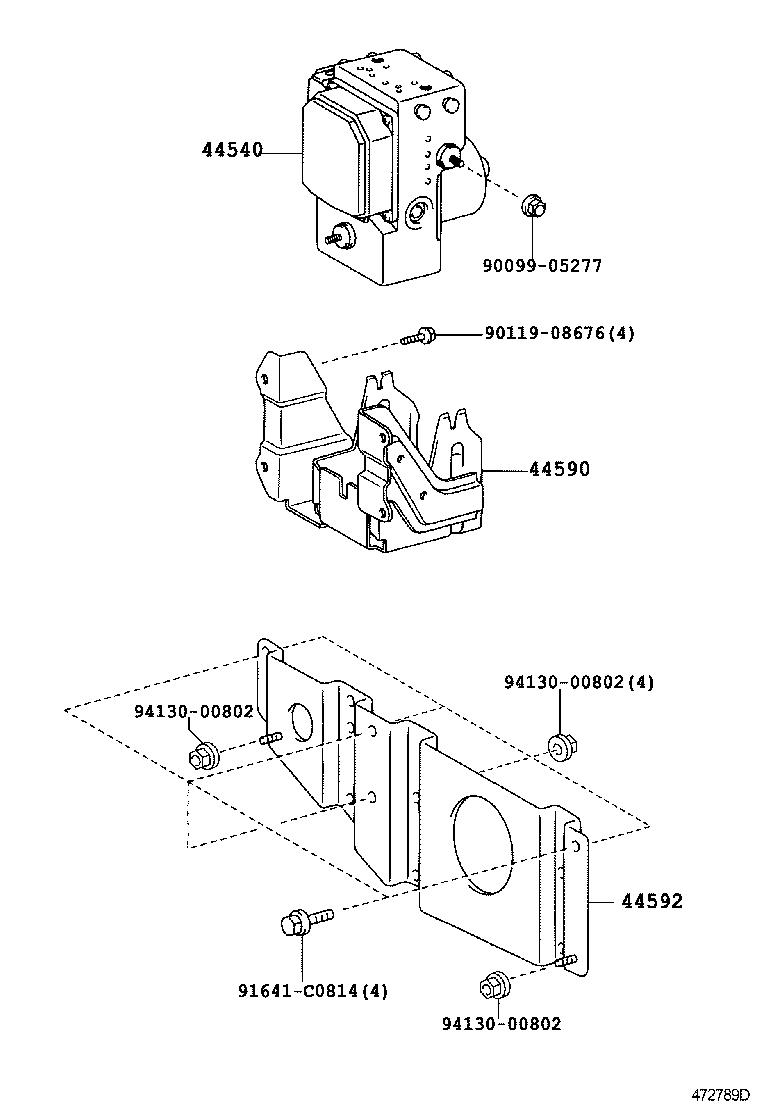

ILLUST NO. 3 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
W(ABS) & W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44591-37141 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 44591-37141 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 44591-37142 |
WU41#,422,XZU413,423 |
1 | ||
| 44591-37142 |
WU41#,422,XZU413,423 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
| 91641-C0814 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 4(0110-0610)RHD..GEN ; (0212-0801)WU420 ; (0212-0801)WU410..65T..SA ; (0212- )WU4
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37161 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37162 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47311-37162 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47311-37400 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37500 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37270 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47312-37270 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37390 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN |
1 | ||
| 47313-37490 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37520 |
WU410,XZU412,422..RHD..(65T,75T)..GEN W/O(ABS) |
1 | ||
| 47315-37600 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37500 |
WU410,XZU412,422..RHD..(65T,75T)..GEN |
1 | ||
| 47317-37550 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47321-37160 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37470 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47321-37390 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W/O(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37370 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47322-37371 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47322-37371 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47354-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47354-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47371-37030 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47379-37010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37280 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47381-37280 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37190 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 47391-37180 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47391-37390 |
WU41#,422,XZU413,423..GEN W(LSPV),NO.1 |
1 | ||
| 47391-37410 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW NO.2 |
1 | ||
| 47391-37380 |
WU41#,422,XZU413,423..GEN NO.1 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90461-08682 | ||||
| 90464-00726 | ||||
| 90464-00833 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01602 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
W/O(ABS & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37130 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44591-37130 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 90904-12076 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90412-10229 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37470 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W(LSPV) & W/O(ABS) |
1 | ||
| 47323-37470 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W(LSPV) & W/O(ABS) |
1 | ||
| 47323-37480 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN W/O(ABS & LSPV) |
1 | ||
| 47323-37480 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN W/O(ABS & LSPV) |
1 | ||
| 47323-37480 |
WU41#,422,XZU413,423..GEN |
1 | ||
| 47323-37480 |
WU41#,422,XZU413,423..GEN |
1 | ||
| 47323-37470 |
WU41#,422,XZU413,423..GEN W(LSPV) |
1 | ||
| 47323-37470 |
WU41#,422,XZU413,423..GEN W(LSPV) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37150 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47391-37150 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47391-37150 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47391-37150 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37610 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47327-37610 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47327-37610 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47327-37610 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37250 |
XZU414,424..(65T,75T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47329-37250 |
XZU414,424..(65T,75T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47329-37250 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423..65T,75T |
1 | ||
| 47329-37250 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423..65T,75T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47353-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47379-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 4(0110-0610)RHD..GEN ; (0212-0801)WU420 ; (0212-0801)WU410..65T..SA ; (0212- )WU4
W/O(ABS & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37161 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37162 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47311-37162 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47311-37400 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37270 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47312-37270 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37390 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN |
1 | ||
| 47313-37490 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37520 |
WU410,XZU412,422..RHD..(65T,75T)..GEN W/O(ABS) |
1 | ||
| 47315-37600 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37500 |
WU410,XZU412,422..RHD..(65T,75T)..GEN |
1 | ||
| 47317-37550 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47321-37160 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37470 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47321-37390 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W/O(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37370 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47322-37371 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47322-37371 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47354-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47354-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47371-37030 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47379-37010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37280 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47381-37280 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37190 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 47391-37180 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47391-37390 |
WU41#,422,XZU413,423..GEN W(LSPV),NO.1 |
1 | ||
| 47391-37410 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW NO.2 |
1 | ||
| 47391-37380 |
WU41#,422,XZU413,423..GEN NO.1 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90461-08682 | ||||
| 90464-00726 | ||||
| 90464-00833 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90959-01593 | ||||
| 90959-01602 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 3 OF 4(0610- )WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44591-37141 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 44591-37142 |
WU41#,422,XZU413,423 |
1 | ||
| Common parts | ||||
| 91641-C0814 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 4(0610- )RHD..GEN
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37161 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37162 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47311-37162 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47311-37400 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37500 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37270 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47312-37270 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37390 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN |
1 | ||
| 47313-37490 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37520 |
WU410,XZU412,422..RHD..(65T,75T)..GEN W/O(ABS) |
1 | ||
| 47315-37600 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37500 |
WU410,XZU412,422..RHD..(65T,75T)..GEN |
1 | ||
| 47317-37550 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47321-37160 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37470 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47321-37390 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W/O(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37370 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47322-37371 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47322-37371 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47354-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47371-37030 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47379-37010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47379-37010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37280 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47381-37280 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37190 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 47391-37180 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47391-37390 |
WU41#,422,XZU413,423..GEN W(LSPV),NO.1 |
1 | ||
| 47391-37410 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW NO.2 |
1 | ||
| 47391-37380 |
WU41#,422,XZU413,423..GEN NO.1 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37190 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 47391-37180 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47391-37390 |
WU41#,422,XZU413,423..GEN W(LSPV),NO.1 |
1 | ||
| 47391-37410 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW NO.2 |
1 | ||
| 47391-37380 |
WU41#,422,XZU413,423..GEN NO.1 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90461-08682 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01620 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 4(0610- )WU41#,422,XZU413,423..GEN
W/O(ABS & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37470 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W(LSPV) & W/O(ABS) |
1 | ||
| 47323-37480 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN W/O(ABS & LSPV) |
1 | ||
| 47323-37480 |
WU41#,422,XZU413,423..GEN |
1 | ||
| 47323-37470 |
WU41#,422,XZU413,423..GEN W(LSPV) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37150 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47391-37150 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37610 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47327-37610 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37250 |
XZU414,424..(65T,75T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47329-37250 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423..65T,75T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF 4(0610- )WU41#,422,XZU413,423..GCC,GEN
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37390 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47318-37390 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37470 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W(LSPV) & W/O(ABS) |
1 | ||
| 47323-37480 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN W/O(ABS & LSPV) |
1 | ||
| 47323-37480 |
WU41#,422,XZU413,423..GEN |
1 | ||
| 47323-37470 |
WU41#,422,XZU413,423..GEN W(LSPV) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37150 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47391-37150 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37290 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47325-37290 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37610 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47327-37610 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37250 |
XZU414,424..(65T,75T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47329-37250 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423..65T,75T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90949-01972 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||

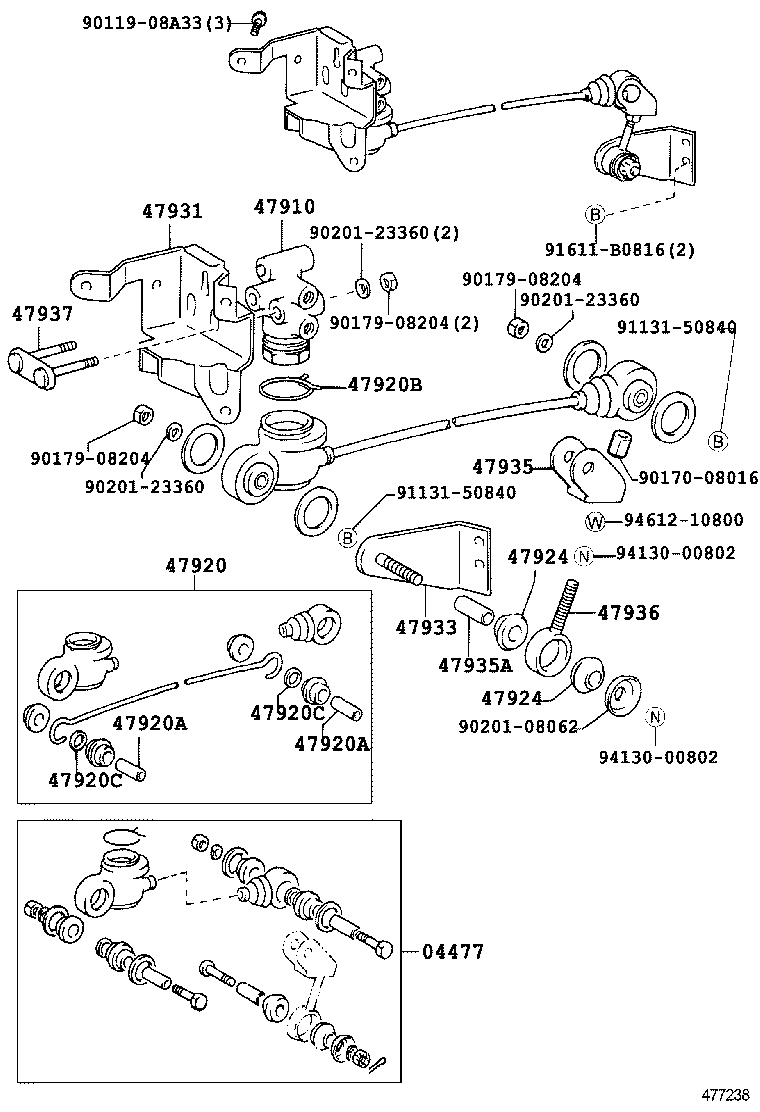

ILLUST NO. 4 OF 4(0110-0610)XZU414,424..LHD..GEN ; (0110-0610)WU410,XZU412,422..GCC,GEN ; (0212-
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-37010 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 04477-37010 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 04477-37010 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 04477-37010 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-37090 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47910-37090 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47910-37090 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47910-37090 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-37080 |
XZU414..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412..(55T,65T)..(GCC,GEN) |
1 | ||
| 47920-37080 |
XZU414..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412..(55T,65T)..(GCC,GEN) |
1 | ||
| 47920-37080 |
WU41#,422,XZU413,417,423,427..(55T,65T,75T)..(GCC,GEN,TAIW) |
1 | ||
| 47920-37080 |
WU41#,422,XZU413,417,423,427..(55T,65T,75T)..(GCC,GEN,TAIW) |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 90387-08099 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 90387-08099 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 90387-08099 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 90387-08099 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 90387-08099 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 90387-08099 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 90467-31110 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 90467-31110 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 90467-31110 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 90202-10103 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 90202-10103 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 90202-10103 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 90202-10103 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 90202-10103 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 90202-10103 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 47924-35010 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 47924-35010 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 47924-35010 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 47924-35010 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
2 | ||
| 47924-35010 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 47924-35010 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47931-37020 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47931-37020 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47931-37020 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-37050 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47933-37050 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47933-37050 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47933-37050 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47935-35030 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47935-35030 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47935-35030 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 90387-08099 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 90387-08099 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 90387-08099 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26020 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47936-26020 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47936-26020 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47936-26020 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47937-60010 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47937-60010 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47937-60010 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| Common parts | ||||
| 90119-08A33 | ||||
| 90170-08016 | ||||
| 90179-08204 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||
ILLUST NO. 1 OF 4(0610- )RHD..GEN
W/O(ABS & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37161 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47311-37162 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47311-37162 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47311-37400 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37270 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47312-37270 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37390 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN |
1 | ||
| 47313-37490 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
1 | ||
| 90947-02A77 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T RH |
1 | ||
| 90947-02B28 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T LH |
1 | ||
| 90947-02B28 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37520 |
WU410,XZU412,422..RHD..(65T,75T)..GEN W/O(ABS) |
1 | ||
| 47315-37600 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37500 |
WU410,XZU412,422..RHD..(65T,75T)..GEN |
1 | ||
| 47317-37550 |
WU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47321-37160 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37470 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47321-37390 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W/O(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37370 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 47322-37371 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47322-37371 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47342-37061 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47353-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37210 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47354-37210 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47371-37030 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47379-37010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47379-37010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37280 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47381-37280 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37190 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 47391-37180 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47391-37390 |
WU41#,422,XZU413,423..GEN W(LSPV),NO.1 |
1 | ||
| 47391-37410 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW NO.2 |
1 | ||
| 47391-37380 |
WU41#,422,XZU413,423..GEN NO.1 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37190 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 47391-37180 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W(LSPV) |
1 | ||
| 47391-37390 |
WU41#,422,XZU413,423..GEN W(LSPV),NO.1 |
1 | ||
| 47391-37410 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW NO.2 |
1 | ||
| 47391-37380 |
WU41#,422,XZU413,423..GEN NO.1 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90461-08682 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01620 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37130 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44591-37130 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47312-37240 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 90904-12076 |
XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 90947-02B78 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37390 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47318-37390 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47318-37390 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47318-37390 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 90412-10229 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37330 |
XZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37800 |
WU41#,XZU413..GCC,GEN W(LSPV) |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47322-37810 |
WU41#,XZU413..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37470 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W(LSPV) & W/O(ABS) |
1 | ||
| 47323-37470 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W(LSPV) & W/O(ABS) |
1 | ||
| 47323-37480 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN W/O(ABS & LSPV) |
1 | ||
| 47323-37480 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN W/O(ABS & LSPV) |
1 | ||
| 47323-37480 |
WU41#,422,XZU413,423..GEN |
1 | ||
| 47323-37480 |
WU41#,422,XZU413,423..GEN |
1 | ||
| 47323-37470 |
WU41#,422,XZU413,423..GEN W(LSPV) |
1 | ||
| 47323-37470 |
WU41#,422,XZU413,423..GEN W(LSPV) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37150 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47391-37150 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) W/O(ABS) |
1 | ||
| 47391-37150 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47391-37150 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37290 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47325-37290 |
XZU404,414..55T..ARL;XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 47325-37290 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47325-37290 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37610 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47327-37610 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47327-37610 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47327-37610 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37250 |
XZU414,424..(65T,75T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47329-37250 |
XZU414,424..(65T,75T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 47329-37250 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423..65T,75T |
1 | ||
| 47329-37250 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423..65T,75T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47345-37060 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47346-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47353-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47379-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 47379-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90949-01972 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
